Description

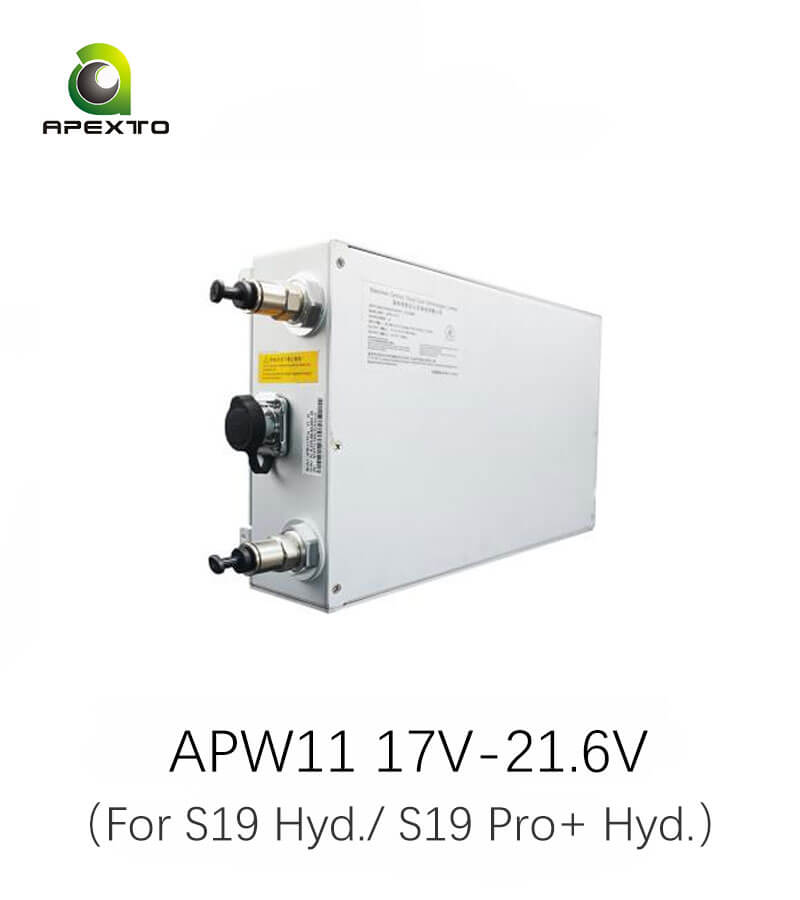

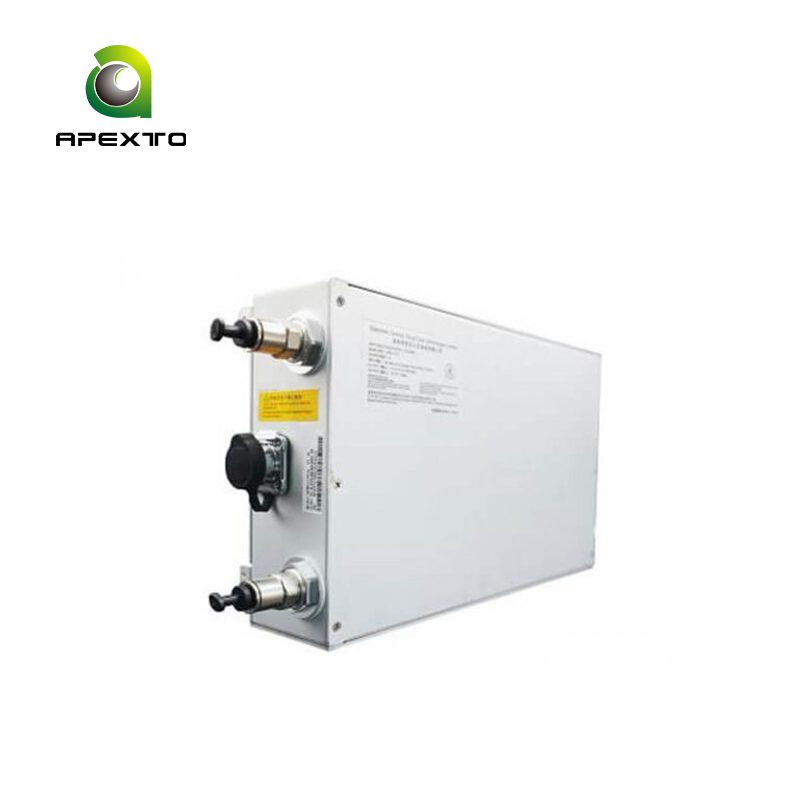

The Bitmain APW11 Power Supply (17V-21.6V EMC PSU) is ideal for powering water-cooled Antminer rigs, including the S21 Hydro, S19XP Hydro, S19 Hydro, T19 Hydro, S19 Pro Hydro, and S19 Pro+ Hydro SHA256 models. Ensure compatibility with your miner version by contacting our sales team before purchasing the APW11 PSU.
Note: Please update your ANTMINER with the newest firmware accordingly after replacing the power supply. You can contact us for the firware.
| Product Glance | |
| Out1 | |
| DC Voltage | 17V-21.6V |
| Rated Current(380V input) | 300A |
| Rated Power(380Vinput) | 6500W |
| Ripple & Noise | <1% |
| Line Regulation | <1% |
| Load Regulation | <1% |
| Setup Time | <5S |
| Short Circuit Protection | >10mS |
| Detailed Characteristics | |
| Out2 | |
| DC Voltage | 12.3V |
| Rated Current(220 V input) | 1A |
| Ripple & Noise | <1% |
| Voltage Accuracy | 12.2V—12.4V |
| Line Regulation | <1% |
| Load Regulation | <1% |
| Setup Time | <5S |
| Short Circuit Protection | >10mS |
| Voltage Range | 380 – 415V AC |
| Frequency Range | 50~60 Hz |
| Power Factor | >0.99 (full load) |
| Leakage Current | <1.5mA (380V 50Hz) |
| Low-voltage Input | <304V AC |
| Output Short Circuit | Yes |
| Overheat Protection | Yes |
| Over-current Output | 300A – 350A |
| Operating Temperature | -20 – 45℃ |
| Operating Humidity | 20% – 90%RH (non-condensing) |
| Altitude | <2000m |
| Dimensions | 320mm * 179mm * 63mm |
| Net Weight | 5kg |
| Cooling System | Water cooling |
| Inlet temperature | 20 – 35 ℃ |
| Water flow rate | 8L/min |
| Water pressure | 3 BAR |
While APW11 17V-21.6V EMC (b Version) suit for Antminer S19 Hyd / S19XP Hyd / T19 Hyd / S19 Pro+ Hyd SHA256 Hydro-cooling miner;
APW111721c 17V-21.6V RSPri_V1.25 EMC is suit for Antminer S21 Hyd Hydro-cooling miner.
