This water cooling cabinet delivers 200kW of hydro cooling capacity, supporting up to 34 Antminer Hydro miners for stable and efficient Bitcoin mining.
Flexible deployment solutions for up to 34 hydro-cooled ASICs
CONTAINER CAPACITY
ASIC MINERS
34 UNITS
Housed at full load
TOTAL POWER
200 KW
Continuous electrical load
FORM FACTOR
Custom
Standard
COOLING
Hydro
Thermal management
POWER INPUT
380V–415V AC 50/60Hz
AVAILABILITY
Typical lead time 15 days • DDP Sea Shipping Available
Product Description

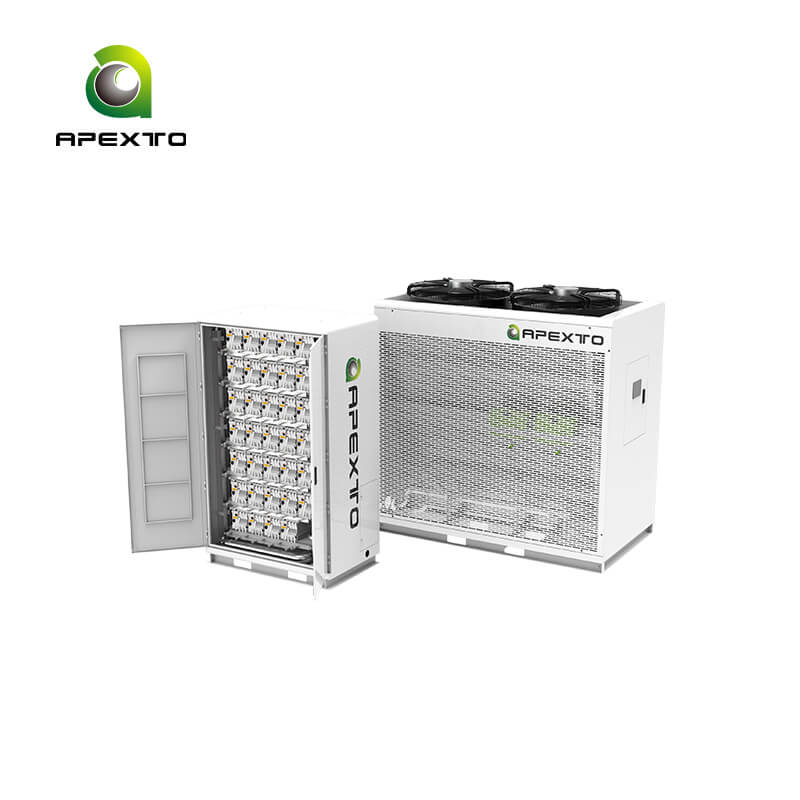

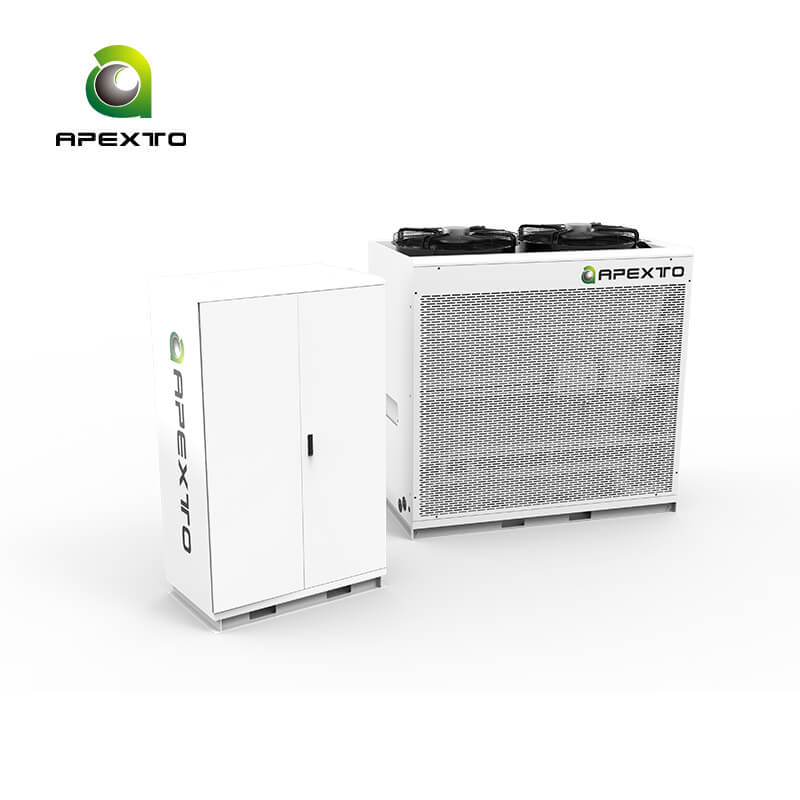

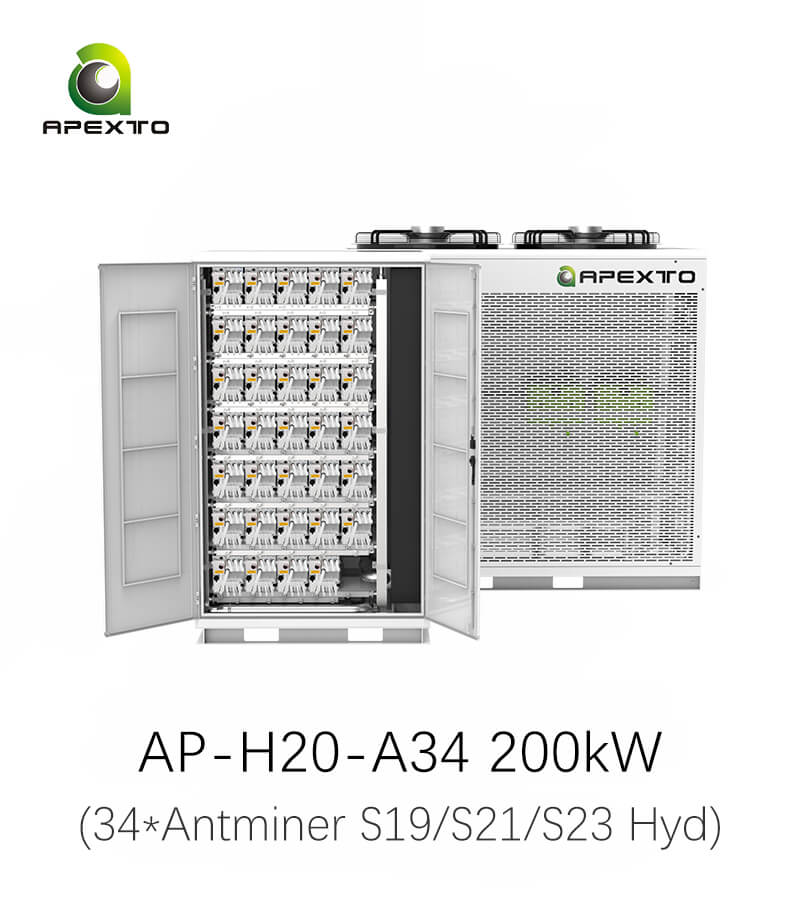

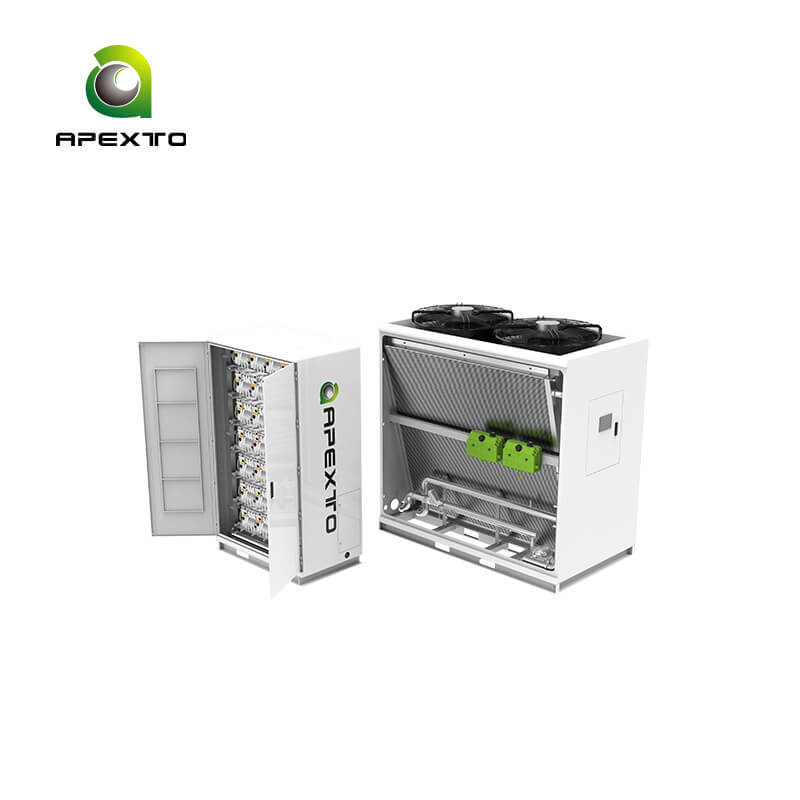

The 200kW 34-Slot Hydro Cooling Cabinet is a compact rack designed to hold 34 Antminer S19, S21, or S23 Hydro units. It provides 200kW of cooling to keep all miners at the right temperature while significantly reducing noise compared to air-cooled setups.
The frame is built to keep all water hoses and power cables neatly organized in one place. You can install the cabinet indoors and place the cooling radiator outside, or keep the entire system together as one unit in a sheltered area. This flexibility makes it easy to fit into garages, workshops, or small workspaces.
As a standalone setup, it works within its own space and does not require specialized facility infrastructure. It is a practical way to manage multiple water-cooled miners in a limited area while keeping the environment clean and organized.
Core Advantages
01. Flexible Deployment Layout
Supports both integrated and split configurations for the rack and dry cooler. This versatility allows you to optimize placement based on your specific indoor or outdoor space.
02. Adaptable Rack Architecture
Dual circulation loops, dual CDUs, and multi-channel power ensure single-side operation during power shortages, boosting energy efficiency and reliability for mining operations.
03. Factory-Grade Connectivity
Features original Bitmain-standard aviation plugs and high-quality power cables. These professional components ensure secure, high-current connections and long-term electrical safety for every miner.
04. Reliable Internal Circulation
The professional expansion tank and durable internal piping maintain stable fluid pressure. This system ensures uniform coolant delivery and consistent thermal management across all 34 mining slots.

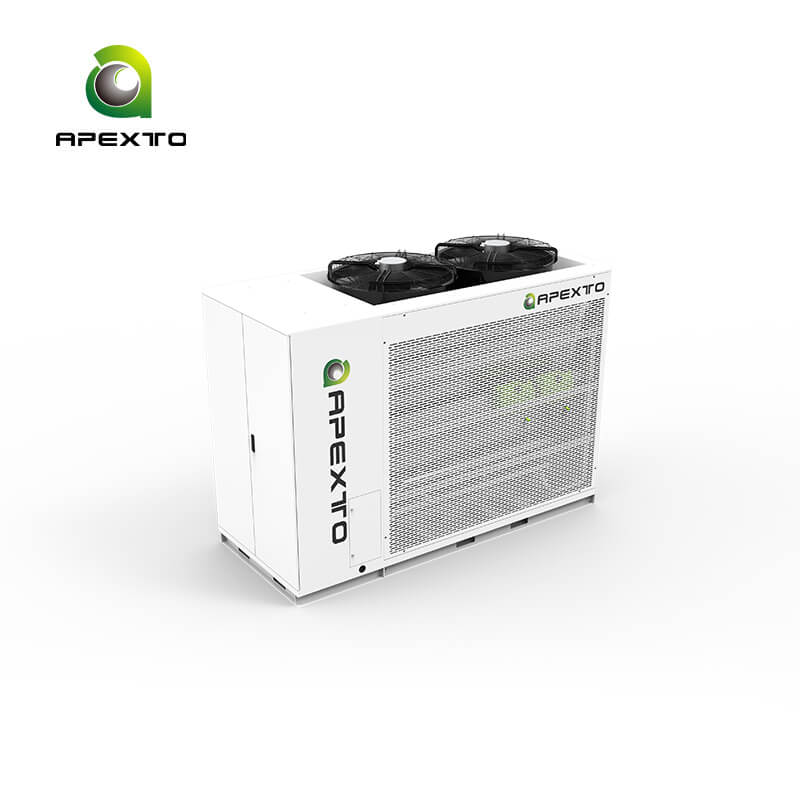

05. Industrial 200kW Dry Cooler
A 200kW corrosion-resistant aluminum dry cooler with dual high-performance fans. Built for high-pressure resistance and anti-clogging, it provides stable heat dissipation even in harsh environments.
06. Integrated Management System
Control system integrated directly into the dry cooler for centralized operation. Features a HMI panel for real-time monitoring of temperature, flow, and pressure with adjustable fan settings.
Full Specifications
External dimensions
L:1350mm、W:800mm、H:2250mm
Internal dimensions
L:1300mm、W:750mm、H:2200mm
Weight
1650KG
|
Model |
AP-A34 |
Installed capacity |
34 Seat |
|
Installed powerload |
200 kW |
PUE |
≤ 1.04 |
|
Dimensions Of Cabinet |
1,350 x 8,00 x 2,250 mm |
Dimensions Of Dry cooler |
2,350 x 1,350 x 2,400 mm |
|
Cabinet Weight |
400 Kg |
Dry Cooler Weight |
1250 Kg |
|
Input Voltage |
380V – 415V AC (3P+N+PE) |
Frequency |
50Hz |
|
Heat Capacity |
200 kW @35℃ |
Total load |
210 kW |
|
Miner Control Breaker |
400 A |
Heat Dissipation |
Liquid-to-Liquid / Liquid-to-Air |
|
Coolant Type |
50 % Ethylene Glycol Mixture |
Flow Rate |
25 m³/h |
|
Pipe |
SS304 DN65 |
Operating Temp |
–20°C to +45°C |
|
Sound Pressure LpA |
≤ 60 dB(A) |
34-Slot Antminer Hydro Cooling Rack Product Brochure
Complete product specifications, installation guide, and operational instructions.
Certification Standards
Our products meet leading international standards for safety, reliability, and performance.
China Classification Society
Marine & offshore compliance
UL Listed
Safety tested & certified
CSA Certified
North American compliance
CE Marking
European conformity
Complete Cooling Solutions
We design and manufacture a complete range of hydro cooling solutions for every scale, from hydro cooling cabinets and containers to CDUs and dry coolers.
|
❄️ Cooling Capacity |
|
⚙️ Miner Slots |
|
📏 Dimensions (L × W × H) |
|
🏢 Application |
28-Slot Antminer Hydro Cooling Rack
|
154 kW |
|
28 Slots |
|
1,750 × 1,000 × 2,200 mm |
|
Home & Personal Mining |
Compare
34-Slot Antminer Hydro Cooling Rack
|
200 kW |
|
34 Slots |
|
1,350 × 8,00 × 2,250 mm |
|
Small-Scale Mining Sites |
36-Slot Antminer Hydro Cooling Rack
|
200 kW |
|
36 Slots |
|
2,230 × 8,00 × 2,370 mm |
|
Professional Mining Facilities |
40-Slot Antminer Hydro Cooling Rack
|
230 kW |
|
40 Slots |
|
2,500 × 1,200 × 2,640 mm |
|
Mid-Scale Industrial Deployment |
34-Slot Antminer Hydro Cooling Rack FAQs
What deployment methods are supported for different site environments?
The system supports both split and integrated deployments. A split setup allows you to place the cabinet indoors while keeping the heat-generating dry cooler outdoors. The integrated setup combines both units in a sheltered outdoor area. This choice lets you adapt the installation based on your available floor space and noise requirements.
What are the practical benefits of the full-enclosure design?
Beyond aesthetics, the enclosed rack keeps the internal water hoses and power cables organized and out of sight. It also helps manage airflow and provides an extra layer of protection for connectors and hardware in shared workspaces like workshops or home garages.
Does the rack design support customization for different miner models?
Yes. The internal layout is engineered for customization. While standard configurations support Antminer hydro units, the modular frame can be tailored to house other hardware, such as 20 Whatsminer 2U miners. We can adjust the rack spacing and power connections to meet your specific equipment needs.
What are the advantages of integrating the pump system into the dry cooler?
By integrating the pumps and cooling components directly into the dry cooler, the entire solution becomes more compact and easier to deploy. This design reduces the amount of on-site plumbing work, minimizes connection points, and lowers the risk of leaks or installation errors, resulting in a cleaner layout and faster setup.
Can the integrated dry cooling system be used as a standalone unit?
Yes. The integrated dry cooler is available as a separate unit and maintains all its core functions, including circulation, cooling, monitoring, and control. This makes it an ideal solution for upgrading an existing liquid cooling setup or building a new custom mining environment from scratch.
