Designed for large-scale Bitcoin mining, this 40ft hydro cooling container delivers 2.64MW capacity and supports up to 480-Slot Antminer hydro miners.

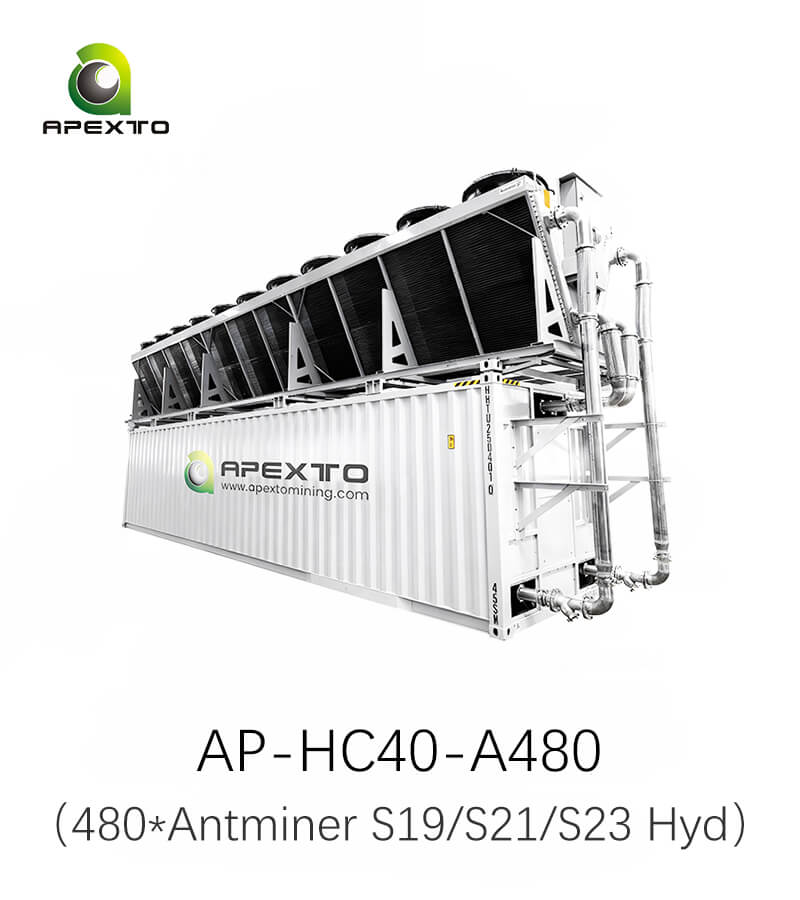

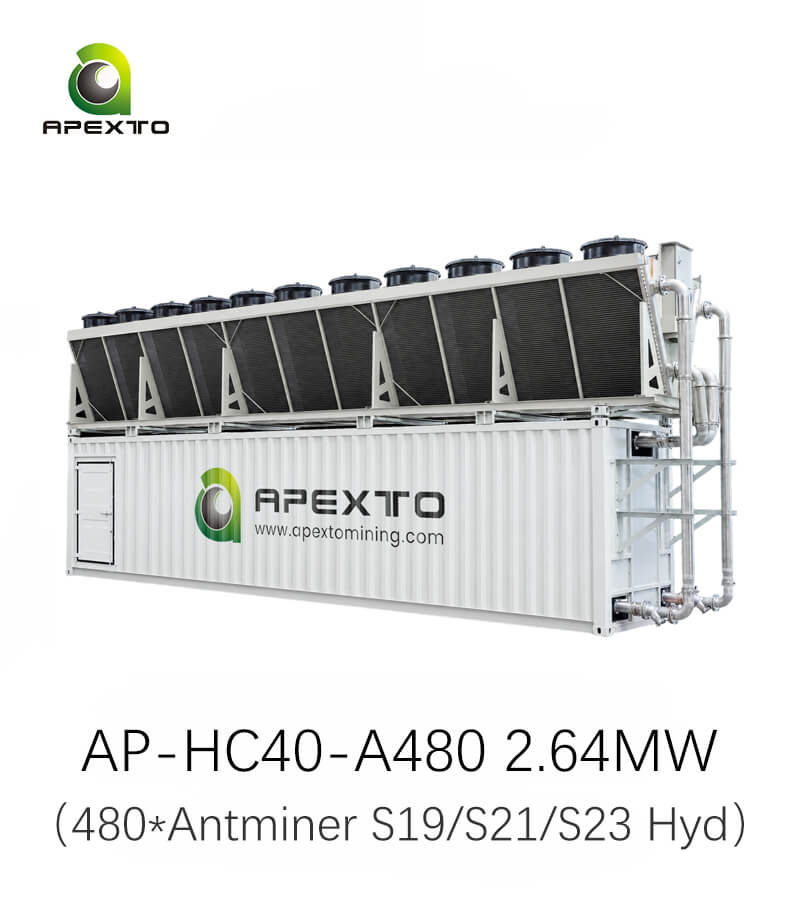

2.64MW 480-Slot Ultra-Density Hydro Cooling Container for BTC Mining
CONTAINER CAPACITY
ASIC MINERS
480 UNITS
Housed at full load
TOTAL POWER
2,640 KW
Continuous electrical load
FORM FACTOR
Custom
Standard
COOLING
Hydro
Thermal management
POWER INPUT
380V–415V AC 50/60Hz
AVAILABILITY
Typical lead time 45 days • DDP Sea Shipping Available
Product Description
Engineered for massive institutional deployments and utility scale operations, the 2.64MW 480-Slot Antminer Hydro Cooling Container 40FT HQ delivers datacenter grade performance for high density enterprise mining.
This standardized 40 foot infrastructure is specifically optimized for megawatt scale mining farms partnering with clean energy grids or off grid power stations, delivering highly cost effective space saving capital efficiency. By packing 480 hydro ASICs into a single frame, it maximizes land use productivity and lowers per megawatt operational overhead.
Designed to withstand demanding industrial climates globally, this robust turnkey solution secures stable, long term thermodynamic performance and continuous uptime for professional, large scale crypto mining enterprises.
Core Advantages
01. Integrated All-in-One System
Integrates the server racks, CDU, power cabinets, and smart controls into a single 40FT container for rapid setup, minimizing on-site civil engineering costs and overall deployment time.
02. Redundant Dual-Loop Cooling
Features redundant water circulation loops and dual pumps to ensure uninterrupted cooling, allowing the container to still keep running even if one side loses power.
03. Individual Power Switches

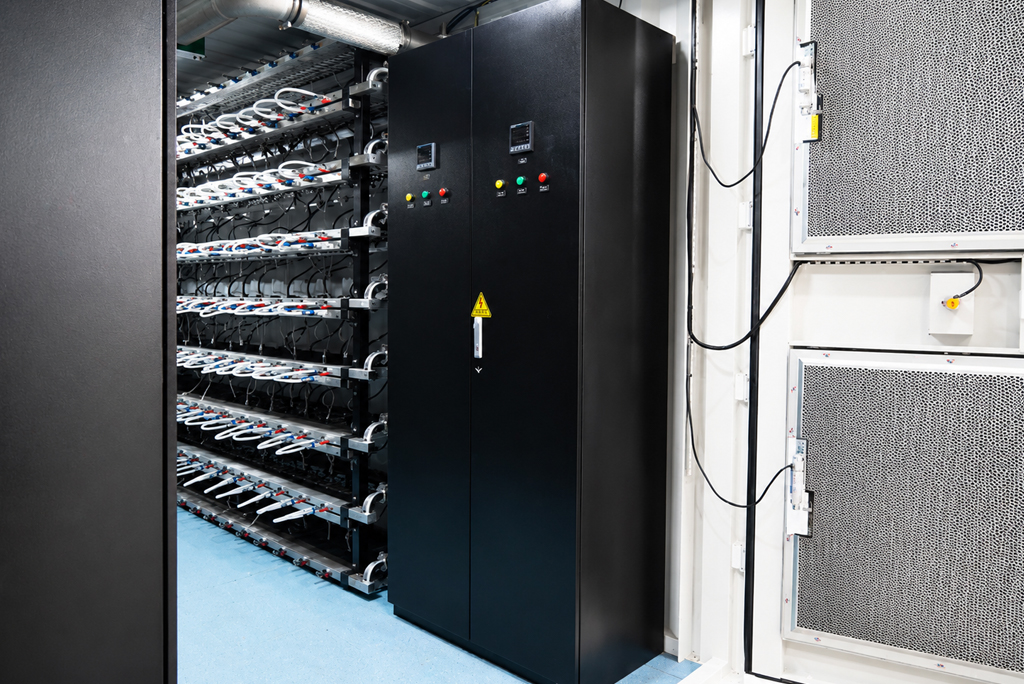

Features four power cabinets arranged symmetrically with two at the front and two at the back, ensuring balanced 2.64MW electricity distribution and highly secure power cabling.
04. Leak Detection System
Uses high-sensitivity, floor-mounted moisture-sensing ropes to instantly detect any coolant leaks, triggering immediate remote alarms and automatic power cutoffs to protect your hardware.
05. Excellence Roots in Details
Features genuine original aviation plugs and high grade quick connectors with a double sealed leakproof design, ensuring zero coolant leakage during any onsite node maintenance.

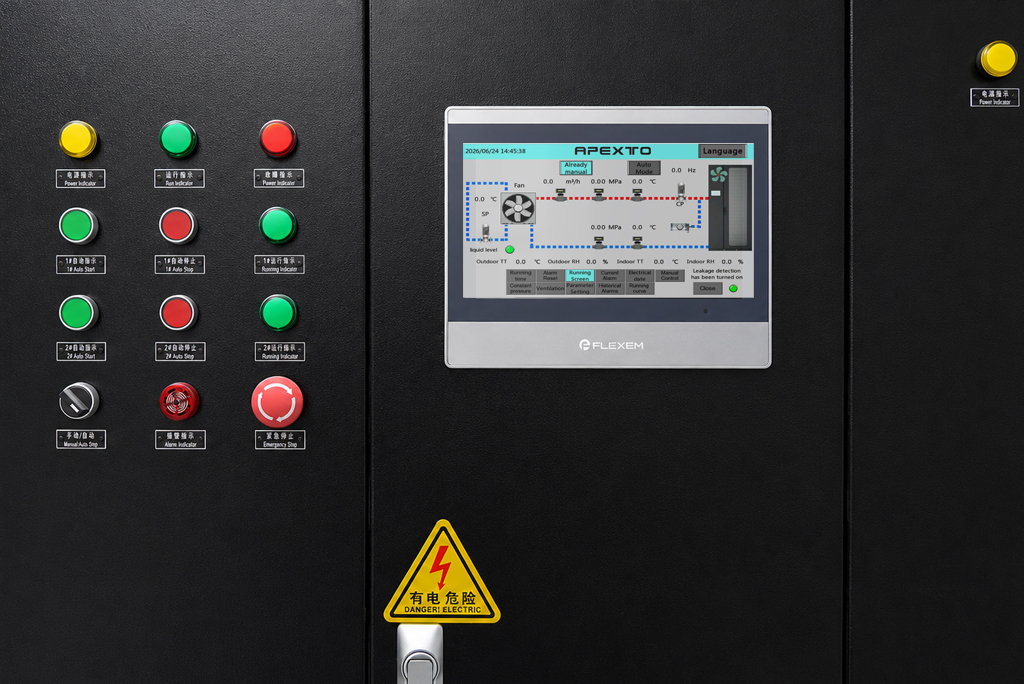

06. Intelligent Management System
Monitors fluid flow, water pressure, temperatures, and PUE in real-time, allowing precise automated system self-regulation and convenient remote control via mobile or PC applications.
Full Specifications
External dimensions
L:12192mm、W:2438mm、H:2896mm
Internal dimensions
L:12000mm、W:2230mm、H:2660mm
Weight
9200KG
|
Model |
AP-HC40-A480 |
Installed capacity |
480 Seat |
|
Installed powerload |
2640 KW |
Power of the light-duty vertical multistage pump |
30 kW |
|
Power of the fluid replenishing pump |
0.2 KW |
Total power of the dry cooling tower fan |
116.2 KW |
|
Total power of the closed cooling tower fan |
35.2 KW |
Total power of the closed cooling tower spray pump |
11 KW |
|
System pipeline pressure |
0.2-0.4 MPA |
Operating temperature range of the system |
22-42 ℃ |
|
Coolant circulation demand of a single machine |
≥0.5 m³/h |
Total demand for circulating coolant within the system |
≥6 m³ |
|
Molded Case Circuit Breaker |
250 A |
Residual Current Circuit Breaker |
800 A |
|
Contactor |
9 A |
Intermediate relay |
24 V |
|
CUL certified frequency converter |
380 V |
Antminer 480-Slot Hydro Cooling Container Product Brochure
Complete product specifications, installation guide, and operational instructions.
Certification Standards
Our products meet leading international standards for safety, reliability, and performance.
China Classification Society
Marine & offshore compliance
UL Listed
Safety tested & certified
CSA Certified
North American compliance
CE Marking
European conformity
Recommended Power Setup
Match your container deployment with the appropriate transformer capacity.
For 1 x 2.64 MW Container
3750 kVA Three-Phase Pad-Mounted Transformer
Complete Cooling Solutions
We design and manufacture a complete range of hydro cooling solutions for every scale, from hydro cooling cabinets and containers to CDUs and dry coolers.
|
❄️ Cooling Capacity |
|
⚙️ Miner Slots |
|
📏 Dimensions (L × W × H) |
|
🏢 Application |

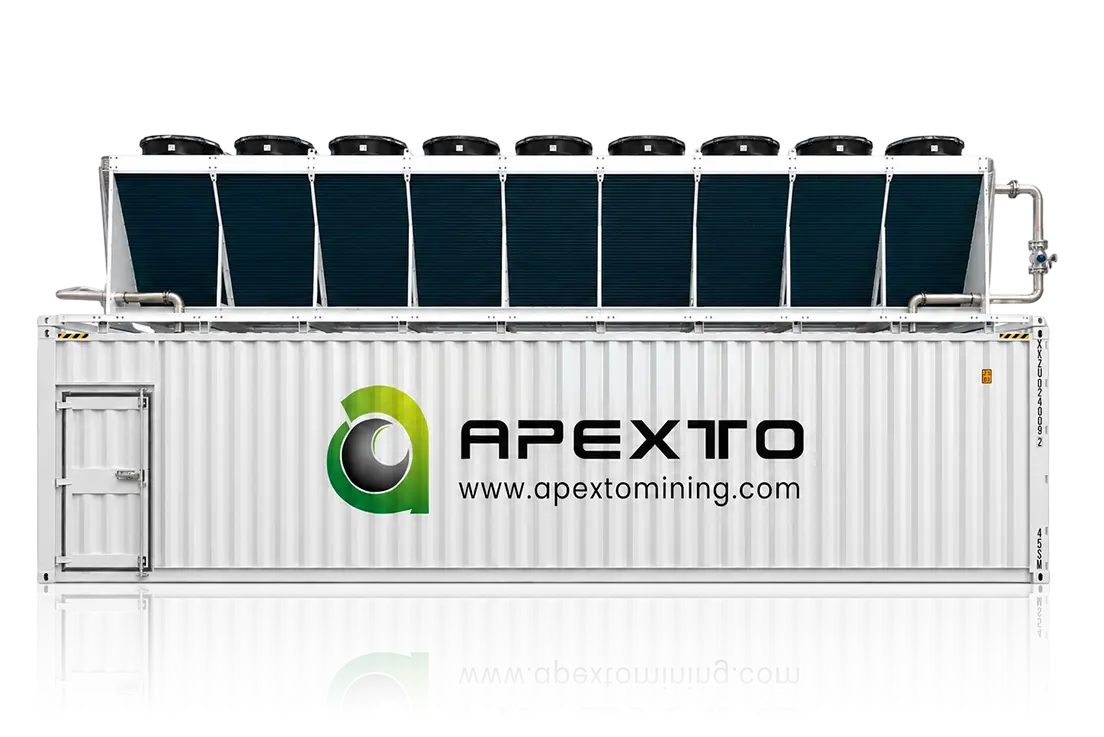

308-Slot Antminer Hydro Cooling Container
|
1.7 MW |
|
308 Slots |
|
1,2192 × 2,438 × 2,896 mm |
|
Standard Industrial Operations |
364-Slot Antminer Hydro Cooling Container
|
2.1 MW |
|
364 Slots |
|
1,2192 × 2,438 × 2,896 mm |
|
High-Density Mining Farms |

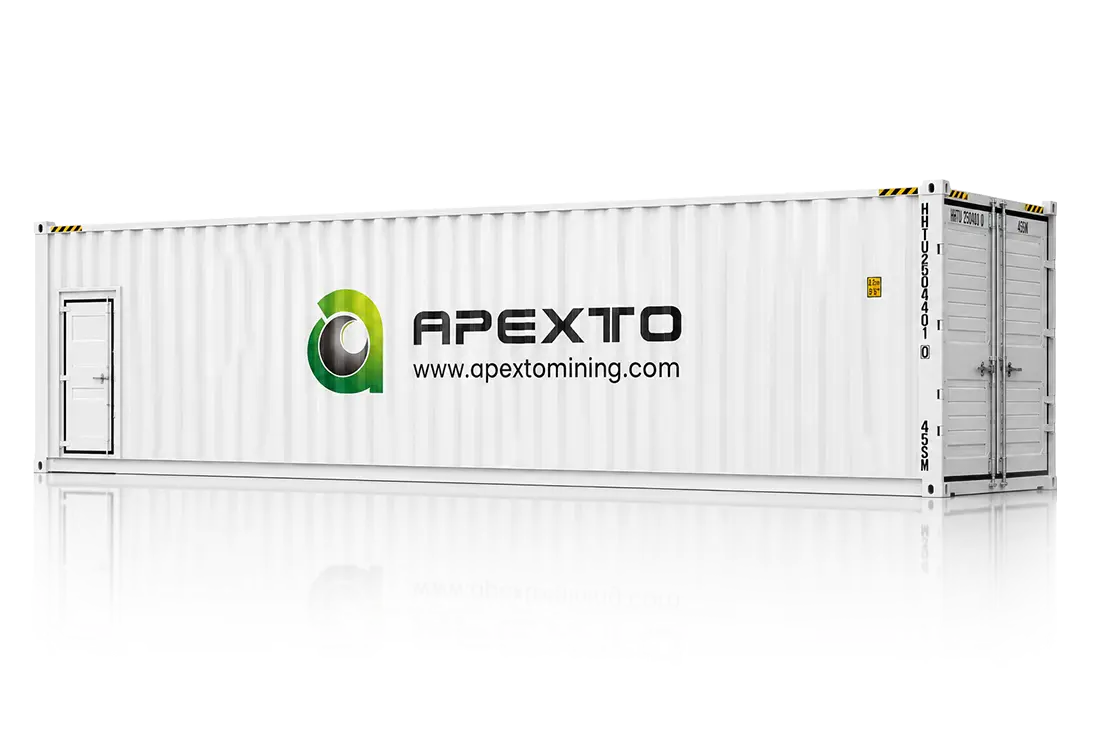

420-Slot Antminer Hydro Cooling Container
|
2.4 MW |
|
420 Slots |
|
1,2192 × 2,438 × 2,896 mm |
|
Mega-Scale Utility Projects |
Compare
480-Slot Antminer Hydro Cooling Container
|
2.6 MW |
|
480 Slots |
|
1,2192 × 2,438 × 2,896 mm |
|
Enterprise-Class Global Facilities |
Real Results from Real Miners
View All >>

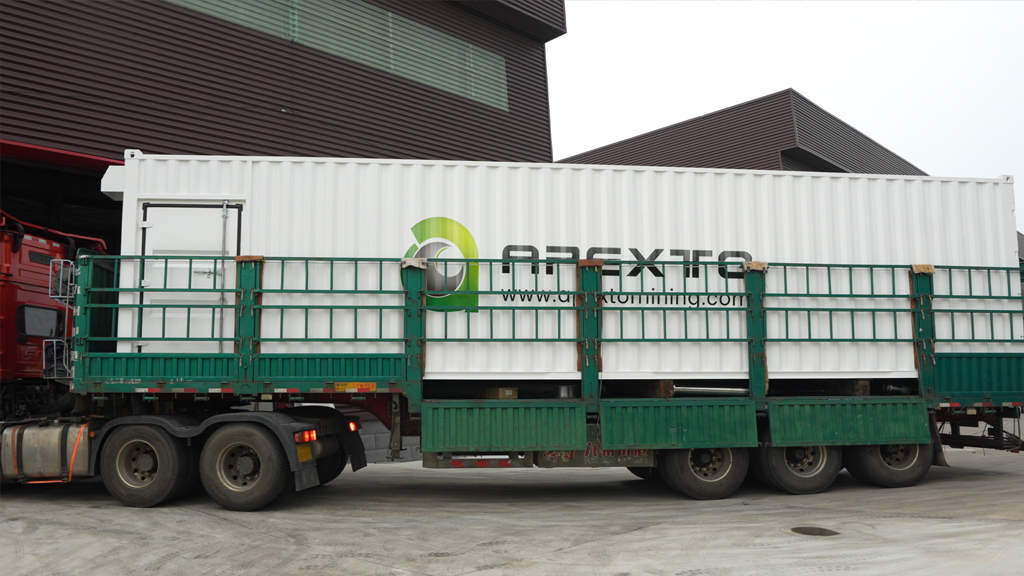

Monterrey, Mexico
12 x 2.64MW Hydro Project
Maximizing modular mega-scale hashing yield under continuous industrial power.
+30%
Space Optimization
-23%
Capex Saved
$1.6M
Annual Savings

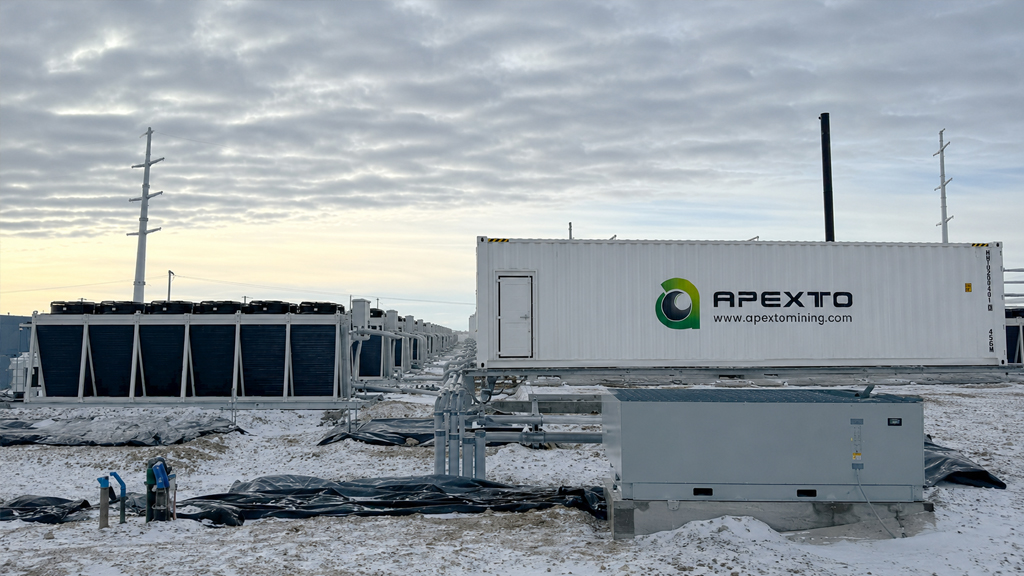

Ekibastuz, Kazakhstan
10 x 2.64MW Hydro Project
Sustaining robust large-scale mining operations under heavy thermal load.
+100%
Operational Uptime
-30%
Setup Time
99.9%
System Reliability
“
"Shipping this heavy 40FT container to Mexico was seamless with their logistics support. Their after-sales engineering team even helped us through video calls, making the on-site physical setup fast and error-free."
— VP of Operations, Monterrey Mining Site, Mexico
"We are highly impressed by the turnkey setup speed. It arrived prewired, allowing us to go online within forty eight hours, and has maintained steady uptime with extremely low maintenance since."
— O&M Director, Ekibastuz Mining Site, Kazakhstan
Global Deployment
1.2+ GW
Cumulative delivered cooling capacity
Serving Mining Sites
50+
Countries and regions covered
480-Slot Antminer Hydro Cooling Container FAQs
Does this dry-cooler-cooled system truly require zero water replenishment during long-term operations?
Yes. Operating on a completely closed loop, the dry cooler consumes absolutely zero water. In cold regions, adding a standard ethylene glycol mixture is recommended to protect the pipework from freezing.
Under high ambient temperatures without spray assistance, how does the dry cooler prevent hashrate downclocking?
The dry cooler utilizes high power fans, extra large piping, and patented fluid guiding tubes. This optimizes heat dissipation dynamics to maintain stable, full load hashrates under high ambient temperatures.
Is the electrical system customizable, and what global voltages does the container support?
Yes. Our electrical configurations can be fully customized to match different regional standards, including standard European three phase voltages or North American sixty hertz grids, ensuring reliable, compliant on grid operations.
What are the material specifications and expected operational lifespan of your dry cooler?
The dry cooler utilizes durable stainless steel coils and hydrophilic aluminum fins with anti corrosion coatings. This reliable design ensures a ten year lifespan, significantly outlasting typical micro channel cooling systems.
What is the lead time, and how is this megawatt-scale infrastructure transported internationally?
Our manufacturing lead time is four to six weeks. The entire container chassis is built to standard ISO shipping container dimensions, allowing seamless international transport via standard sea and rail networks.
