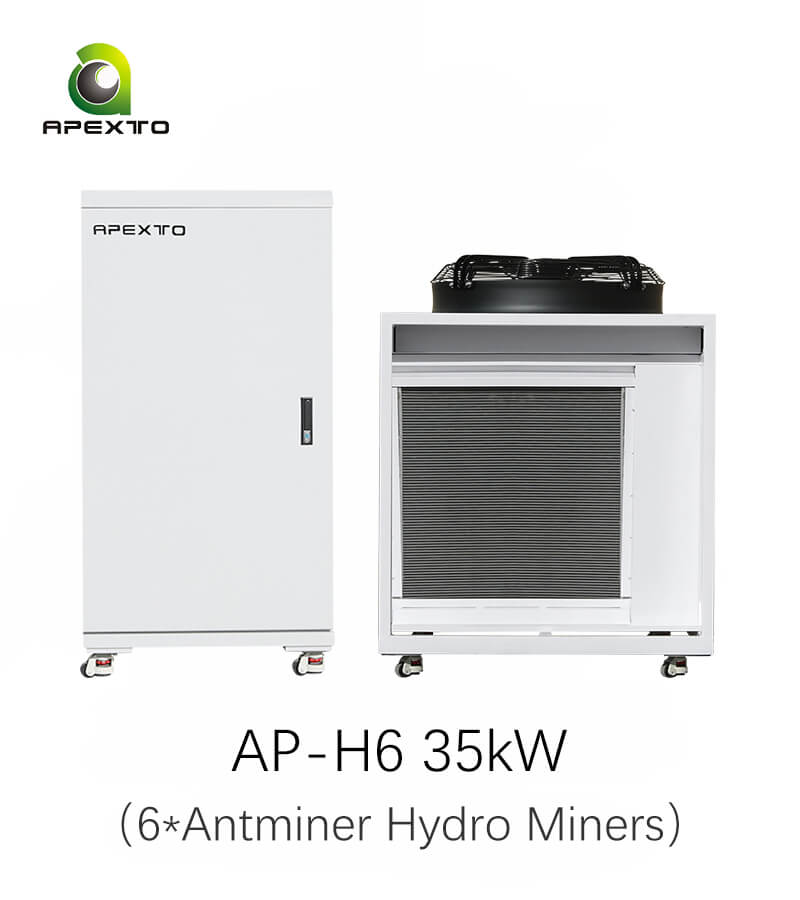

6-Slot 35kW Antminer Hydro Cooling Rack
The 6-unit 35kW Home Water Cooler is a compact water cooling solution that cools up to 6 Antminer hydro miners, ideal for home and small Bitcoin mining setups.
Price range: $2,285.00 through $3,100.00
Not Fitting Your Site?
Tell us your mining capacity and site requirements, and we'll recommend the right hydro-cooling container for your deployment.
How your container order works
Submit form
Tell us delivery country & site details
Get your quote
Complete pricing within 24 hours
Expert review
Discuss specs, customise setup
DDP delivery
Container shipped to your site

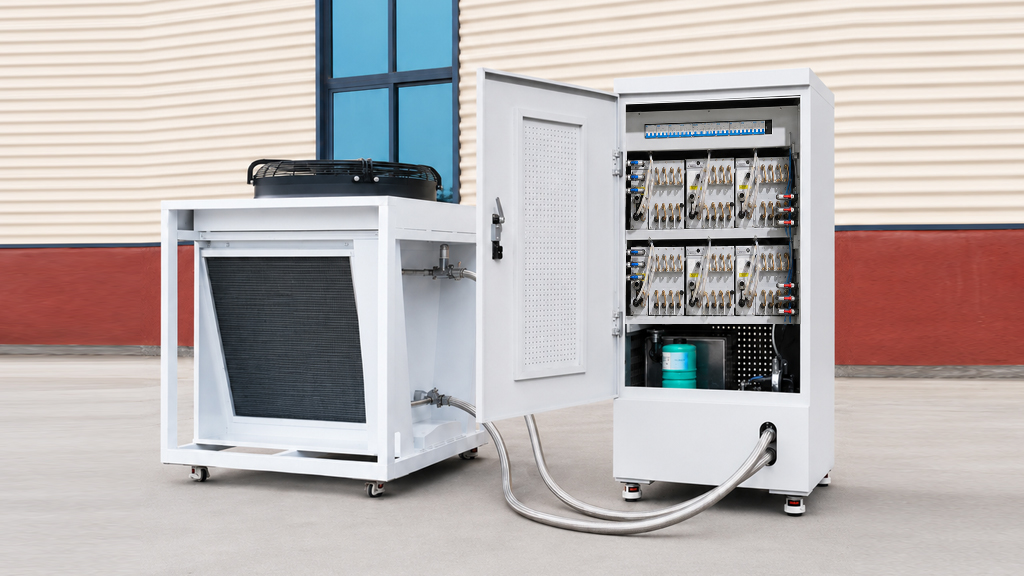

Family mining deploying 6 hydro-cooled ASICs.
CONTAINER CAPACITY
6 UNITS
Housed at full load
35 KW
Continuous electrical load
Custom
Standard
Hydro
Thermal management
POWER INPUT
380V–415V AC 50/60Hz
AVAILABILITY
In stock, ready to ship • DDP Sea Shipping Available
Product Description

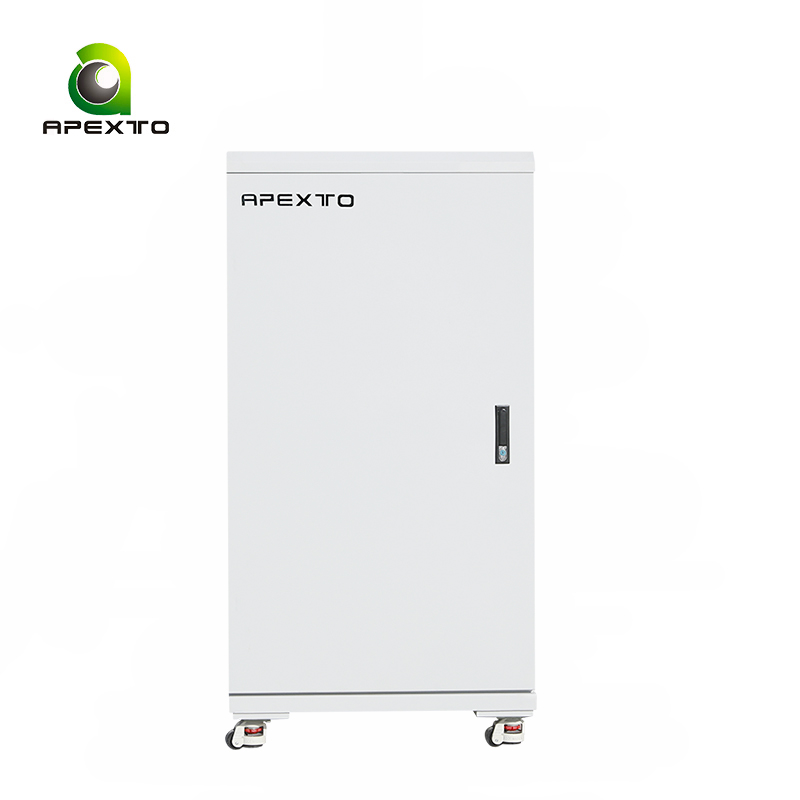

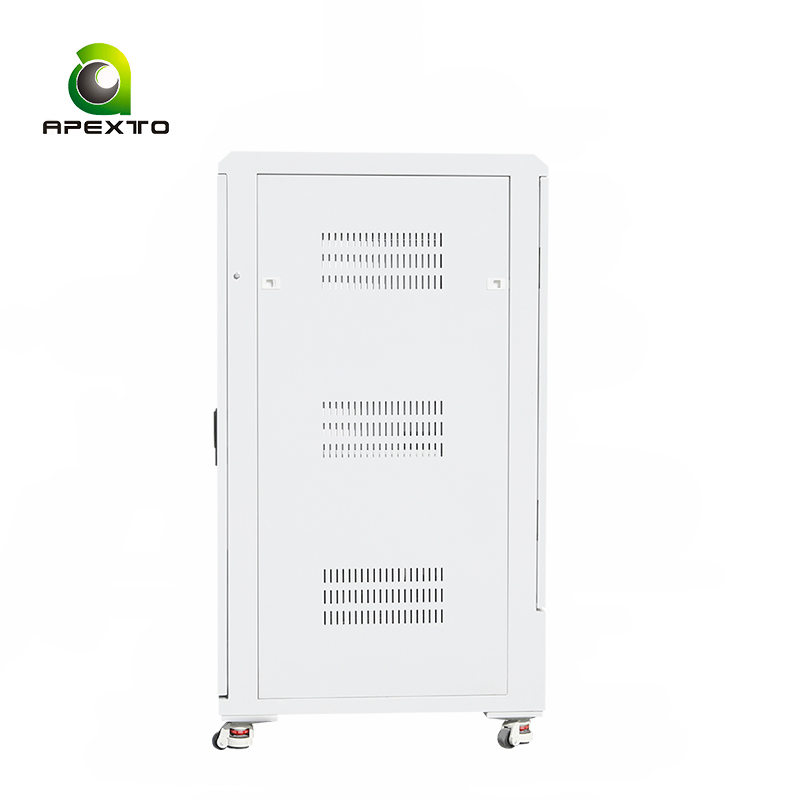

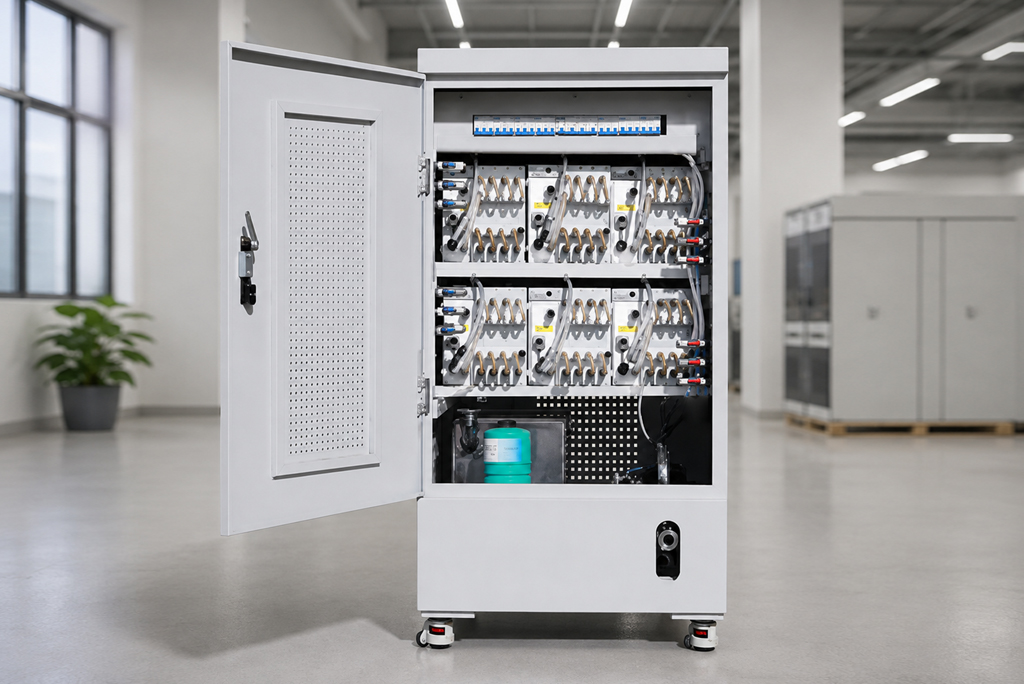

The water cooling cabinet is a compact, specially developed solution for home use, designed to support up to 6 Antminer hydro miners. It includes both a hydro cooling cabinet and a dry cooling tower, efficiently managing heat with an advanced water cooling system, making it the perfect fit for space-limited home mining operations without compromising performance.
The circulates deionized water to effectively dissipate heat, ensuring that your mining equipment runs at peak performance without the risk of overheating. Ideal for small-scale miners, it offers a powerful and space-efficient liquid cooling solution, making it a great choice for home setups.
Core Advantages
01. Integrated All-in-One System

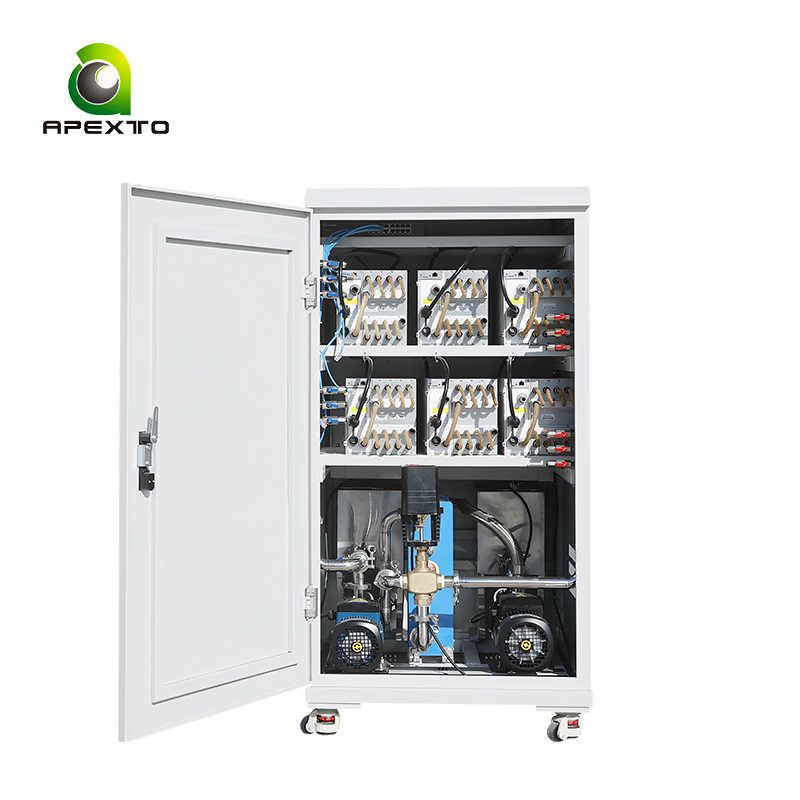

The rack, CDU, power cabinet, and control unit are integrated into a single container for easy installation, quick deployment, and efficient mining operations with minimal setup.

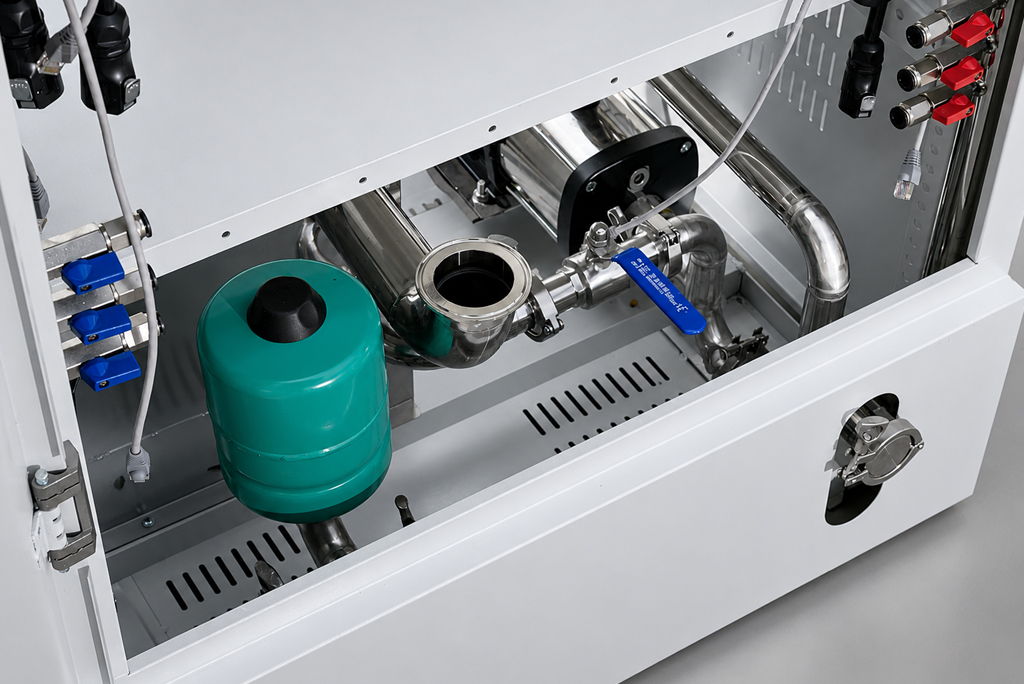

02. Redundant Dual-Loop Cooling
Dual circulation loops, dual CDUs, and multi-channel power ensure single-side operation during power shortages, boosting energy efficiency and reliability for mining operations.

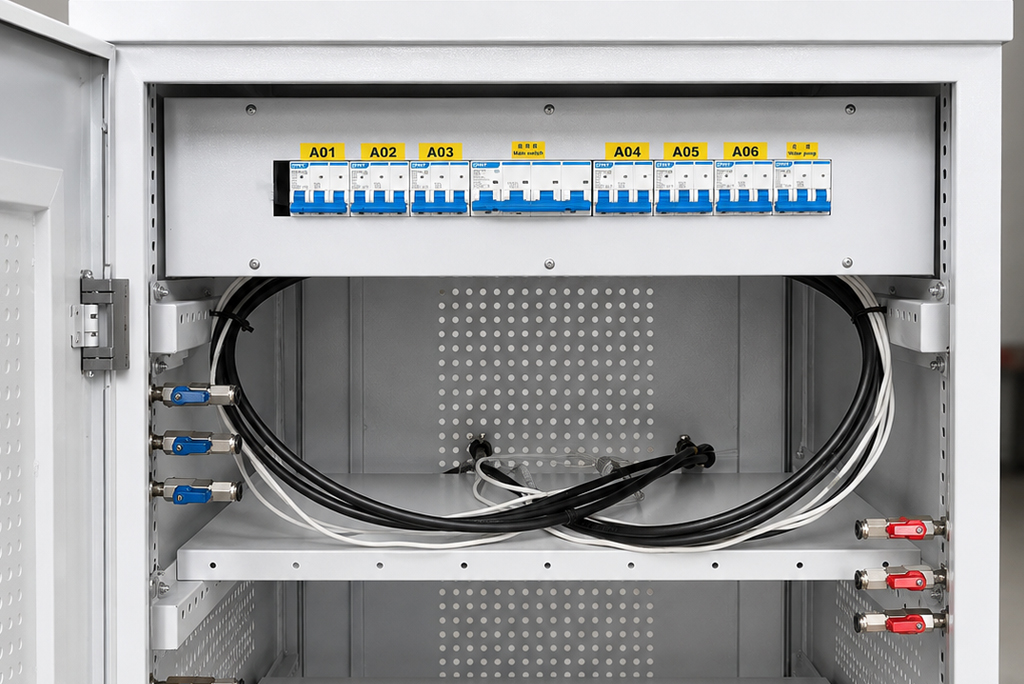

03. Individual Power Switches
Each miner is equipped with a labeled switch, allowing for easy maintenance on individual units without disrupting the overall mining system or operations.
04. Leak Detection System
Equipped with a moisture-sensing immersion rope, this system detects coolant leaks and triggers instant alarms, enhancing safety and preventing potential damage in liquid-cooled mining setups.
05. Excellence Roots in Details
Equipped with aviation plugs from Bitmain's supplier, reinforced grid panels for stable operation, and 304 stainless steel manifolds with ball valves and original connection pipes for durability.
06. Intelligent Management System
Multiple sensors monitor flow rate, pressure, temperature, and leakage, enabling real-time control, malfunction alerts, and quick intervention via mobile or PC for efficient mining operations.
Full Specifications
External dimensions
L:800mm、W:800mm、H:1450mm
Internal dimensions
L:750mm、W:750mm、H:1400mm
Weight
149KG

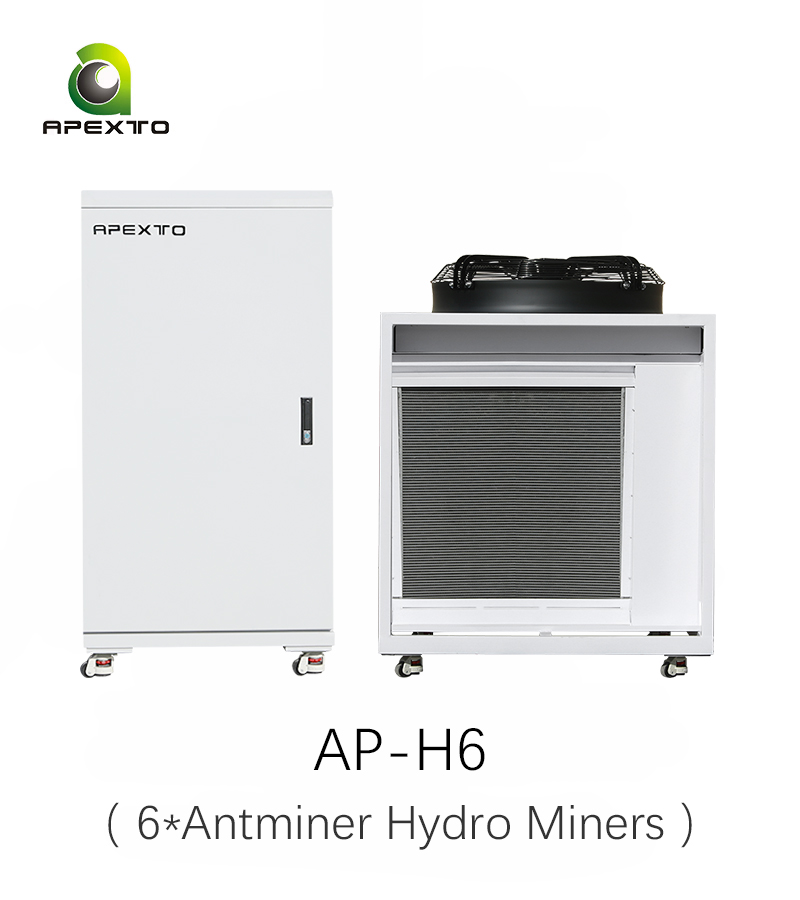

Model | AP-H6 | Installed capacity | 6 Seat |
Heat Dissipation Capacity | 35 kW | Circulation Mode | Single Mode / Dual Mode |
Coolant | Pure Water / Soft water + Antifreeze + Corrosion Inhibitor | Fluid Flow Rate | 2 m³/h |
Lift | 29m | Speed | 2900r/min |
Power consumption | 0.55 kW | Input /Output Voltage | 3 Phase 380-415V 50/60Hz |
Cabinet Dimensions | 8,00mm(L) * 8,00mm(W) * 1,450mm(H) | Cabinet Weight | 149 KG |

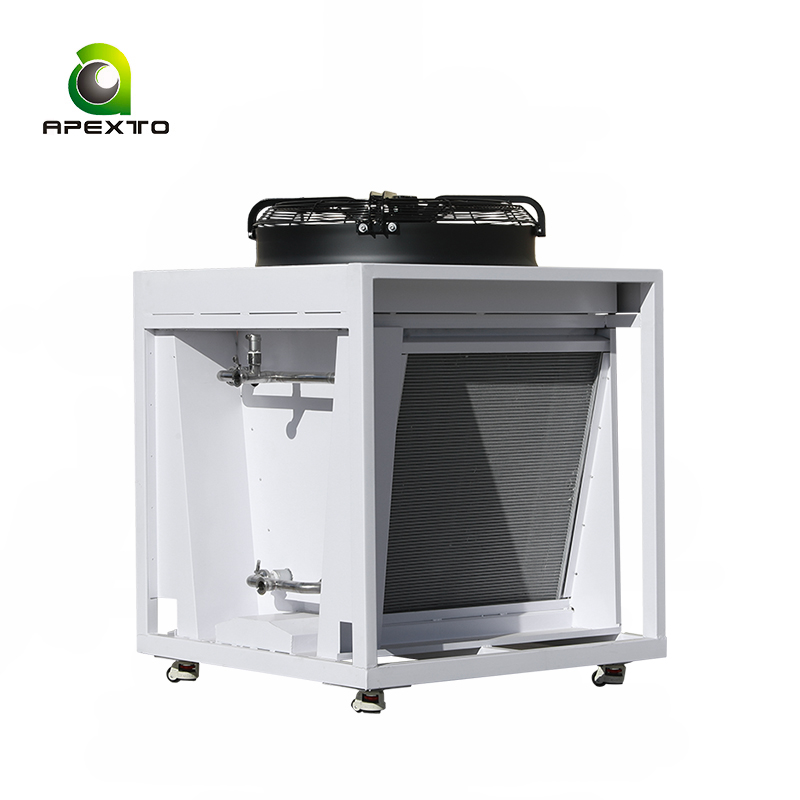

Dry Cooler | |||
Cooling Capacity | 50 kW | Exchange Surface | 1.28 m² |
Thickness | 80 mm | Coil Internal Volume | 40± L |
Max Inlet/Outlet Temp | 40 / 50 °C | Ambient Temp | -25°C ~ 45°C |
Design Pressure | 0.3 MPa | Input/Output Voltage | 3 Phase 380-415V 50/60Hz |
Dry Cooler Dimensions | 1,100mm(L) * 1,100mm(W) * 1,400mm(H) | Dry Cooler Weight | 170 KG |
Antminer 6-POSITION-INTEGRATED-COOLING-SOLUTION
Complete product specifications, installation guide, and operational instructions.

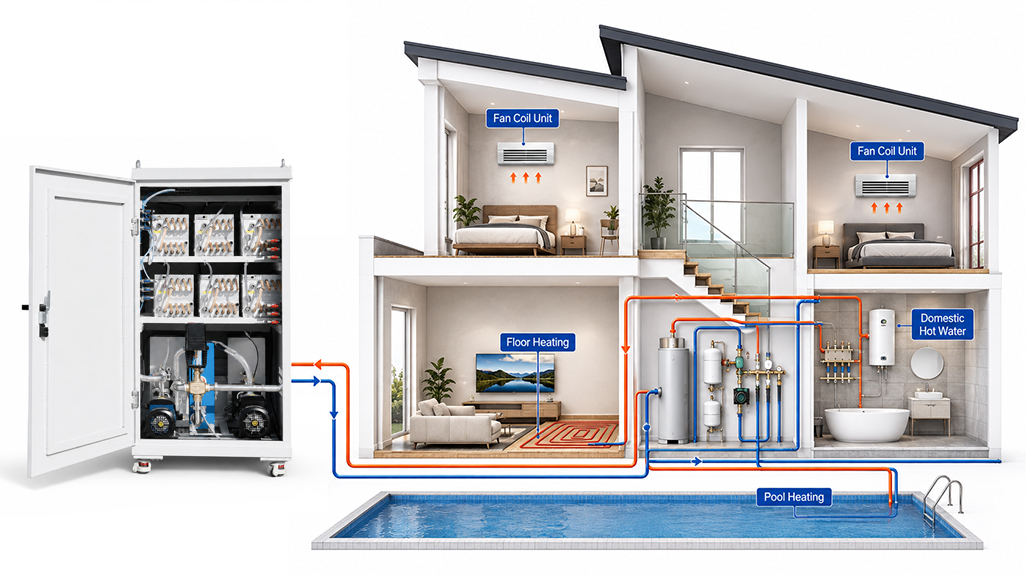

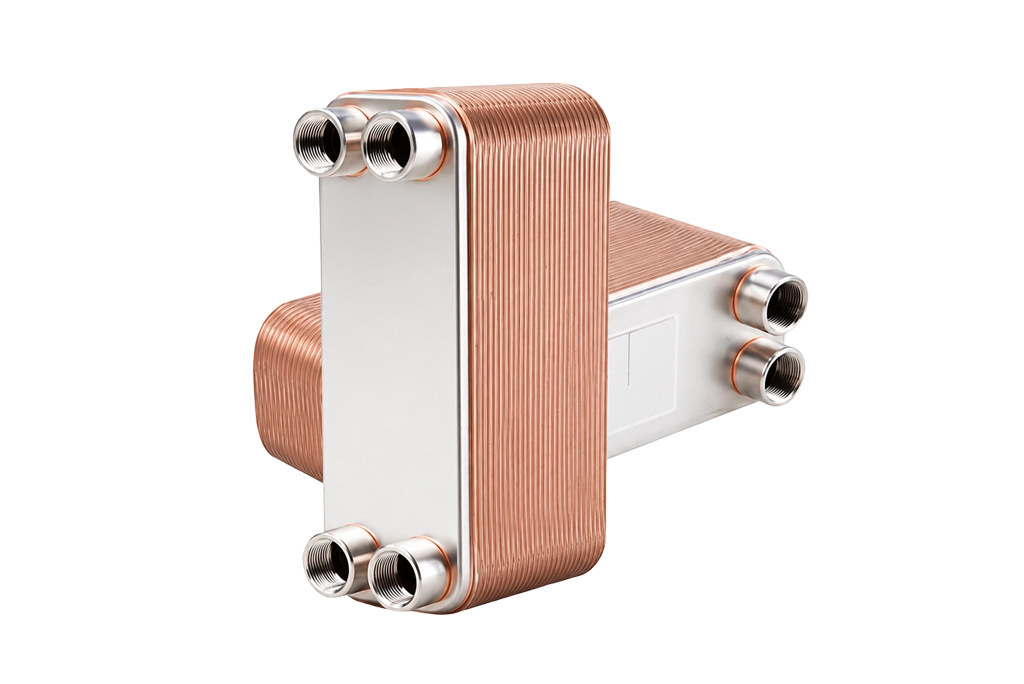

Hydronic Heating Solution
Hydro cooling systems that double as flexible heating solutions—turning mining heat into efficient warmth anywhere it's needed.
Key Benefits & Applications:
Complete Cooling Solutions
We design and manufacture a complete range of hydro cooling solutions for every scale, from hydro cooling cabinets and containers to CDUs and dry coolers.
❄️ Cooling Capacity |
⚙️ Miner Slots |
📏 Dimensions (L × W × H) |
🏢 Application |
4-Slot 26kW
26 kW |
4 Slots |
1,070 × 7,00 × 1,390 mm |
Large-scale Mining Operations |
Compare
6-Slot 35kW
35 kW |
6 Slots |
8,00 × 8,00 × 1,450 mm |
Large-scale Mining Operations |
9-Slot 50kW
50 kW |
9 Slots |
8,00 × 8,00 × 1,600 mm |
Mid-to-LargeMining Operations |
12-Slot 70kW
70 kW |
12 Slots |
7,00 × 8,00 × 1,800 mm |
Large-scale Mining Operations |
Real Results from Real Miners
View All >>
Large-scale mining
Deployed 20 liquid-cooled containers supporting the stable operation of 6,160 mining units
+28%
Efficiency Gain
-23%
Energy Cost
120W USD
Energy Cost
View All >>
Large-scale mining
Deployed 20 liquid-cooled containers supporting the stable operation of 6,160 mining units
+28%
Efficiency Gain
-23%
Energy Cost
120W USD
Energy Cost
View All >>
“
Amina’s liquid-cooled containers have enabled a quantum leap in energy efficiency and stability for our mining operations.
Director of Mining Operations
A major North American mining company
Amina’s liquid-cooled containers have enabled a quantum leap in energy efficiency and stability for our mining operations.
Director of Mining Operations
A major North American mining company
Amina’s liquid-cooled containers have enabled a quantum leap in energy efficiency and stability for our mining operations.
Director of Mining Operations
A major North American mining company
1.2+ GW
Cumulative delivered cooling capacity
50+
Countries and regions covered
FAQs
It provides 6 miner slots and supports up to 6 compatible Antminer Hydro miners, as long as the total miner power does not exceed the system's 35kW maximum load.It provides 6 miner slots and supports up to 6 compatible Antminer Hydro miners, as long as the total miner power does not exceed the system's 35kW maximum load.
It is designed for compatible Antminer S19 Hydro, S21 Hydro, and S23 Hydro series miners. Since power consumption varies by model, please confirm the total miner load before installation.
The system requires a high-capacity three-phase electrical supply. The cooling cabinet is designed for 380–480V, 50/60Hz. Site voltage, available current, circuit protection, and the electrical requirements of the external dry cooler should be confirmed before installation.
Pure water or properly treated soft water with suitable antifreeze and corrosion inhibitor can be used. The coolant should be selected according to local water quality and ambient temperature, especially in areas where freezing may occur.
The mining rack can be installed indoors in a suitable mining room, warehouse, garage, or equipment area. The external dry cooler should normally be installed outdoors or in a well-ventilated area where the heat can be discharged efficiently.
Routine maintenance mainly includes checking coolant condition and level, inspecting hoses and pipe connections for leaks, checking pump operation and water flow, and keeping the dry cooler clean and free from dust or airflow blockage.
