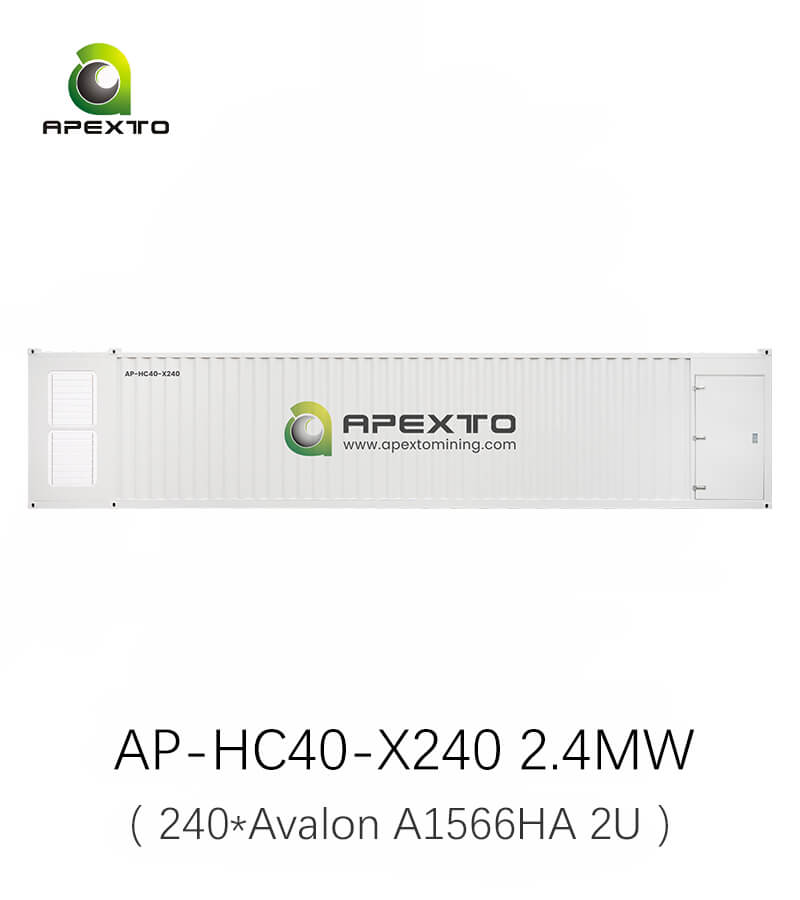

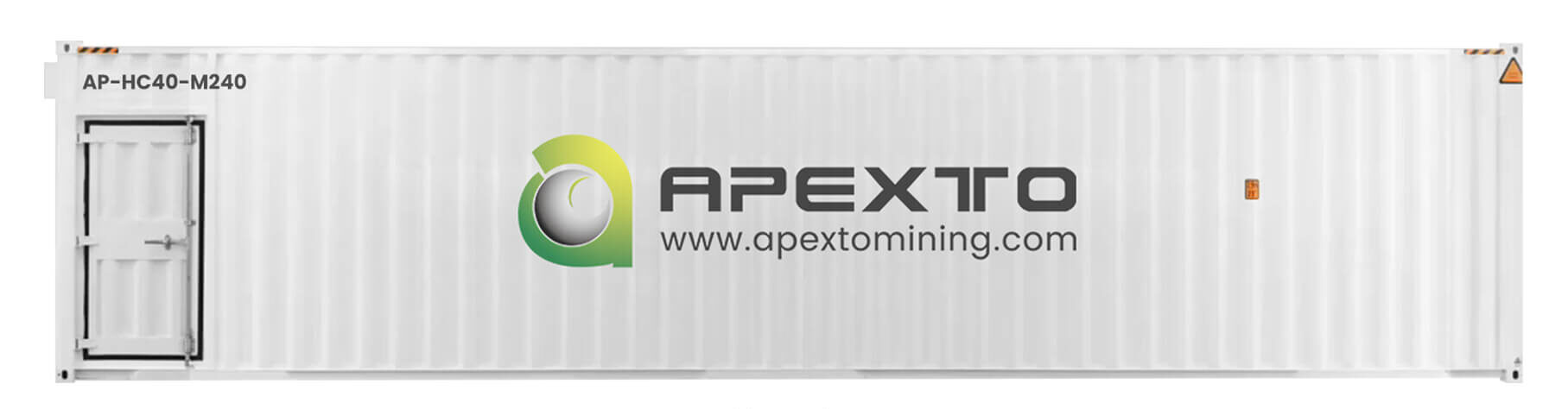

2.4MW 240-Slot Avalon 2U Hydro Cooling Container for Enterprise Mining
CONTAINER CAPACITY
ASIC MINERS
240 UNITS
Housed at full load
TOTAL POWER
2,400 KW
Continuous electrical load
FORM FACTOR
Custom
Standard
COOLING
Hydro
Thermal management
POWER INPUT
380V–415V AC 50/60Hz
AVAILABILITY
Typical lead time 45 days • DDP Sea Shipping Available
Product Description
Built strictly to professional datacenter standards, the 2.4MW 240-Slot Avalon 2U Hydro Cooling Container 40FT HQ delivers fully integrated, turnkey infrastructure for mega scale operations.

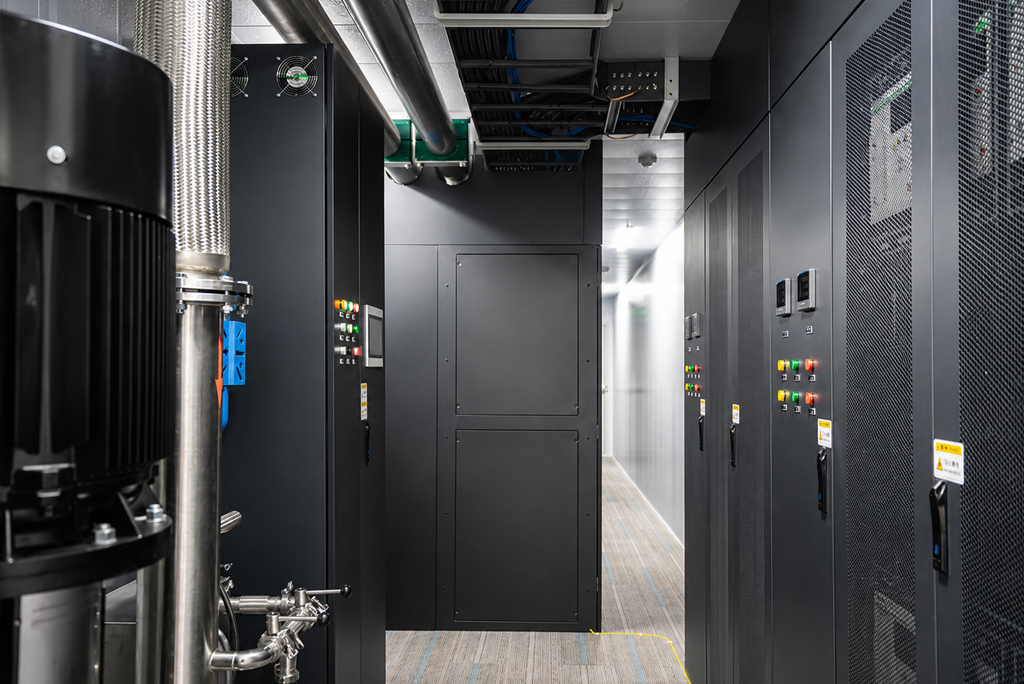

Custom designed specifically for Canaan’s high power Avalon 2U hydro series, this robust forty foot container consolidates 240 active server slots and prewired cabling into an all in one frame. It integrates heavy duty power cabinets with automated reclosing breakers and full lightning protection to safeguard ASIC hardware under continuous 2400kW load.
By providing an optimized, ready to run setup with dual loop water circulation, this modular container secures highly stable heat dissipation and reliable, long term uptime globally.
Core Advantages

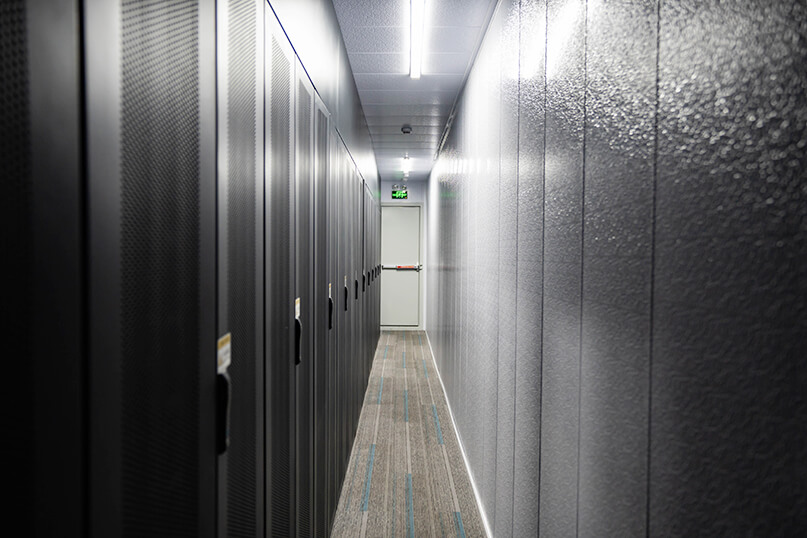

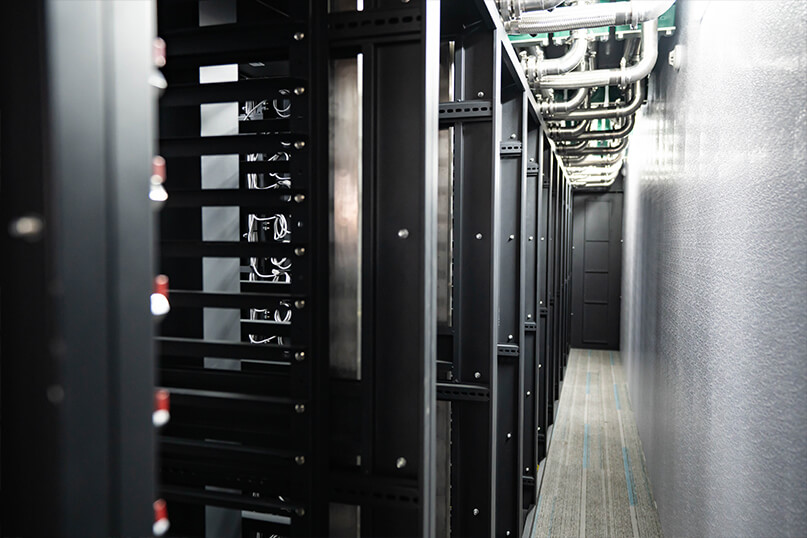

01. Datacenter-Style Layout

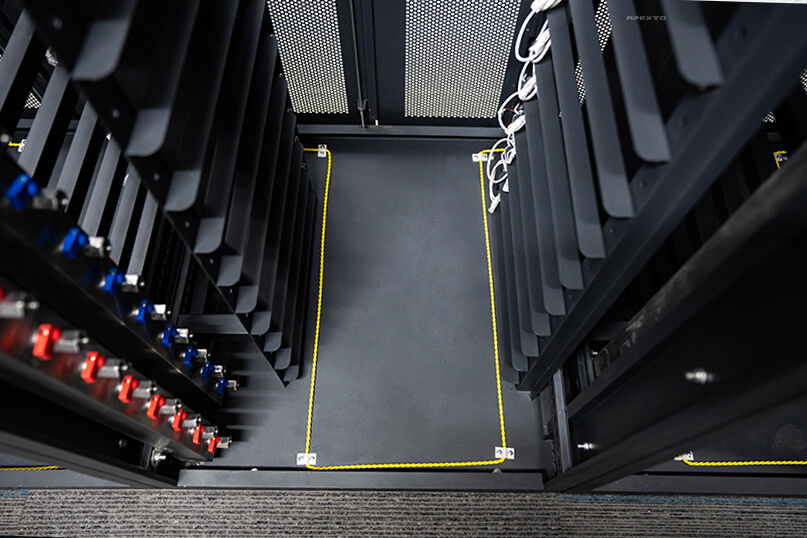

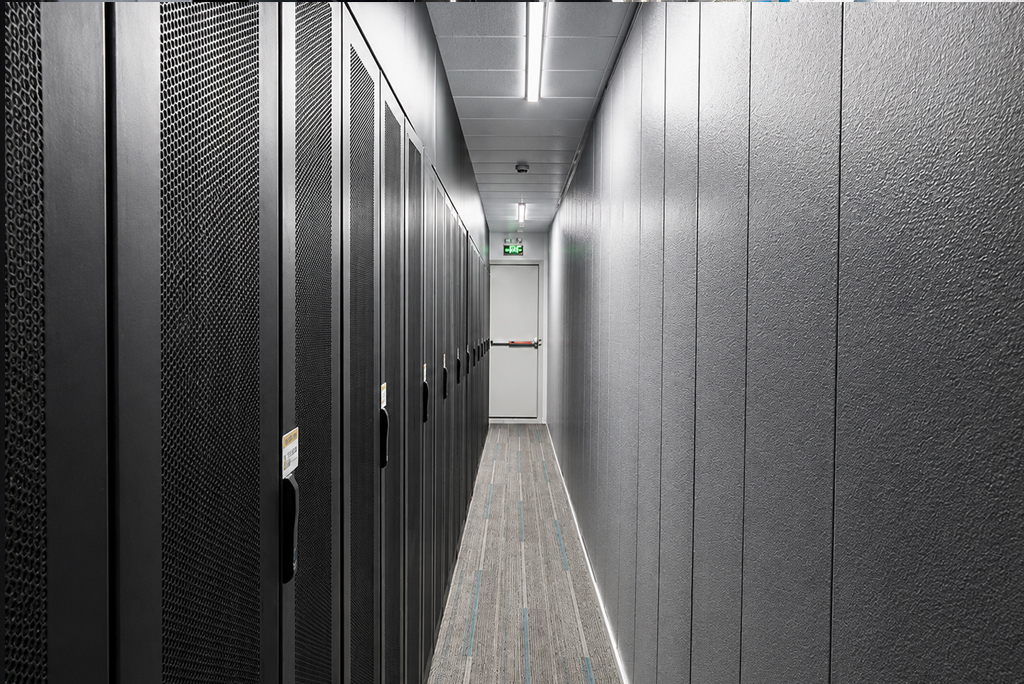

This datacenter style walkway layout offers easy walkthrough access and quiet operations, making it standard for large commercial hosting sites requiring clean, professional onsite maintenance.
02. Integrated All-in-One System
Integrates the server racks, CDU, PDU power cabinets, and smart controls into a single 40FT container for rapid, plug and play onsite project setup.

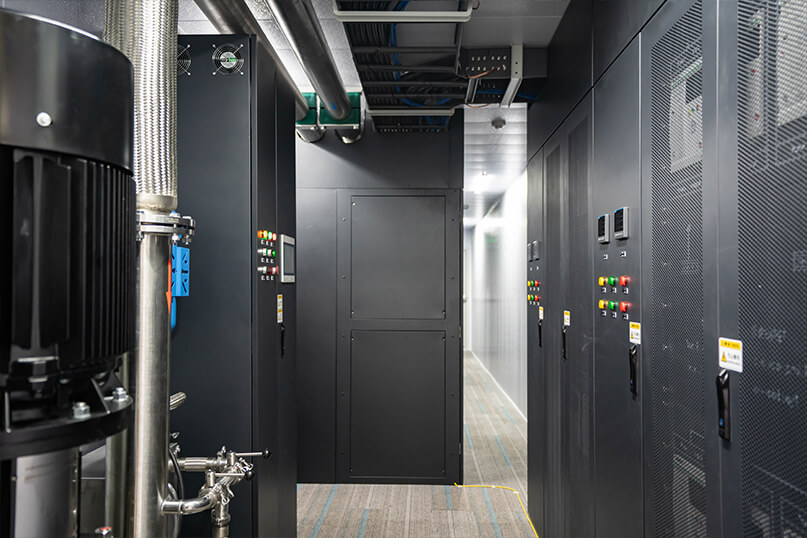

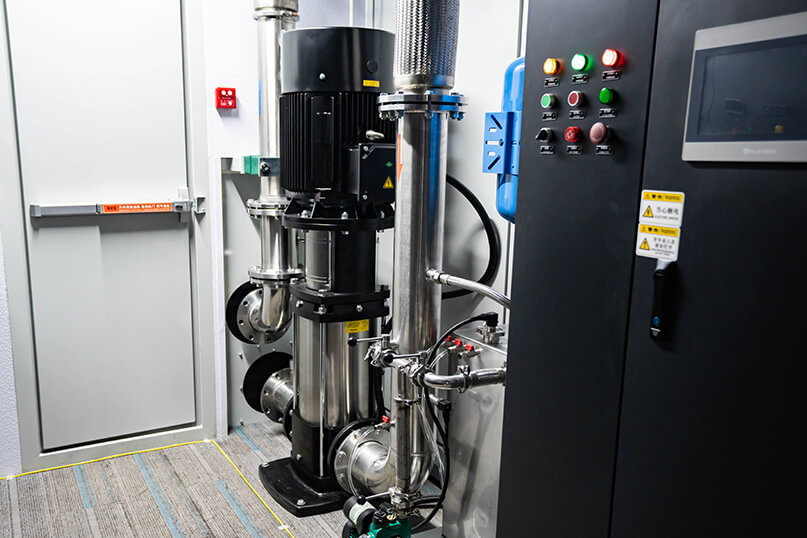

03. Advanced CDU System

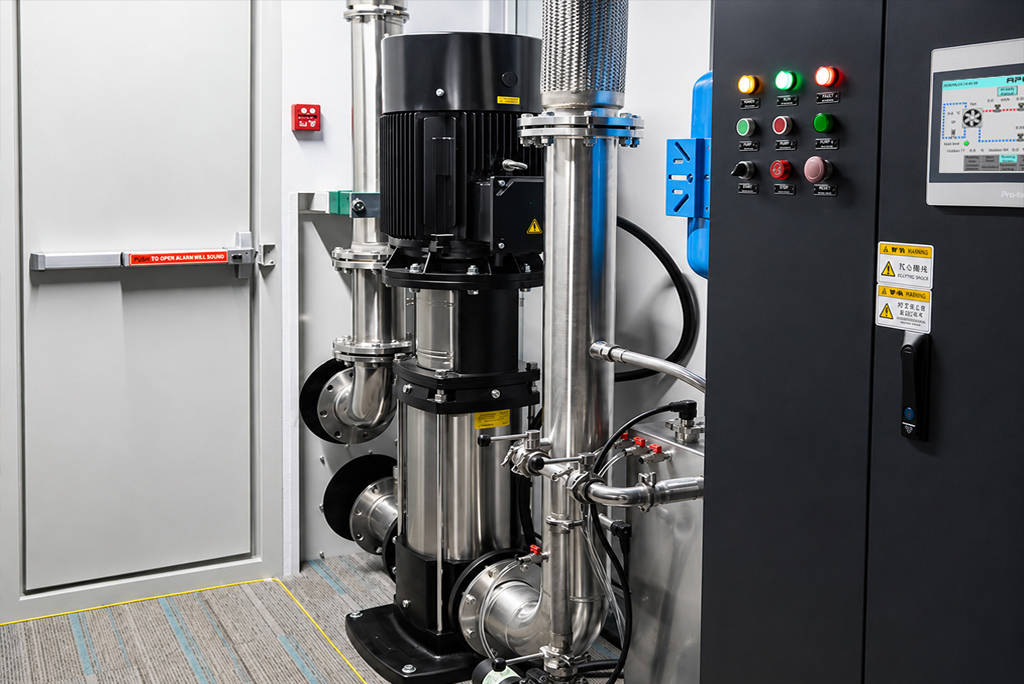

Features an advanced CDU with water pumps, integrating a bottom pressure tank and auto refill pipe to achieve automatic water replenishment and pressure release safely.
04. Individual Control Switches

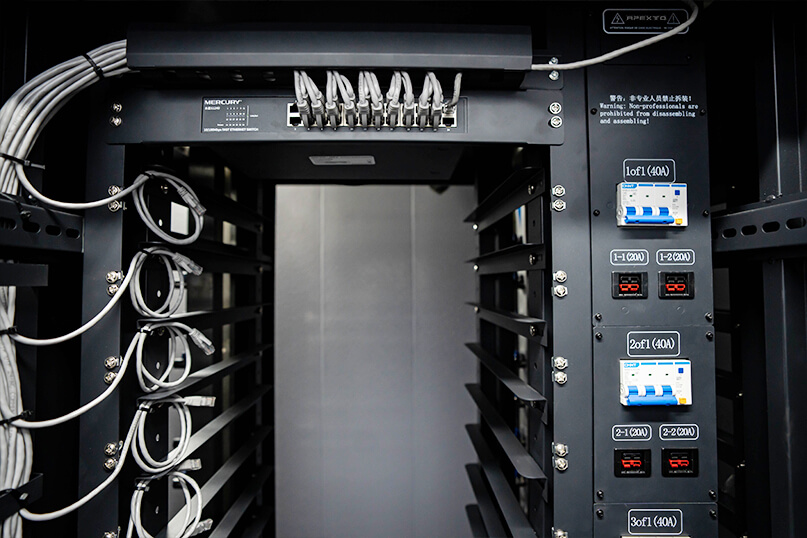

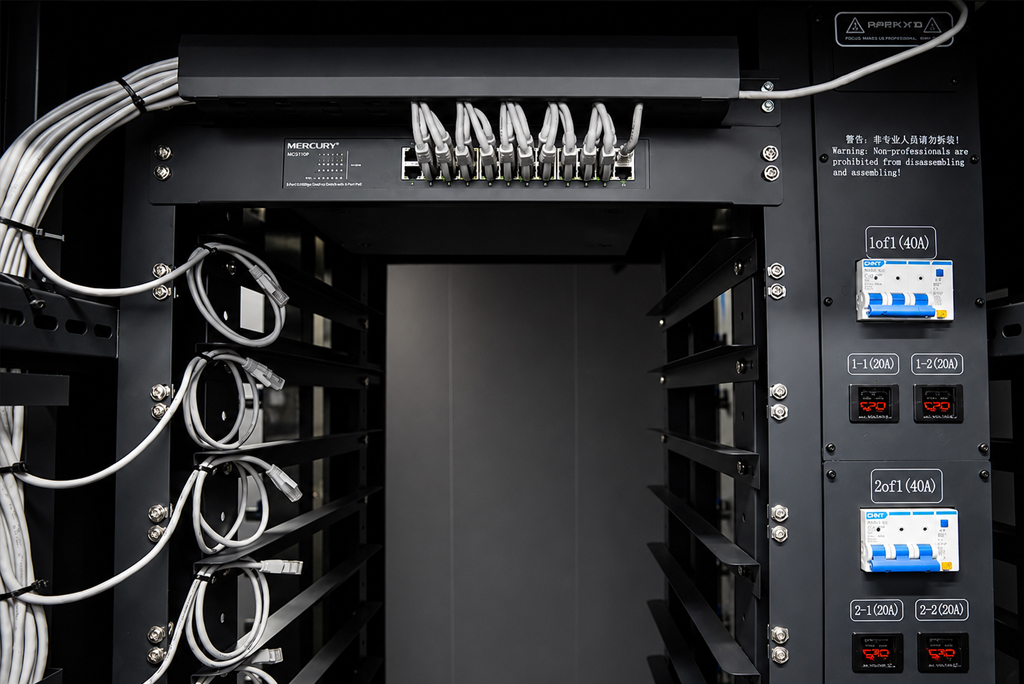

Equips every rack slot with an independent power switch and breaker with one to one labels, allowing technicians to perform safe maintenance without interrupting wider operations.

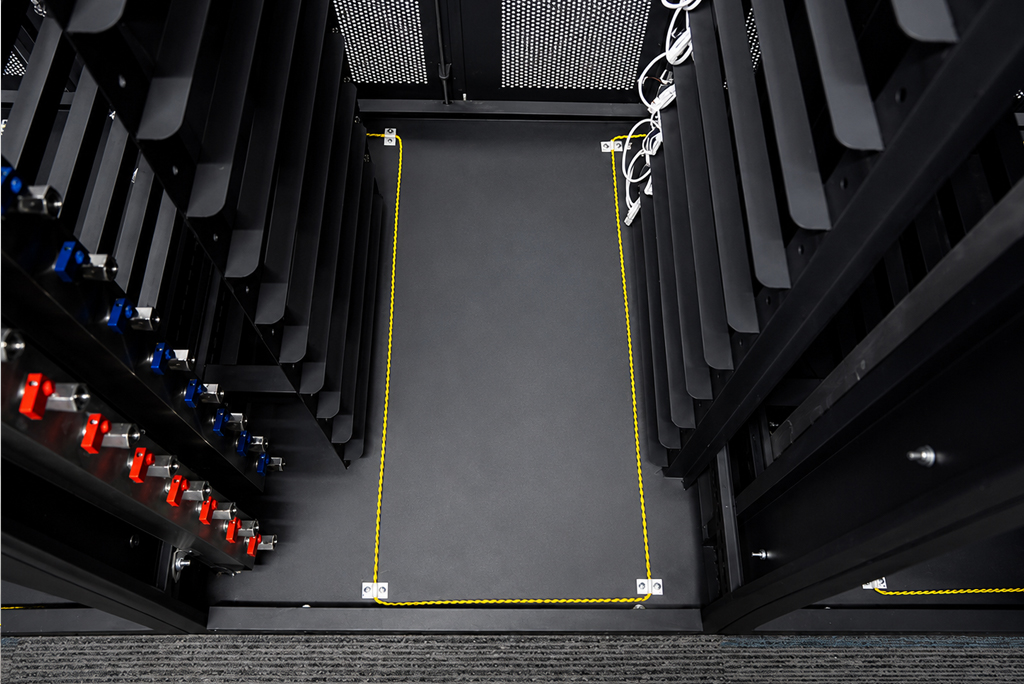

05. Instant Leak Detection
Uses high-sensitivity, floor-mounted moisture-sensing ropes to instantly detect any coolant leaks, triggering immediate remote alarms and automatic power cutoffs to protect your hardware.

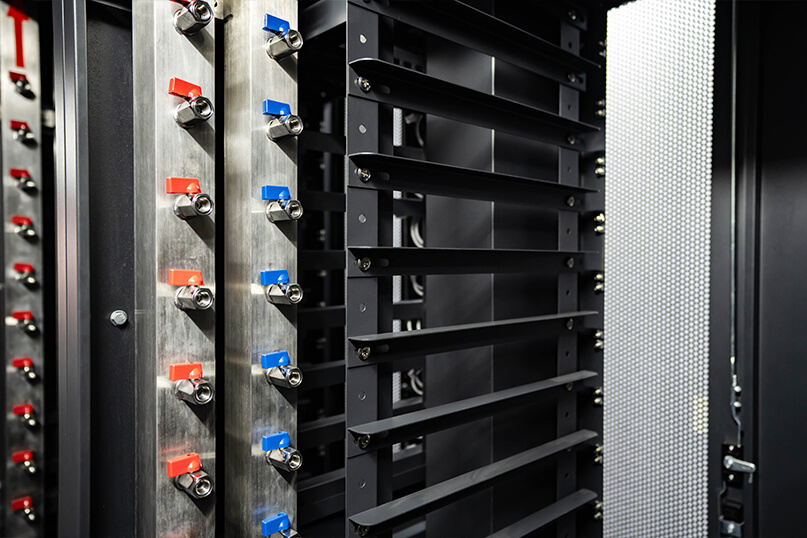

06. Water & Electricity Isolation

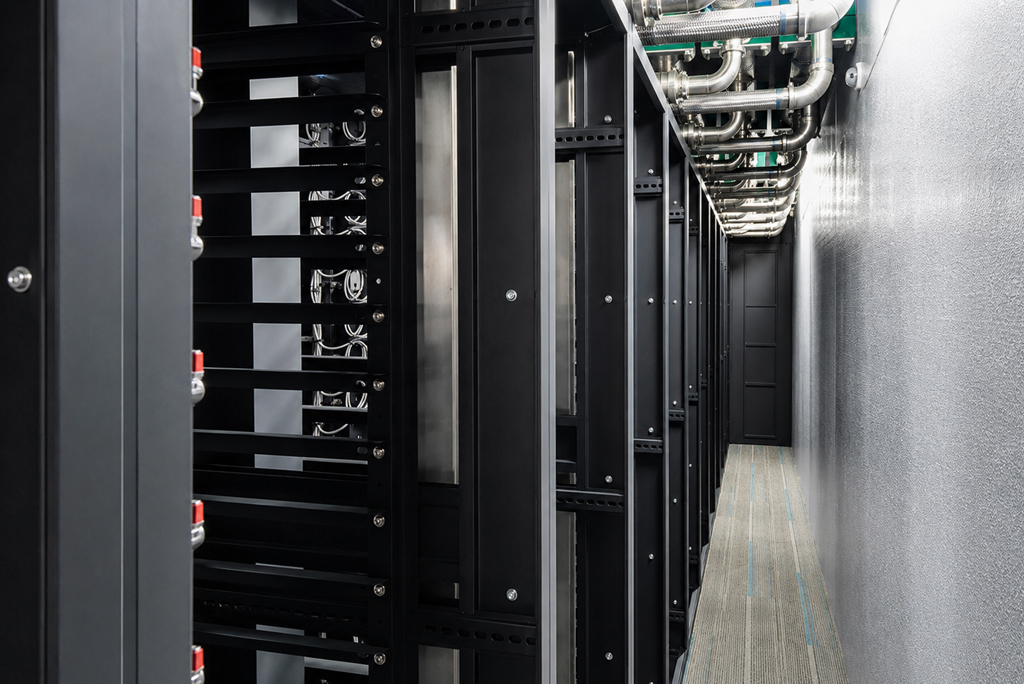

Isolates high pressure water manifolds physically from all electrical cabling cabinets, eliminating moisture risks to ensure reliable, consistent power and long term operational safety.
Full Specifications
External dimensions
L:12192mm、W:2438mm、H:2896mm
Internal dimensions
L:12000mm、W:2230mm、H:2660mm
Weight
7800KG
|
Model |
AP-HC40-X240 |
Installed capacity |
240 Seat |
|
Installed powerload |
2400 kW |
Power of the light-duty vertical multistage pump |
30 kW |
|
Power of the fluid replenishing pump |
0.2 KW |

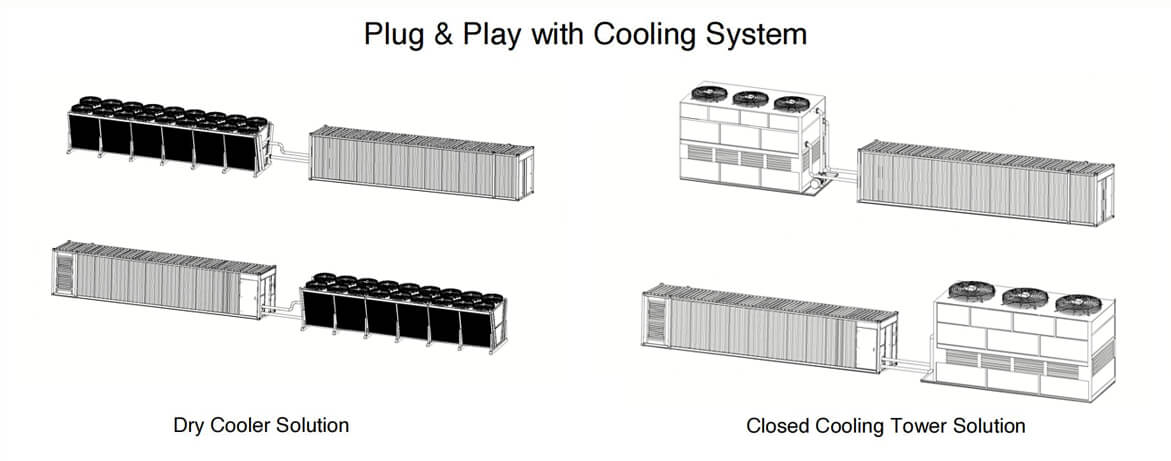

Total power of the dry cooling tower fan |
58.1 kW |
|
Total power of the closed cooling tower fan |
22.5 kW |
Total power of the closed cooling tower spray pump |
7.5 kW |
|
System pipeline pressure |
0.2-0.4 MPA |
Operating temperature range of the system |
0-50 ℃ |
|
Coolant circulation demand of a single machine |
≥0.6 m³/h |
Total demand for circulating coolant within the system |
≥2.5 m³ |
|
Molded Case Circuit Breaker |
125 A |
Residual Current Circuit Breaker |
400 A |
|
Contactor |
9 A |
Intermediate relay |
24 V |
|
CUL certified frequency converter |
380 V |
240-Slot Avalon Hydro Cooling Container Product Brochure
Complete product specifications, installation guide, and operational instructions.
Certification Standards
Our products meet leading international standards for safety, reliability, and performance.
China Classification Society
Marine & offshore compliance
UL Listed
Safety tested & certified
CSA Certified
North American compliance
CE Marking
European conformity
Recommended Power Setup
Match your container deployment with the appropriate transformer capacity.
For 1 x 2.4 MW Container
3000 kVA Three-Phase Pad-Mounted Transformer
Complete Cooling Solutions
We design and manufacture a complete range of hydro cooling solutions for every scale, from hydro cooling cabinets and containers to CDUs and dry coolers.
|
❄️ Cooling Capacity |
|
⚙️ Miner Slots |
|
📏 Dimensions (L × W × H) |
|
🏢 Application |
100-Slot Avalon Hydro Cooling Container
|
1 MW |
|
100 Slots |
|
6,058 × 2,438 × 2,896 mm |
|
Entry-Level Mining Sites |
120-Slot Avalon Hydro Cooling Container
|
1.2 MW |
|
120 Slots |
|
6,058 × 2,438 × 2,896 mm |
|
Commercial-Scale Operations |
160-Slot Avalon Hydro Cooling Container
|
1.6 MW |
|
160 Slots |
|
6,058 × 2,438 × 2,896 mm |
|
Industrial-Scale Projects |
Compare
240-Slot Avalon Hydro Cooling Container
|
2.1 MW |
|
240 Slots |
|
1,2192 × 2,438 × 2,896 mm |
|
Mega-Scale Mining Facilities |

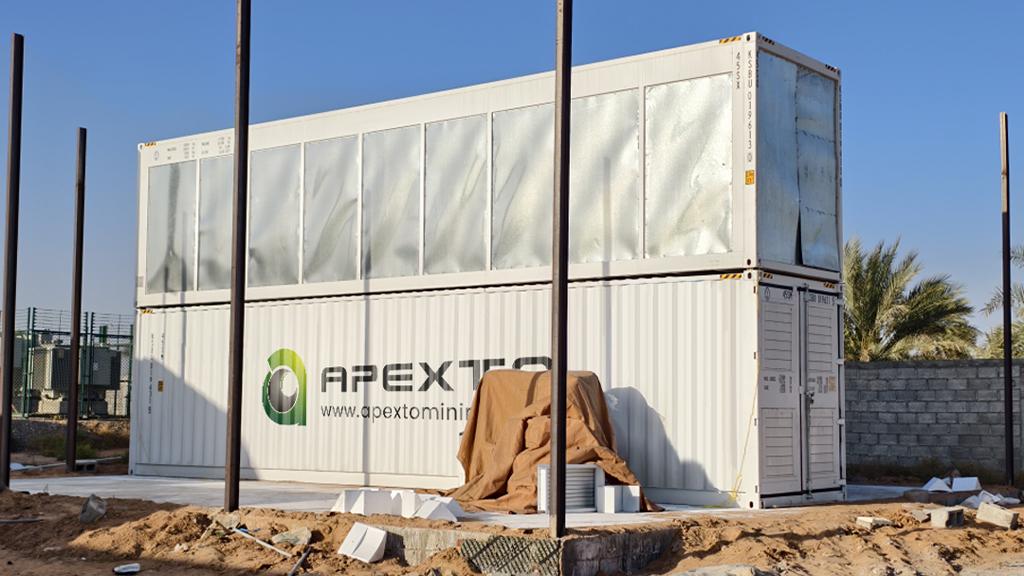

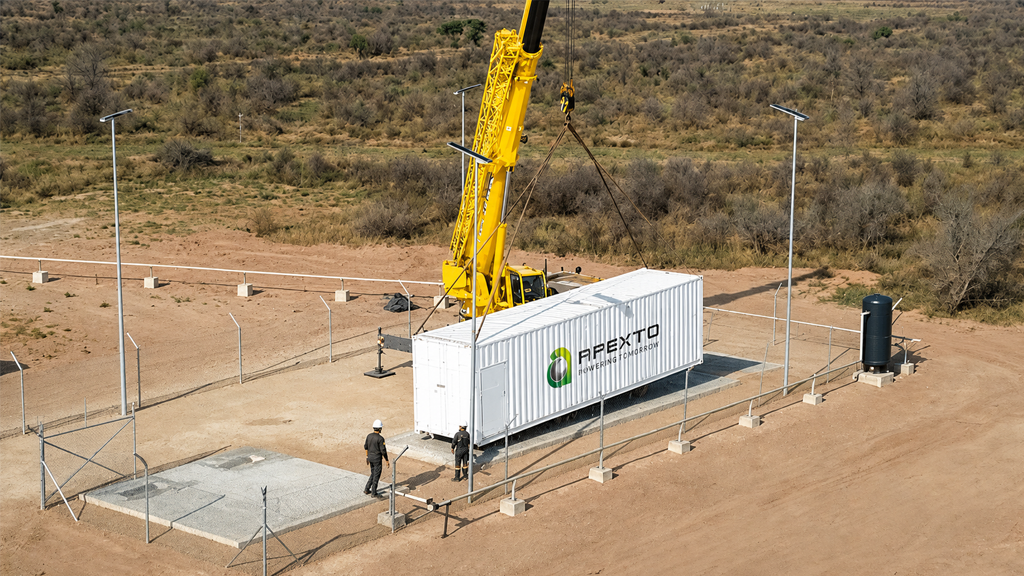

Real Results from Real Miners
View All >>
Dallas, United States
2x 2.4MW Hydro Project
Sustaining stable datacenter grade hashing under heavy loads.
+32%
Cooling Efficiency
-25%
Cooling Power Draw
$1.5M
Annual Savings
View All >>
Kajaani, Finland
8 x 2.4MW Hydro Project
Achieving efficient grid deployments using clean hydropower.
+100%
Operational Uptime
-30%
Setup Time
99.9%
System Reliability
View All >>
“
"We are highly impressed by the safety engineering. The absolute physical separation of water and electricity, paired with the built-in gas fire suppression, guarantees reliable protection for our high-density facility."
— O&M Director, Kajaani Mining Site, Finland
"This 240-slot container’s C-class datacenter walkway design and noise-reducing carpet successfully transformed our Texas site. It runs exceptionally quiet while securely managing our massive 2.4MW power load."
— VP of Operations, Dallas Mining Site, USA
Global Deployment
1.2+ GW
Cumulative delivered cooling capacity
Serving Mining Sites
50+
Countries and regions covered
240-Slot Avalon Hydro Container FAQs
Which specific ASIC models are compatible with this container?
This 2.4MW container is custom engineered for Canaan's standard hydro series, fully supporting up to 240 units of the Avalon A1566HA and standard Avalon 2U hydro miners with matching rack specs.
How does the hot and cold aisle containment design improve cooling efficiency?
The container utilizes metal isolation panels to create distinct hot and cold aisle containment. This physically separates airflows, preventing hot air recirculation to optimize water cooling efficiency under continuous heavy loads.
What safety mechanisms are integrated to handle the water-electricity physical isolation inside the cabinet?
The container is engineered with strict physical separation of water and electricity. This isolates high pressure water manifolds from electrical cabling and cabinets, completely eliminating moisture risks for reliable operational safety.
Is the container equipped with a built-in fire suppression system for high-voltage commercial sites?
Yes. It integrates smart smoke detectors, thermal sensors, and an optional gas fire suppression system, fully complying with international safety standards to protect your high voltage equipment during any unexpected emergencies.
How does the smart PLC control system protect the massive 2.4MW operational load?
The central PLC and HMI touchscreen monitor water flow, temperature, and pressure in real time. Paired with auto reclosing circuit breakers, the system triggers instant, automatic shutdowns during any unexpected anomalies.
