Eco-friendly heat recovery deployments for up to 36 hydro-cooled ASICs
CONTAINER CAPACITY
ASIC MINERS
36 UNITS
Housed at full load
TOTAL POWER
200 KW
Continuous electrical load
FORM FACTOR
Custom
Standard
COOLING
Hydro
Thermal management
POWER INPUT
380V–415V AC 50/60Hz
AVAILABILITY
Typical lead time 15 days • DDP Sea Shipping Available
Product Description
The 200kW 36-Slot Hydro Cooling Cabinet is an industrial infrastructure designed for high-density Antminer hydro deployments. Standing 2.1 meters tall, it delivers a steady 200kW cooling capacity, offering a professional solution for mining operations that require consistent thermal management.

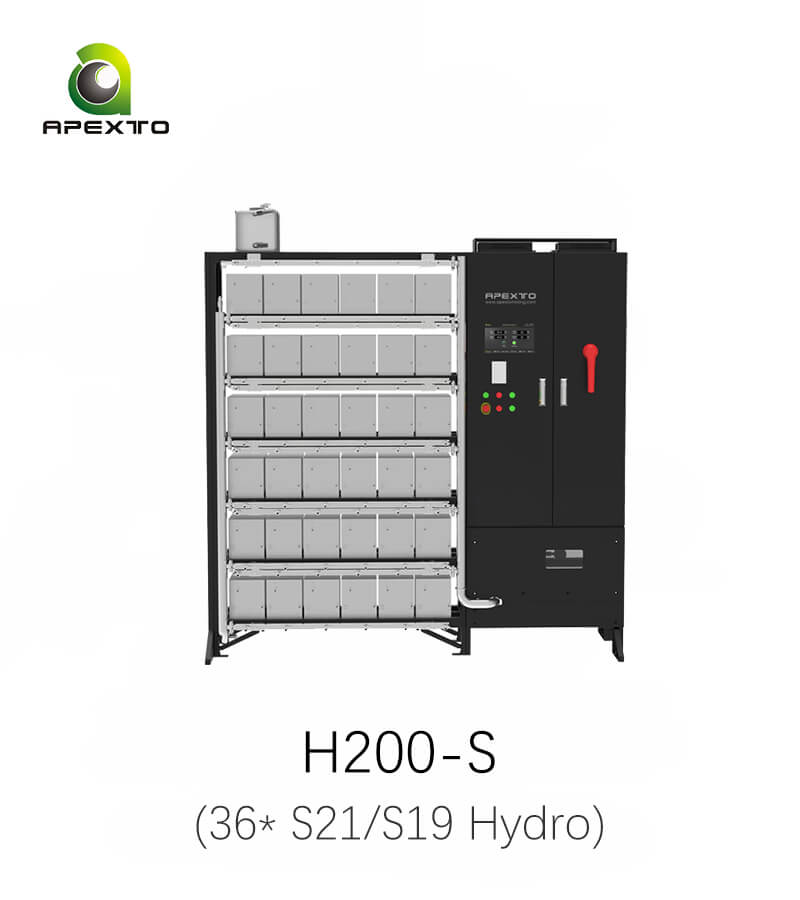

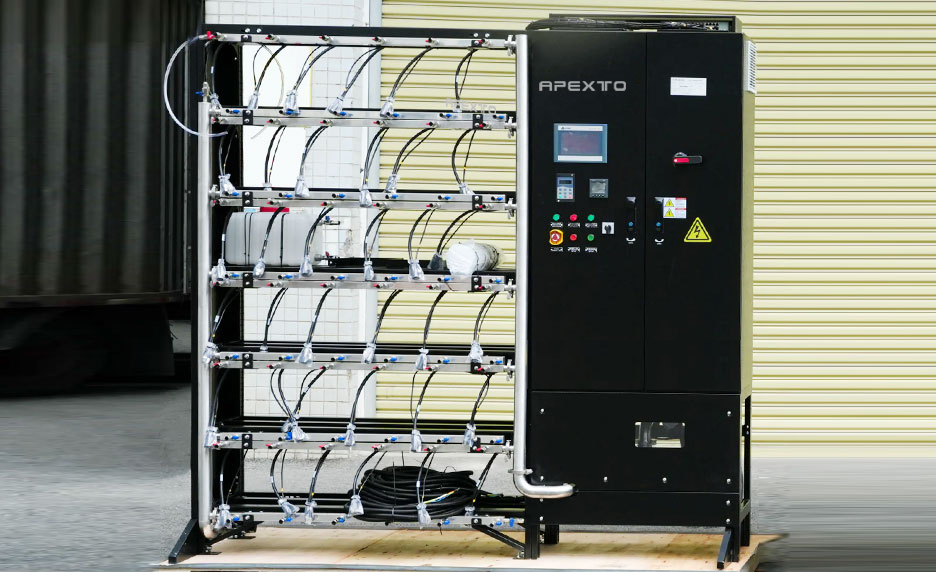

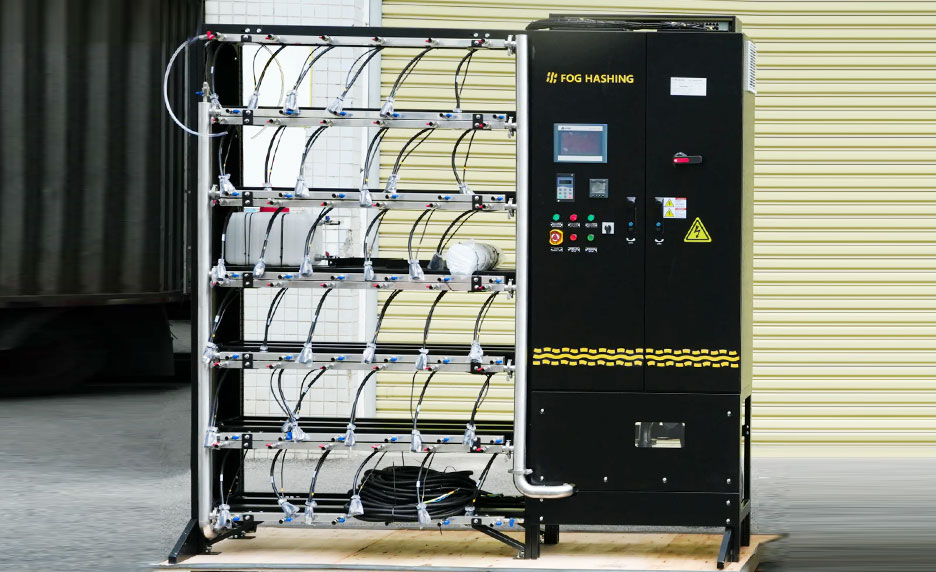

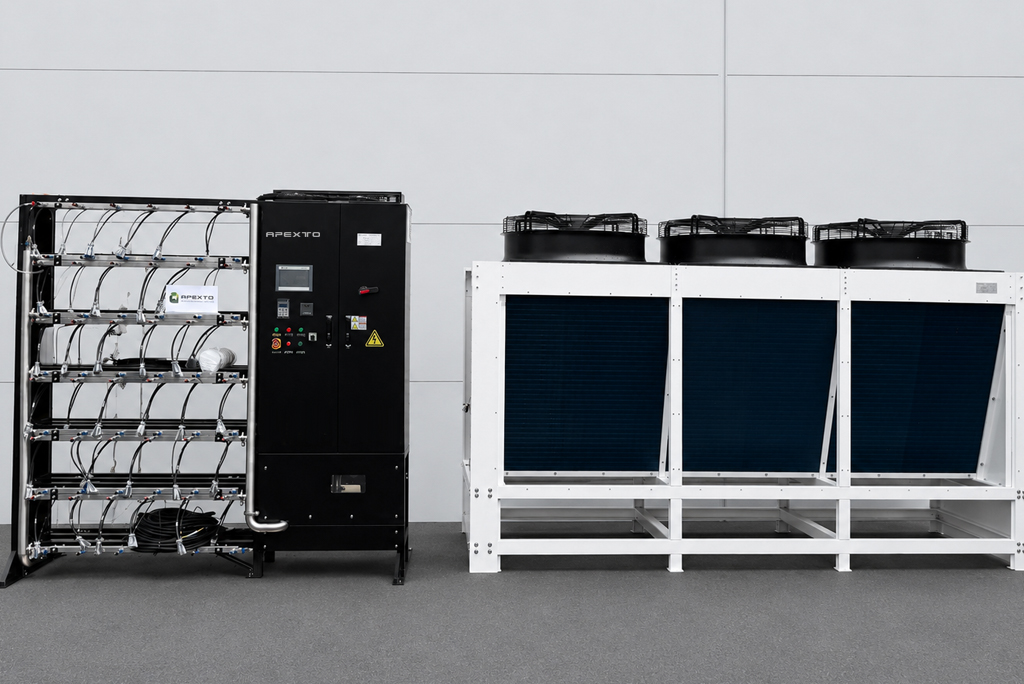

The dual-section layout separates the 36-slot miner rack on the left from the CDU and power control hub on the right. This organization ensures efficient plumbing and easier maintenance, keeping the overall setup clean and accessible. The right-hand section centralizes the pump, air switches, and system management in one protected enclosure.
Additionally, the system supports heat recovery, allowing waste heat to be repurposed for residential or agricultural heating. It is a practical, eco-friendly choice for operators looking to maximize energy efficiency and stability in a high-capacity liquid cooling environment.
Core Advantages
01. Unified Infrastructure Setup

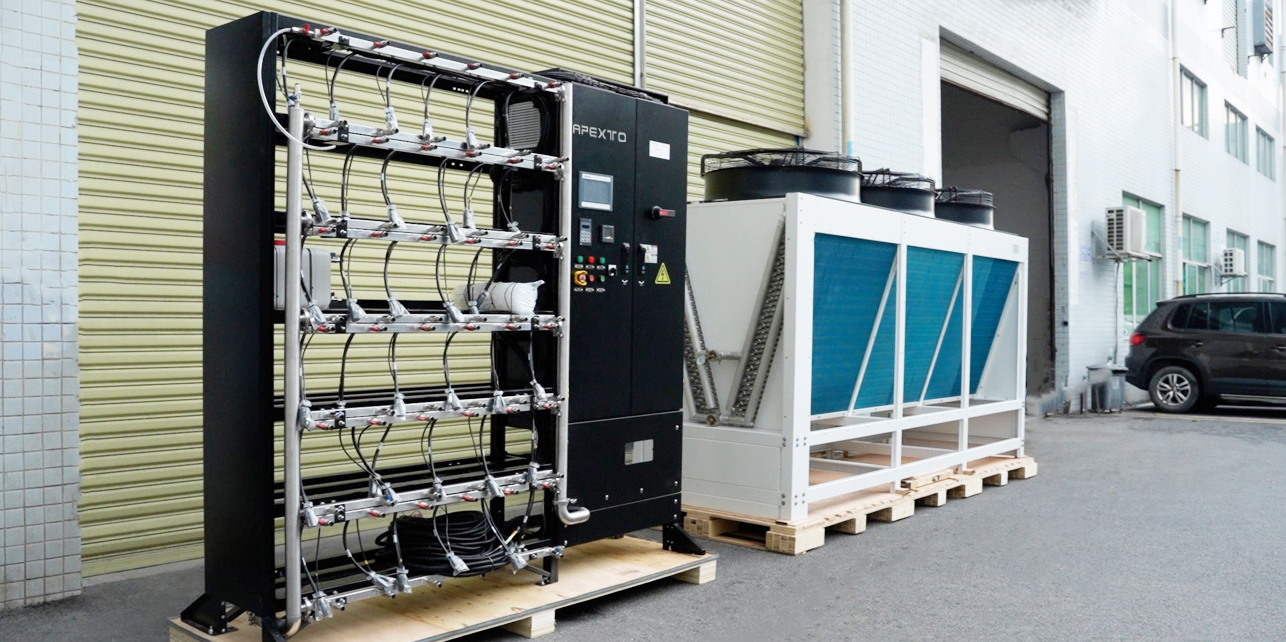

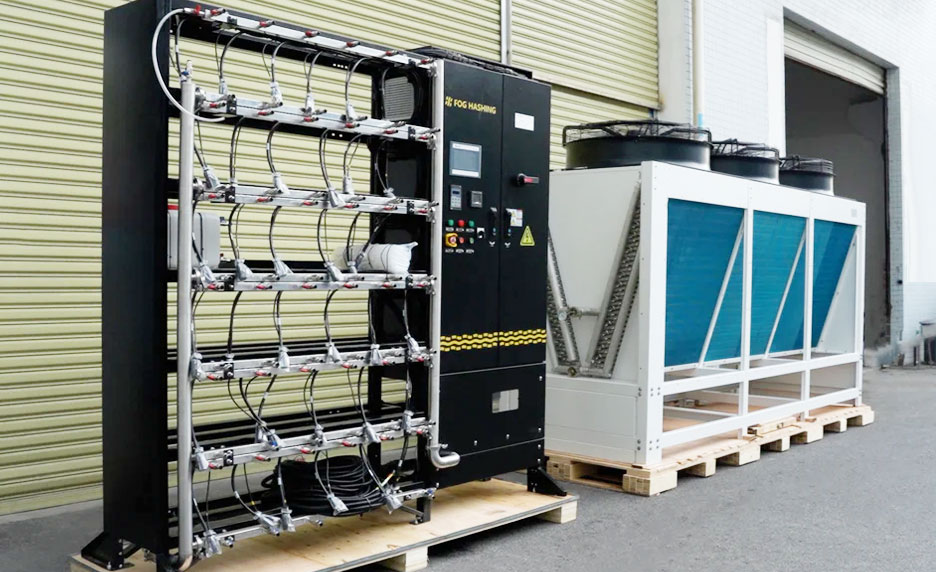

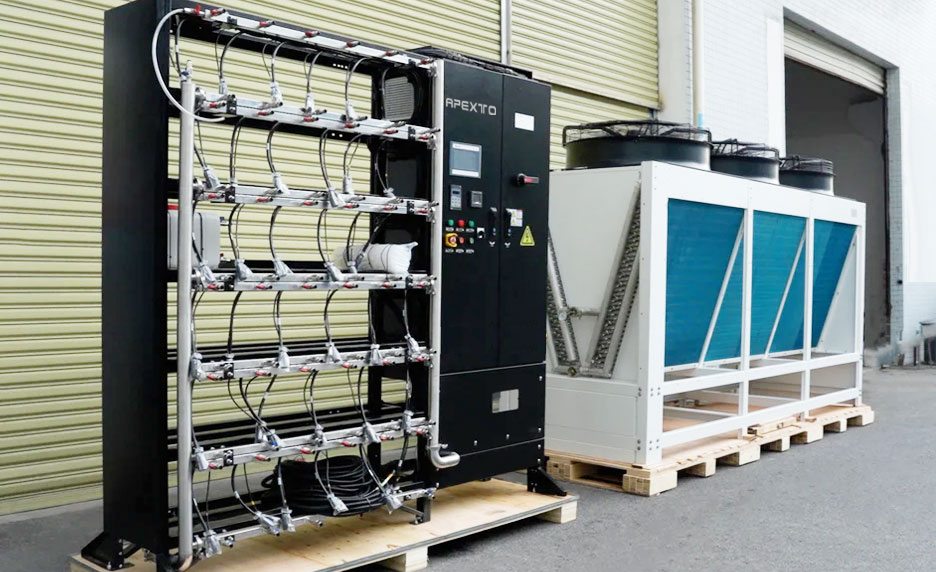

The system integrates the high-density rack and 200kW dry cooler into a unified infrastructure. This professional configuration ensures rapid deployment and high-capacity thermal management for large-scale, professional mining projects.
02. Centralized Coolant Distribution

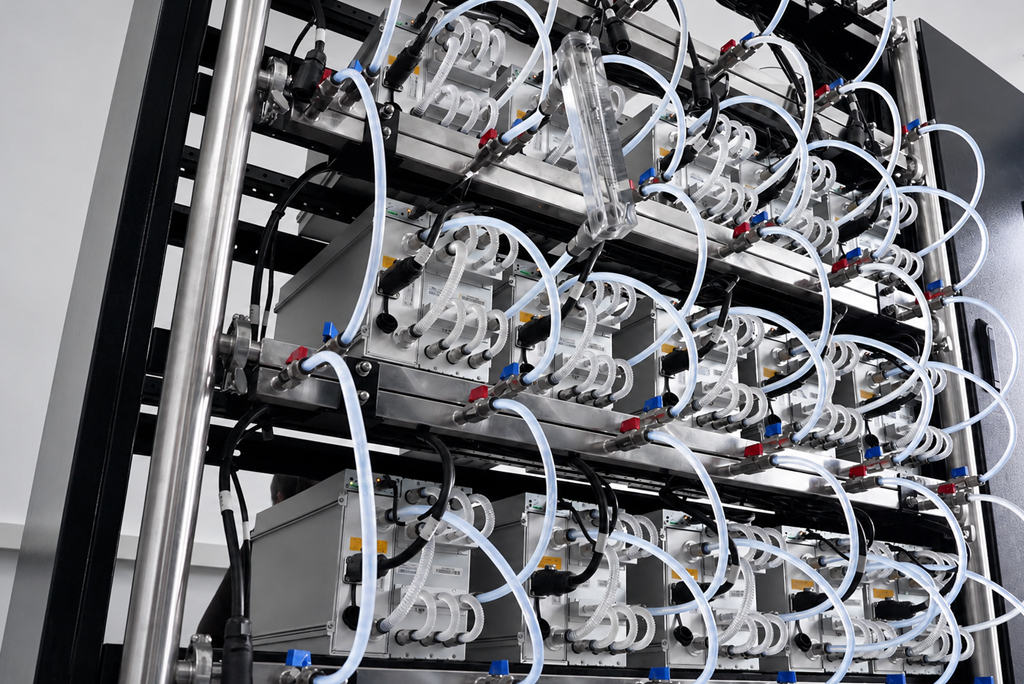

Features a dedicated Cooling Distribution Unit (CDU) that manages fluid flow across all 36 slots. The organized internal plumbing ensures uniform pressure and temperature, preventing heat accumulation within the modular cabinet.
03. Industrial Circulation System

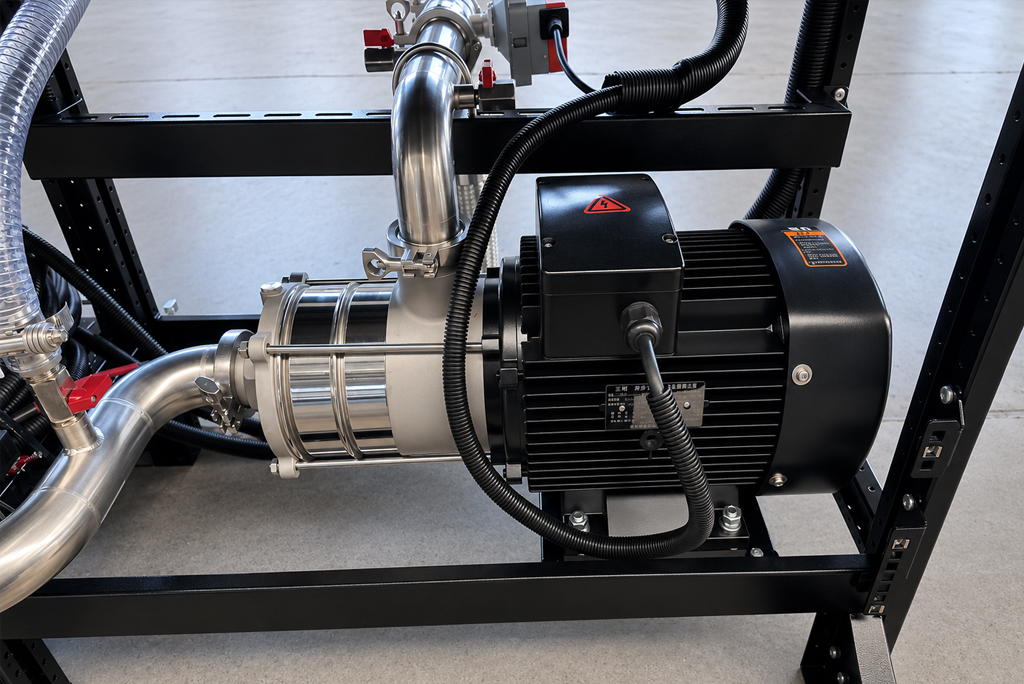

Equipped with a high-performance water pump designed for heavy-load, continuous operation. It maintains a steady flow rate throughout the 200kW loop, ensuring reliable and efficient heat transfer from the hardware to the radiator.
04. Compliant Power Distribution

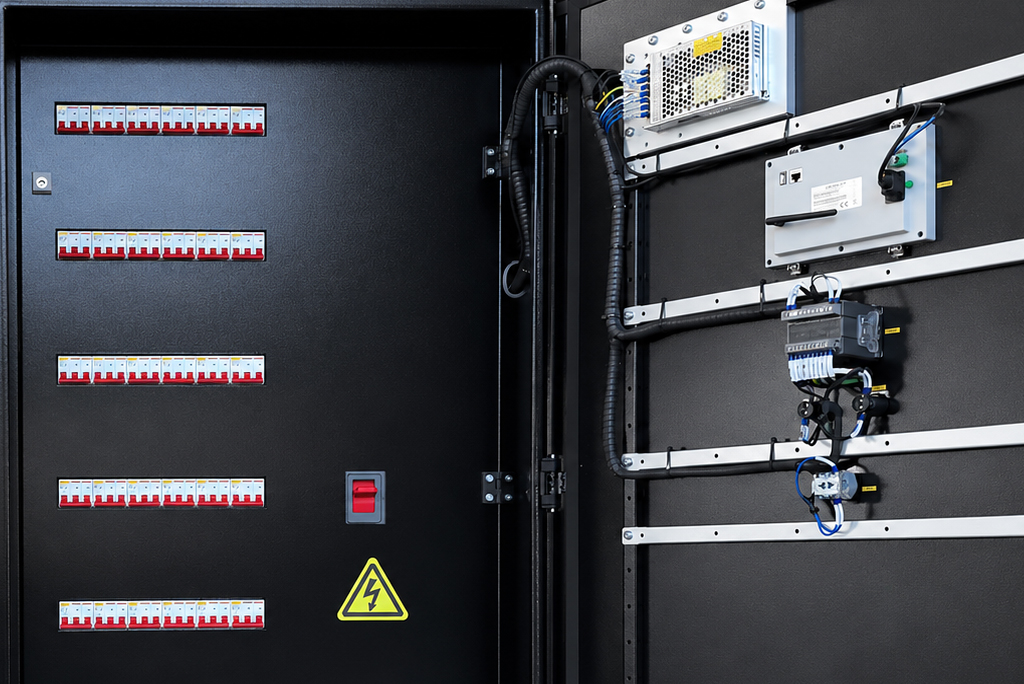

Engineered to international safety standards, the power cabinet features six industrial air switches for individual group control. With UL-compliant components, it provides dedicated over-current protection and ensures isolated circuit stability.
05. Real-Time Smart Monitoring

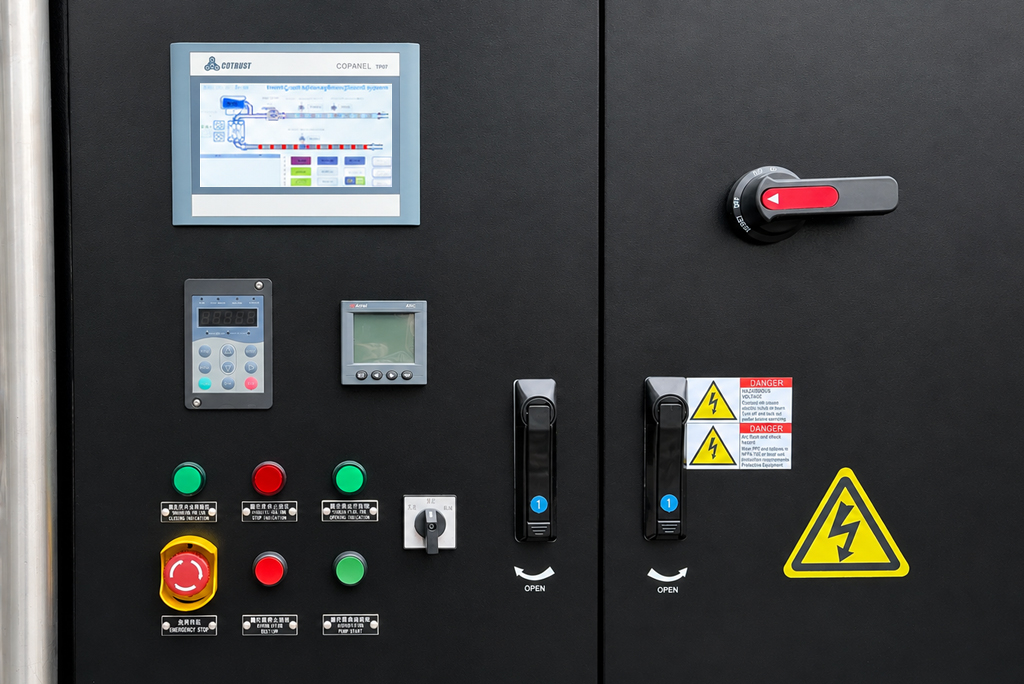

An integrated control panel provides real-time monitoring of system temperature, pressure, and flow rates. The automated management system optimizes cooling performance and pump speeds based on live data to ensure peak hardware stability.
06. Sustainable Heat Recovery
The 200kW dry cooler effectively dissipates heat while supporting advanced heat recovery. Repurposing waste heat for residential or agricultural heating significantly reduces operational energy costs and improves the overall sustainability of your farm.
Full Specifications
External dimensions
L:1740mm、W:550mm、H:2197mm
Internal dimensions
L:1740mm、W:550mm、H:2197mm
Weight
1300KG
|
Model |
AP-A36 |
Installed capacity |
36 Seat |
|
System Power Load (MAX) |
226 kW |
Input Voltage |
3-Phase 380V-415V, 50/60Hz |
|
Network |
1000M Network Switch*2 |
Operation Temperature |
-25 ~ 35℃ |
|
Operating Humidity |
5%~95%RH |
Water Manifold |
304 Stainless Steel |
|
Hose |
PE/PTFE Hose + Quick Connects |
Cooling Capacity |
200kW |
|
Water Pump Power |
3.5 kW |
Cooling Medium |
Pure water/Soften water + Antifreeze + Corrosion Inhibitor |
|
Inlet/Outlet |
10°C (Normal) / 14°C (High Performance) |
Rated Flow Rate |
20 m³/h |
|
PLC System |
Constant flow control with pressure regulation |
Communication Method |
Modbus-RTU,TCP/IP |
|

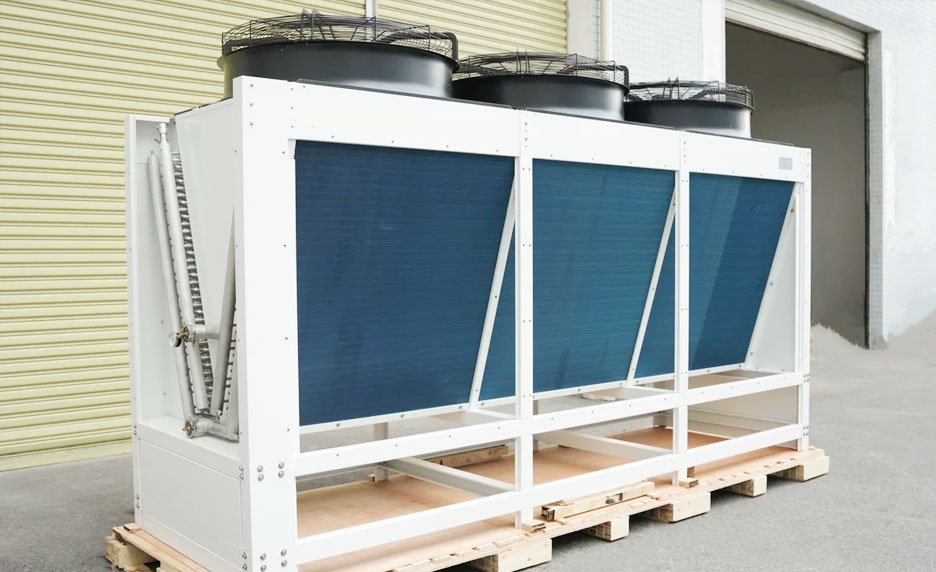

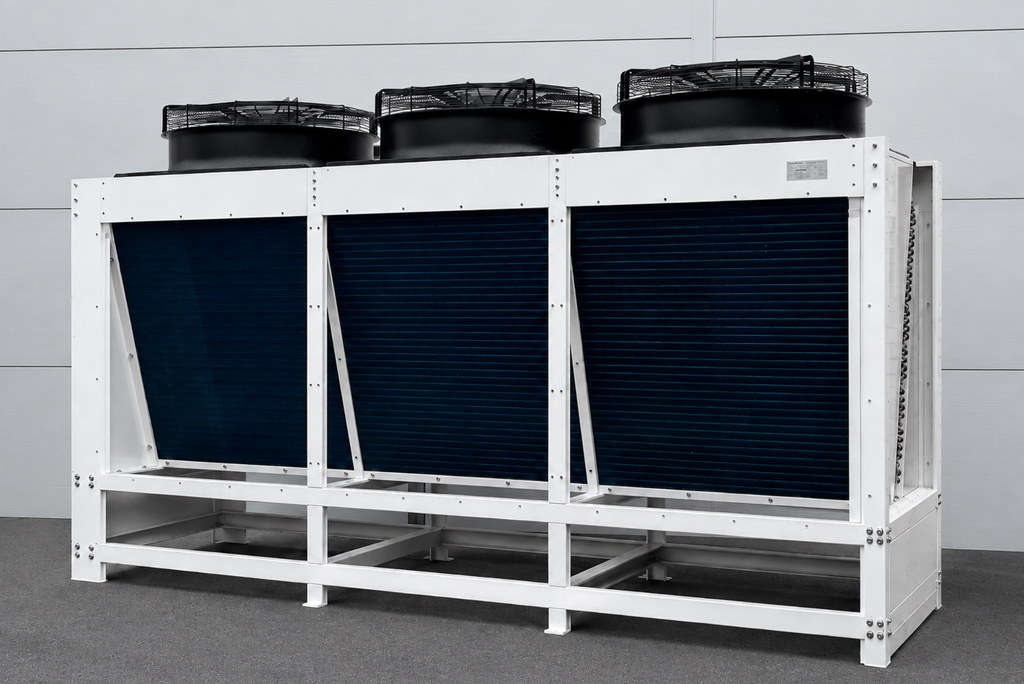

Dry Cooler |
|||
|
Module |
Dry Cooler V Type |
Cooling Capacity |
200 kW |
|
FANs |
2 |
Connection |
DN50 |
|
Inlet/Outlet Temperature |
55℃/40℃ |
Ambient temperature |
35℃ |
|
Fin/Tube Materials |
304 Stainless steel，Al-mg/AI |
Operating/Maximum Pressure |
0.3 MPA / 1.6 MPA |
|
Dry Cooler Dimension |
2792 (L) mm × 1500 (W) mm × 1853 (H) mm |
CDU Dimension |
1027 (L) mm × 700 (W) mm × 1915 (H) mm |
36-Slot Antminer Hydro Cooling Rack Product Brochure
Complete product specifications, installation guide, and operational instructions.
Certification Standards
Our products meet leading international standards for safety, reliability, and performance.
China Classification Society
Marine & offshore compliance
UL Listed
Safety tested & certified
CSA Certified
North American compliance
CE Marking
European conformity
Complete Cooling Solutions
We design and manufacture a complete range of hydro cooling solutions for every scale, from hydro cooling cabinets and containers to CDUs and dry coolers.
|
❄️ Cooling Capacity |
|
⚙️ Miner Slots |
|
📏 Dimensions (L × W × H) |
|
🏢 Application |
28-Slot Antminer Hydro Cooling Rack
|
154 kW |
|
28 Slots |
|
1,750 × 1,000 × 2,200 mm |
|
Home & Personal Mining |
34-Slot Antminer Hydro Cooling Rack
|
200 kW |
|
34 Slots |
|
1,350 × 8,00 × 2,250 mm |
|
Small-Scale Mining Sites |
Compare
36-Slot Antminer Hydro Cooling Rack
|
200 kW |
|
36 Slots |
|
2,230 × 8,00 × 2,370 mm |
|
Professional Mining Facilities |
40-Slot Antminer Hydro Cooling Rack
|
230 kW |
|
40 Slots |
|
2,500 × 1,200 × 2,640 mm |
|
Mid-Scale Industrial Deployment |
Real Results from Real Miners
View All >>

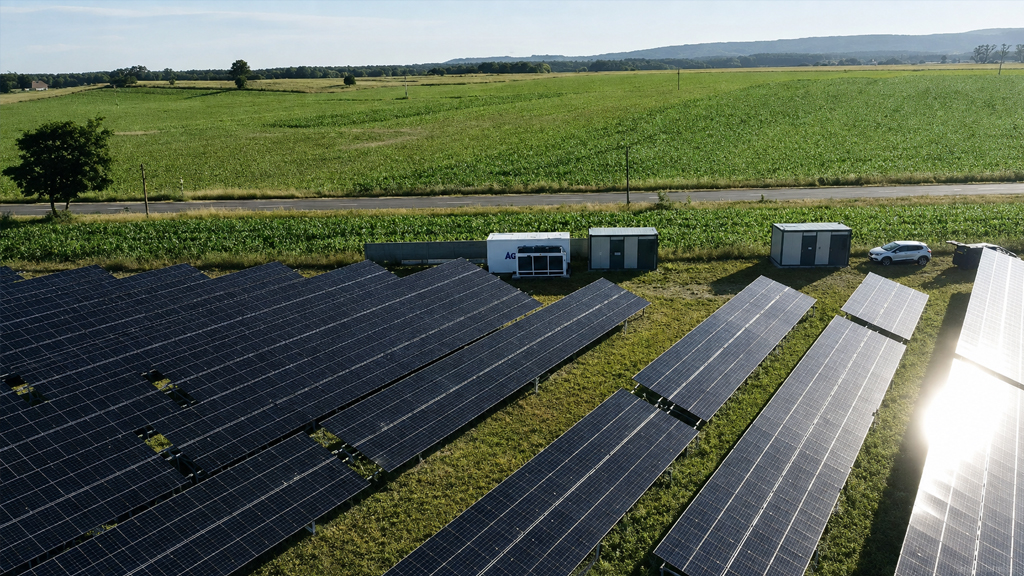

Hamburg, Germany
16 x 200kW Solar-Hydro Project
Adapting solar-hydro scaling while isolating miners from heavy agricultural dust.
+60%
Future Scalability
-35% db
Noise Reduction
120W USD
Energy Cost

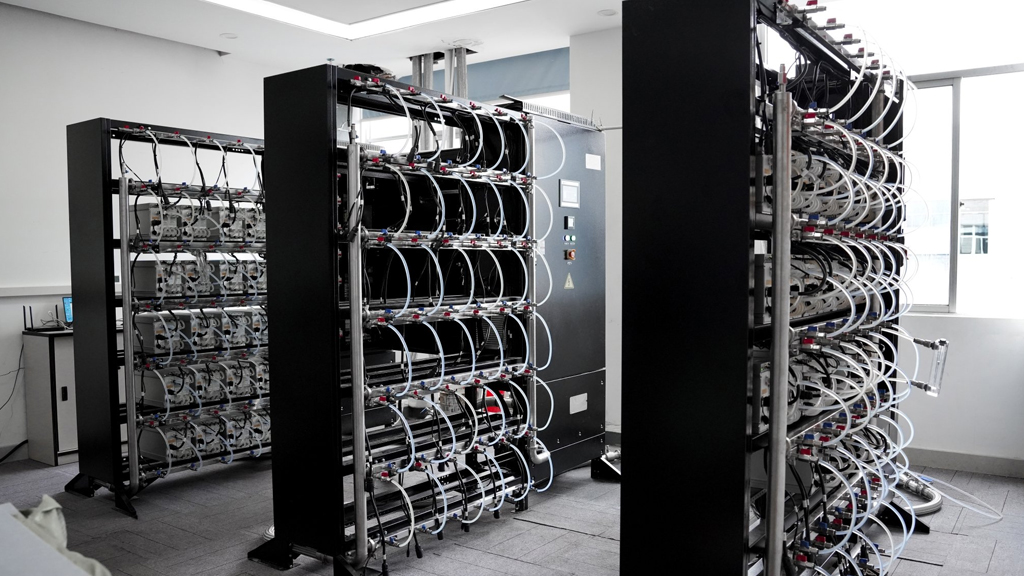

Stockholm, Sweden
3 x 200kW Indoor Project
Maximizing indoor density with integrated heat recovery for winter facility heating.
-30%
Space Required
-28%
Setup Time
$0
Heating Costs
“
"Managing our solar-powered site with these cabinets has been incredibly efficient. The modular setup allowed us to start with our current 2MW power limit and gives us the perfect path to scale up and add more units as our solar array expands to 3.2MW next year."
— Farm Owner, Hamburg Mining Site
"We maximized our warehouse capacity without needing expensive outdoor containers. By utilizing the heat recovery feature, we’ve repurposed the waste heat to warm our entire facility, successfully eliminating our winter heating bills while maintaining a stable, high-density mining environment."
— Project Lead, Stockholm Indoor Site
Global Deployment
1.2+ GW
Cumulative delivered cooling capacity
Serving Mining Sites
50+
Countries and regions covered
36-Slot Antminer Hydro Cooling Rack FAQs
How is the 36-slot capacity organized within the cabinet?

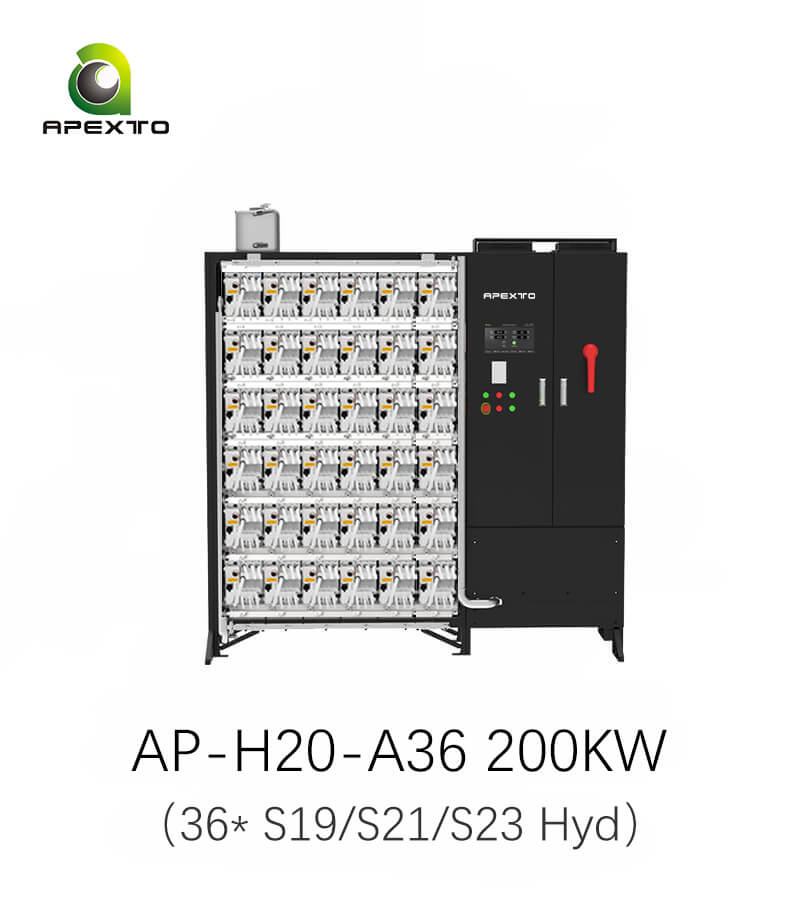

The cabinet stands 2.1 meters tall and is divided into six internal shelves. Each shelf is designed to house six Antminer hydro units, providing a total capacity of 36 slots. This vertical arrangement maximizes hashrate density while keeping the footprint compact for indoor or sheltered environments.
How is the electrical safety managed for the 36 miners?
The power distribution section is equipped with six sets of industrial-grade air switches. Each switch provides dedicated over-current protection for one shelf (6 miners). This configuration ensures electrical safety across the entire 200kW load and allows you to manage or maintain specific groups of miners without shutting down the whole system.
What are the practical applications for the heat recovery feature?
The system captures waste heat from the miners and converts it into hot water (approximately 80°C). This energy can be repurposed for residential heating, swimming pools, or greenhouses, allowing you to offset energy costs while maintaining high-efficiency mining operations.
How does this cabinet compare to using a full shipping container?
This 36-slot cabinet bridges the gap between individual racks and heavy shipping containers. It is more cost-effective for indoor facility mining—such as in barns or warehouses—where a permanent container might be impractical due to space constraints or zoning regulations.
Does the 36-slot cabinet require complex on-site assembly?
No. The Cooling Distribution Unit (CDU), water pump, and power distribution system are factory-pre-installed in the right-hand control section. On-site, you only need to connect the external dry cooler and complete the initial liquid filling, making the deployment process much faster.
