Product Description

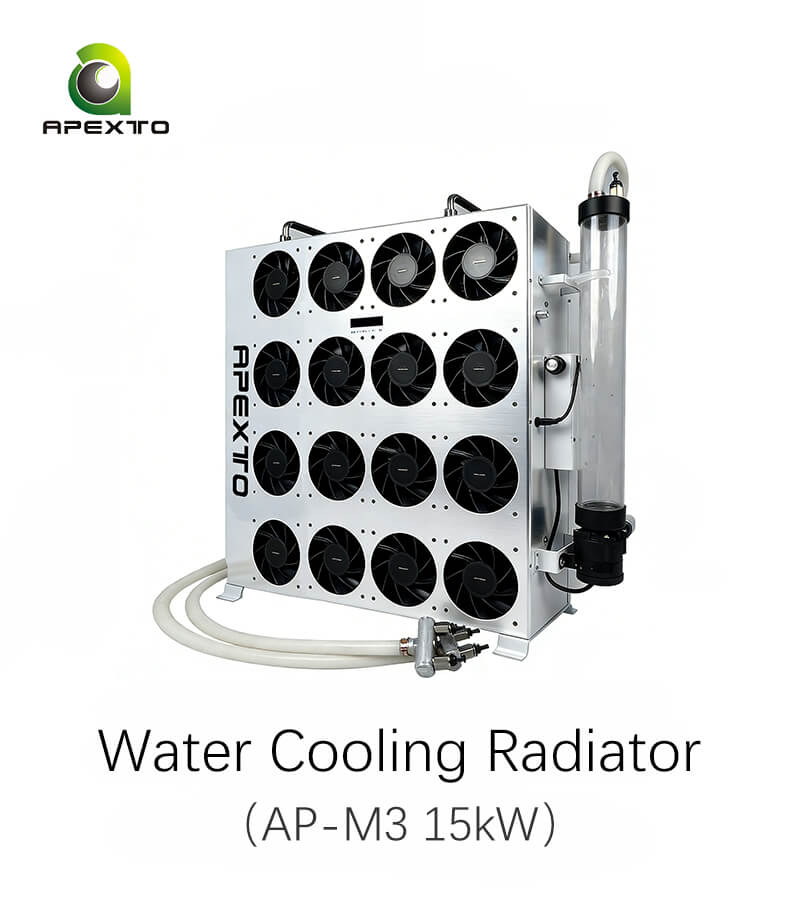

The Water Cooling Radiator AP-M3 is a high-performance all-in-one hydro cooling solution for ASIC miners.

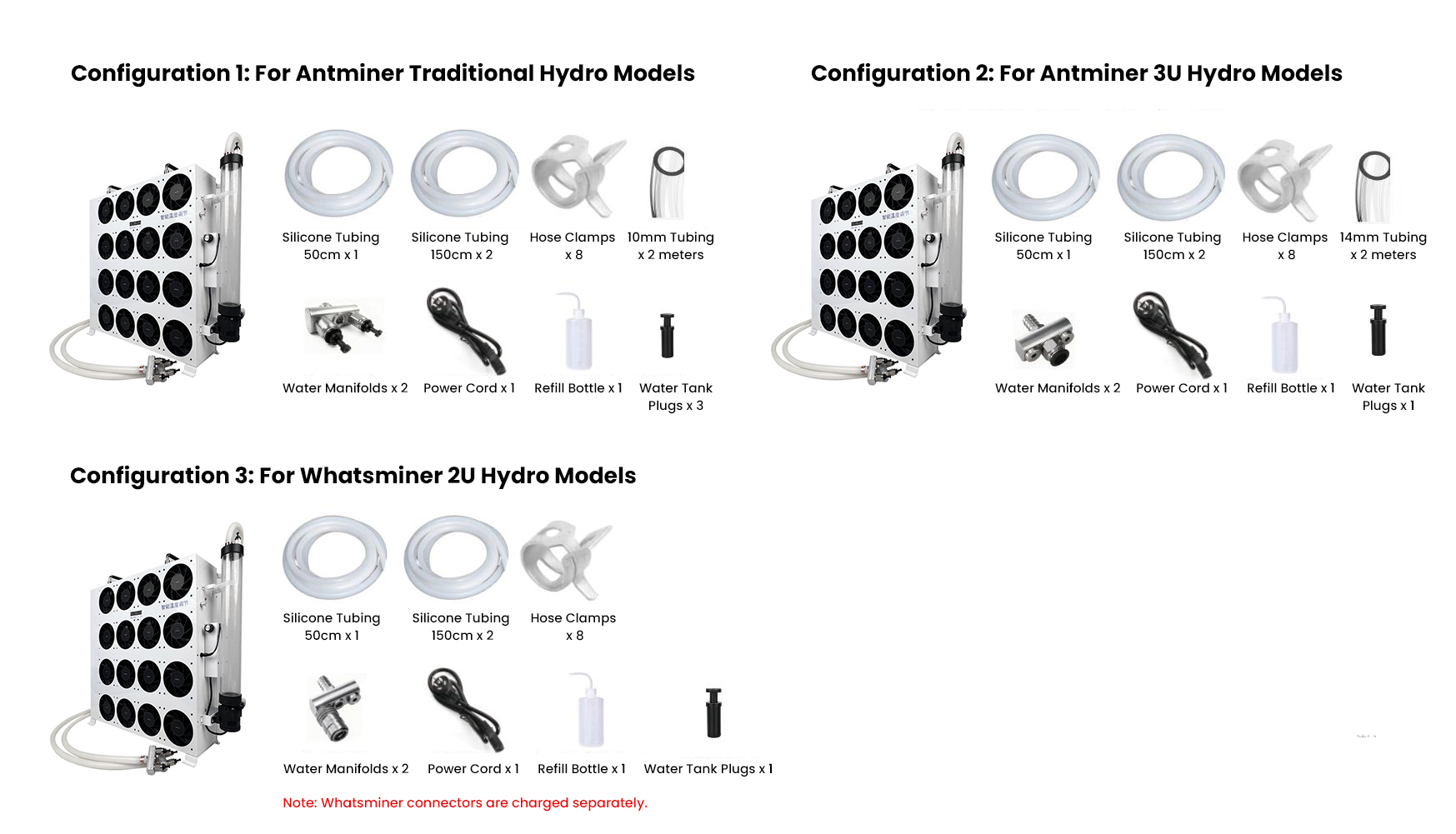

It can accommodate one or two standard Antminer Hydro units, one Antminer 3U Hydro (U3S23 Hyd, U3S19 XP+ Hyd, and U3S21 EXP Hyd) , or one WhatsMiner 2U Hydro (M73/M79), providing versatile compatibility for different mining setups.
The radiator delivers up to 15 kW of cooling power at 30°C ambient temperature, ensuring efficient heat dissipation for high-density mining rigs.
It features six adjustable temperature control levels and an integrated circulation pump with flow adjustment, offering precise cooling management.
With high-performance fans, ample coolant flow, and easy installation, the AP-M3 guarantees stable operation and reliable performance for demanding crypto mining operations.
Specifications
| Parameter | Specification |
|---|---|
| Model | AP-M3 |
| Product Dimensions | 690 × 645 × 138 mm (maximum external size) |
| Packaging Dimensions | 790 × 270 × 725 mm |
| Net Weight | 23 kg |
| Gross Weight | 25 kg |
| Water Tank Capacity | ≈7L |
| Water Flow Rate | 8–16 L/min (adjustable) |
| Inlet Water Temperature Difference | 10°C / 14°C |
| Pipe Diameter | Inlet/outlet 14 mm (standard 13 × 18 mm silicone tube) |
| Cooling Liquid | Antifreeze, pure water, deionized water |
| Power Connector Type | C14 female ×1; requires C13 power cord / 220V |
| Water Cooling Power Consumption | 500W |
| Heat Dissipation Capacity | 15 kW @ 30°C ambient |
| Maximum Ambient Temperature | 50°C |
| Operating Noise | 20–75 dB |
| Fan Speed Range | 0–6000 RPM |
| Note | Other parameter configurations can be customized |
