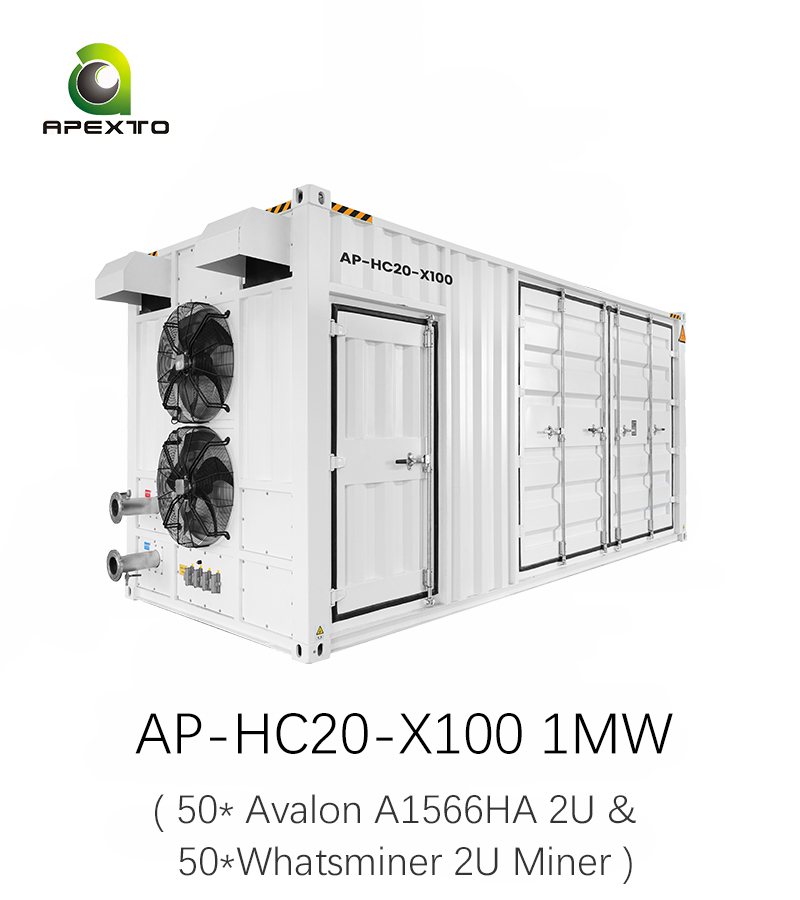

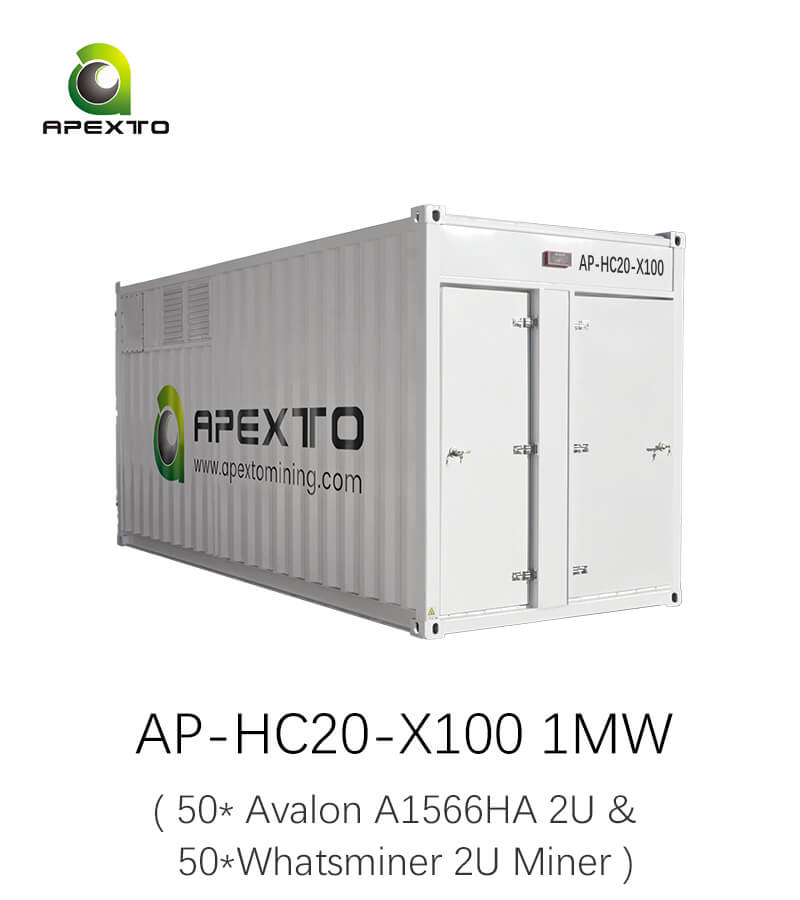

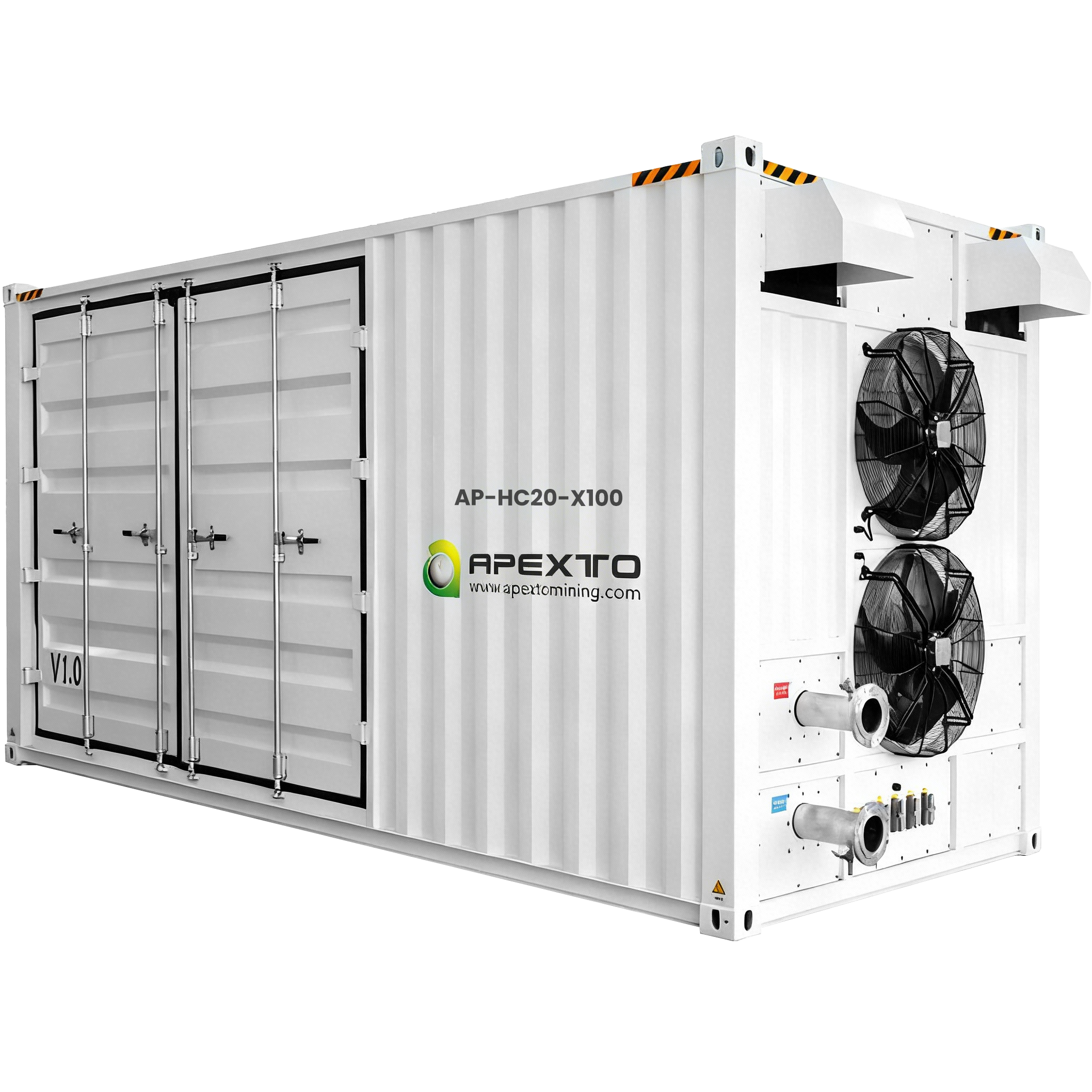

1MW 100-Slot Avalon & Whatsminer 2U Hydro Mining Container for Flexible Deployment
CONTAINER CAPACITY
ASIC MINERS
100 UNITS
Housed at full load
TOTAL POWER
1,000 KW
Continuous electrical load
FORM FACTOR
Custom
Standard
COOLING
Hydro
Thermal management
POWER INPUT
380V–415V AC 50/60Hz
AVAILABILITY
Typical lead time 45 days • DDP Sea Shipping Available
Product Description
Engineered for highly flexible multi-vendor compatibility, the 1MW 100-Slot Avalon & Whatsminer 2U Hydro Mining Container 20FT HQ is optimized for streamlined, cross-brand server deployment.
This compact 20-foot infrastructure allows operators to freely mix and match up to 100 units of Canaan’s Avalon A1566HA or MicroBT’s Whatsminer 2U hydro series, supporting hybrid configurations like fifty Avalon and fifty Whatsminer units.
It integrates advanced, large-diameter manifolds with customizable flow-rate valves to ensure balanced coolant distribution to different miner architectures under load. By providing a standardized, highly adaptable 1000kW solution, this space-saving container helps mining enterprises secure long-term investment flexibility and high-efficiency BTC mining performance.
Core Advantages

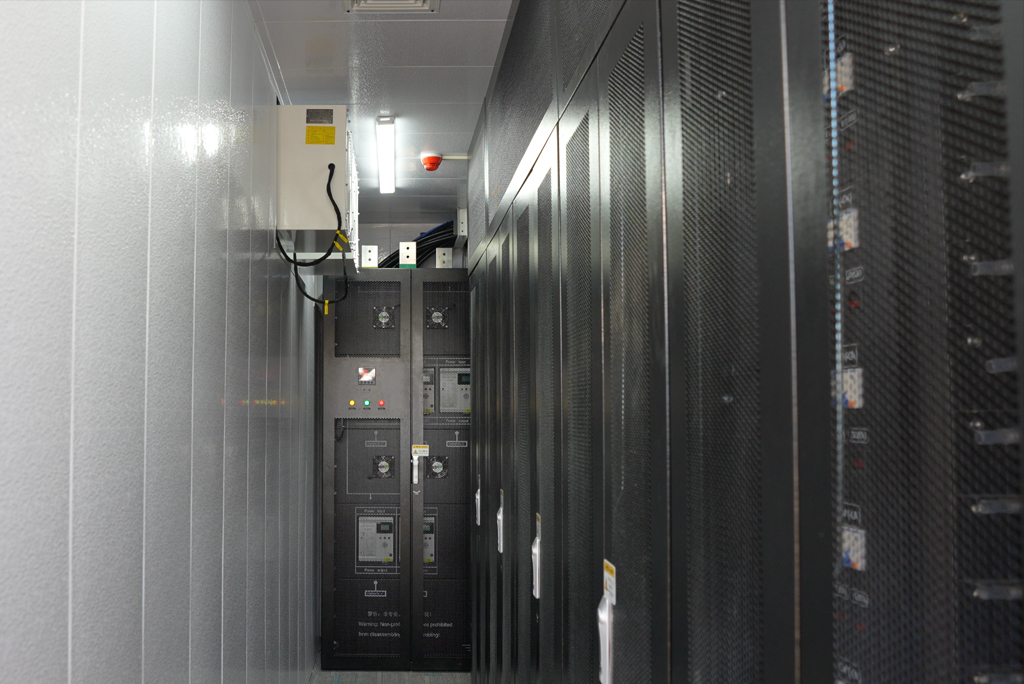

01. Integrated All-in-One System

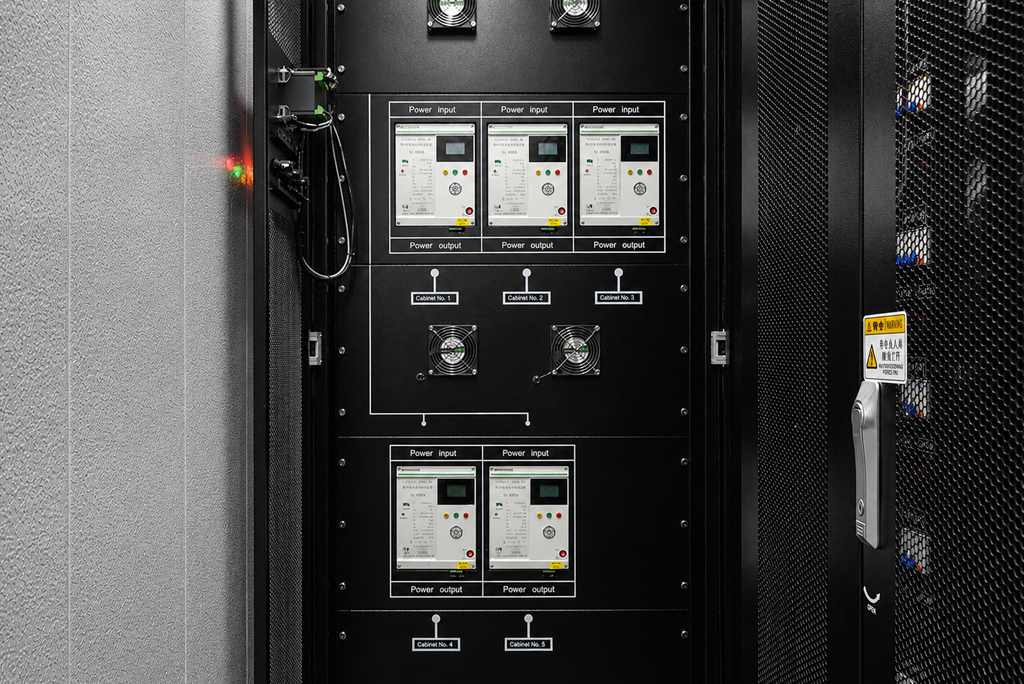

The rack, CDU, power cabinet, and control unit are integrated into a single container for easy installation, quick deployment, and efficient mining operations with minimal setup.

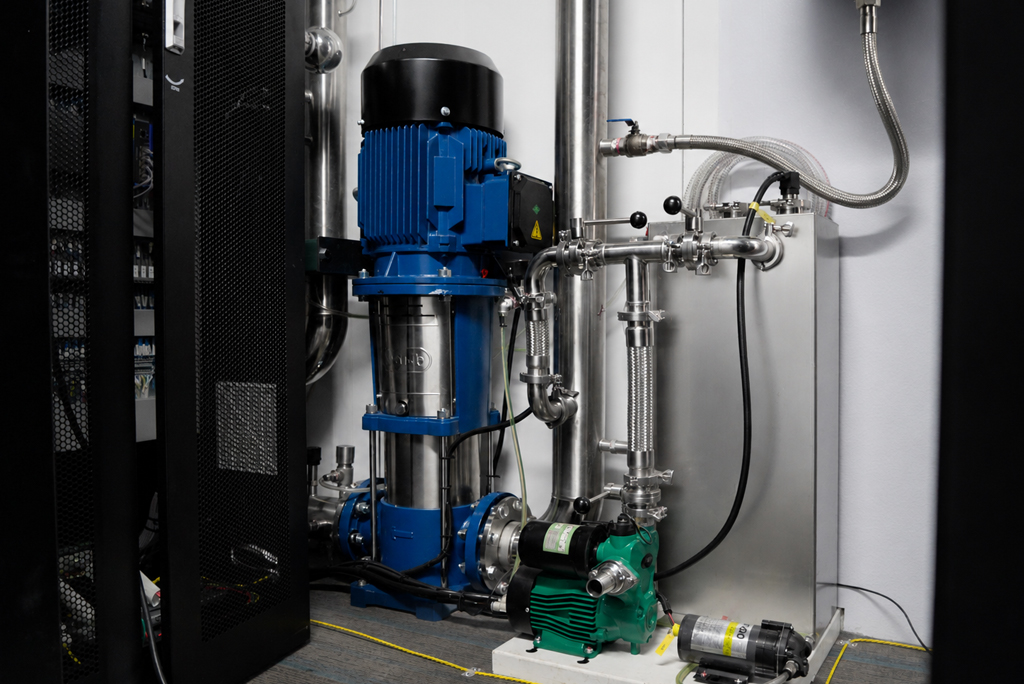

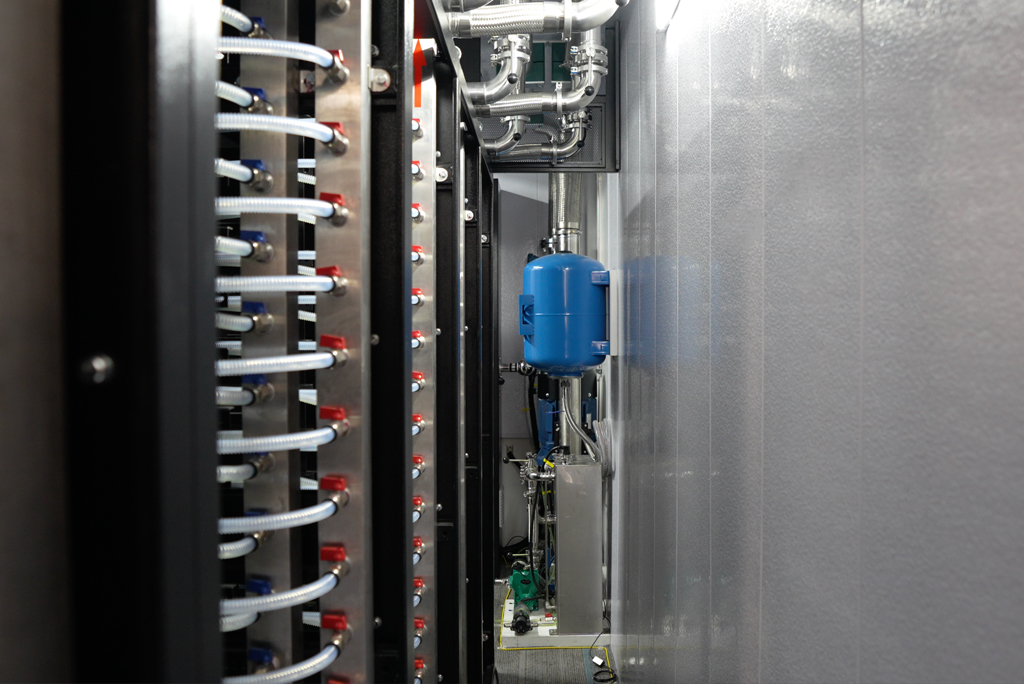

02. Redundant Dual-Pump Cooling
Integrates redundant high-volume pumps to guarantee continuous, reliable coolant circulation and instant automatic failover, preventing any system downtime or thermal build-up under load.
03. Individual Power Switches
Each miner is equipped with a labeled switch, allowing for easy maintenance on individual units without disrupting the overall mining system or operations.

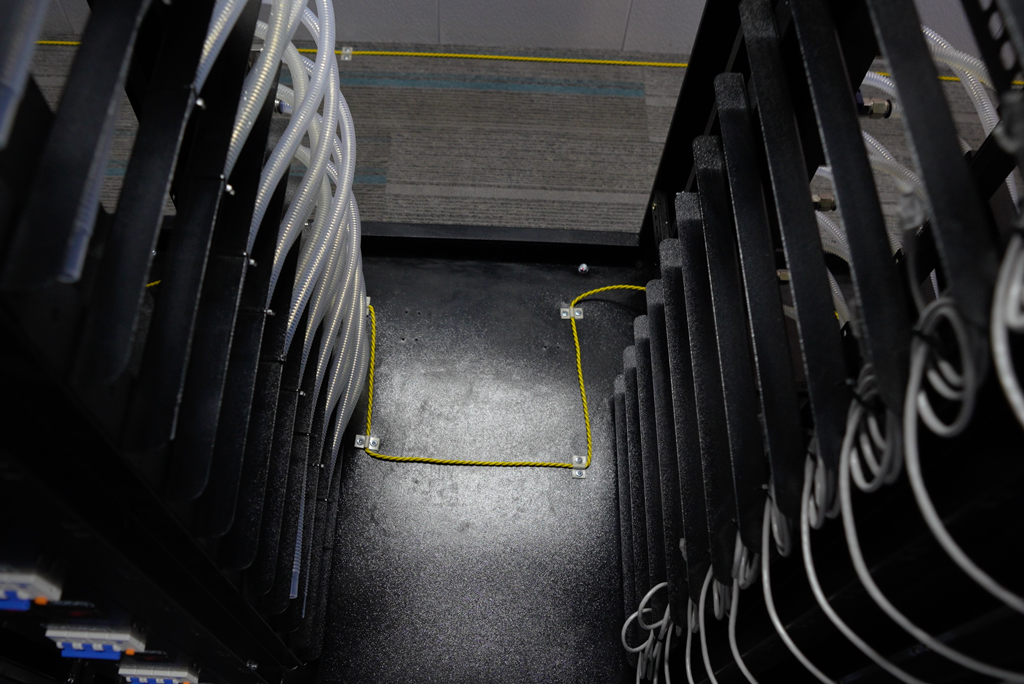

04. Leak Detection System
Equipped with a moisture-sensing immersion rope, this system detects coolant leaks and triggers instant alarms, enhancing safety and preventing potential damage in liquid-cooled mining setups.
05. Flexible Hybrid Deployment
Supports unrestricted hybrid deployment of up to 100 units, letting operators freely mix and match Canaan's Avalon and MicroBT's Whatsminer servers in any specific ratio safely.

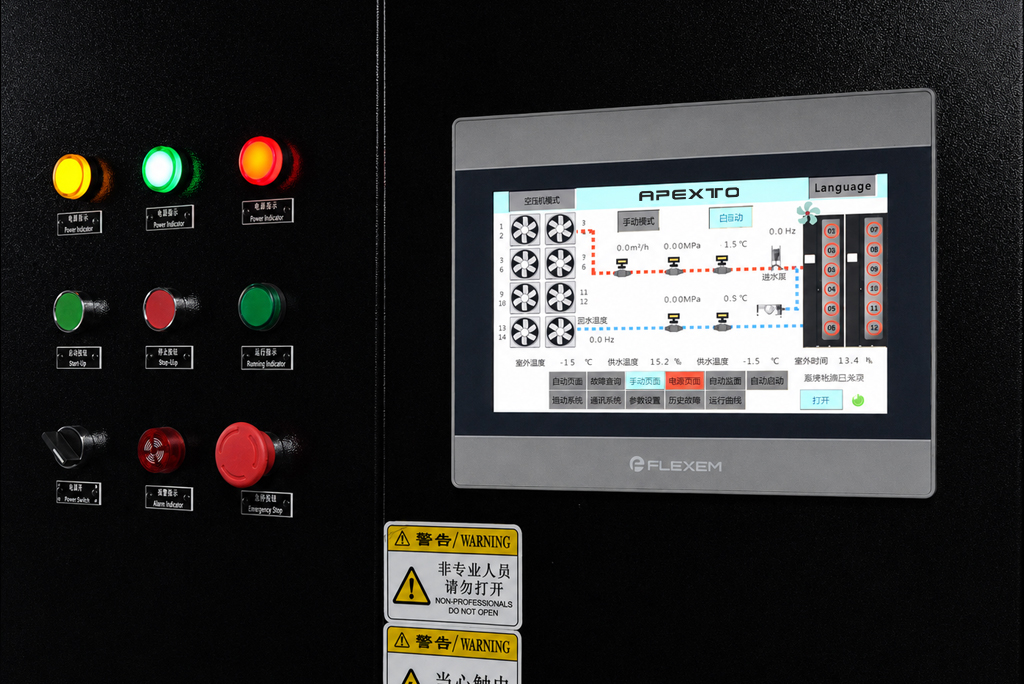

06. Intelligent Management System
Multiple sensors monitor flow rate, pressure, temperature, and leakage, enabling real-time control, malfunction alerts, and quick intervention via mobile or PC for efficient mining operations.
Full Specifications
External dimensions
L:6058mm、W:2438mm、H:2896mm
Internal dimensions
L:12000mm、W:2230mm、H:2660mm
Weight
3500KG
|
Model |
AP-HC20-X100 |
Installed Units |
50*Avalon A1566HA 2U + 50*Whatsminer M53/M63/M73 or 100*Avalon/Whatsminer |
|
Installed Load |
1000 KW |
Light Vertical Multistage Pump Power |
18.5 KW |
|
Make-up Pump Power |
0.2 KW |
Total Power of Dry Cooling Tower Fan |
25 KW |
|
Total Power of Closed Cooling Tower Fan |
8.8 KW |
Total Power of Closed Cooling Tower Spray Pump |
2.2 KW |
|
System Pipeline Pressure |
0.1–0.4 MPa |
System Operating Temperature Range |
0–50 °C |
|
Coolant circulation demand of a single machine |
≥0.5 m³/h |
Cooling Liquid Flow Requirement per Unit |
≥0.7 m³/h |
|
Total Cooling Liquid Demand in System Circulation |
≥1.5 m³ |
Moulded Case Circuit Breaker |
160 A |
|
Residual Current Protective Circuit Breaker |
400 A |
Contactor |
9 A |
|
Intermediate Relay |
24 V |
Frequency Converter |
380 V |
1MW 100-Slot Avalon & Whatsminer 2U Hydro Mining Container
Complete product specifications, installation guide, and operational instructions.
Certification Standards
Our products meet leading international standards for safety, reliability, and performance.
China Classification Society
Marine & offshore compliance
UL Listed
Safety tested & certified
CSA Certified
North American compliance
CE Marking
European conformity
Recommended Power Setup
Match your container deployment with the appropriate transformer capacity.
For 1 × Container
1250 kVA Three-Phase Pad-Mounted Transformer
For 2 × Containers
2500 kVA Three-Phase Pad-Mounted Transformer
Need help sizing your transformer?
Our engineers will recommend the right transformer based on your site conditions and power requirements.
Complete Cooling Solutions
We design and manufacture a complete range of hydro cooling solutions for every scale, from hydro cooling cabinets and containers to CDUs and dry coolers.
|
❄️ Cooling Capacity |
|
⚙️ Miner Slots |
|
📏 Dimensions (L × W × H) |
|
🏢 Application |
Compare

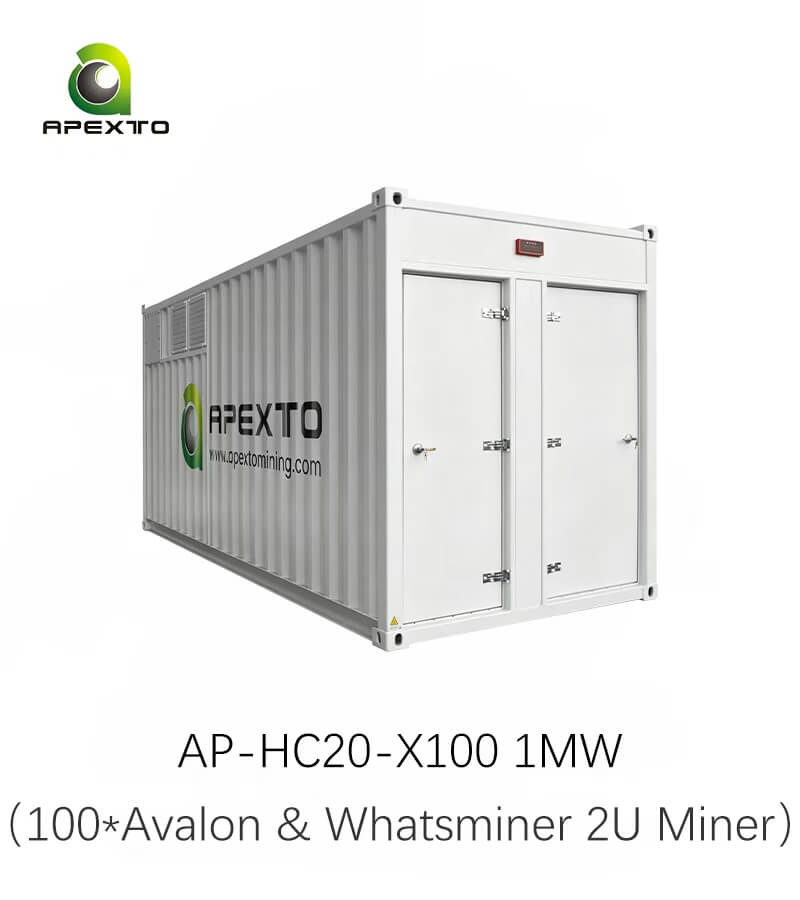

100-Slot Whatsminer & Avalon Hydro Container
|
1 MW |
|
100 Slots |
|
6058 × 2438 × 2896 mm |
|
Compact Mining Sites |
120-Slot Whatsminer Hydro Container
|
1.2 MW |
|
120 Slots |
|
6,058 × 2,438 × 2,896 mm |
|
Commercial-Scale Operations |
160-Slot Whatsminer Hydro Container
|
1.6 MW |
|
160 Slots |
|
6,058 × 2438 × 2896 mm |
|
Industrial-Scale Projects |

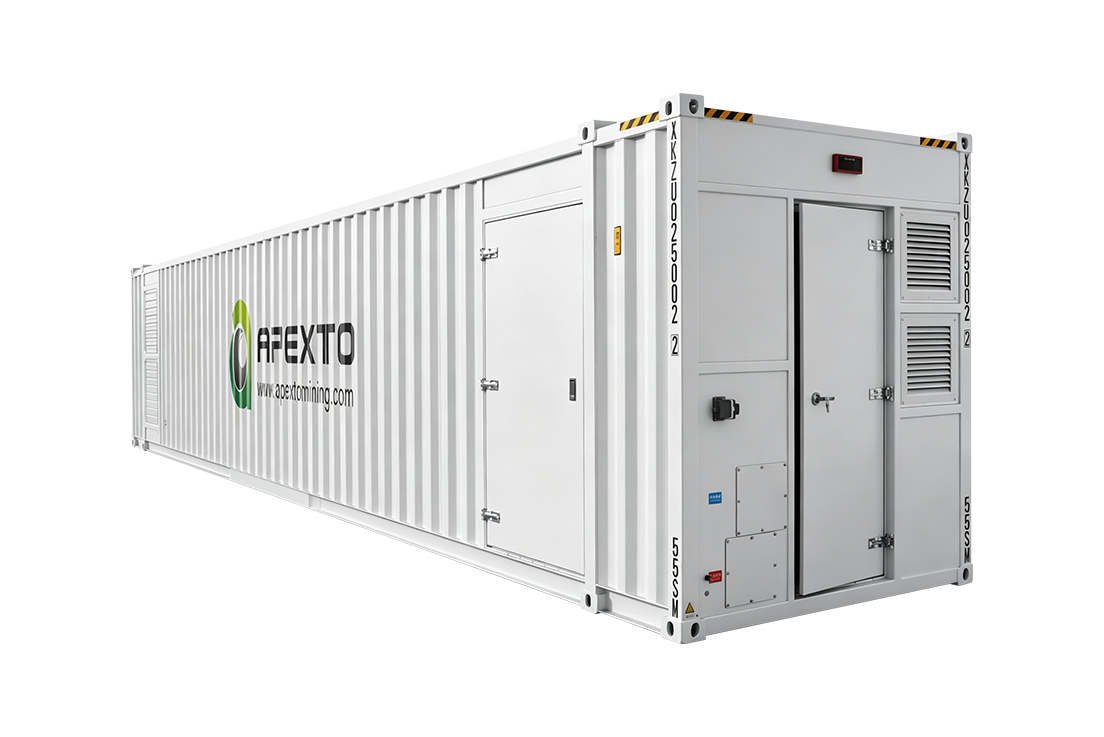

240-Slot Whatsminer Hydro Container
|
2.4 MW |
|
240 Slots |
|
1,3716 × 2,438 × 2,896 mm |
|
Mega-Scale Mining Facilities |

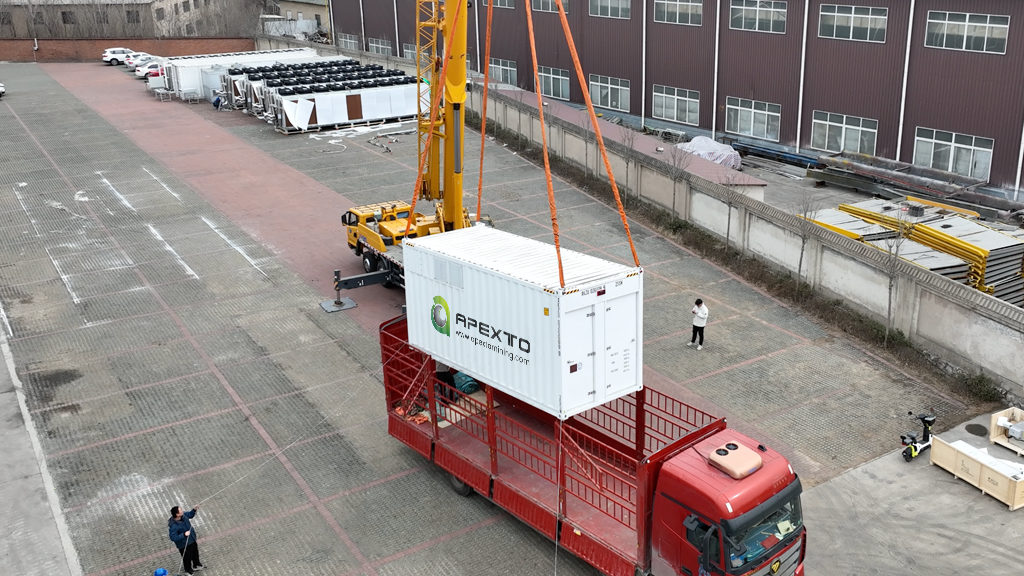

Real Results from Real Miners
View All >>
Muscat, Oman
3 x 1.0MW Hydro Project
Sustaining flexible dual-brand operations in arid desert terrains.
+30%
Asset Flexibility
-23%
Cooling Power Draw
$1.0M
Annual Savings
View All >>
Stockholm, Sweden
8 x 1.0MW Hydro Project
Achieving cost-effective hybrid mining using renewable energy.
+100%
Green Energy Uptime
-25%
Capex Saved
99.8%
System Reliability
View All >>
“
Amina’s liquid-cooled containers have enabled a quantum leap in energy efficiency and stability for our mining operations.
Director of Mining Operations
A major North American mining company
"Being able to mix Avalon and Whatsminer 2U units saved our desert site from market supply shortages. Combined with dry coolers, this modular container delivered exceptionally stable high-temperature cooling."
— Operations Director, Muscat Mining Hub, Oman
"This container's outstanding multi-vendor compatibility allowed us to deploy a highly cost-effective hybrid fleet of Avalon and Whatsminer servers. It runs smoothly on our 100% renewable Swedish hydro grid."
— VP of Infrastructure, Stockholm Hydro Site, Sweden
Global Deployment
1.2+ GW
Cumulative delivered cooling capacity
Serving Mining Sites
50+
Countries and regions covered
1MW 100-Slot Avalon & Whatsminer 2U Hydro Container FAQs
Which specific ASIC models are compatible with this container?
This 1MW container is engineered for standard 2U hydro servers, supporting Canaan's Avalon A1566HA alongside MicroBT's Whatsminer M53, M63, M73, M6d, and M7d series with exact matching internal cabinet rack dimensions.
How does the system handle fluid flow and water pressure when mixing different miner brands?
It integrates advanced high-flow water manifolds and adjustable flow valves. This allows operators to manually regulate pressure drops for different server architectures, ensuring uniform, balanced coolant circulation under load.
What are the main benefits of a hybrid, multi-vendor deployment in a single container?
A hybrid setup secures outstanding investment flexibility. It completely eliminates single-brand procurement bottlenecks, allowing operators to freely purchase either Avalon or Whatsminer units based on current market availability.
Can this 1MW multi-vendor container run with zero water consumption?
Yes. For water-restricted sites or dry desert climates, pairing this modular container with customizable external dry coolers instead of cooling towers provides a closed-loop setup with absolutely zero water consumption.
What safety features ensure zero-risk operations for these mixed server-class miners?
It integrates dual-pump CDU redundancy to prevent circulation failure, alongside floor-mounted moisture-detecting ropes and individual breakers. Any coolant leaks or flow drops trigger instant alerts and automatic power shutdowns.
