Immersion Cooling Tank B24D Immersive Crypto Mining Warehouse Deployment Solutions Supports 24 Antminers or 30 Whatsminers

SKU: Fog Hashing B24D-120kW

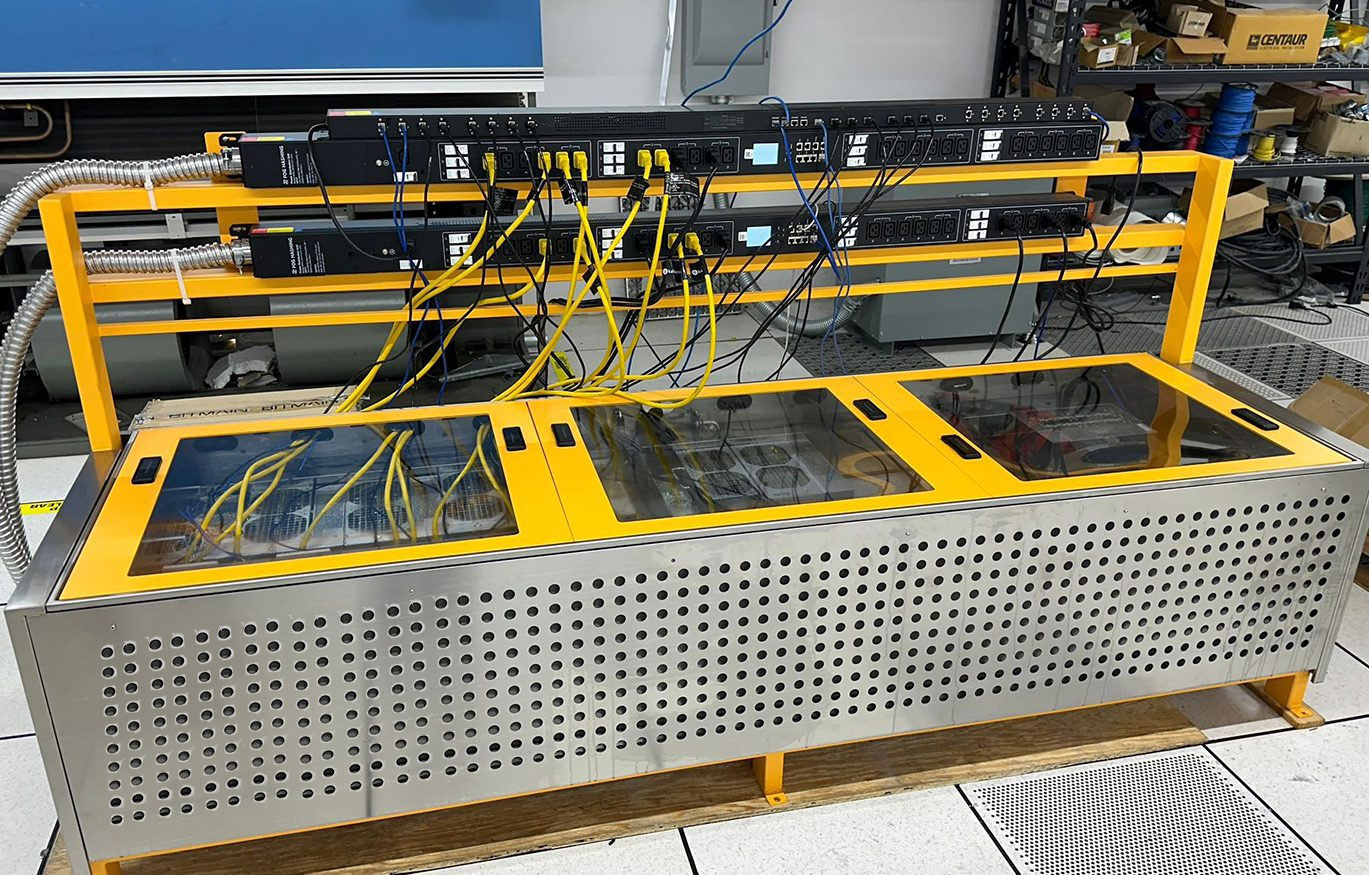

Fog Hashing’s B24 immersion tank supports 24 Antminers or 30

Whatsminers inside, and all of these immersion systems are all-in-one designs. Deployment support.

$1,955.00$12,900.00

Trusted by

70 People watching this product now!

Apexto Immersion Cooling for Crypto Mining

——Provide from Home Mining to Large-scale Mining Solutions

  • Immersion Cooling Tank B24——Designed For Warehouse Deployment Solutions

Precise liquid flow design | Ultra stable | Cost-effective | Highly integrated



Designed for independent deployment

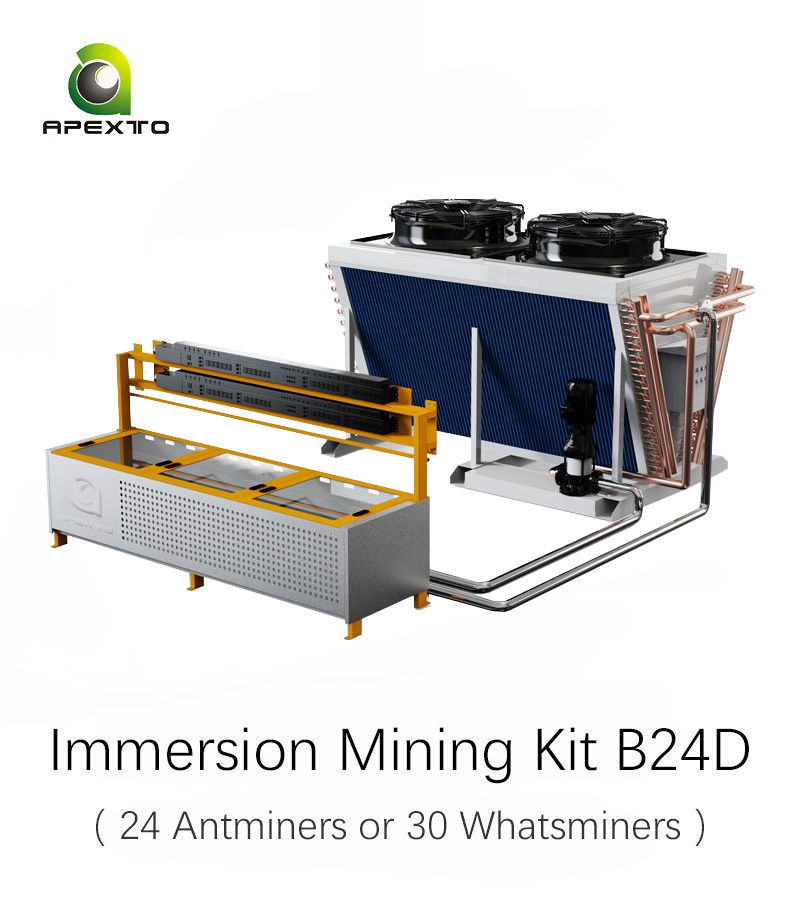

One B24D with one dry cooler, Supports up to 24 Antminers or 30 Whatsminers

All-in-one design with built-in PDUs, network switches, sensors, and controllers

High density and space saving

Single circulation and easier deployment

Single-loop circulation
Integrates smart PDUs and networking

Integrates circulation pumps and piping

Deployment is complete with only the installation of tubing and wires

Specifications

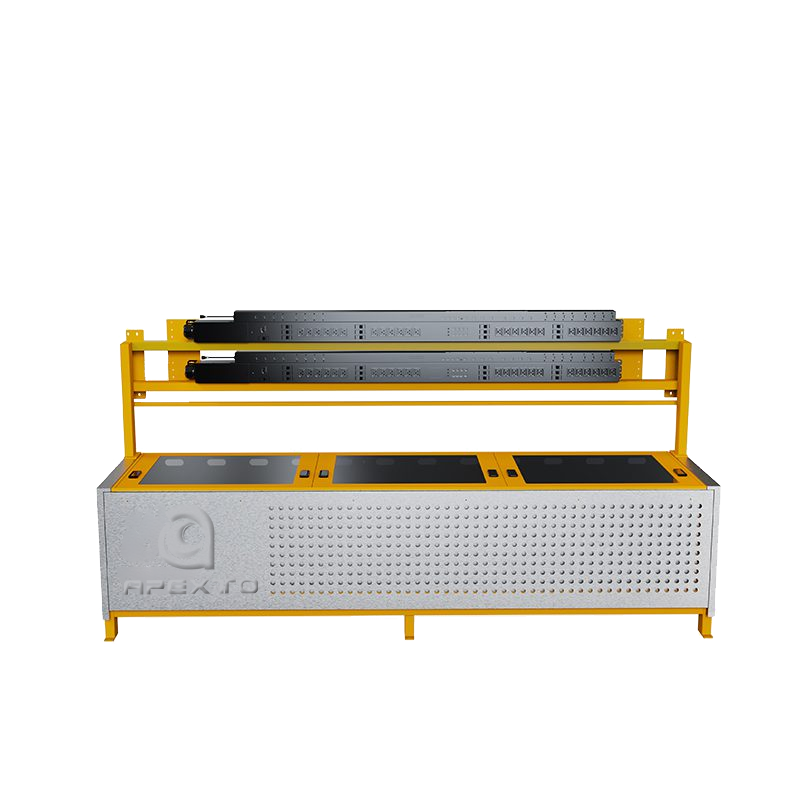

B24D Tank
Outer size2486*746*530mm
Input voltage3-phase 350-480V 50/60Hz
Output voltageSingle-phase 200-277V 50/60Hz
Cooling capacity120kW@35°C
Operating temp-10°C - 40°C
N.W172kg
Coolant volume750L
Inlet and outflow temperature45/65°C
Power load (max)120kW
Capacity24 Antminers or 30 Whatsminers
External coolingDry cooler/water cooling tower
Dry Cooler (EC Fan)
Outer Size2186*1874*2100
G.W.769kg
Input Voltage3-phase 350-480V 50/60Hz
Cooling Capacity120kW@35°C
Max Power Load4kW
Air Volume(m³/h)38299
Noise65dB(A) (@25°C,16m)

Note: About the transportation of liquid cooling equipment

For most areas, the liquid cooling equipment will be shipped to you via sea freight. Ports and receiving points in different regions will incur different shipping charges. It is recommended that you contact customer service to confirm address details and calculate shipping costs before placing an order.

Customized from 100kW to 100MW

120kW Immersion System (24 Miners) - 1*B24 Tank

240kW Immersion System (48 Miners) - 2*B24 Tanks

480kW Immersion System (96 Miners) - 4*B24 Tanks

1.2MW Immersion System (240 Miners) - 10*B24 Tanks
