BC40 X Immersion Cooling Container for Crypto Mining

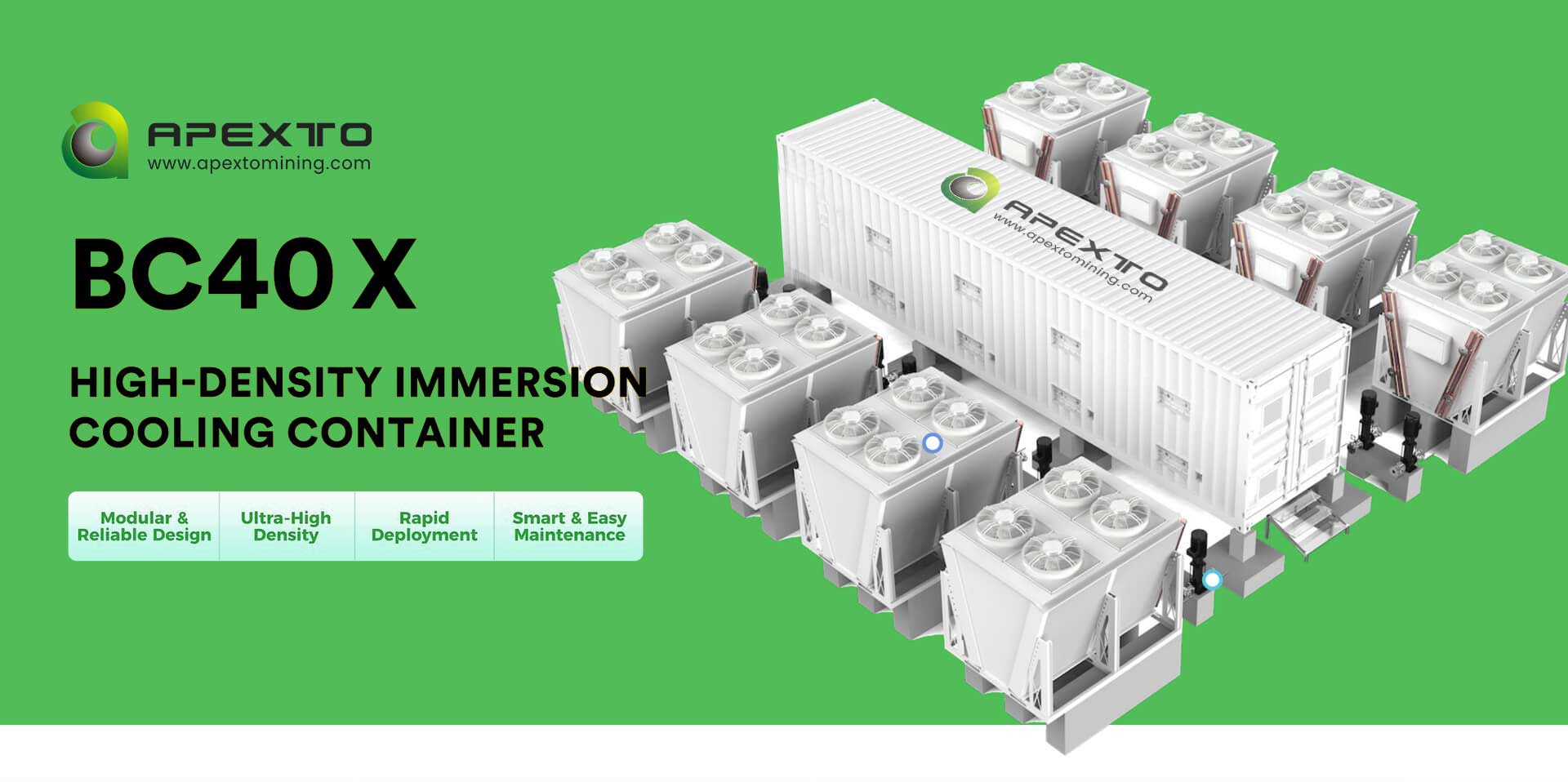

Immersion Cooling Container BC40 X for High-Density Crypto Mining
The Immersion Cooling Container BC40 X is engineered for large-scale cryptocurrency mining operations, offering advanced oil immersion cooling technology to efficiently manage heat from up to 320 WhatsMiner M56 and M66 miners.
Immersion Cooling Container BC40 X ensures stable mining performance and energy efficiency, significantly reducing the risk of overheating in high-density deployments.
Ideal for crypto mining farms focusing on SHA-256 algorithm coins, the BC40 X supports scalable growth with easy installation and maintenance.
Optimize your mining ROI with this cutting-edge oil-cooled container designed to maximize computing power while minimizing downtime.
Design Advantages
Flexible Deployment for Large-Scale Mining

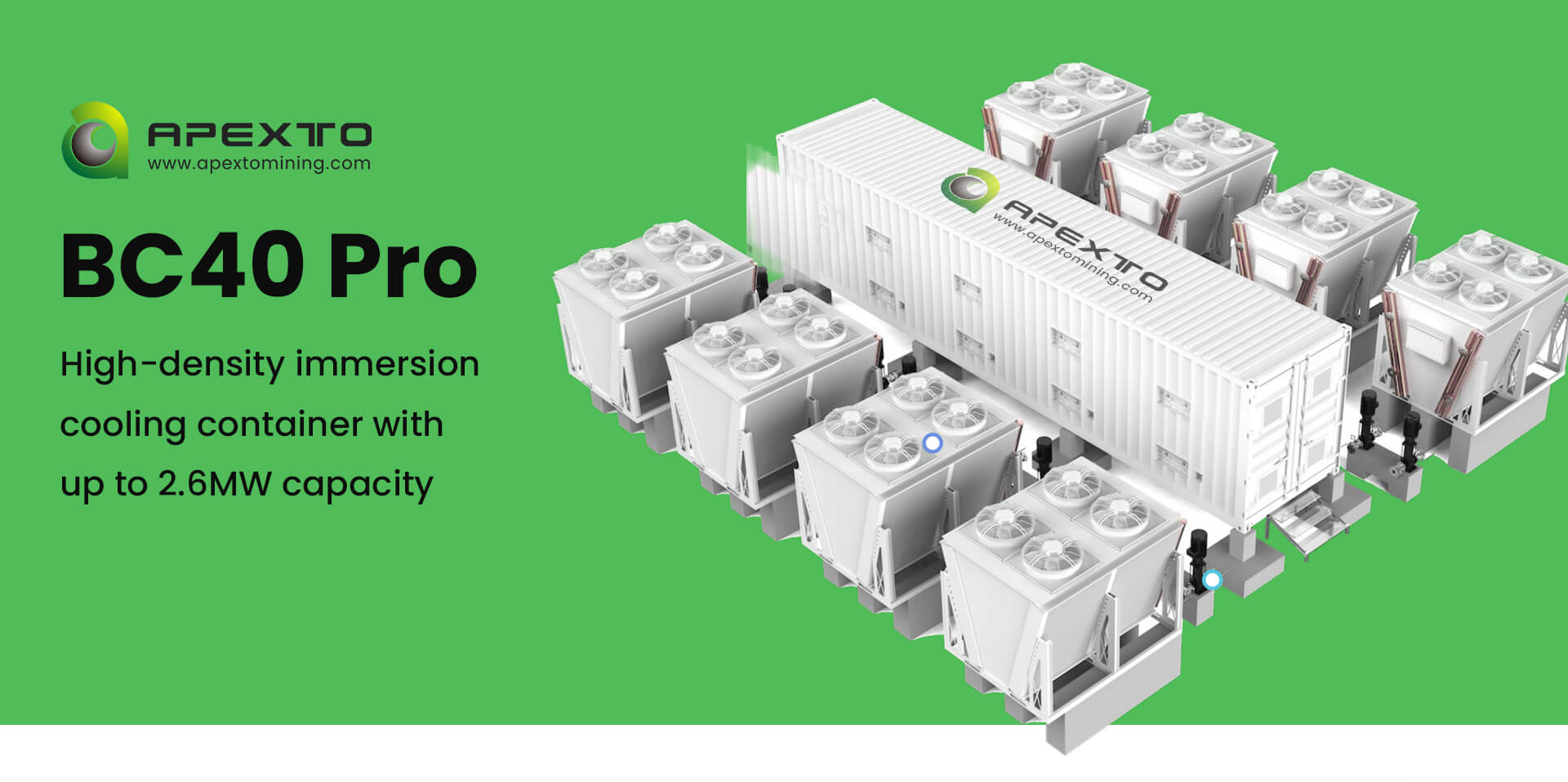

BC40 Pro offers cooling capacities up to 2.6MW, supporting up to 200 Whatsminer M56/M66/M66S.
Fully customizable and modular for high-density crypto mining farms.
Low O&M Costs with Independent Tank Control

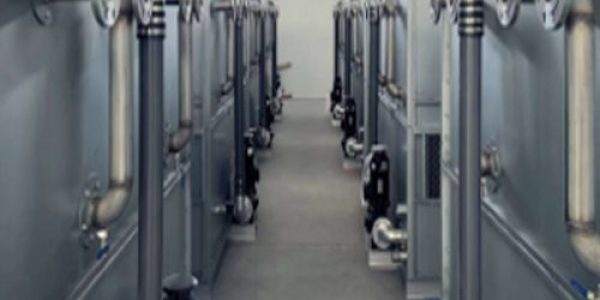

Single-loop piping design allows each immersion tank
to shut down independently, minimizing downtime
and simplifying maintenance.
Smart Integrated Management System
Built-in cooling control, power monitoring,
and security systems ensure centralized,
intelligent management for immersion mining operations.
Redundant Cooling for Extreme Conditions
Compatible with both dry coolers and closed water towers,
BC40 X includes redundant cooling capacity
for reliable performance in any climate.
.

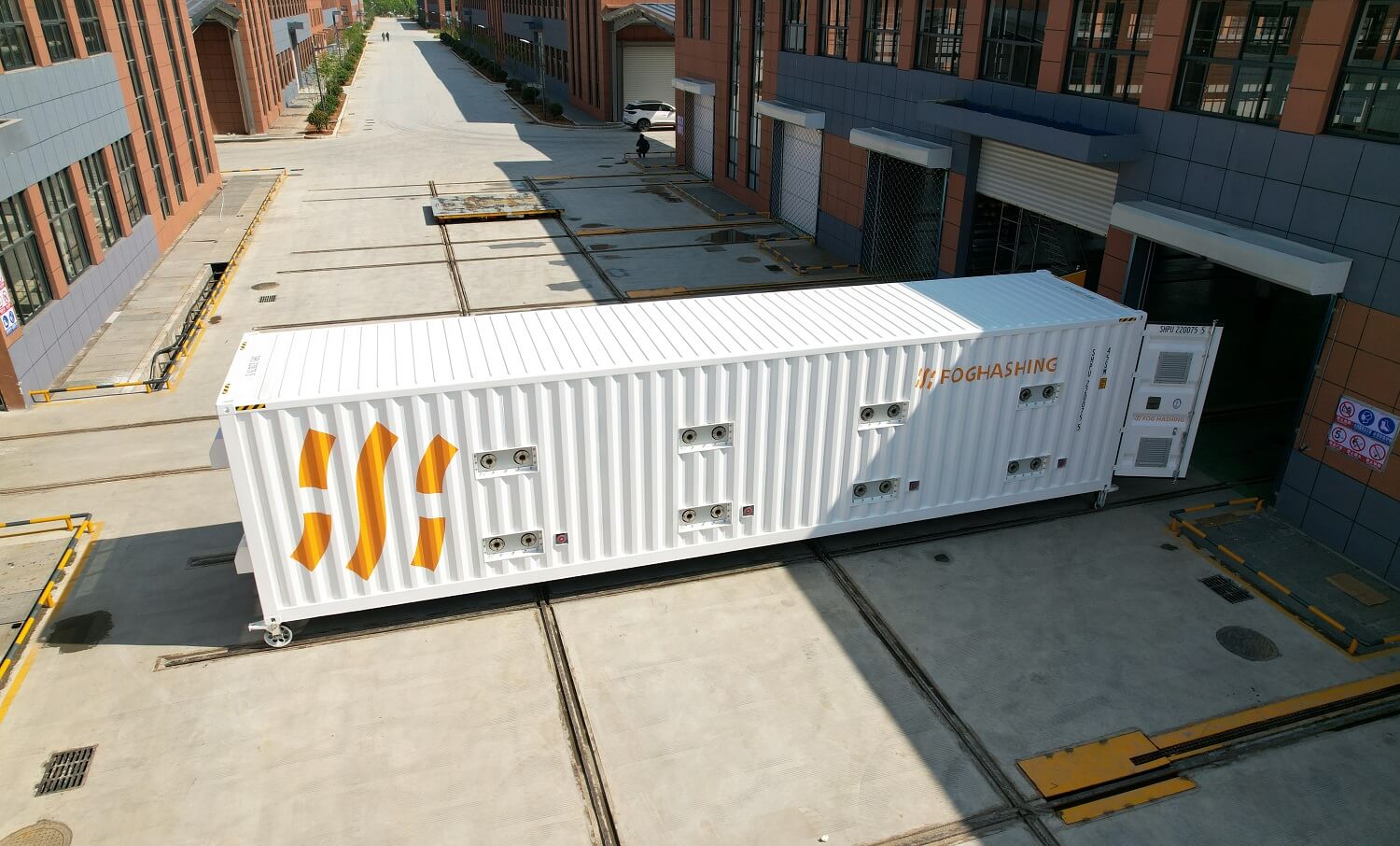

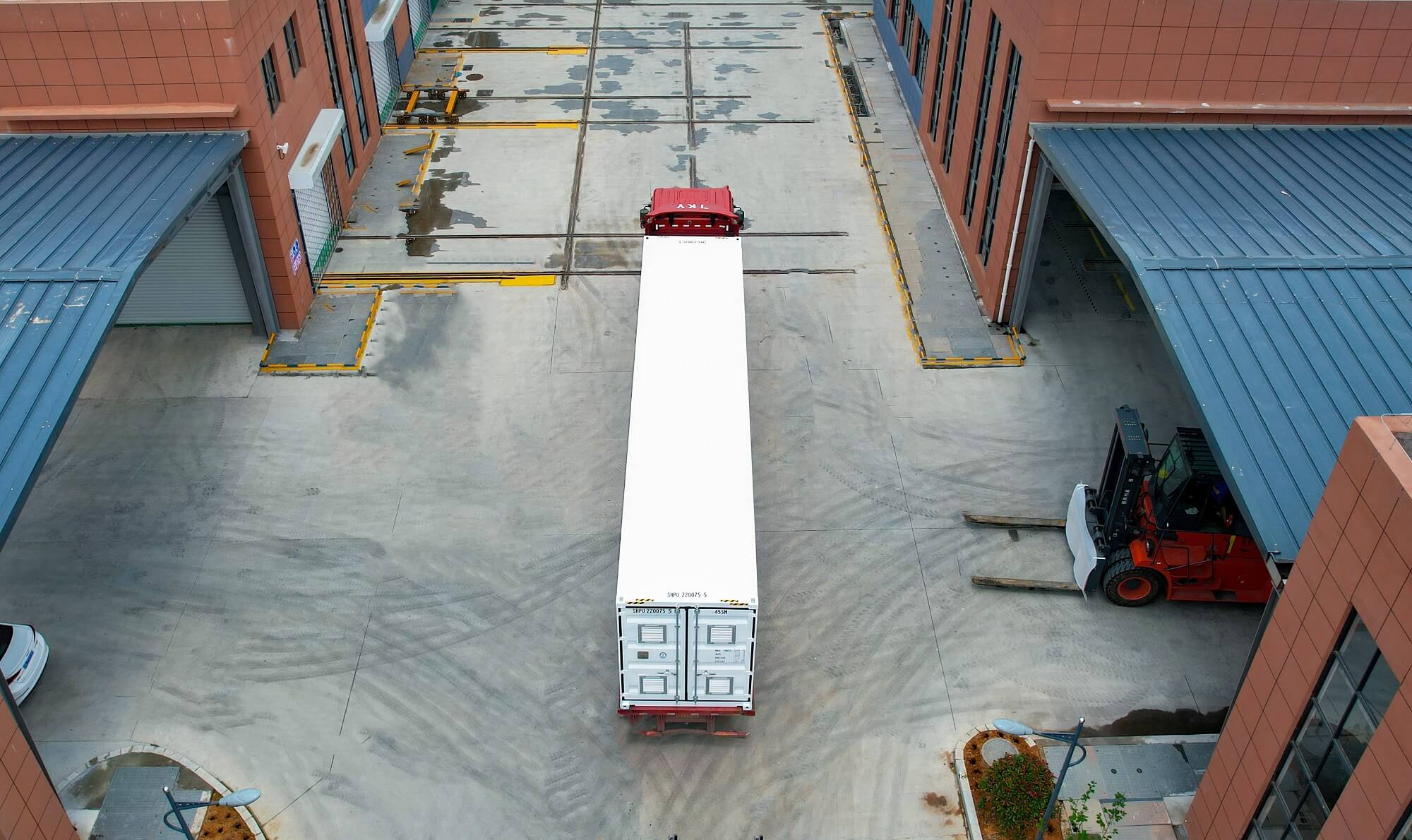

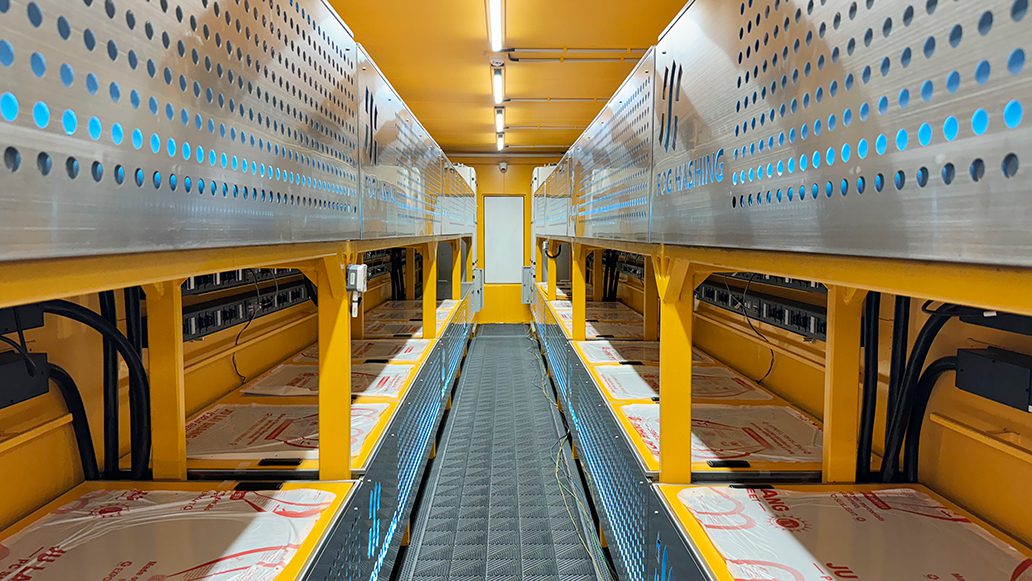

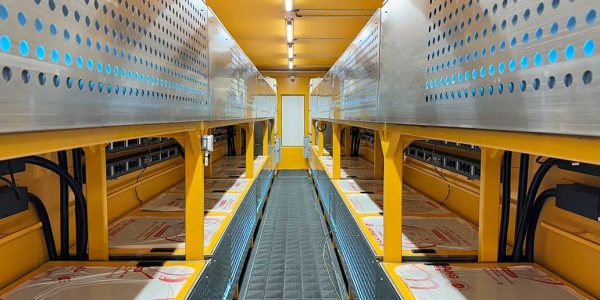

Real Shot
See the BC40 X immersion cooling container in action on a real crypto mining site, delivering efficient oil cooling and stable performance for large-scale WhatsMiner operations.

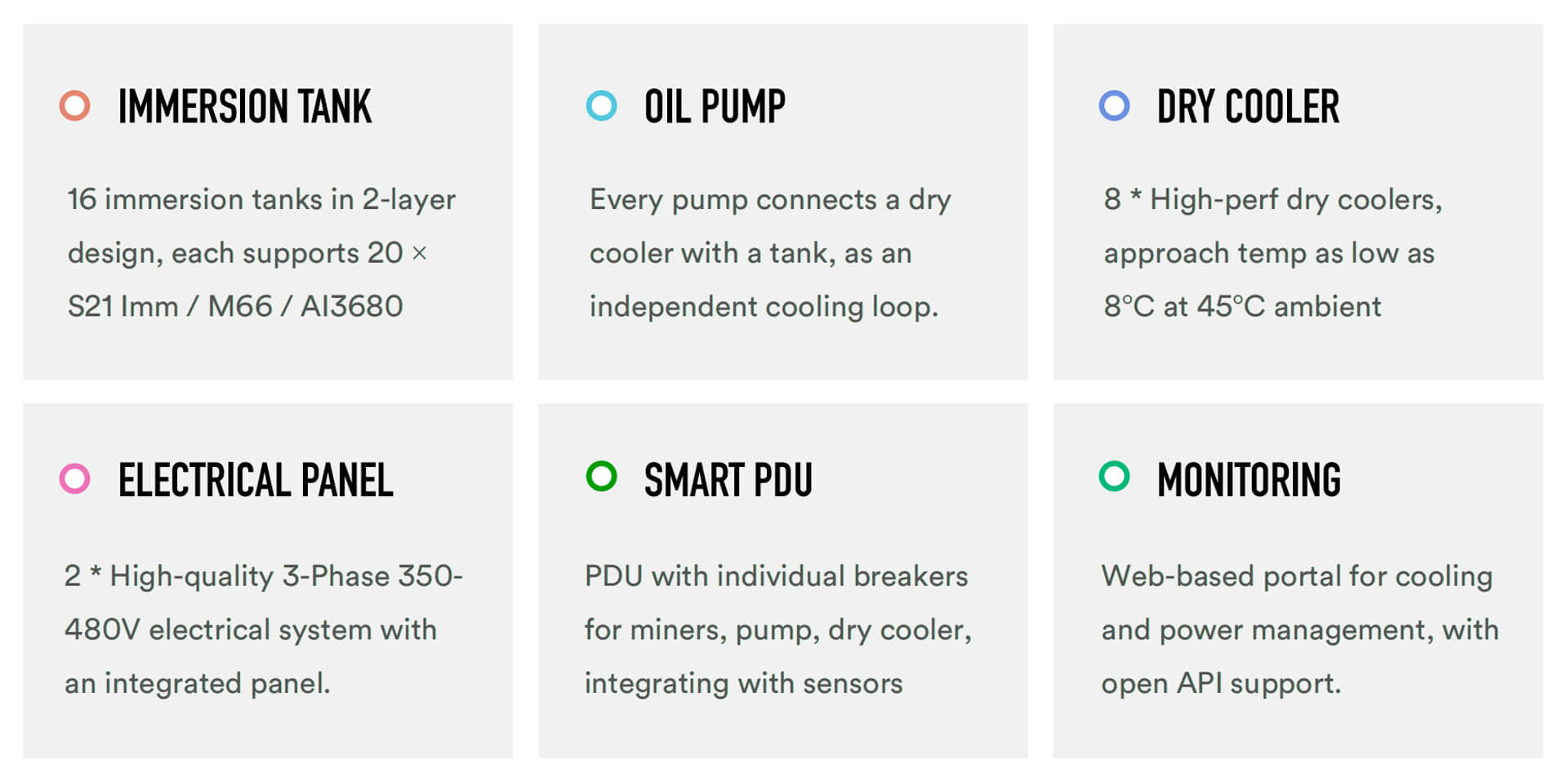

Specifications
| Cooling Capacity | Up to 2.6MW |
| Miner Capacity | 320*M66/M66S 320*Auradine Al3680 |
| Qty of Tanks | 16*M20 |
| Coolant Volume | 13,000L |
| External Cooler | 8 * Dry Cooler Unit |
| Circulation Mode | Single-Loop |
| Inlet / Outlet Temperature | 48°C / 58°C, at 40°C ambient temperature |
| Designed Approaching Temp | 8°C |
| Ambient Temperature | -20 ~ 50 °C |

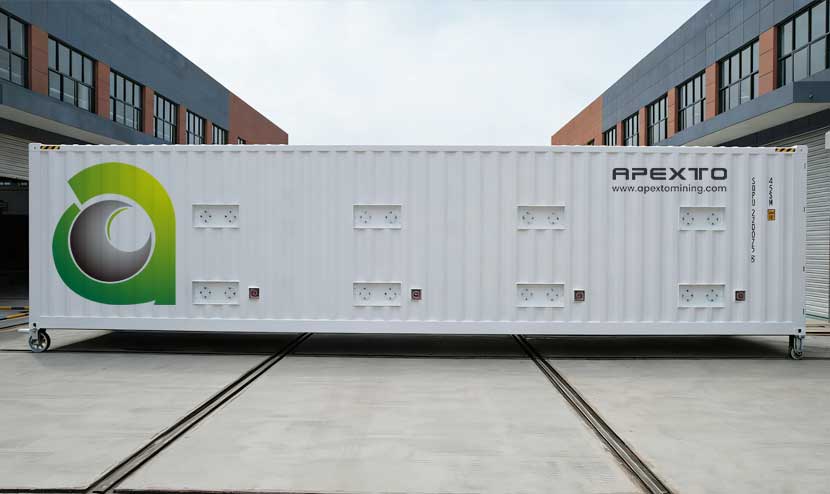

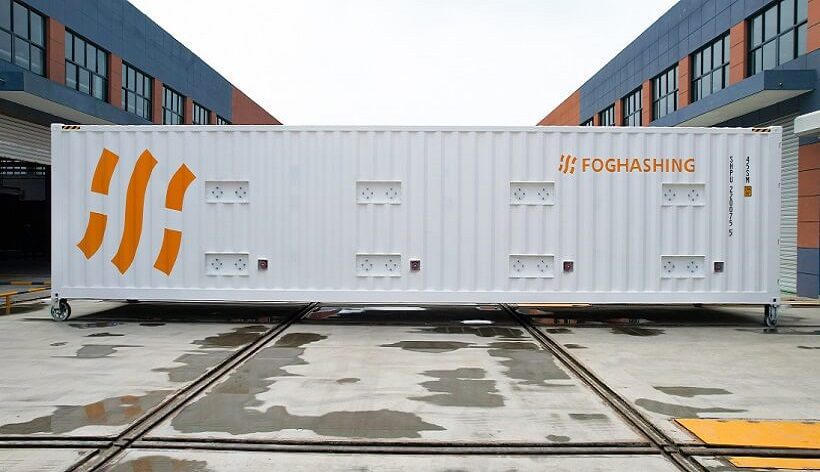

| Dimension | 40ft HQ container, 12,192(L)mm2,438(W)mm2,896(H)mm |
| Total Weight | Shipping weight 14T, Operating weight 23T |
| Max Power Load | 2833 kW |
| Non-mining Power Load | 89 - 159kW |
| Power Supply | Three-phase 380 - 480V 50/60Hz |

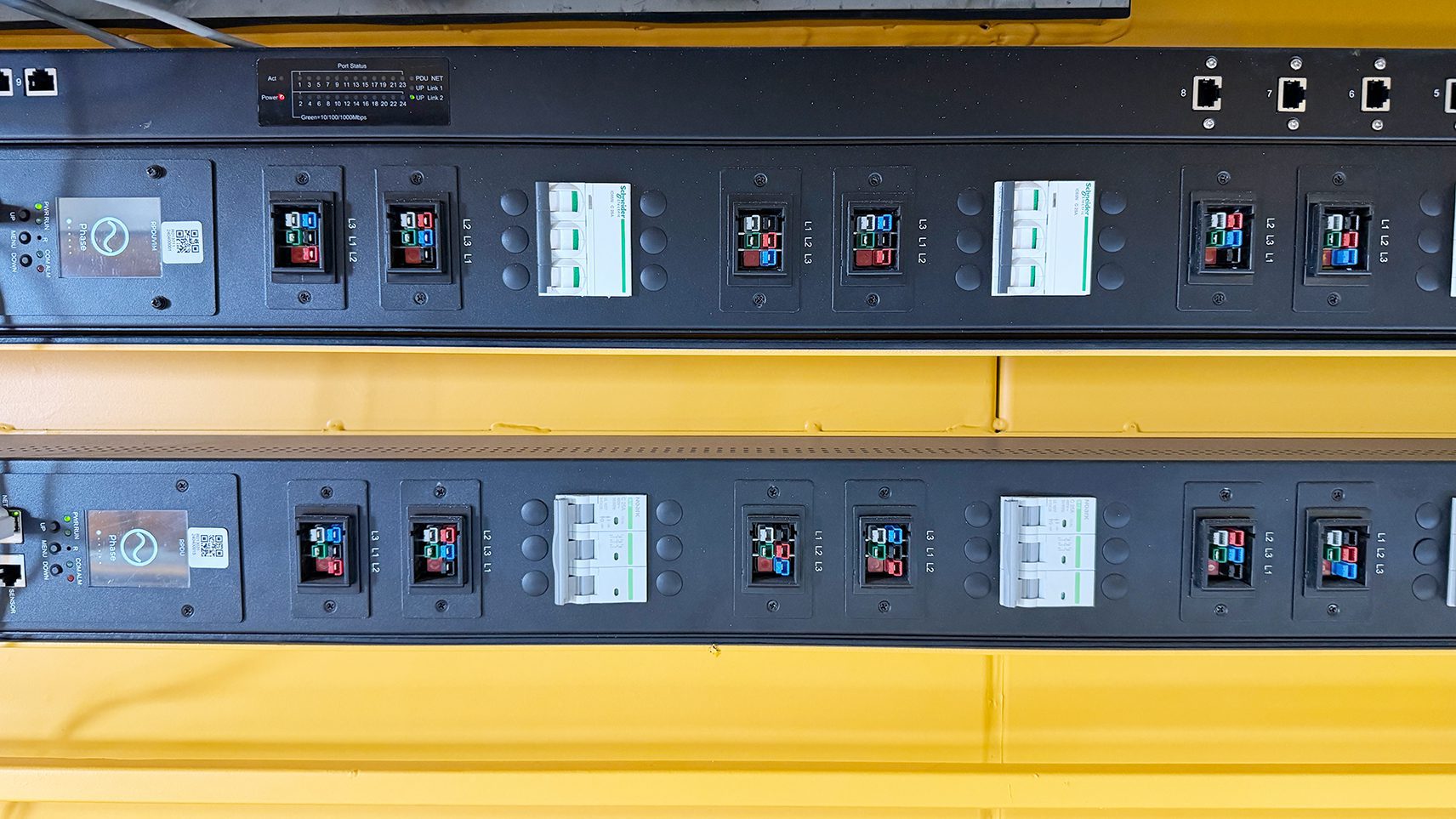

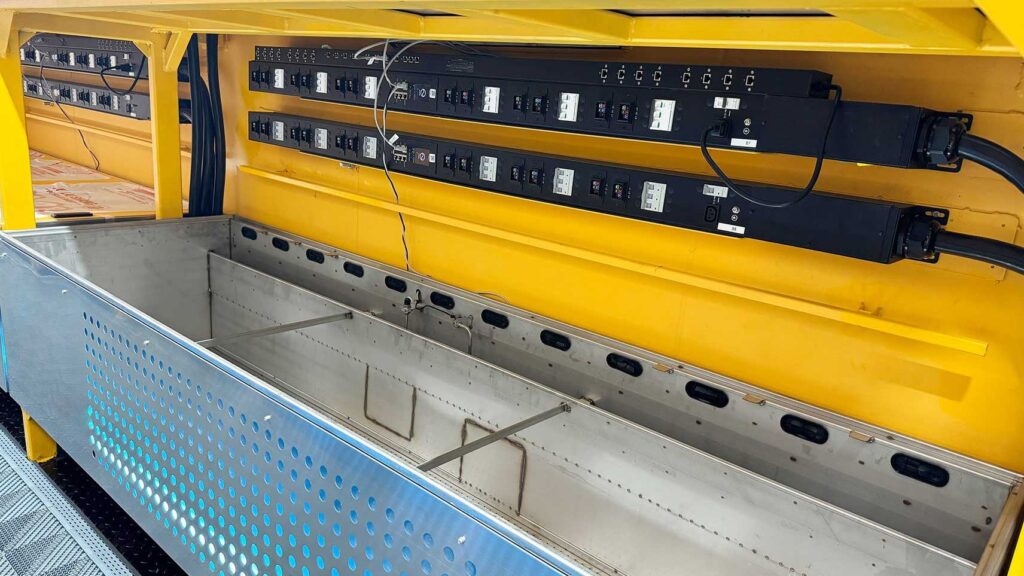

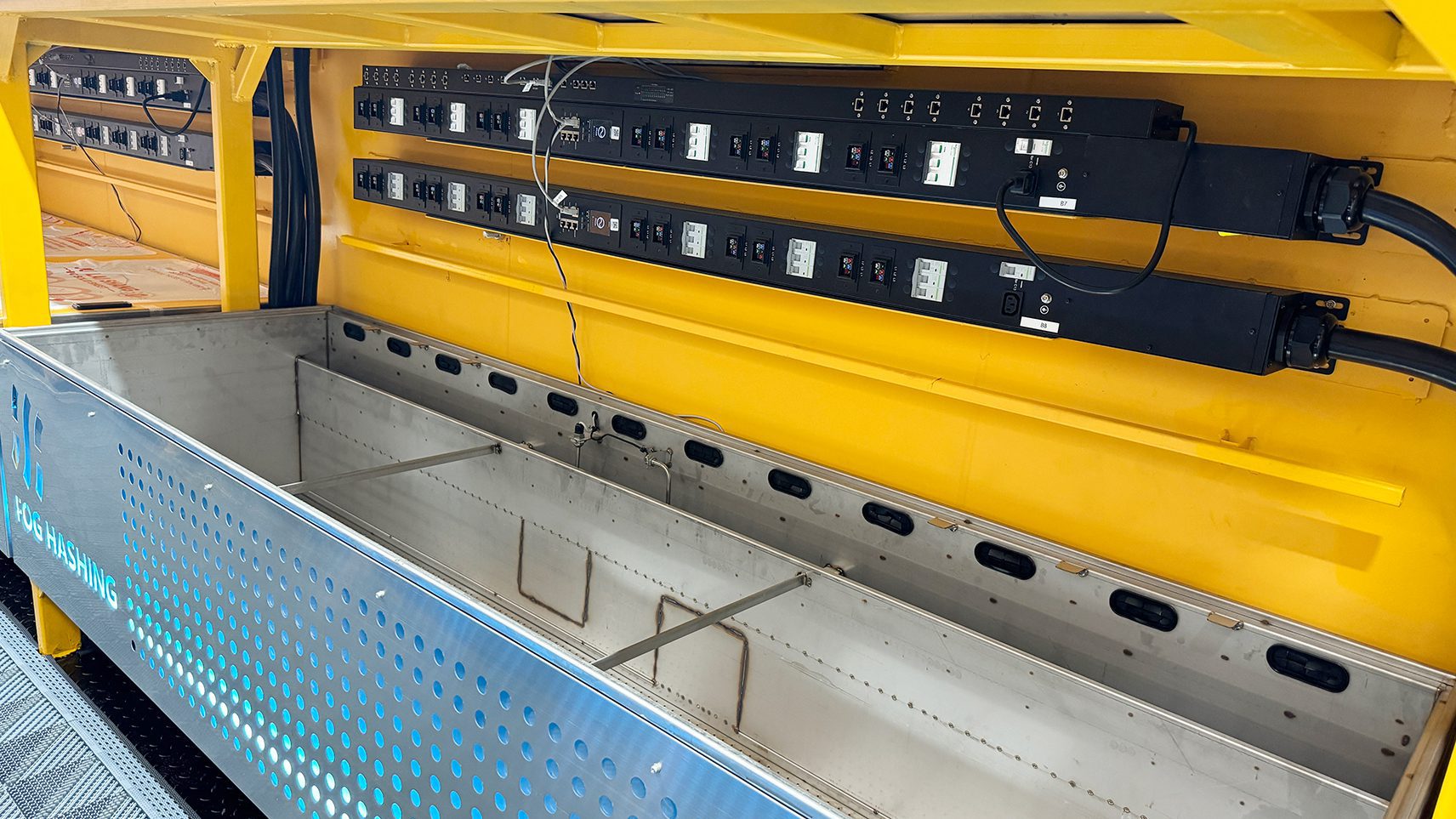

| Smart PDU | • 16 × Smart PDU • Single-phase 220 - 277V 50/60Hz or 3-phase 380 - 480V 50/60Hz • Individual circuit breaker for miners, pump |
| Monitoring and Control | • Tank-level mini display for instant status • Web based platform for container-level monitoring and control • SNMP, Modbus and RESTful API for third-party integration • Remote cameras for real-time and cached video |
| Extra Components | Lighting System, Ventilation and Filtration, Ambient Temperature and |
| Container Certification | China Classification Society Certification |
