Apexto Immersion Cooling for Crypto Mining
——Provide from Home Mining to Large-scale Mining Solutions

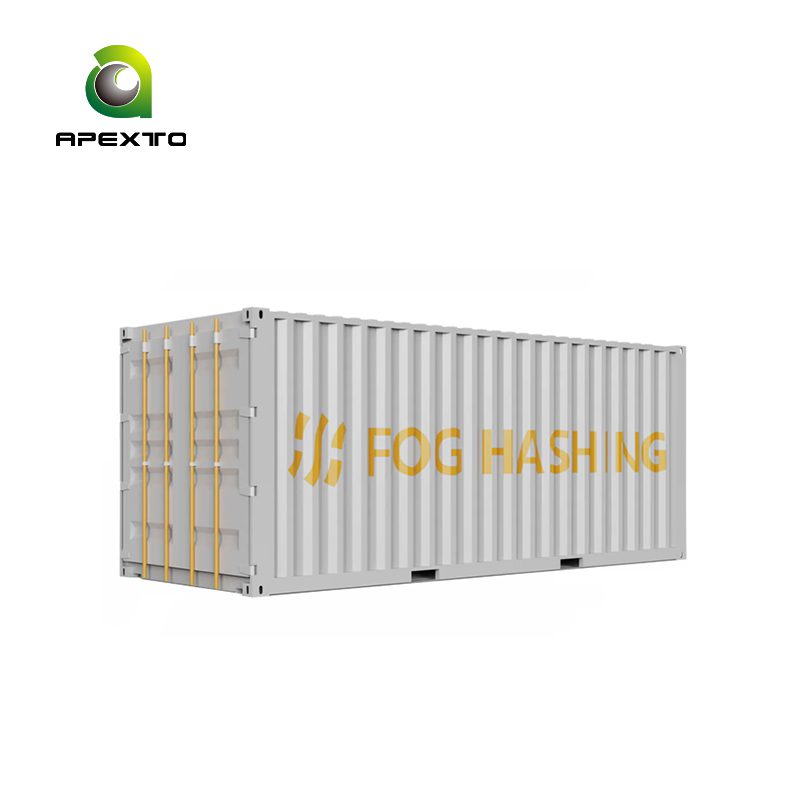

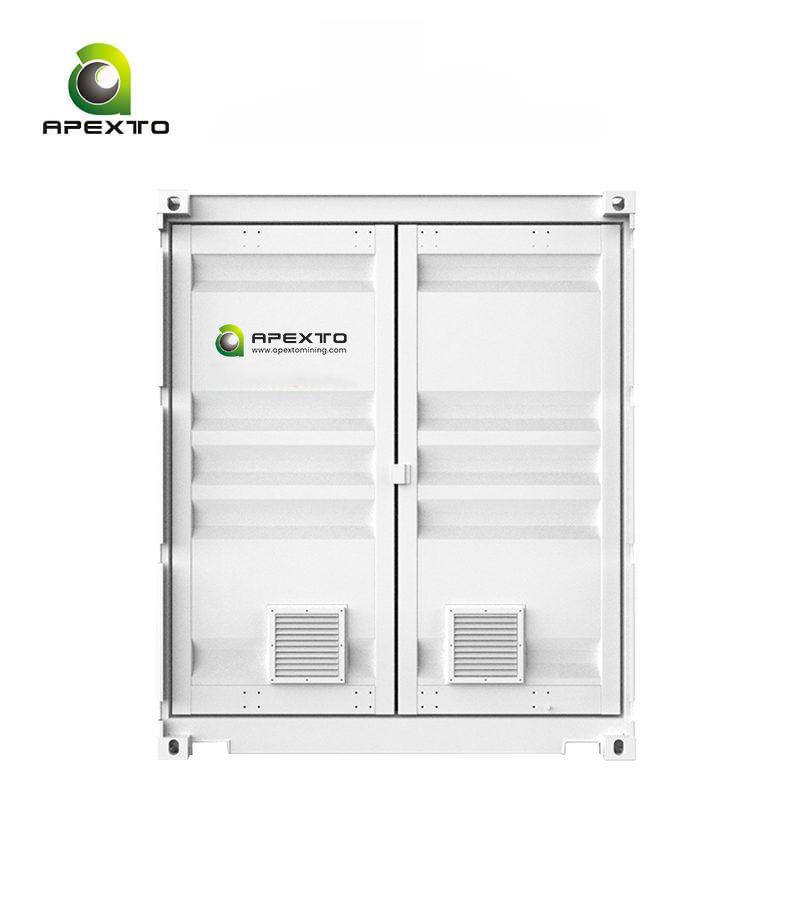

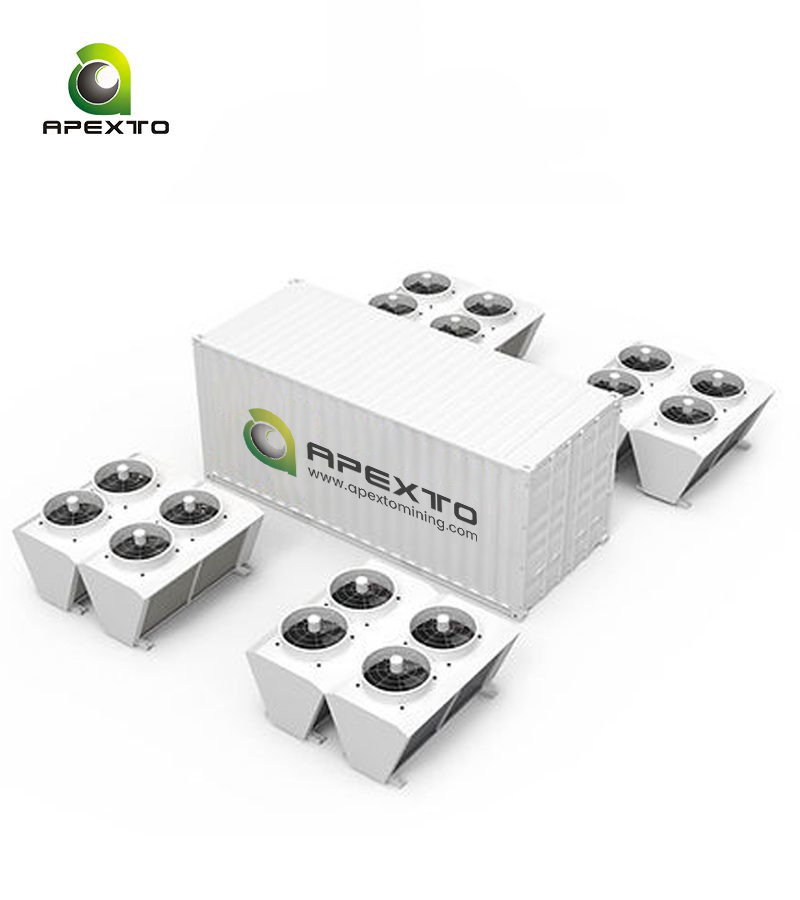

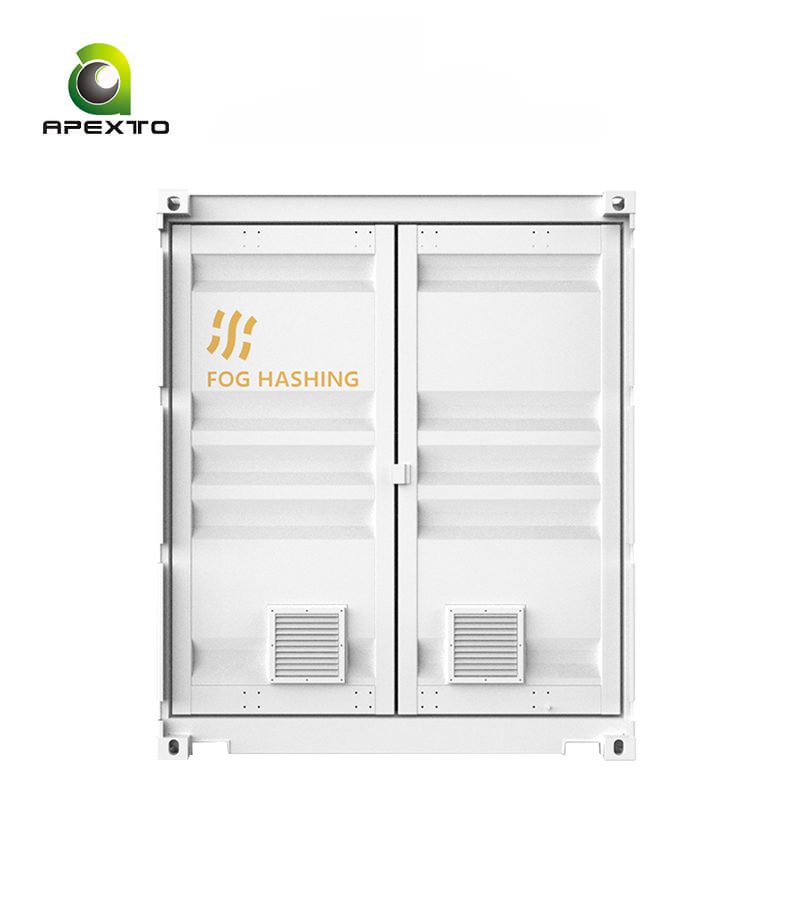

IMMERSION COOLING CONTAINER BC20——Designed for large-scale mining

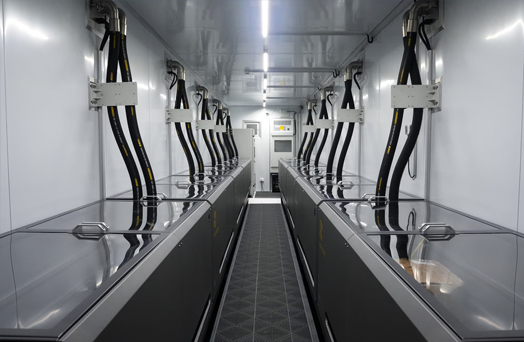

The BC Series is an ultra-high-density immersion cooling product line with the goal of providing a highly integrated turn-key solution for large-scale miners. As an all-in-one product, it integrates all required devices as a whole, including immersion tanks, power distribution cabinets, smart PDUs, network interfaces, circulation pipes, external coolers, controllers, monitoring devices, etc., for mining farms to deploy simply and fast.
Flexible options for different scales
From 168kW to 2.02MW cooling capacity.
Customization support for clients to choose configurations according to requirement.
Mobile, integrated and expandable.
Extremely low O&M costs
The Single-loop design allows to shut down each immersion tank separately, to realize minimal downtime.
Reliable and easy-to-maintain piping design.
All-round intelligent management system
Integrates 3 management systems: cooling control, power monitoring and security monitoring systems.

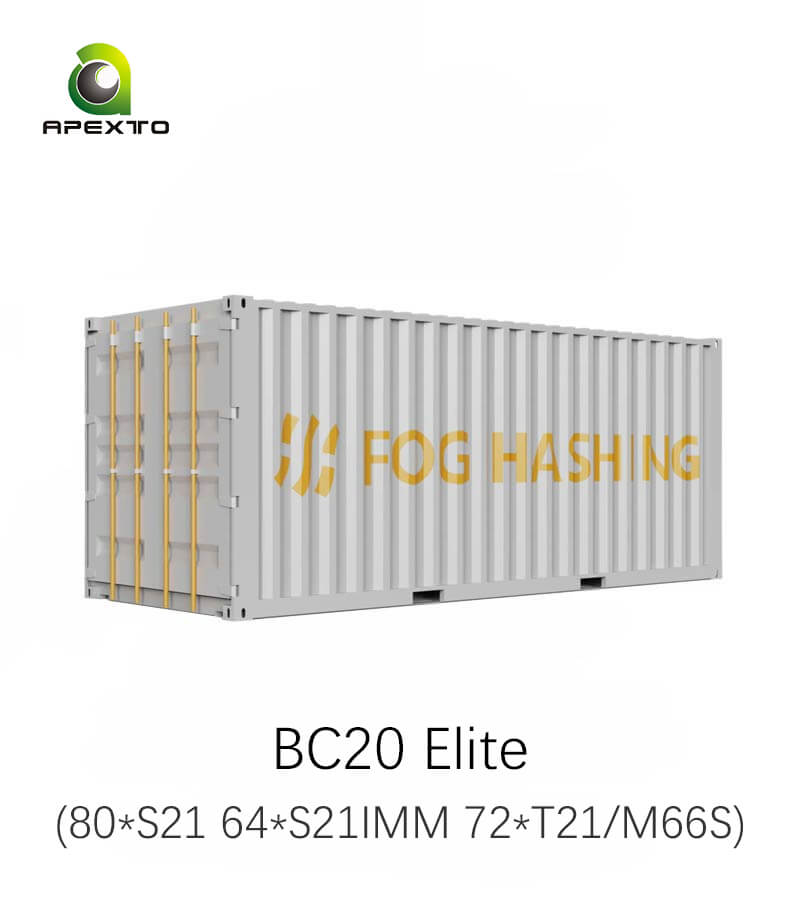

Product Specification

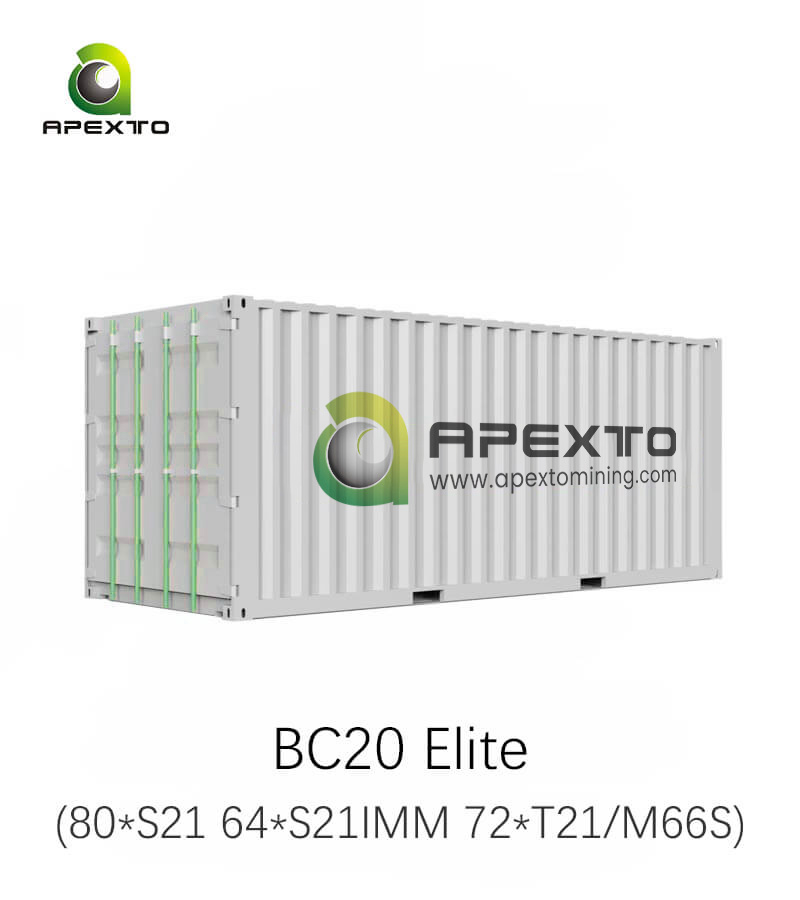

| Model | BC20 Elite |
| Dimensions | 2,896(L)mm*2,438(W) mm*6,096(H)mm |
| Qty of Miner(s) | 80*S21 72*T21/M66S 64*S21 Imm/S21 XP |

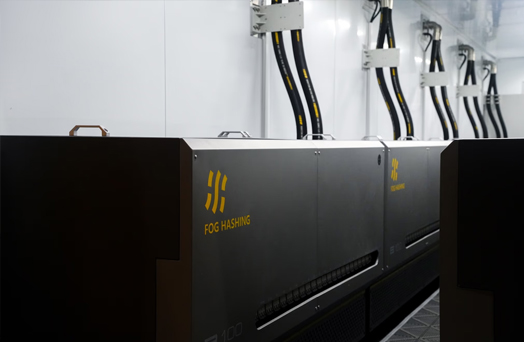

| Numbers of Tank | 4*B100 Tank |
| Circulation Mode | Single Loop / Dual Loop |
| Coolant Volume | 3,000L |
| Ambient Temperature | -25°C~55°C |
| Electrical Performance | |
| Input Voltage | Three-phase 350-480V 50/60Hz |
| Max Power Load | 564kW |
| Output Voltage | Single-phase 200-277V 50/60Hz Three-phase 350-480V 50/60Hz |
| Safety Certification | CE/UL |
| Non-mining Power Load | 24-37kW |

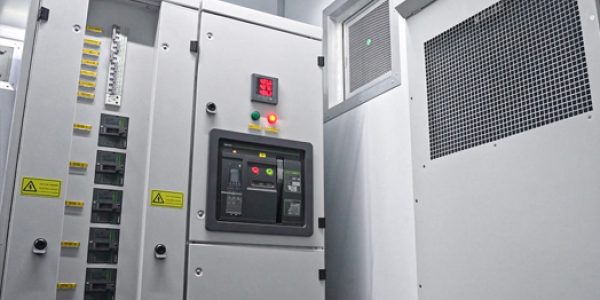

| Power Distribution Cabinets | 800A*1 |
| PDU | 4* PDU |
| Smart Meter | Included |
| Cooling Capacity | |
| Cooling Capacity | 500kW |

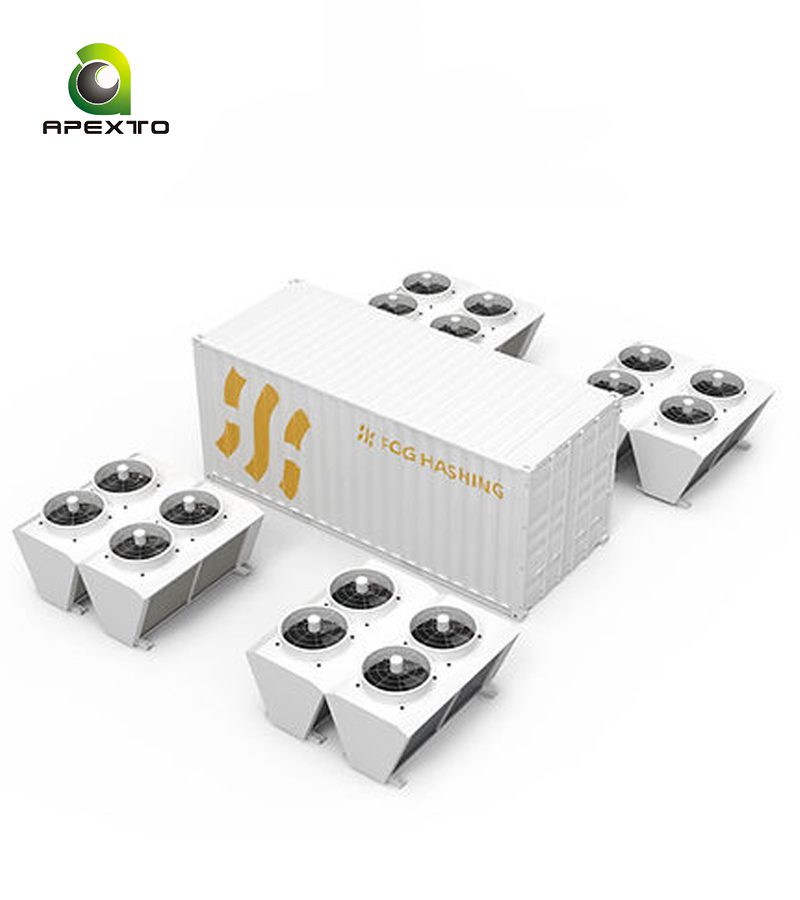

| Cooling Type | Dry Cooler |
| Inlet/Outlet Temperature | 48°C/56°C |
| Design Reference Temperature | 40°C |
| Monitoring and Management | |
| Monitoring | Operating and Environmental Parameters (Liquid, Temperature, Voltage, Power,Etc.) |
| Management | Tank Level Mini-LED, Web Based Portal Standard SNMP Protocol, Email Integration |
| Extras | |
| Container Certification | China Classification Society Certification |
