20-Slot 200kW Whatsminer 2U Modular Hydro Cooling Rack
This modular WhatsMiner hydro cooling cabinet features 200kW cooling capacity and supports up to 20 M53, M63, and M73 series hydro miners. Flexible multi-cabinet expansion with customized CDU, dry cooler, or closed-loop cooling tower configurations for scalable Bitcoin mining deployments.
Price range: $11,820.00 through $12,800.00
Not Fitting Your Site?
Tell us your mining capacity and site requirements, and we'll recommend the right hydro-cooling container for your deployment.
How your container order works
Submit form
Tell us delivery country & site details
Get your quote
Complete pricing within 24 hours
Expert review
Discuss specs, customise setup
DDP delivery
Container shipped to your site
Industrial-scale farms deploying 200+ hydro-cooled ASICs.
CONTAINER CAPACITY
20 UNITS
Housed at full load
200 KW
Continuous electrical load
Custom
Standard
Hydro
Thermal management
POWER INPUT
380V–415V AC 50/60Hz
AVAILABILITY
Typical lead time 45 days • DDP Sea Shipping Available
View More ›
Show 1 more models
Product Description
The WhatsMiner Hydro Cooling Cabinet is a modular liquid cooling cabinet designed for WhatsMiner M53, M63, and M73, M6D, M7D series hydro miners. Supporting up to 20 water-cooled mining units, the system provides a scalable hydro cooling solution for professional Bitcoin mining operations.
Built with a split-type structure, the cabinet separates the mining rack, CDU, power system, and cooling modules for more flexible deployment and easier maintenance. The integrated CDU combines the pump station and control system to ensure stable coolant circulation and efficient thermal management during long-term operation.
The supports customized CDU configurations and scalable deployment from single-cabinet setups to one CDU supporting multiple cabinets, making expansion more flexible for different mining farm sizes. The system can also be integrated with dry coolers or closed-loop cooling towers according to local climate conditions and infrastructure requirements.
Core Advantages
01. Integrated All-in-One System
The rack, CDU, power cabinet, and control unit are integrated into a single container for easy installation, quick deployment, and efficient mining operations with minimal setup.
02. Redundant Dual-Loop Cooling
Dual circulation loops, dual CDUs, and multi-channel power ensure single-side operation during power shortages, boosting energy efficiency and reliability for mining operations.

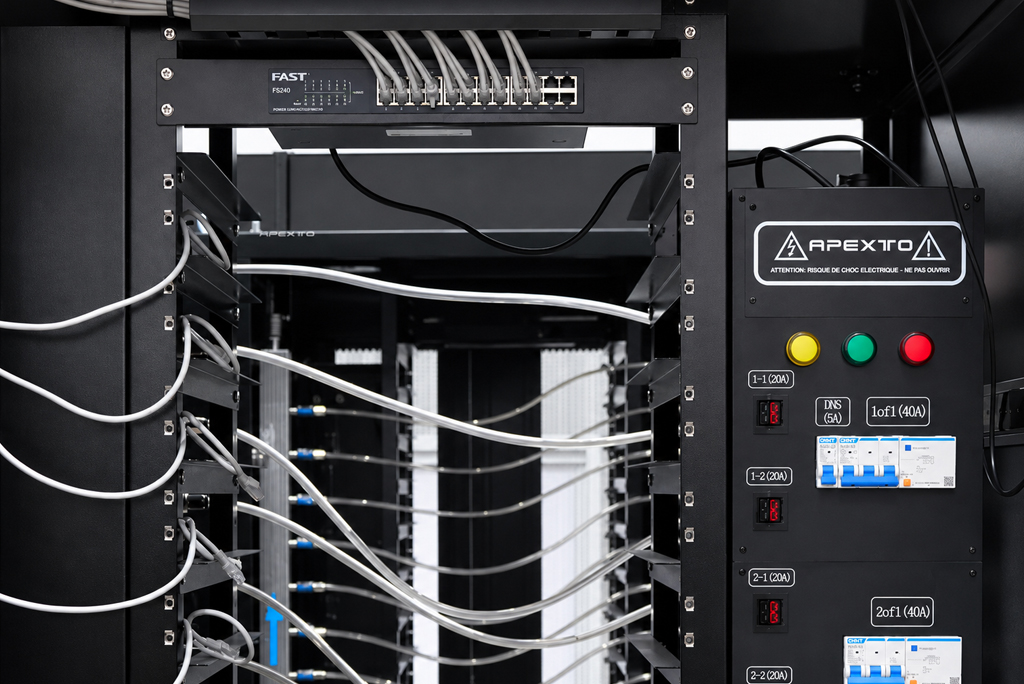

03. Individual Power Switches
Each miner is equipped with a labeled switch, allowing for easy maintenance on individual units without disrupting the overall mining system or operations.
04. Leak Detection System
Equipped with a moisture-sensing immersion rope, this system detects coolant leaks and triggers instant alarms, enhancing safety and preventing potential damage in liquid-cooled mining setups.
05. Excellence Roots in Details
Equipped with aviation plugs from Bitmain's supplier, reinforced grid panels for stable operation, and 304 stainless steel manifolds with ball valves and original connection pipes for durability.
06. Intelligent Management System
Multiple sensors monitor flow rate, pressure, temperature, and leakage, enabling real-time control, malfunction alerts, and quick intervention via mobile or PC for efficient mining operations.

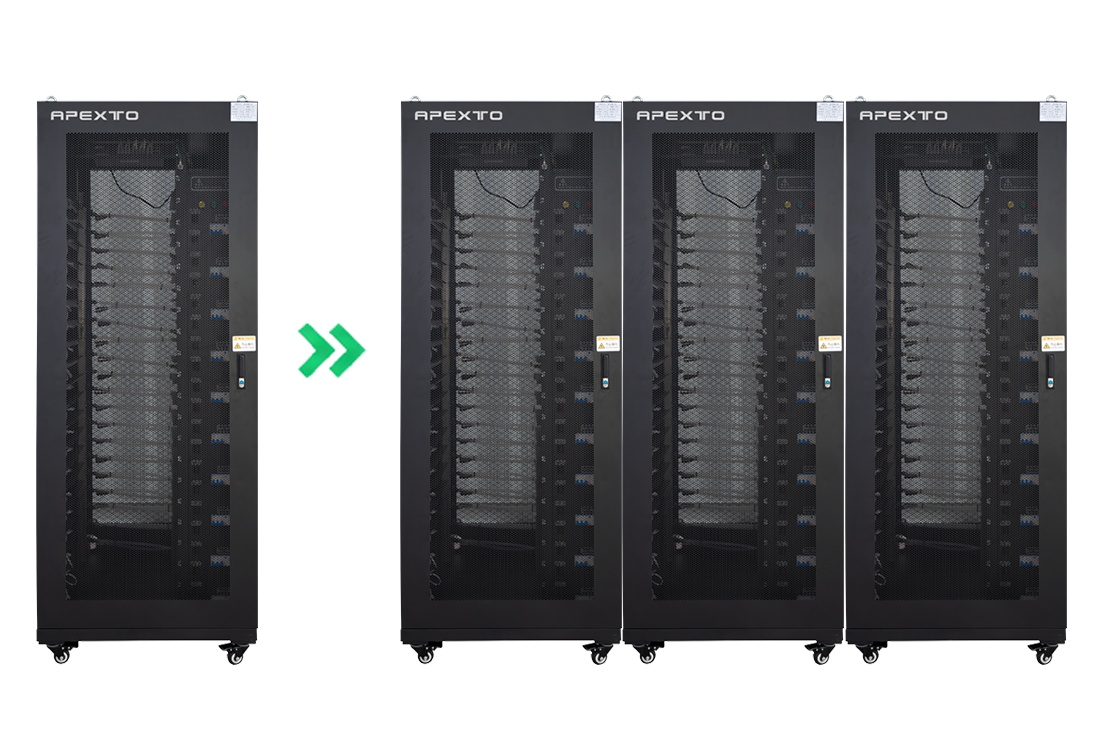

Modular 1-to-N Infrastructure Scalability
The 1-to-N modular design enables flexible power expansion from 200kW up to 1,000kW, allowing mining sites to scale based on evolving demand. Featuring a customized high-flow pump system and a dedicated power control cabinet, this solution ensures reliable management across multiple racks—eliminating the need for major infrastructure overhauls as your hashrate grows.
Full Specifications
External dimensions
L:850mm、W:1000mm、H:2130mm
Internal dimensions
L:800mm、W:950mm、H:2080mm
Weight
230KG
Model | AP-EM20 | Installed capacity | 20 Seat |
Installed powerload | 200 kW | Power of the light-duty vertical multistage pump | 4 kW |
Power of the fluid replenishing pump | 0.2 kW | Total power of the dry cooling tower fan | 8.3 kW |
Total power of the closed cooling tower fan | 3 kW | Total power of the closed cooling tower spray pump | 1.1 kW |
System pipeline pressure | 0.2-0.4 MPA | Operating temperature range of the system | 0-50 ℃ |
Coolant circulation demand of a single machine | ≥0.6 m³/h | Total demand for circulating coolant within the system | ≥0.25 m³ |
Residual Current Circuit Breaker | 400 A | Contactor | 9 A |
Intermediate relay | 24 V | CUL certified frequency converter | 380 V |
WHATSMINER 20-POSITION-INTEGRATED-COOLING-SOLUTION
Complete product specifications, installation guide, and operational instructions.
Certification Standards
Our products meet leading international standards for safety, reliability, and performance.
China Classification Society
Marine & offshore compliance
UL Listed
Safety tested & certified
CSA Certified
North American compliance
CE Marking
European conformity
Complete Cooling Solutions
We design and manufacture a complete range of hydro cooling solutions for every scale, from hydro cooling cabinets and containers to CDUs and dry coolers.
❄️ Cooling Capacity |
⚙️ Miner Slots |
📏 Dimensions (L × W × H) |
🏢 Application |
12-Slot 120kW
120 kW |
12 Slots |
8,50 × 1,000 × 2,130 mm |
Mid-to-LargeMining Operations |
Compare
20-Slot 200kW
200 kW |
20 Slots |
8,50 × 1,000 × 2,130 mm |
Large-scale Mining Operations |
160-Slot 1600kW
1.6 MW |
160 Slots |
6,058 × 2,438 × 2,896 mm |
Large-scale Mining Operations |
240-Slot 2400kW
2.4 MW |
240 Slots |
1,3716 × 2,438 × 2,896 mm |
Large-scale Mining Operations |
Real Results from Real Miners
View All >>
Large-scale mining
Deployed 20 liquid-cooled containers supporting the stable operation of 6,160 mining units
+28%
Efficiency Gain
-23%
Energy Cost
120W USD
Energy Cost
View All >>
Large-scale mining
Deployed 20 liquid-cooled containers supporting the stable operation of 6,160 mining units
+28%
Efficiency Gain
-23%
Energy Cost
120W USD
Energy Cost
View All >>
“
Amina’s liquid-cooled containers have enabled a quantum leap in energy efficiency and stability for our mining operations.
Director of Mining Operations
A major North American mining company
Amina’s liquid-cooled containers have enabled a quantum leap in energy efficiency and stability for our mining operations.
Director of Mining Operations
A major North American mining company
Amina’s liquid-cooled containers have enabled a quantum leap in energy efficiency and stability for our mining operations.
Director of Mining Operations
A major North American mining company
1.2+ GW
Cumulative delivered cooling capacity
50+
Countries and regions covered
FAQs
Yes, provided the combined miner load remains within the system's 200kW capacity.
The rack provides 20 individual miner positions and is designed for compatible WhatsMiner M53, M63, and M73 series Hydro miners. Actual total power should always be calculated according to the exact miner model and operating mode before deployment.
Yes. The system is designed to support high-power and overclocked WhatsMiner Hydro mining deployments.
With up to 200kW of miner load capacity, it provides sufficient cooling and circulation capacity for high-performance operation. The actual number of miners and overclocking level should be configured according to the combined power consumption of the installed miners to keep the total load within the system's rated capacity.
Compatible M53, M63, and M73 series miners can be deployed in the same rack, provided their physical dimensions, electrical requirements, cooling connections, and total power load are compatible with the system.
The exact miner combination should be confirmed before installation, especially when mixing different generations or power levels.
The rack uses a centralized circulation system with automatic pressure regulation and constant-flow PLC control.
The system has a rated circulation flow of 13m³/h, while each miner branch requires sufficient individual coolant flow. Correct flow distribution is important because adequate total system flow does not automatically guarantee equal flow through every miner.

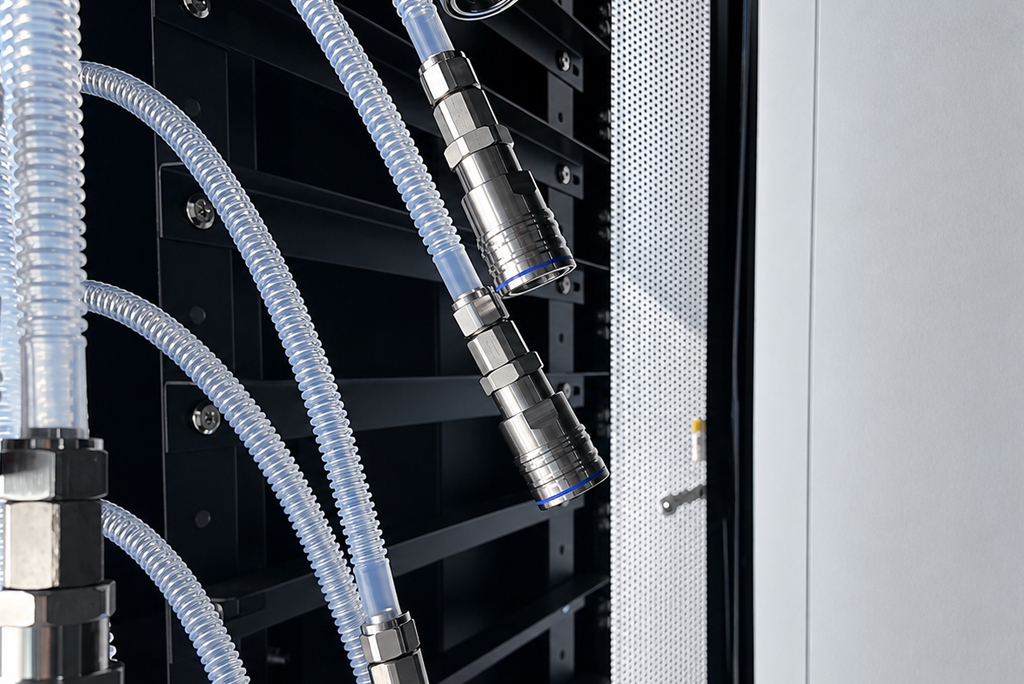

Yes. The required quick connectors are prepared and installed before shipment according to the compatible WhatsMiner Hydro miners.
During installation, the miner's cooling inlet and outlet can be connected directly to the corresponding supply and return lines on the rack, reducing on-site piping work and simplifying deployment.
Yes. Each miner position is designed with individual control, while the complete cooling rack is centrally managed through a PLC system.
The PLC monitors key operating conditions such as power, coolant temperature, flow, pressure, and network status. MODBUS-RTU communication is also supported for integration with site-level monitoring and control systems.
A 20-miner Hydro deployment requires industrial three-phase electrical infrastructure sized for the actual miner load plus the cooling and control equipment.
The system should not be sized only around the miners' nominal power. Pumps, control equipment, external heat-rejection equipment, circuit protection, cables, and any planned high-performance or overclocking modes should also be included in the electrical design.
Yes. The rack-based design is suitable for modular expansion.
A site can start with one 20-miner rack and add additional racks as power and cooling capacity become available. For larger deployments, the total electrical capacity, coolant distribution, pumping system, heat-rejection capacity, piping layout, and centralized monitoring should be planned at the site level rather than treating each rack independently.
