Product Description

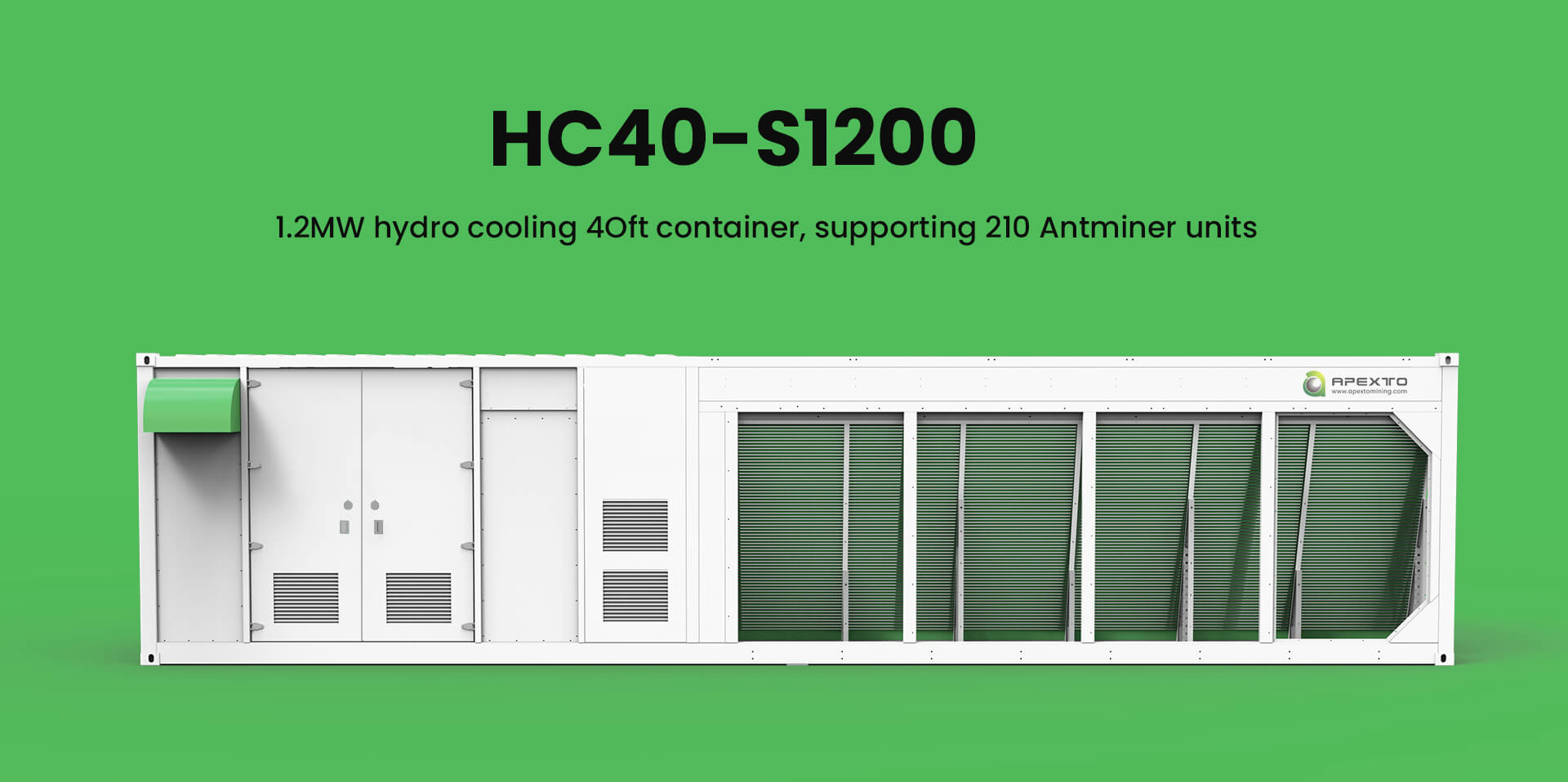

The Hydro Cooling Container HC40-S1200 is a 1.2MW modular solution built for efficient large-scale Bitcoin mining. It accommodates up to 210 Antminer Hydro miners, offering precise temperature control and stable operation even in harsh environments.
With its smart water circulation system and energy‑efficient design, the Hydro Cooling Container HC40-S1200 helps lower operating costs while keeping your miners performing at peak hashrate. It also features optional heat recovery interfaces, allowing you to reuse excess heat for other applications, making it a practical and sustainable choice for modern mining farms.
Key Features
High Density, High Hashrates
Maximizes space utilization to host more miners while delivering powerful hashrate performance.
Adaptive for Cold or Hot Environment
Designed to operate efficiently in extreme heat or cold, ensuring stable mining output.
Dual System, Better Redundancy
Features independent dual cooling and power systems for enhanced reliability and uptime.
Intelligent Monitoring and Control
Offers real-time monitoring with smart management tools for optimized mining operations.
Specifications
1. HC40-S1200 Container
| Size | 6058×2438×2896 mm |
| Miner Capacity | 210 S19 S21 Hydro Series |
| Transport weight | 8200 KG |
| Operating weight | 122000KG(With Miner) |
| Input voltage and power | 415V, 60 Hz / 50 Hz |
| Single unit rated current | ≤15A |
| Provided interface | DN125 |
| Flow rate | ≥ 90 m3/h |
| Box certification | China Classification Society Certification |
| Working temperature (Outdoor) | -35~50˚C |
| Working humidity | 5%-95%RH |
| Altitude | ≤ 2000 m (For every 1000m increase, the heat dissipation capacity decreases by about 10%) |
2. HC40-S1200 Dry cooler
| Cooling Capacity | 1200kW@35℃ |
| Size(L×W×H) | 8430x 2350x 2380mm |
| Weight(KG) | 6000 KG(Empty) |
| FANs | 14 |
| FINs | Al/Epoxy Materials |
| Flange Connection | DN125 |
| Total Airflow Rate | 420000m³/h |
| Cooling Medium | Pure/Soften/Distilled water+Corrosion Inhibitor |
| Rated Flow Rate | 100m³/h |
| Inlet/Outlet Temperature | 45℃/35℃@S21+ Hydro |
| Voltage and Frequency | 3ph~380VAC-415VAC, 50HZ |
| Approaching Temperature | 5℃ |
| Ambient Temperature(Air Inlet) | <=25℃(S21+Hydro working mode @35℃ inlet TEM) |
| Operation Temperature | -30℃~50℃ |
| Control System | Intelligent PLC System, Constant pressure replenishment and flow control, 10-inch touch screen, Chinese and English language |
