Hydro Cooling System H200-M Support 20 Units Whatsminer M63S Immersion Cooling for Crypto Mining


    SKU: H200-M Category:

    Apexto Hydro Cooling for Crypto Mining

    ——Provide from Home Mining to Large-scale Mining Solutions

    • Hydro Cooling System H200-M——Designed for Bitcoin Mining/Whatsminer M63S

    FogHashing H200 series, a Hydro Cooling equipment specifically designed for Bitcoin mining. Whether you are a professional miner or a beginner, Hydro Cooling Solution is the ideal choice to enhance mining efficiency.

    • Features

    200kW Sufficient Cooling Capacity

    Meet the heat dissipation demand of hydro cooling mining system

    Compatible with Whatsminer/Antminer Rack System

    42U modular rack system design

    Designed for Bitcoin Mining Heat Recovery

    Solution designed according to heating needs, optional dry cooler or cooling tower

    • Specifications

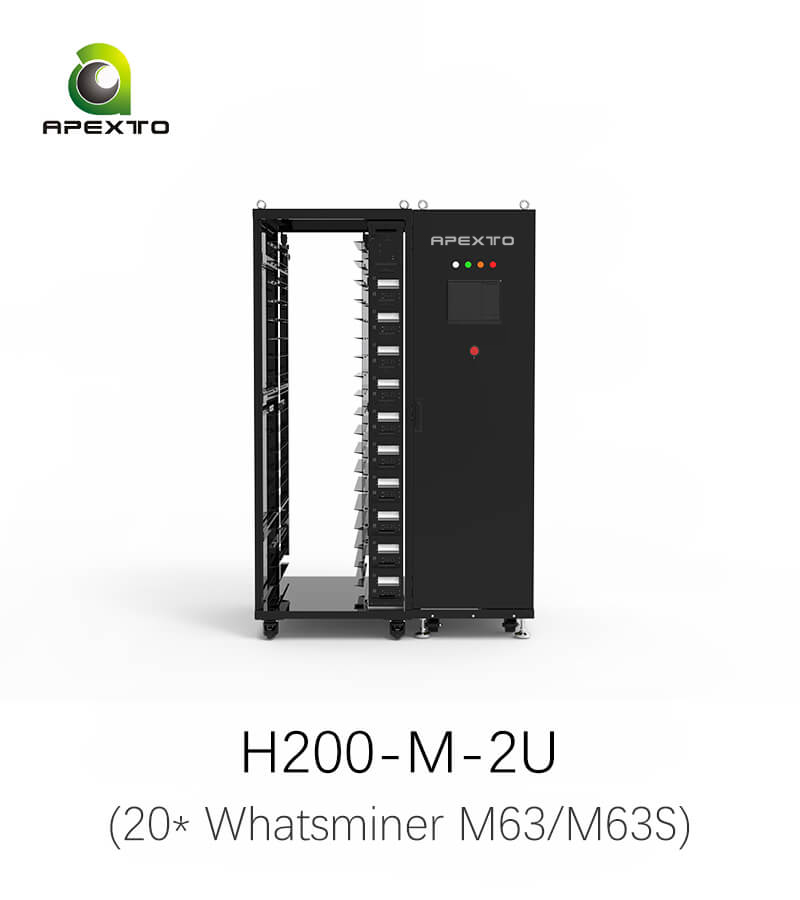

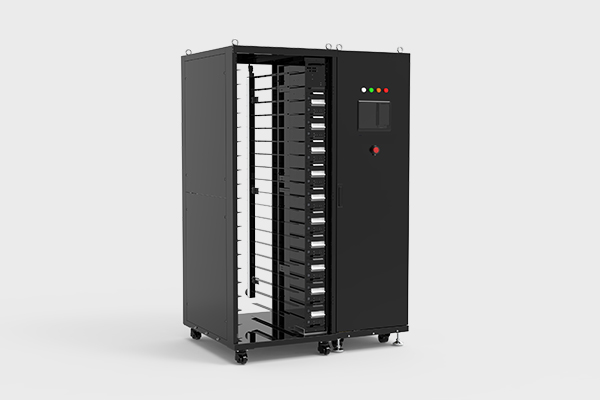

    1. H200-M
    Size 800mm(W)*2100mm(H)*1000mm(D)
    System Power Load (MAX) 210kW
    Miner Capacity 20 Whatsminer M63s
    Input Voltage 3-Phase 380V-415V, 50/60Hz
    PDU 20 Port SA2-30 Smart PDU
    Network 1000M Network Switch
    Operation Temperature -25℃~45℃
    Operating Humidity 5%~95%RH
    Water Manifold Stainless Steel
    Hose PE/PTFE Hose + Quick Connects

    2. H200-CDU

    Size 800mm(W)*2100mm(H)*1000mm(D)
    Cooling Capacity 200kW
    Power 3.5kW
    Input Voltage 3-Phase 380V-480V, 50/60Hz
    Cooling Medium Pure water/Soften water+Antifreeze+Corrosion Inhibitor
    Inlet/Outlet 10°C (Normal)

    14°C (High Performance)

    Rated Flow Rate 20m³/h
    Operating Temperature -25℃~45℃
    Operating Humidity
    PLC System Constant flow control with pressure
    Communication Method Modbus-RTU,TCP/IP
    Design Pressure 0.3MPa

    3. H200-Dry Cooler

    Model FHWDC200
    Module Dry Cooler V Type
    Cooling Capacity 200kW
    Wight(Empty Load) 800KG
    FANs 2
    Connection DN50
    Fluid Coolant
    Fluid flowrate 20m³/h
    Inlet/Outlet Temperature 55℃/40℃
    Ambient temperature 35℃
    Fin/Tube Materials 304 Stainless steel,Al-mg/AI
    Operating/Maximum Pressure 0.3MPA/1.6MPA

    Note: About the transportation of liquid cooling equipment

    For most areas, the liquid cooling equipment will be shipped to you via sea freight. Ports and receiving points in different regions will incur different shipping charges. It is recommended that you contact customer service to confirm address details and calculate shipping costs before placing an order.
