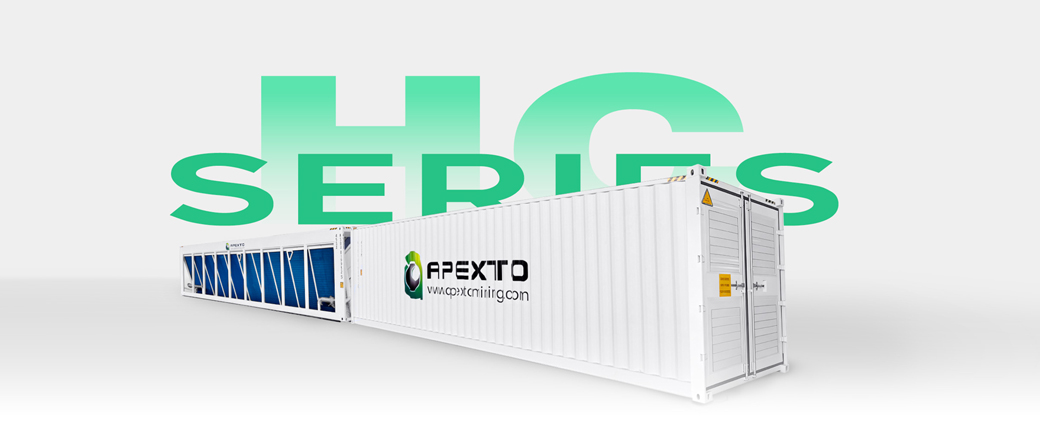

HC Series

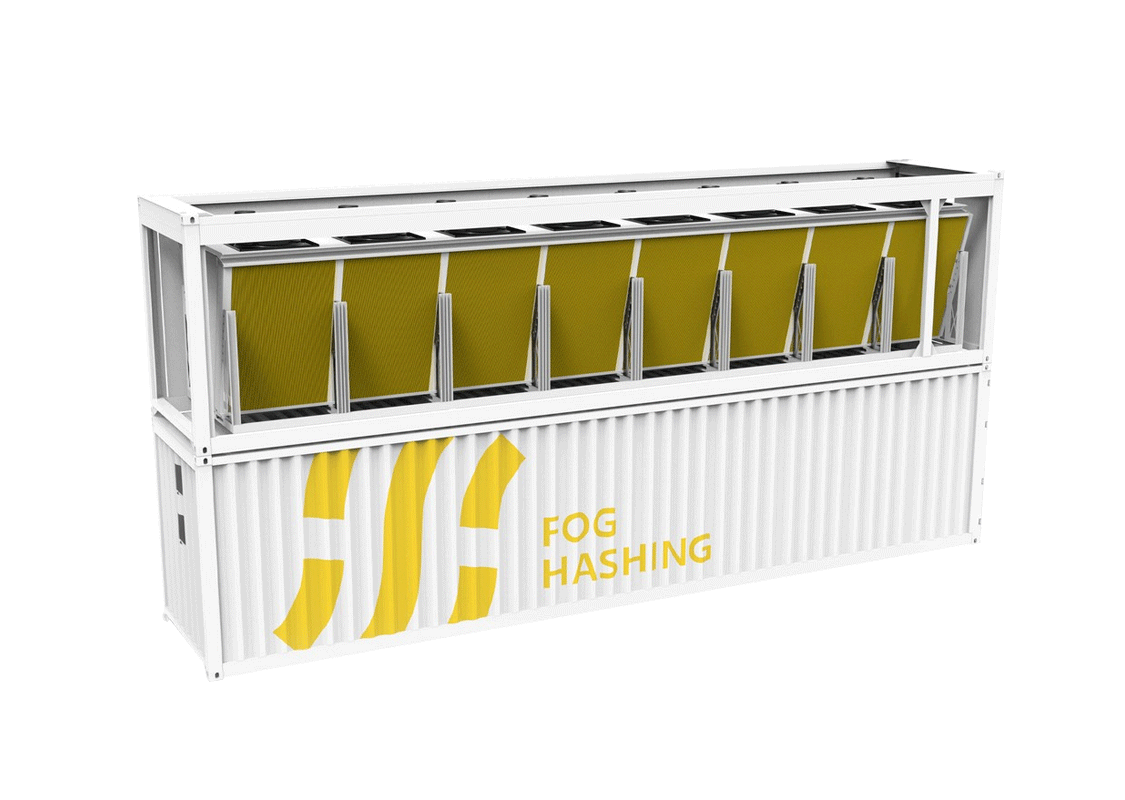

Hydro Cooling container

The Best Choice for Hydro Cooling

Hydro Cooling Container is an innovative solution designed specifically for large-scale mining operations. It incorporates a range of efficient features from the H series Hydro Cooling equipment, including single-circuit design, stainless steel pipelines, coolant quality monitoring, and a high-capacity circuit system.This container provides reliable heat dissipation, simplified maintenance procedures, and a convenient mining operational environment.

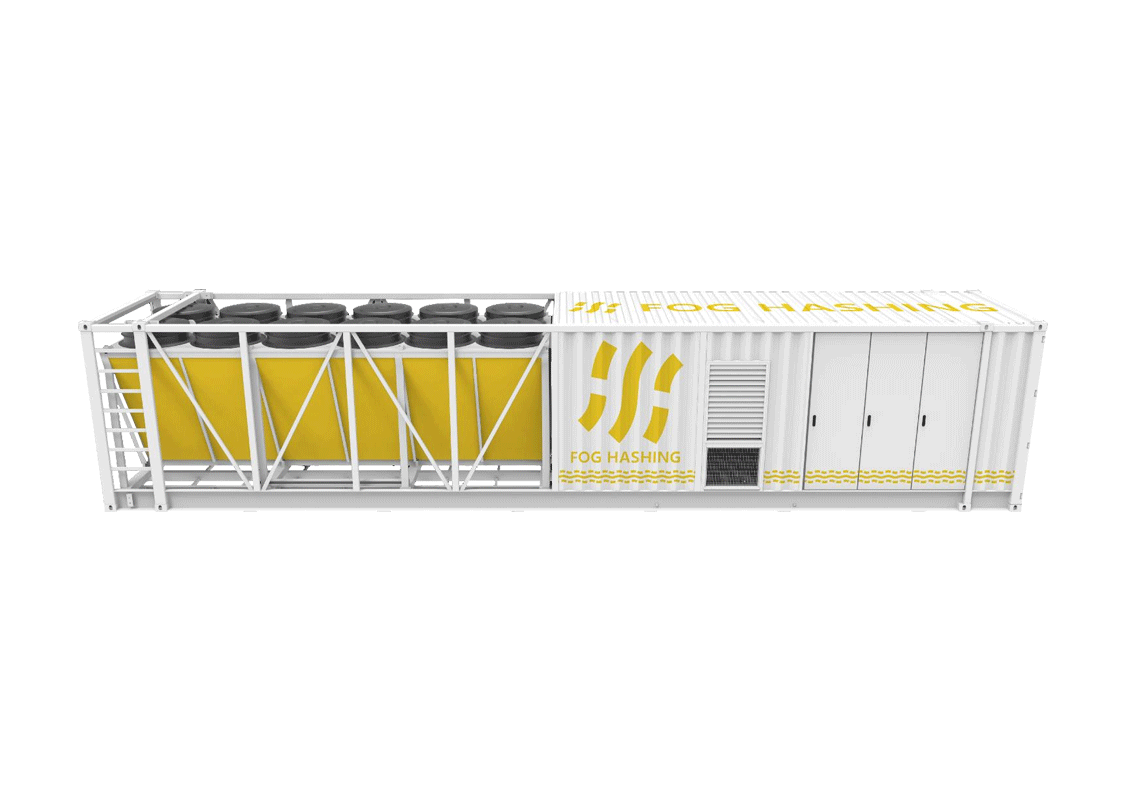

Hydro Cooling container

Project Overview

  • Deploy based on container.
  • One container can hold 210 Antminer hydro miners max.
  • Target Miner: Bitcoin Miner S19/21 hydro.
  • Total load: 1400kW
  • Equipped with 1400kW smart CDU.
  • Integrated dry cooler.
  • Type of container: 40HQ
  • Design heat dissipation: 1400kW@30℃ ambient temp .
  • Humidity: 5-80%
  • High air volume fans: 10 PCS.

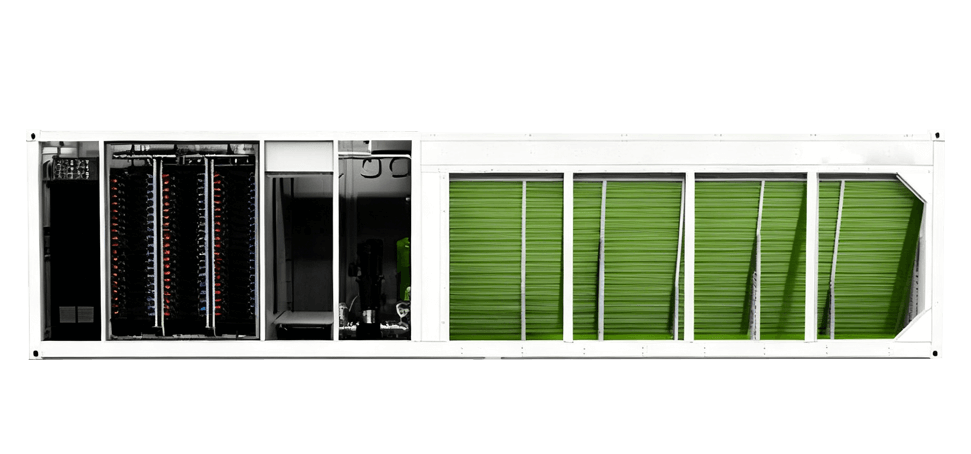

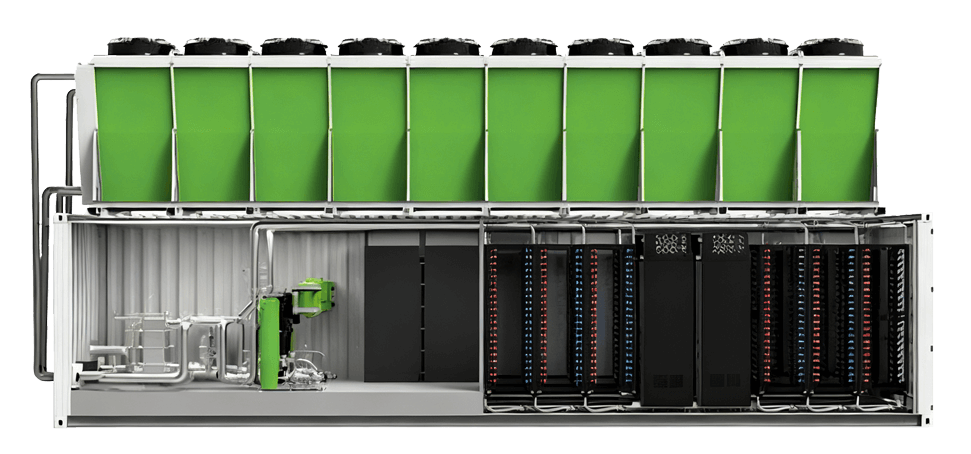

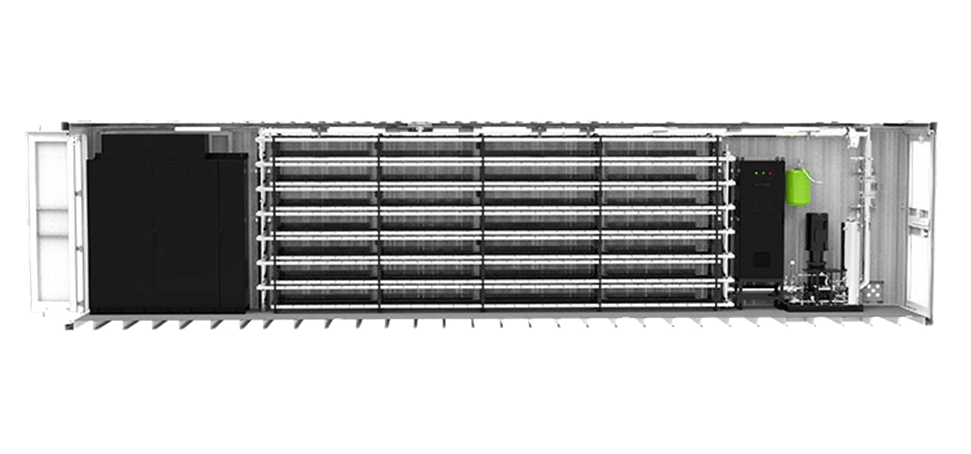

Layout
Description

Hydro Cooling Container

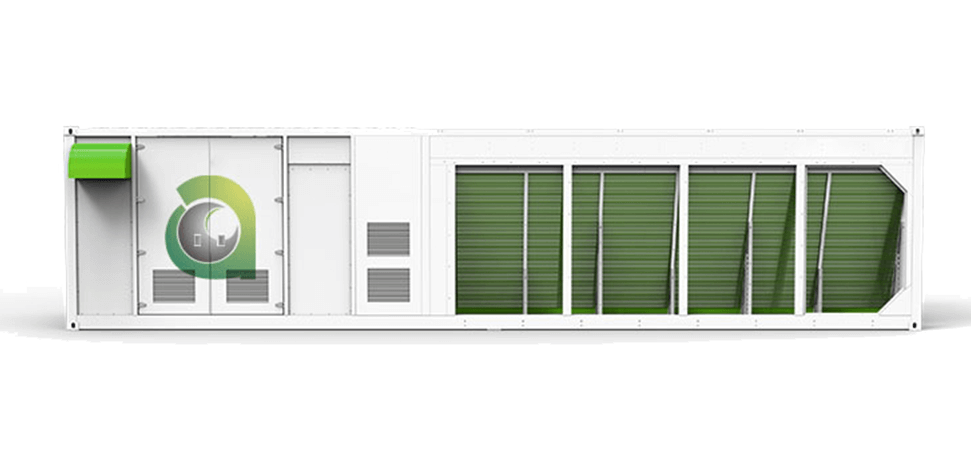

Integrated Dry Cooler

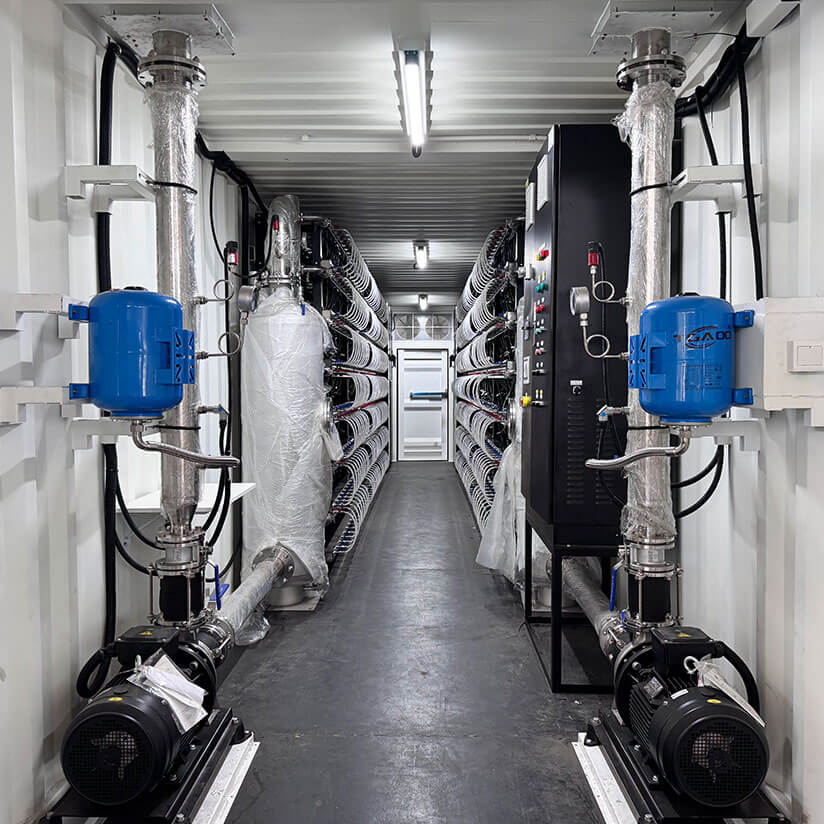

1100kW CDU

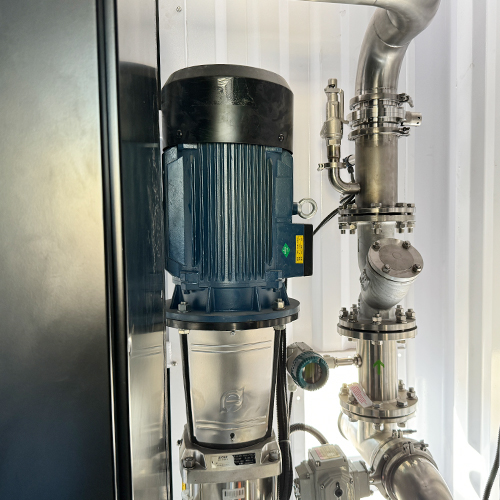

Built-in Pump, Water
refill, Flow controller,
etc.

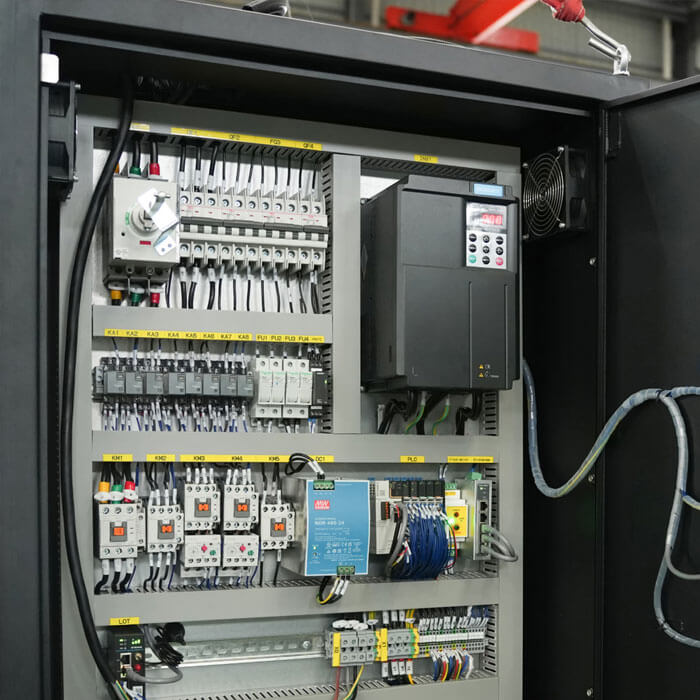

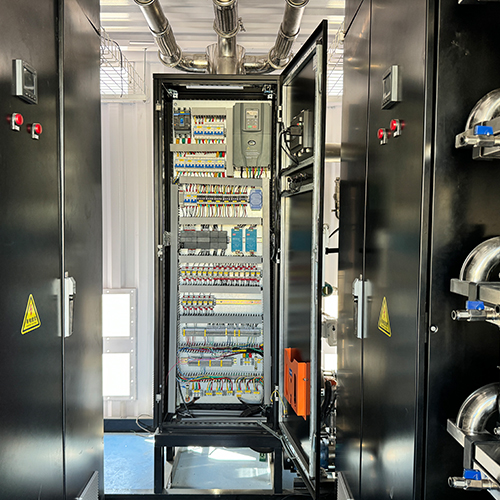

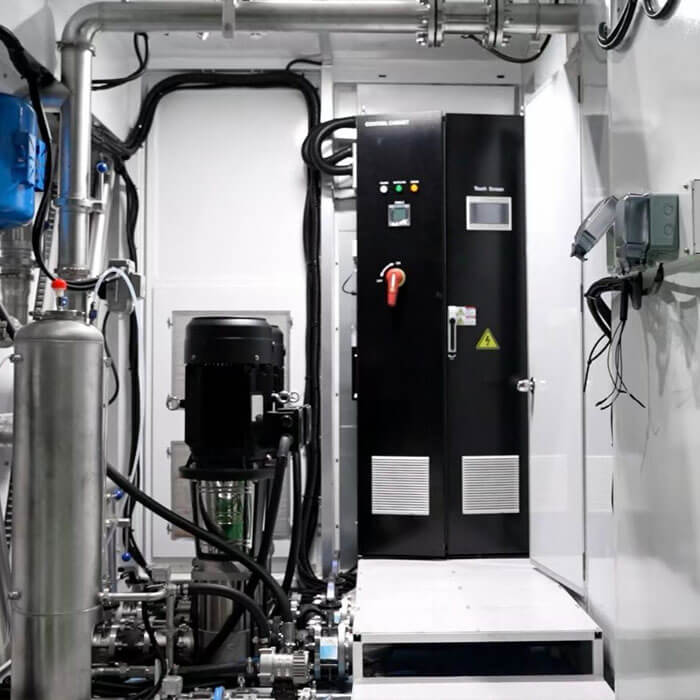

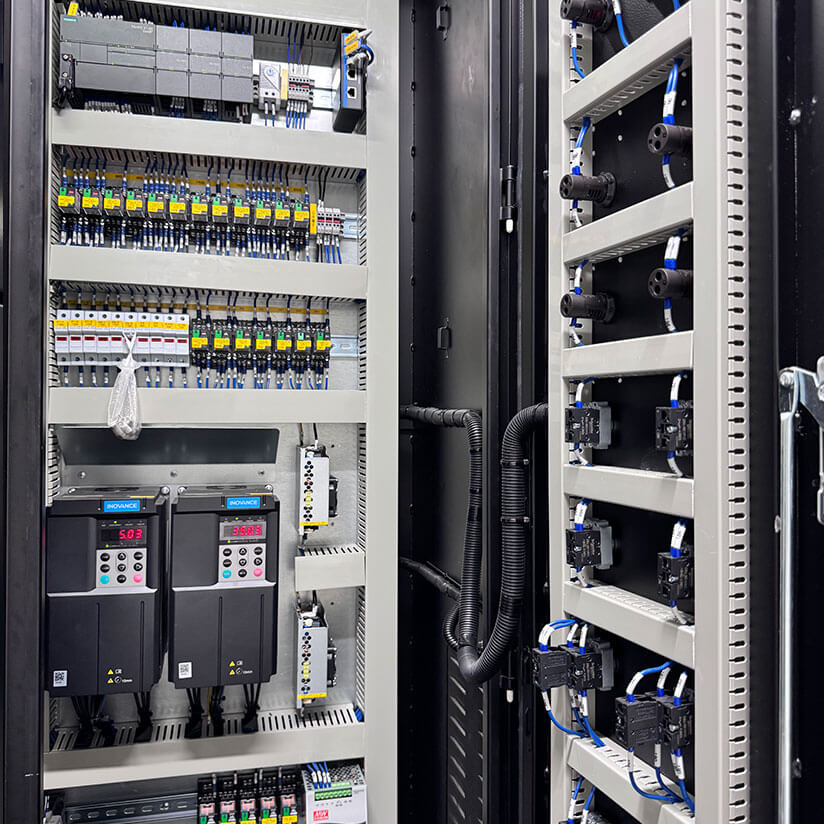

Control cabinet

Dynamic environment and
system temperature
control system based on
PLC

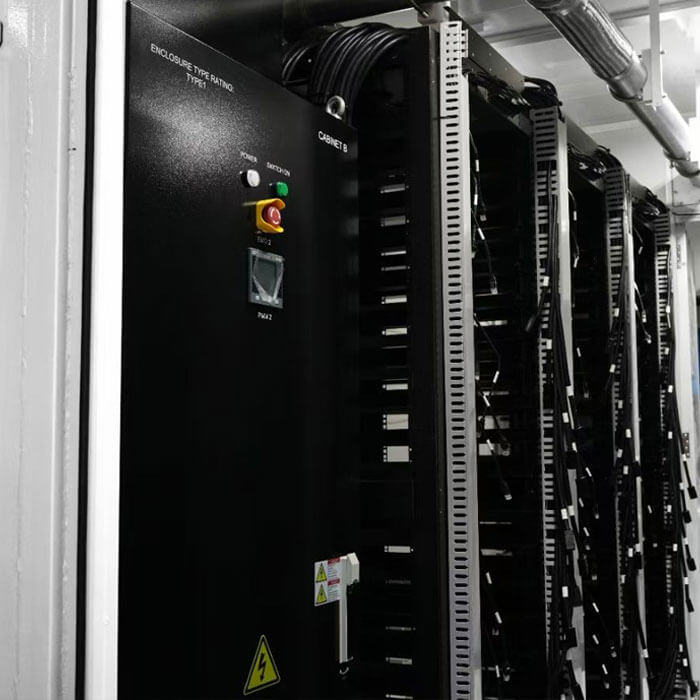

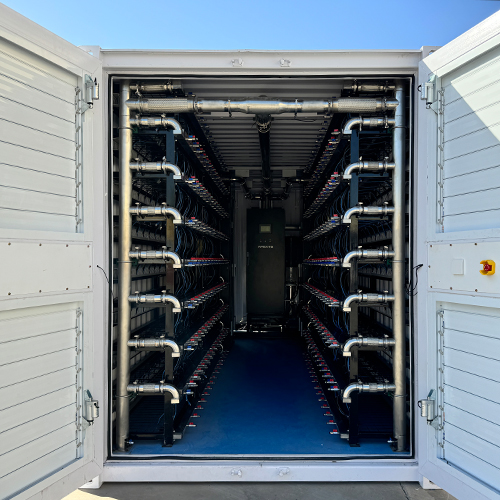

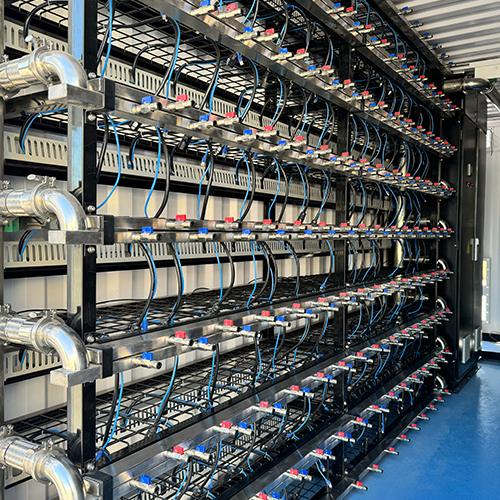

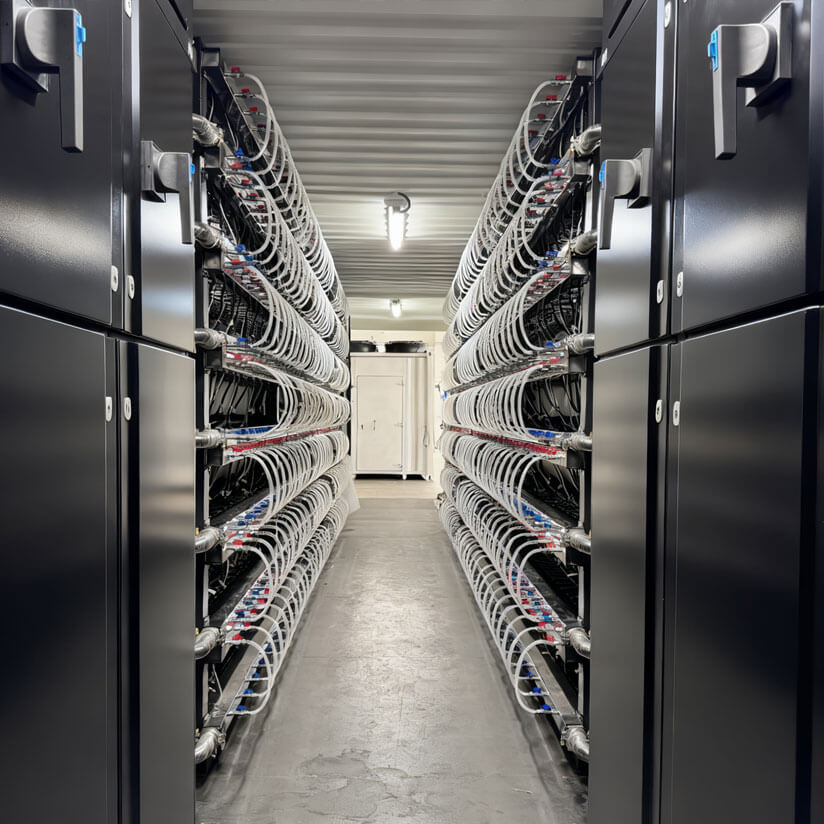

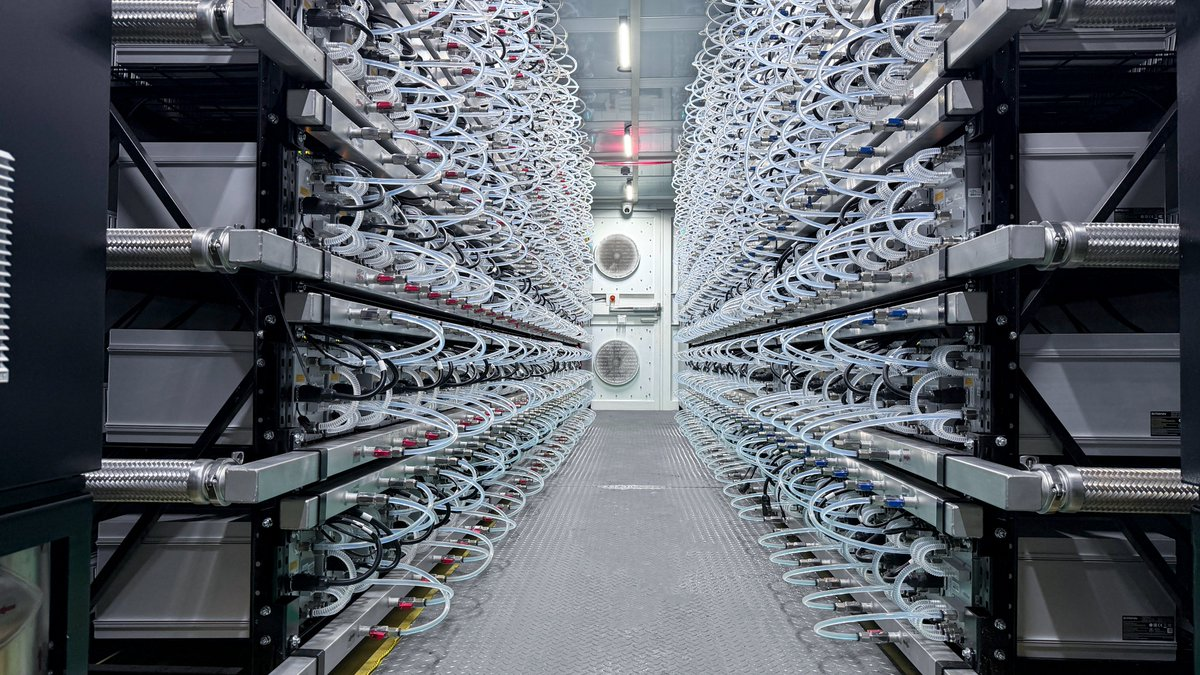

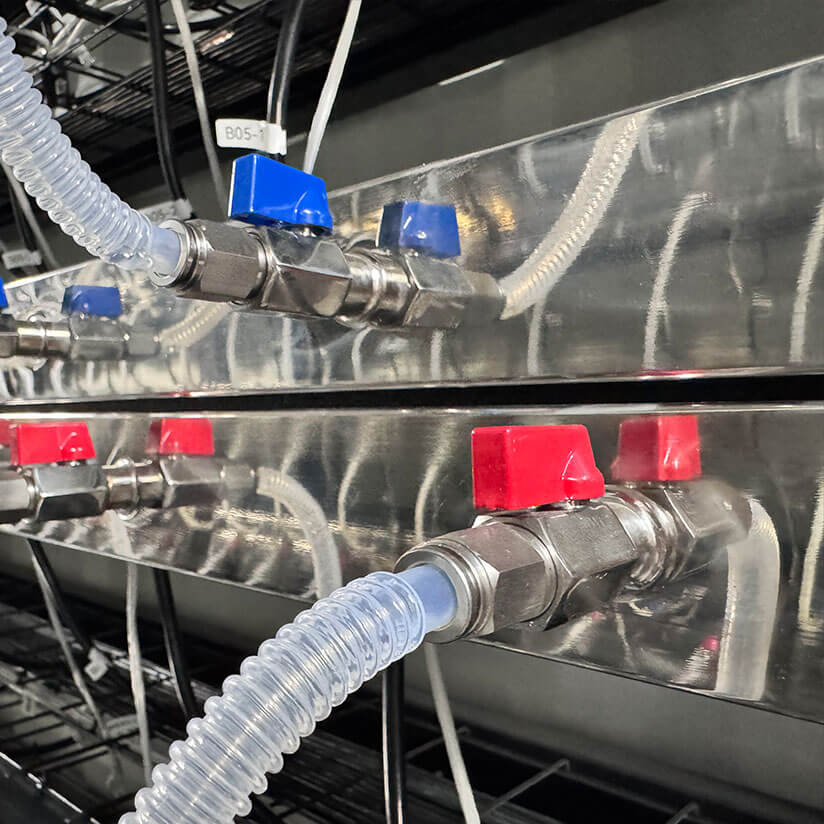

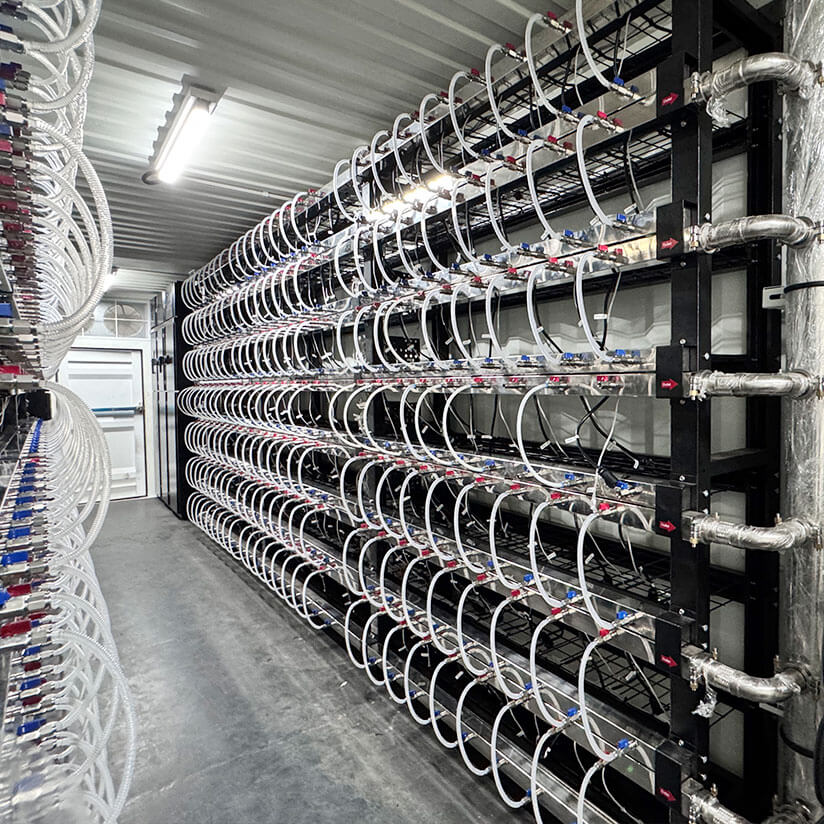

Hydro Rack

Built-in Sensor, Network
Switch, Pipeline

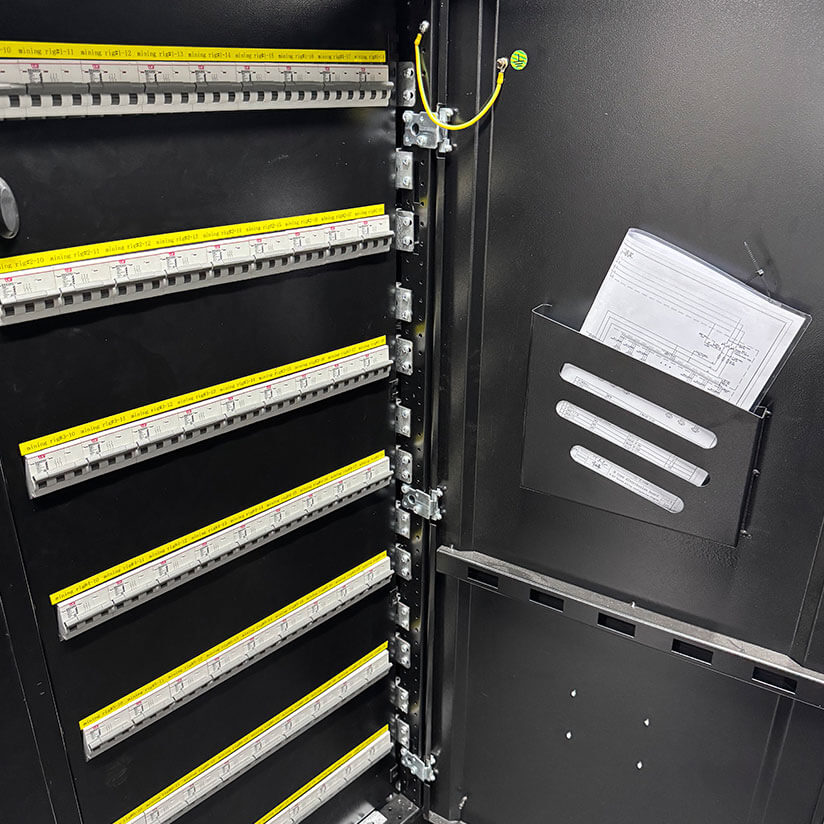

1000A PDC

Built-in Breaker,
instrument, SPD, etc.

HC Container
Specification

Size12192(L)*2438(W)*2896(H)mm
RackRack 7 rows and 15 columns per group
Input Voltage3-phase 380-415V 50/60Hz
Power Capacity1100kW
Operating Temp32-105℉
CapacityS21/S19 hydro miners(105 Rigs in a group)

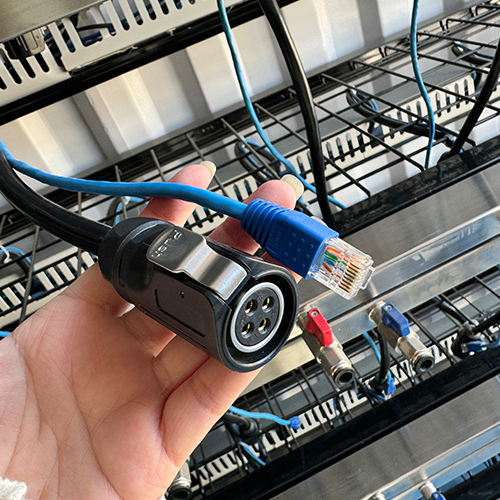

Network100Mbps Ethernet Switch & 1000Mbps main Switch
Cooling systemDry cooler
Inlet and Outflow Temperature104/122℉

HC Container

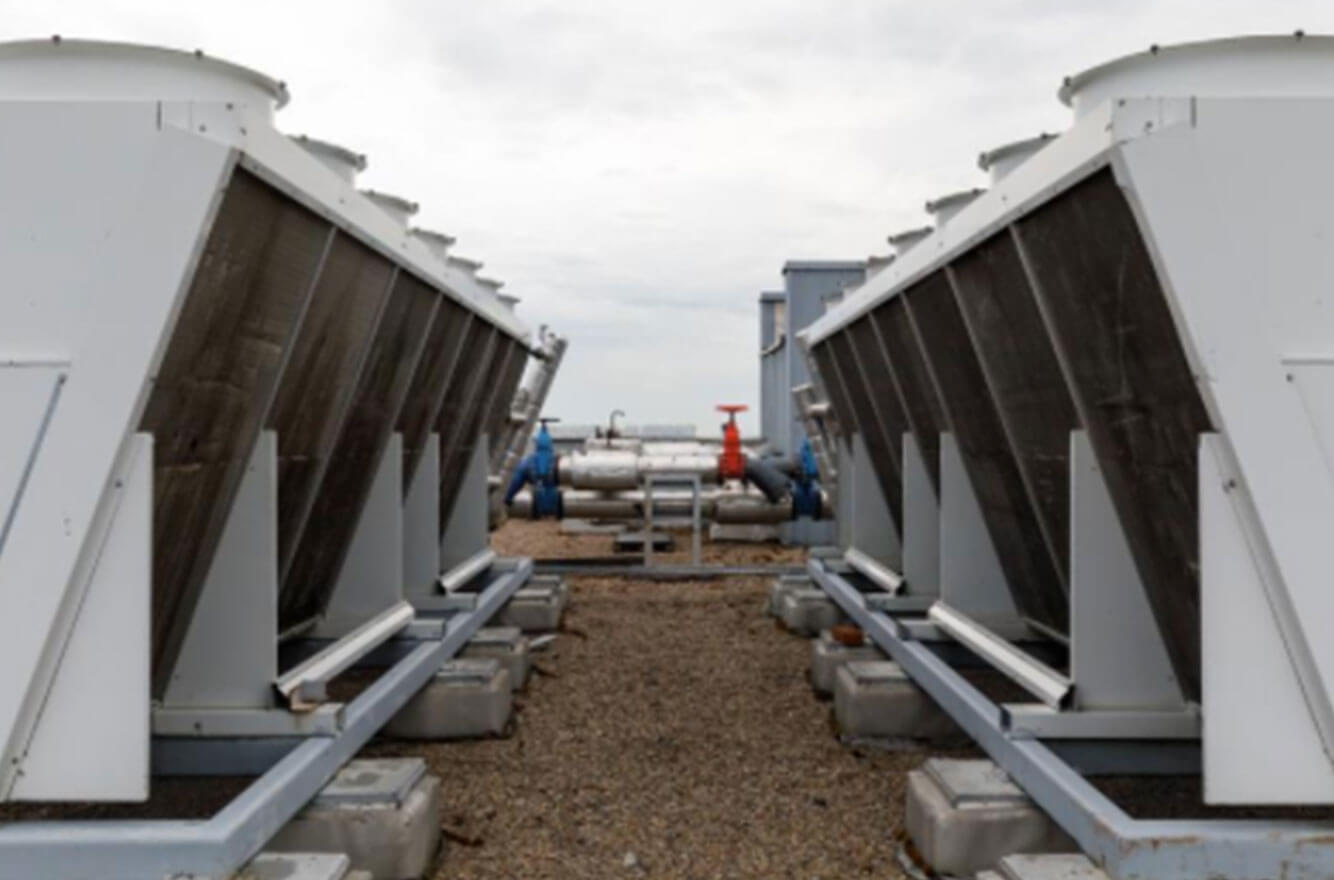

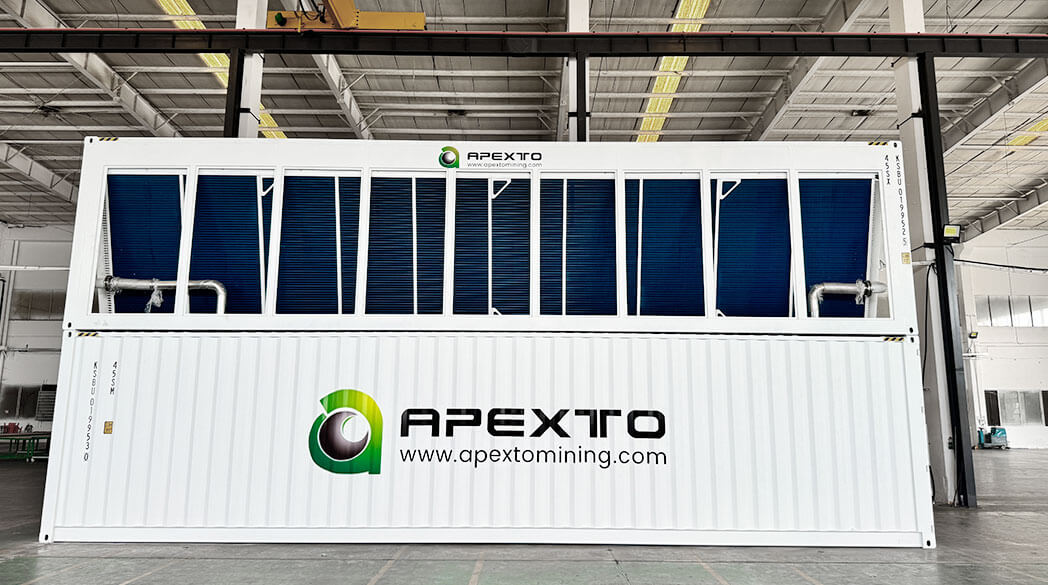

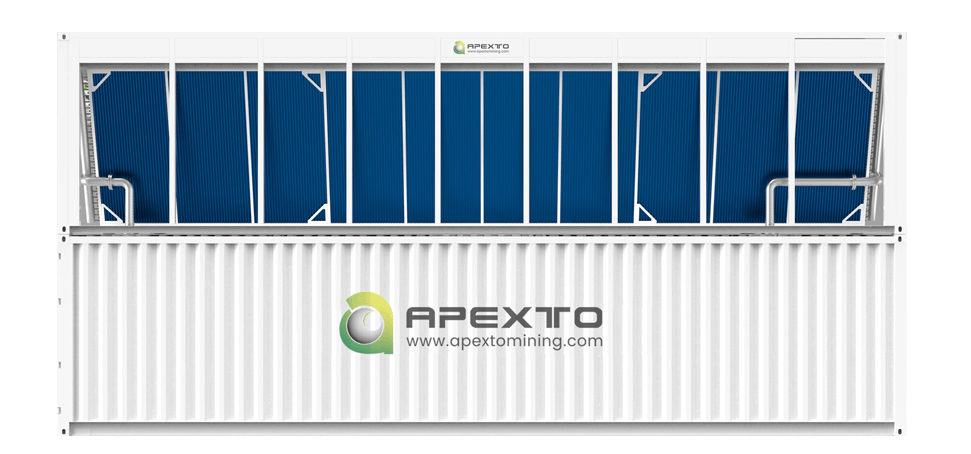

Dry cooler

Cooling Capacity1400 kW@30℃
Input Voltage3-phase 350-415V 50Hz/60Hz
Fan Power4.1 kW *10

In and Out

Temperature

60/50°C

Spray Pump

Power(optionl)

1kW
Dry Weight3600kg
Wet Weight4600kg
Noise<76 dB(10m)
