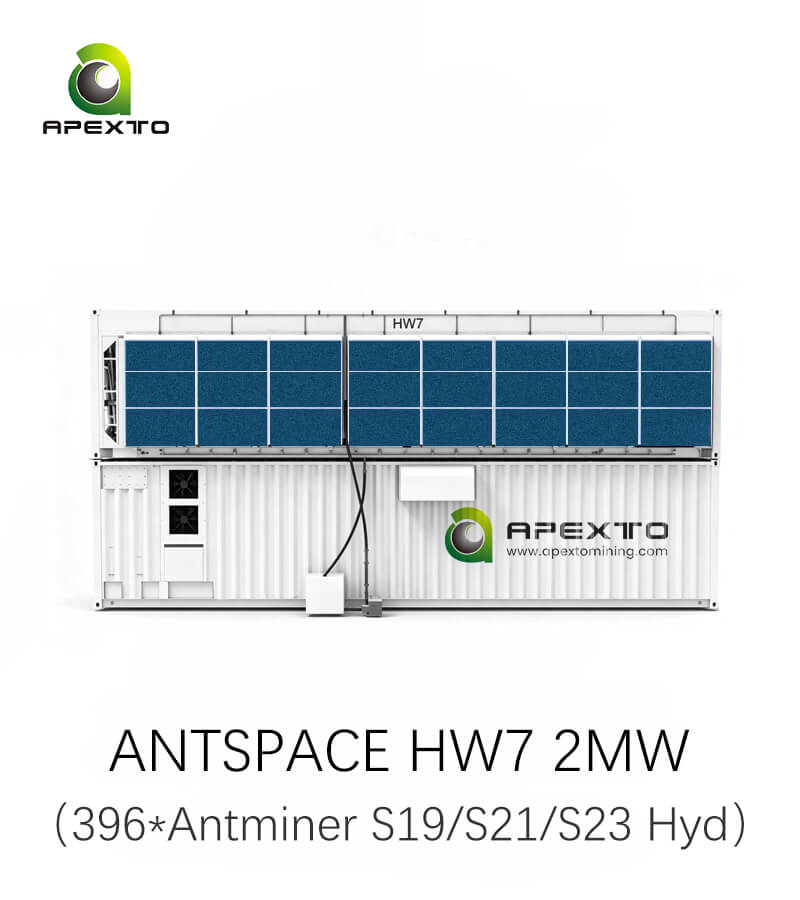

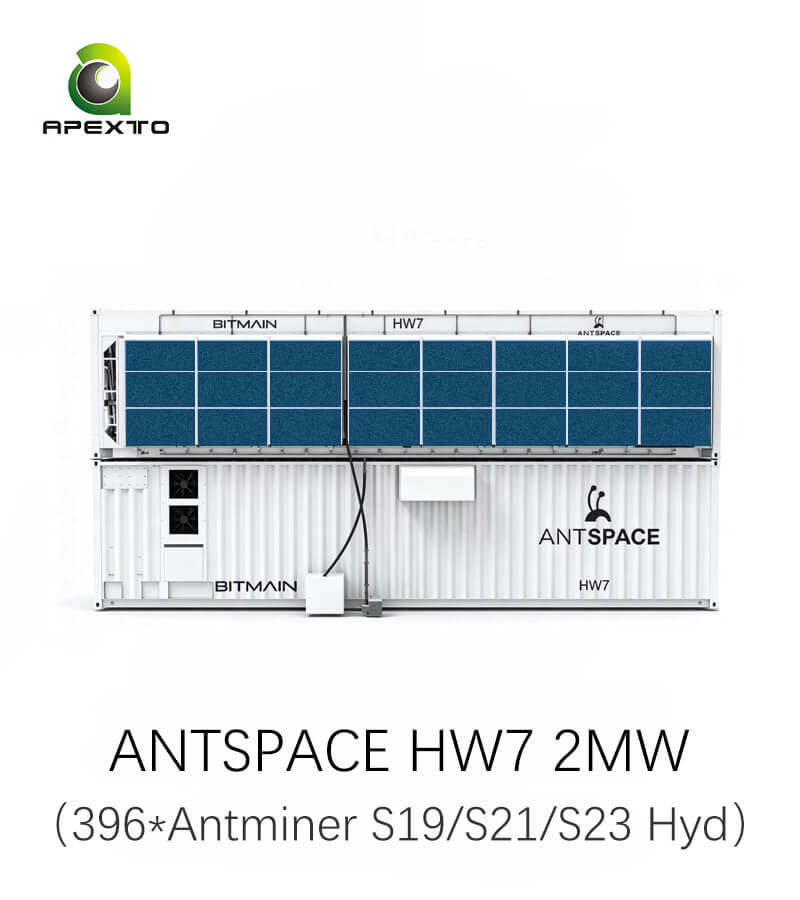

ANTSPACE HW7 396-Slot/242-Slot Next-Gen Hydro Cooling Container
CONTAINER CAPACITY
ASIC MINERS
396 or 242 UNITS
Housed at full load
TOTAL POWER
2,500 KW
Continuous electrical load
POWER INPUT
380–480 V
Wide-voltage compatibility
COOLING
Hydro
Thermal management
POWER INPUT
380V–415V AC 50/60Hz
AVAILABILITY
Typical lead time 45 days • DDP Sea Shipping Available
Product Description
Designed as the next generation global standard for high capacity datacenters, the 2MW Antminer ANTSPACE HW7 Hydro Cooling Container 40FT HQ delivers outstanding multi form factor compatibility.
This 40 foot solution features a highly flexible rack architecture, accommodating up to 396 standard hydro units or 242 2U server style miners for diverse deployment needs. Utilizing advanced dry tower and evaporative water curtain synergistic cooling, it improves heat dissipation efficiency by thirty three percent compared to traditional dry coolers.
Capable of all weather operation from minus forty degrees Celsius to fifty degrees, certified HW7 integrates wide voltage inputs, guaranteeing reliable, low PUE uptime globally.
Core Advantages
Full Specifications
External dimensions
L:12192mm、W:2438mm、H:2896mm
Internal dimensions
L:12000mm、W:2230mm、H:2660mm
Weight
16000 KG
396-Slot Antminer Hydro Cooling Container Product Brochure
Complete product specifications, installation guide, and operational instructions.
|
Model |
ANTSPACE HW7 |
Installed capacity |
396 standard miners or 242 2U miners |
|
Main Switch Capacity of Power Distribution Cabinet |
1200 A |
Rated Power |
2100 kW |
|
Maximum Supported Input Current |
960*4 A |
Maximum Supported Input Power |
2500 kW |
|
Maximum Current per Miner Slot |
25 A |
Heat Dissipation Capacity |
2000 kW |
|
Supply Liquid Temperature |
35±1℃ @ 30℃ ambient |
Rated Power of Cooling Fan |
4.1*22 kW |
|
Rated Power of Water Curtain Pump |
1.5*2 kW |
PUE |
1.031 @ 25℃ ambient temperature, 35℃ supply liquid temperature |
|
Safety Certification |
NFPA 79:2024 |
Input Voltage |
380~480 V (50/60Hz, 3P/N/PE) |
|
Ambient Temperature |
-40~50 ℃ |
Ambient Humidity |
10%~90% RH |
|
Altitude converter |
≤2000 M |
Certification Standards
Our products meet leading international standards for safety, reliability, and performance.
China Classification Society
Marine & offshore compliance
UL Listed
Safety tested & certified
CSA Certified
North American compliance
CE Marking
European conformity
Recommended Power Setup
Match your container deployment with the appropriate transformer capacity.
For 1 X HW7 Container

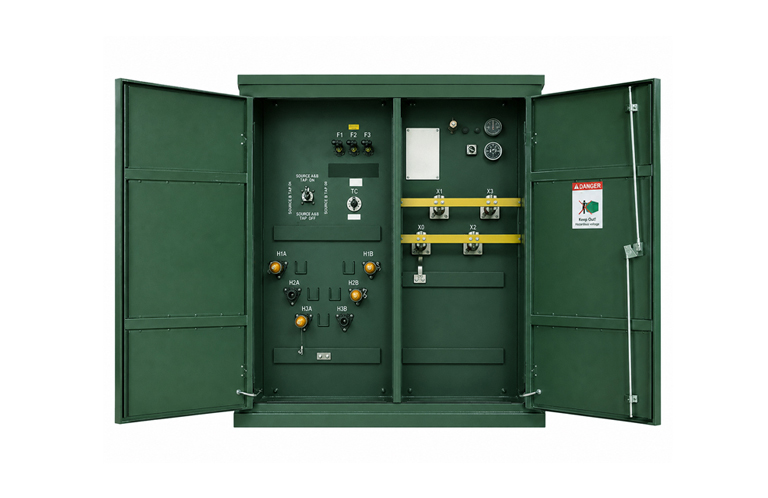

2550 kVA Three-Phase Pad-Mounted Transformer
Complete Cooling Solutions
We design and manufacture a complete range of hydro cooling solutions for every scale, from hydro cooling cabinets and containers to CDUs and dry coolers.
|
❄️ Cooling Capacity |
|
⚙️ Miner Slots |
|
📏 Dimensions (L × W × H) |
|
🏢 Application |
210-Slot Antminer Hydro Cooling Container
|
1.2 MW |
|
210 Slots |
|
1,2192 × 2,438 × 2,896 mm |
|
Commercial-Scale Mining |
308-Slot Antminer Hydro Cooling Container
|
1.5 MW |
|
308 Slots |
|
1,2192 × 2,438 × 2,896 mm |
|
Mid-to-Large Operations |
Compare
ANTSPACE HW7 396-Slot Antminer Hydro Cooling Container
|
2 MW |
|
396 Slots |
|
1,2192 × 2,438 × 2,896 mm |
|
Industrial-Scale Projects |
480-Slot Antminer Hydro Cooling Container
|
2.6 MW |
|
480 Slots |
|
1,2192 × 2,438 × 2,896 mm |
|
Mega-Scale Mining Facilities |
396-Slot ANTSPACE HW7 Hydro Container FAQs
Which specific ASIC models are compatible with this container?
The customized racks accommodate up to 396 units standard hydro miners or 242 units 2U server style servers. This dual compatibility design seamlessly supports both configurations within the same high density, forty foot container chassis safely.
How is the dry tower’s fan control engineered to match the independent A/B CDU loops?
The dry tower features split fan banks specifically assigned to individual A and B loops. Under partial loads or during single pump maintenance, the central PLC independently powers down unused fan segments to optimize operational electricity overhead and overall system PUE.
How does the container’s automatic louver system protect internal miners during extreme, fast-onset weather?
Integrating high precision sensors with the central PLC, the motorized louver style fans close automatically during sudden desert sandstorms or extreme blizzards. This active weather tight protection prevents external dust, sand, or freezing air from entering the container, ensuring stable onsite operations.
How is this megawatt-scale modular container packaged and transported to international mining sites?
The fully assembled container is officially certified as a standard legal ISO shipping unit, allowing seamless international transit by vessel, rail, or truck. This turnkey logistics design eliminates any costly onsite structural reassembly, saving operators up to four weeks of standard setup time.
How does this megawatt-scale modular container integrate with typical on-site substation transformers?
Designed for highly optimized substation layouts, one standard thirty seven hundred fifty kilovolt ampere transformer comfortably powers exactly two containers. This integrated design greatly simplifies on site engineering, significantly lowering your overall megawatt scale project capital expenditures and total onsite installation costs.
