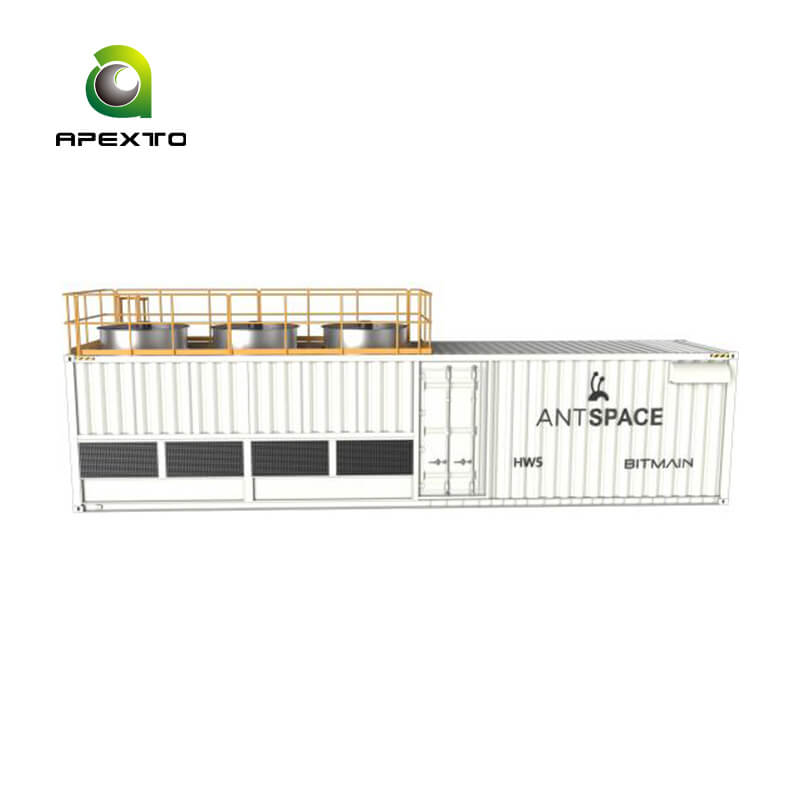

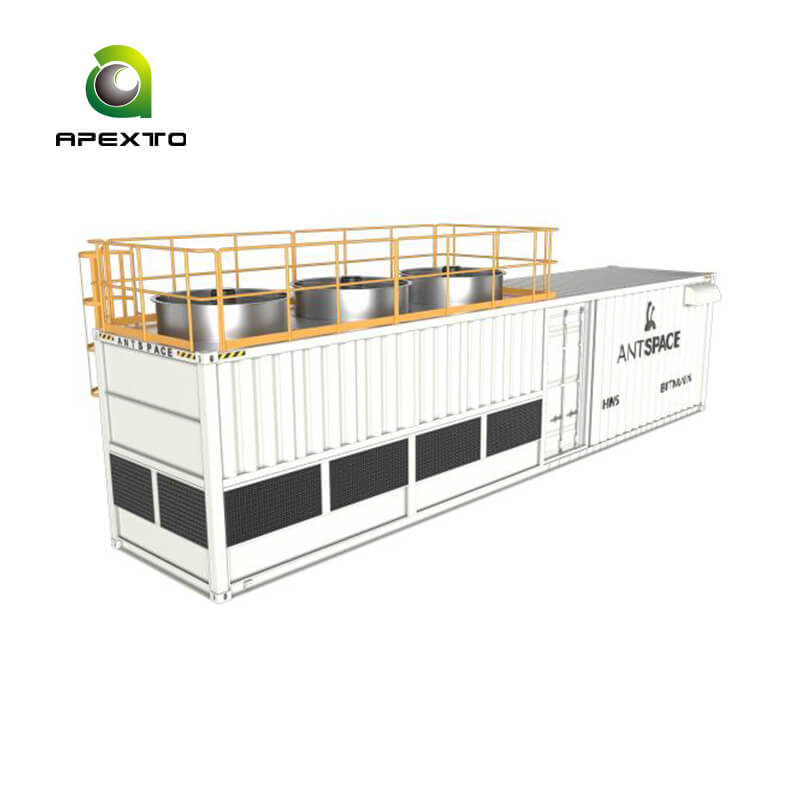

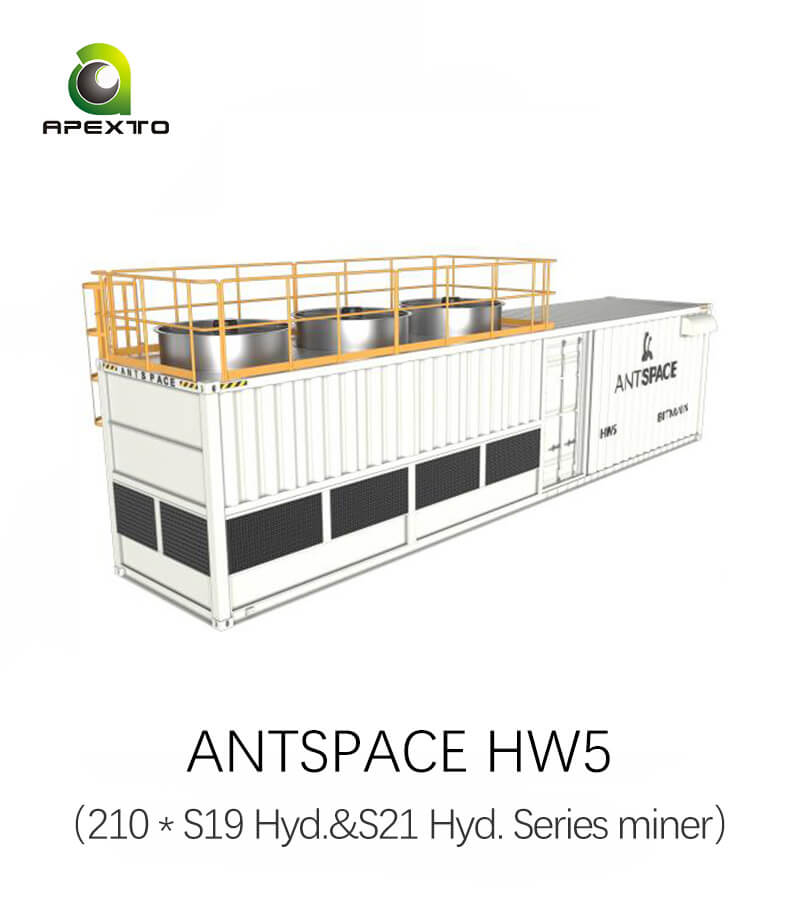

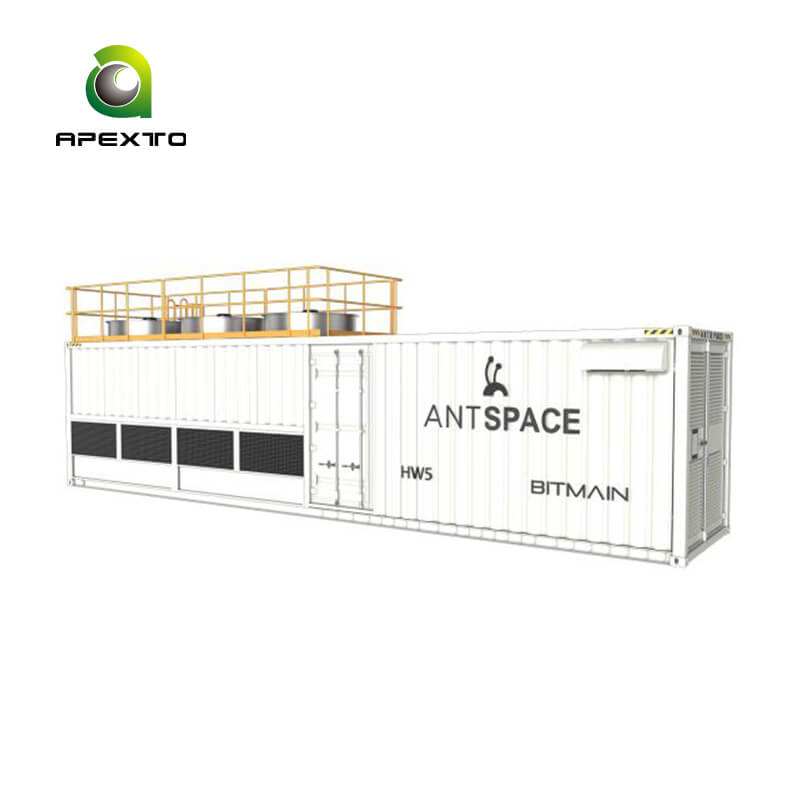

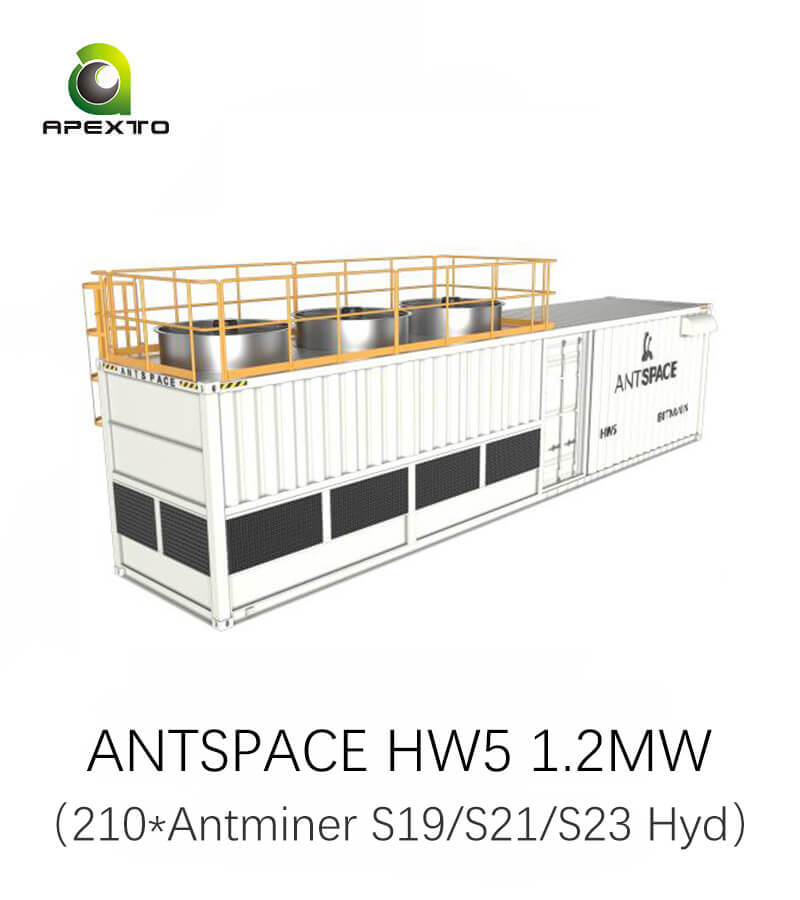

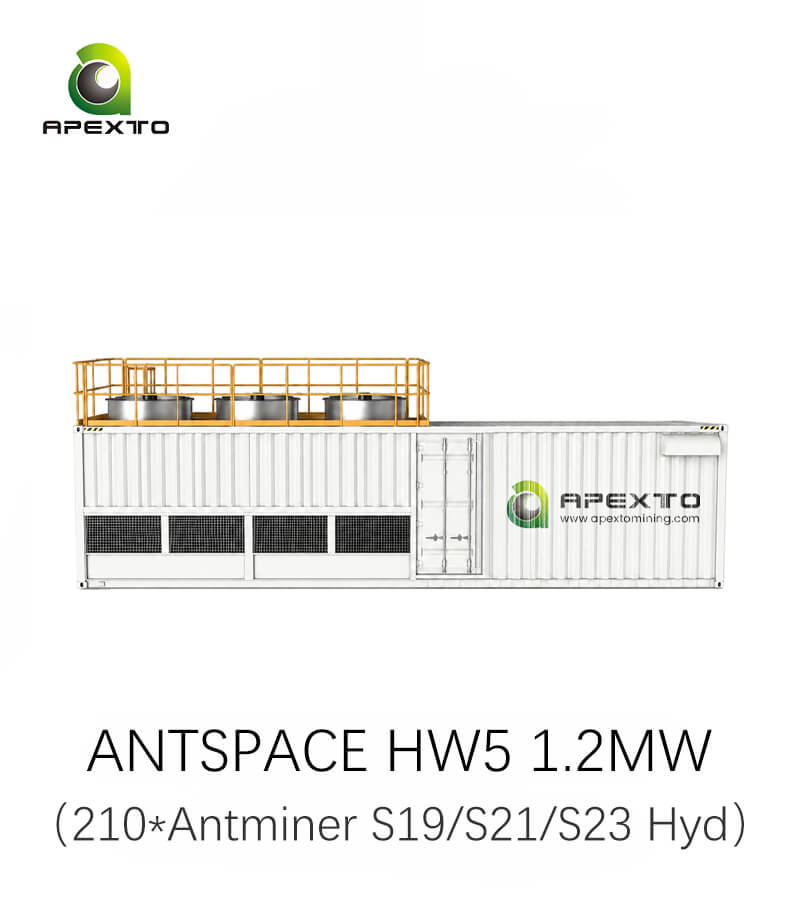

1.2MW ANTSPACE HW5 210-Slot Integrated Antminer Hydro Container
CONTAINER CAPACITY
ASIC MINERS
210 UNITS
Housed at full load
TOTAL POWER
1,200 KW
Continuous electrical load
POWER INPUT
400V
Rated Voltage
COOLING
Hydro
Thermal management
POWER INPUT
380V–415V AC 50/60Hz
AVAILABILITY
Typical lead time 45 days • DDP Sea Shipping Available
Product Description
Designed as an integrated, water optimized infrastructure for Antminer hydro series units, the 1.2MW 210-Slot Bitmain ANTSPACE HW5 Hydro Cooling Container 40FT HQ is engineered with an advanced dry wet hybrid cooling tower.
By utilizing a highly efficient closed loop that sprays a thin water film across dry coils during extreme heat, the HW5 maintains peak J/TH mining efficiency even in hot, humid climates. This unique process rejects heat at lower coolant temperatures, securing an ultra low 1.017 PUE alongside highly reliable, long term operational uptime globally.
This standardized turnkey, plug and play solution reduces required site footprints by forty percent, significantly cutting onsite installation labor by seventy five percent while reducing low voltage cabling and transport expenses.
Core Advantages
Full Specifications
External dimensions
L:12192mm、W:2438mm、H:2896mm
Internal dimensions
L:12000mm、W:2230mm、H:2660mm
Weight
14000 KG
|
Model |
ANTSPACE HW5 |
Installed capacity |
210 Units |
|
Main Switch Capacity of Power Distribution Cabinet |
1200*2 A |
Rated Power |
1200 kW |
|
Maximum Supported Input Current |
≤986*2 A |
Maximum Supported Input Power |
1200 kW |
|
Maximum Current per Miner Slot |
≤10 A |
Flow rate |
≥85 m³/h |
|
Quantity of ANTSPACE powered by one 2500kVA Transformer |
2 |
Heat Dissipation Capacity |
1200 kW |
|
Outlet Temperature @ 28℃ Wet Bulb Temperature |
35 ˚C |
Operating Power |
≤15~29 kW |
|
Water supply pipe Interface |
DN40 |
Drain Pipe Interface |
DN65 |
|
Noise level @25℃, 15m |
70 dBA |
Water Consumption |
0.7~1.3 m³/h |
|
Inner Coolant Usage |
1.6 m³ |
Inner Coolant Usage |
400V±5% 50/60Hz |
|
PUE@25℃ ambient temperature |
1.017 |
Safety certification |
NFPA 79:2021 |
210-Slot Antminer Hydro Cooling Container Product Brochure
Complete product specifications, installation guide, and operational instructions.
Certification Standards
Our products meet leading international standards for safety, reliability, and performance.
China Classification Society
Marine & offshore compliance
UL Listed
Safety tested & certified
CSA Certified
North American compliance
CE Marking
European conformity
Recommended Power Setup
Match your container deployment with the appropriate transformer capacity.
For 1 × HW5 Container
1500 kVA Three-Phase Pad-Mounted Transformer
For 2 × HW5 Containers
3000 kVA Three-Phase Pad-Mounted Transformer
Need help sizing your transformer?
Our engineers will recommend the right transformer based on your site conditions and power requirements.
Complete Cooling Solutions
We design and manufacture a complete range of hydro cooling solutions for every scale, from hydro cooling cabinets and containers to CDUs and dry coolers.
|
❄️ Cooling Capacity |
|
⚙️ Miner Slots |
|
📏 Dimensions (L × W × H) |
|
🏢 Application |
Compare
HW5 210-Slot Antminer Hydro Cooling Container
|
1.2 MW |
|
210 Slots |
|
1,2192 × 2,438 × 2,896 mm |
|
Commercial-Scale Mining |
308-Slot Antminer Hydro Cooling Container
|
1.5 MW |
|
308 Slots |
|
1,2192 × 2,438 × 2,896 mm |
|
Mid-to-Large Operations |
420-Slot Antminer Hydro Cooling Container
|
2.4 MW |
|
420 Slots |
|
1,2192 × 2,438 × 2,896 mm |
|
Industrial-Scale Projects |
480-Slot Antminer Hydro Cooling Container
|
2.6 MW |
|
480 Slots |
|
1,2192 × 2,438 × 2,896 mm |
|
Mega-Scale Mining Facilities |

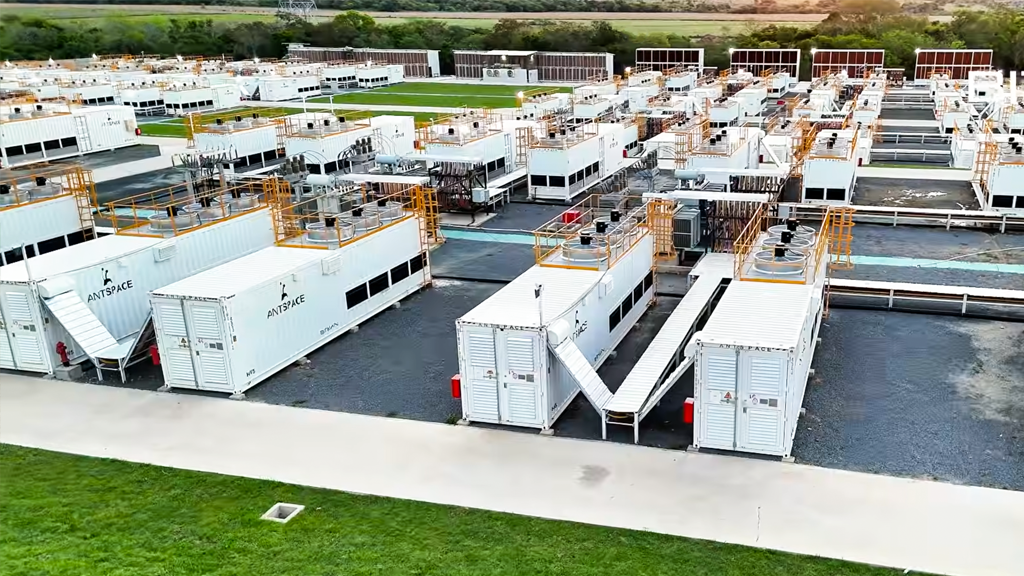

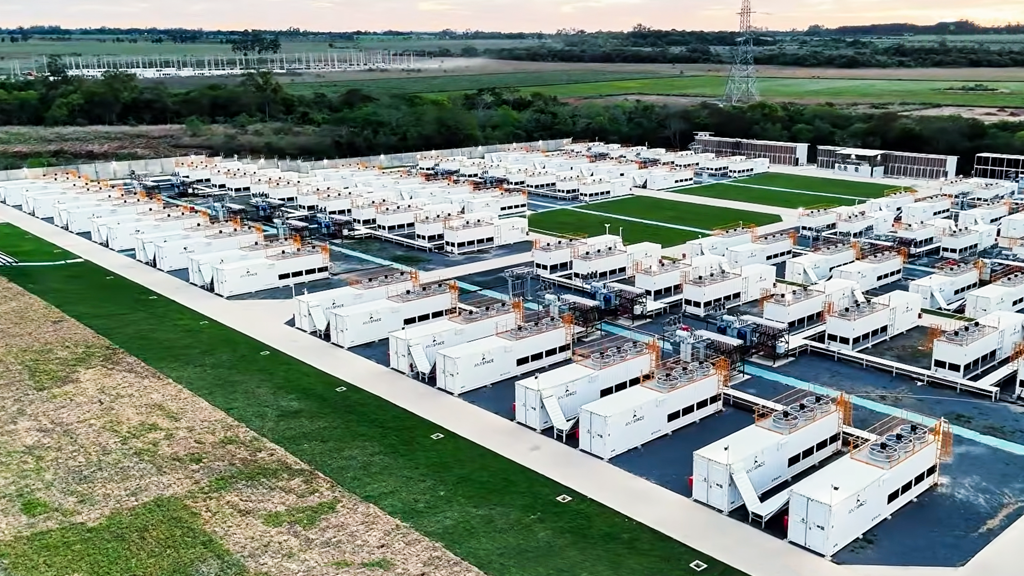

Real Results from Real Miners
View All >>
Calgary, Canada
10 x 1.2MW Hydro Project
Maintaining highly resilient, completely waterless operations under freezing climates.
+100%
Freezing Protection
-35%
Winter Water
$850K
Annual Savings
View All >>
Vientiane, Laos
5 x 1.2MW Hydro Project
Sustaining highly stable thermodynamic hashrates across humid tropical environments.
1.017
Optimal Running PUE
-75%
On-site Installation Labor
99.9%
Thermal Uptime
View All >>
“
"Our Calgary site gets freezing cold, but the HW5 handled the winter smoothly. Switching to dry mode gave us zero water consumption and completely eliminated any frozen pipe headaches."
— VP of Operations, Calgary Mining Site, Canada
"Summer in Vientiane is extremely hot and humid, but the HW5’s wet stage easily maintained our peak J/TH efficiency. The automatic water spraying ensured we reached a stable 1.017 PUE consistently."
— O&M Director, Vientiane Mining Hub, Laos
Global Deployment
1.2+ GW
Cumulative delivered cooling capacity
Serving Mining Sites
50+
Countries and regions covered
210-Slot ANTSPACE HW5 Hydro Container FAQs
How much make-up water does this hydro container actually consume during full-load operations?
At active full load, this container consumes zero point seven to one point three cubic meters of evaporative water hourly. This totals approximately six thousand to eleven thousand cubic meters annually, depending strictly on local climates and daily mining farm operations under load.
What site conditions and resource profiles make this container the ideal choice for mining operators?
This container is highly optimized for operators with abundant, low cost, or permitted local water resources. It represents a highly cost effective option for large enterprises prioritizing lower upfront CapEx over absolute physical land density during their main site infrastructure layout planning.
How does this cooling system handle extreme climates where ambient temperatures routinely exceed thirty-five degrees Celsius?
For hot environments exceeding thirty five degrees Celsius, this wet cooling setup is highly recommended. Its active evaporative wet stage pre cools inlet air, ensuring your mining hardware maintains standard hashing and J/TH fuel efficiency without any thermal downclocking on summer days.
Can the fully assembled container and cooling tower be shipped directly as a single piece internationally?
Yes. Carrying official CSC certification, this fully integrated container moves seamlessly by vessel, rail, or truck without any recrating as a standard ISO shipping unit. This avoids weeks of costly, on site manual reassembly labor and engineering setup expenses for global mining farms.
What is the actual PUE of this wet-cooling system, and how does it compare to dry-cooled models?
The system achieves an ultra low 1.017 PUE, slightly lower than typical dry cooled models. This specialized wet cooling setup rejects heat at lower coolant temperatures, ensuring highly optimized power efficiency and stable operations under continuous heavy loads for our global client sites.
