2.16MW 40HQ hydro container with 180 slots for Antminer 3U units. Enterprise-grade infrastructure optimized for maximum power density and large-scale deployment.

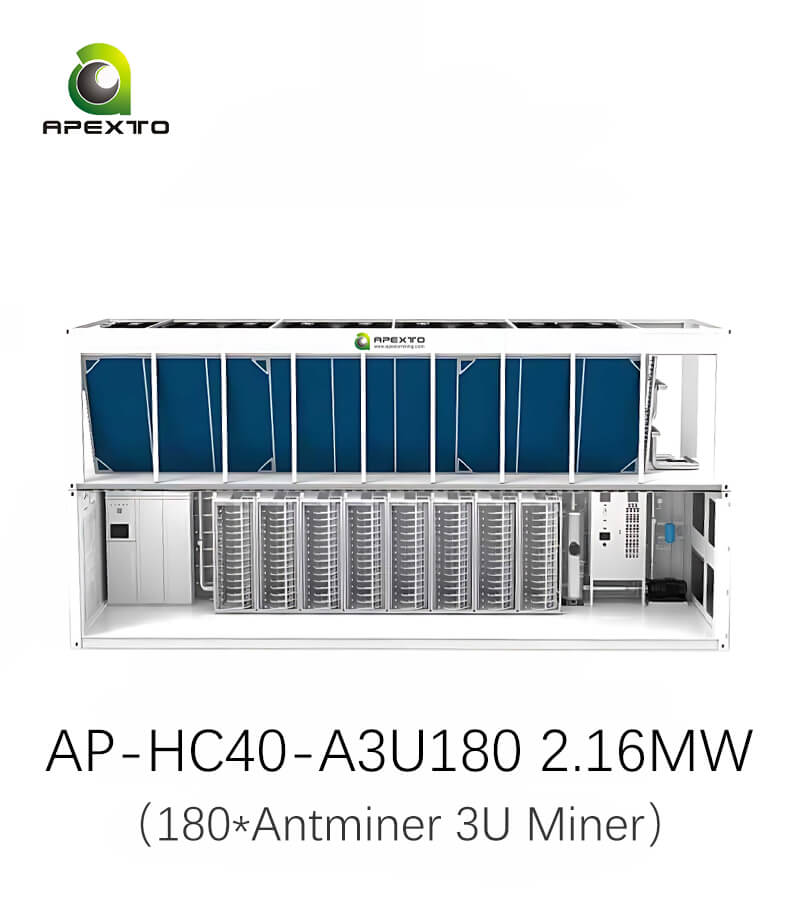

2.16MW 180-Slot Antminer 3U Hydro Container for Enterprise Mining
CONTAINER CAPACITY
ASIC MINERS
180 UNITS
Housed at full load
TOTAL POWER
2160 KW
Continuous electrical load
FORM FACTOR
Custom
Standard
COOLING
Hydro
Thermal management
POWER INPUT
380V–415V AC 50/60Hz
AVAILABILITY
Typical lead time 45 days • DDP Sea Shipping Available
Product Description
Optimized for maximum power density, the 2.16MW 180-Slot Antminer 3U Hydro Cooling Container 40FT HQ features a high-load, reinforced server cabinet system engineered for dense blade-style setups.
This enterprise-grade liquid cooling infrastructure packs 180 3U hydro ASICs into a single 40-foot frame, doubling hash rate capacity through an extremely organized vertical stacking layout with streamlined water and cable routing.
It utilizes advanced, large-diameter manifolds and intelligent CDU monitoring to manage a massive 2160kW load while ensuring uniform water pressure and stable operations. Ideal for institutional mining enterprises, this space-saving container minimizes land overhead while maximizing high-density hashing yield and overall capital investment return per square meter.
Core Advantages
Full Specifications
External dimensions
12192mm、W:2438mm、H:2896mm
Internal dimensions
12000mm、W:2230mm、H:2660mm
Weight
10040KG
|
Model |
AP-HC40-A3U180 |
Installed capacity |
180 seat |
|
Total Installed Power |
2157 KW |
Operating Current |
3125.3 A |
|
Unit Power |
9400W ±5% |
Power Control Box |
Group A 1580A |
|
PLC Control Cabinet |
113 kW |
Fan Control Cabinet |
94.68 kW |
|
Heat Dissipation Capacity |
>2400 kW |
Air Flow Volume |
625000 m³/h |
|
Air Passage Area |
52.578 m² |
Constant Temperature Mode |
Variable Frequency AC Fan + Stepwise Regulation |
|
Pump Power |
34 kW ×1 |
Water Pump Flow |
170.0 m³/h |
|
Operating Ambient |
-15℃ ~ 30℃ |
Environmental |
-20℃ ~ 45℃ |
|
Miner Container Weight |
10040 kg |
Dry Cooler Weight |
10160 kg |
180-Slot Antminer 3U Hydro Cooling Container Product Brochure
Complete product specifications, installation guide, and operational instructions.
Certification Standards
Our products meet leading international standards for safety, reliability, and performance.
China Classification Society
Marine & offshore compliance
UL Listed
Safety tested & certified
CSA Certified
North American compliance
CE Marking
European conformity
Recommended Power Setup
Match your container deployment with the appropriate transformer capacity.
For 1 x 2.16 MW Container
2750 kVA Three-Phase Pad-Mounted Transformer
Complete Cooling Solutions
We design and manufacture a complete range of hydro cooling solutions for every scale, from hydro cooling cabinets and containers to CDUs and dry coolers.
|
❄️ Cooling Capacity |
|
⚙️ Miner Slots |
|
📏 Dimensions (L × W × H) |
|
🏢 Application |
13-Slot Antminer 3U Hydro Cooling Rack
|
143 kW |
|
13 Slots |
|
850 mm × 1000 mm × 2130 mm |
|
Compact Indoor & Office Racks |

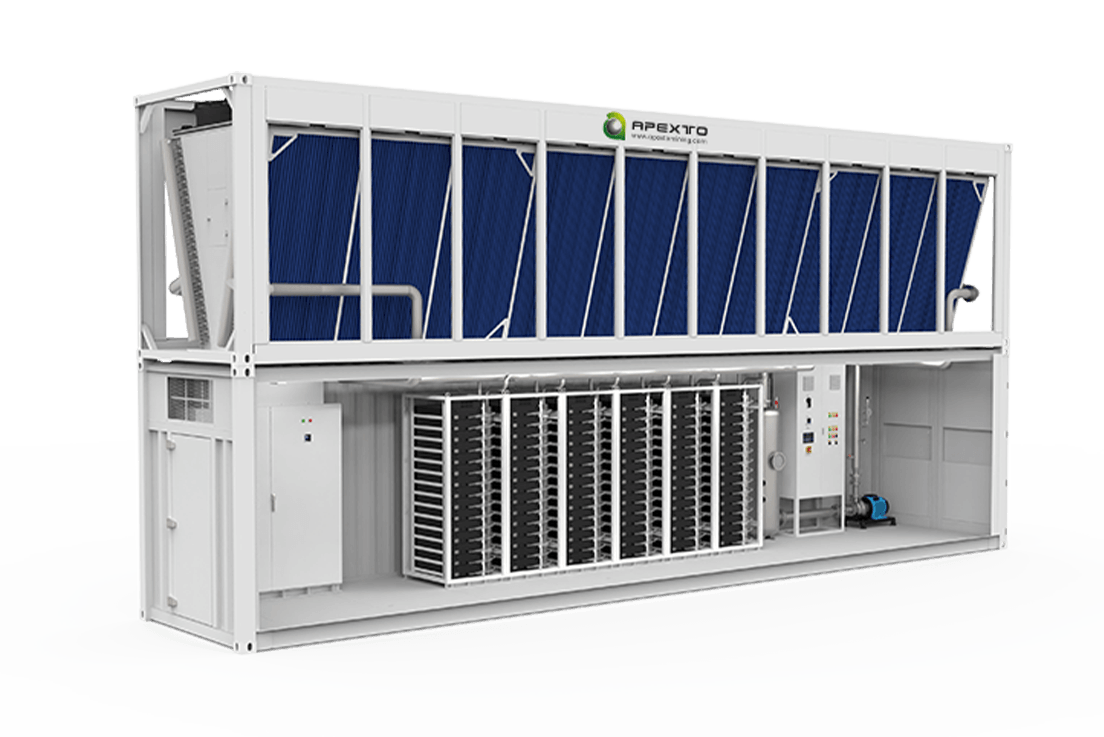

90-Slot Antminer 3U Hydro Container
|
1.1 MW |
|
90 Slots |
|
12192 × 2438 × 2896 mm |
|
Commercial-Scale Mining |

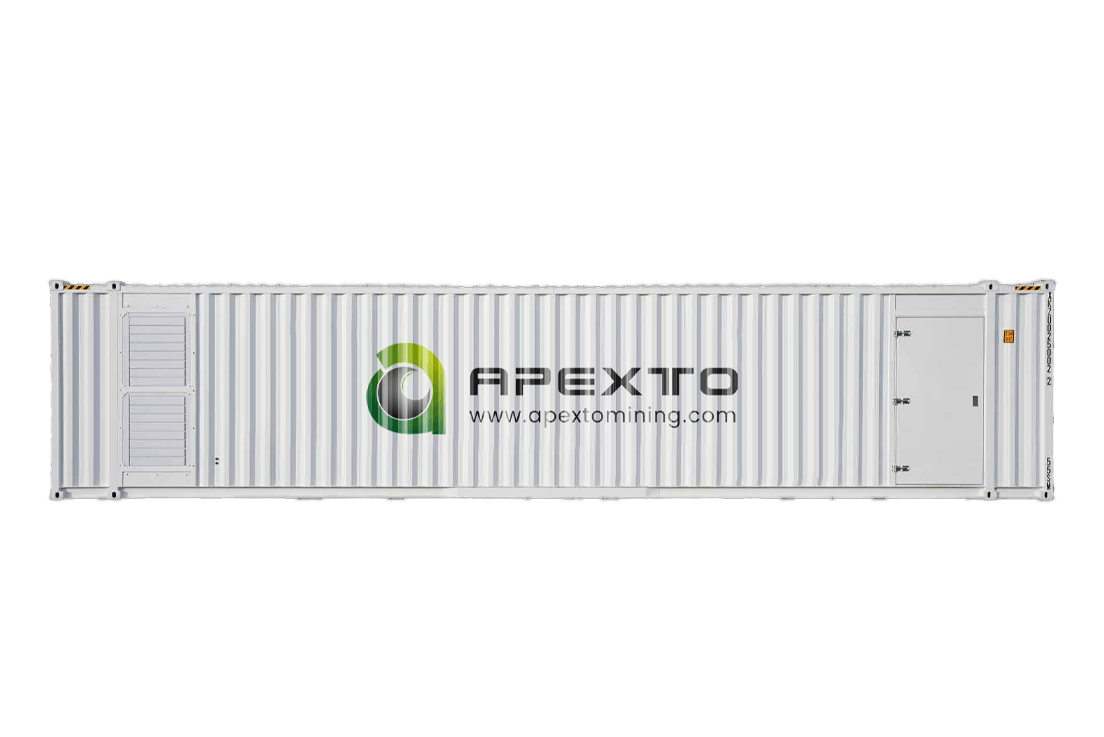

104-Slot Antminer 3U Hydro Container
|
1.25 MW |
|
104 Slots |
|
12192 × 2438 × 2896 mm |
|
Mid-to-Large Mining Farms |
Compare

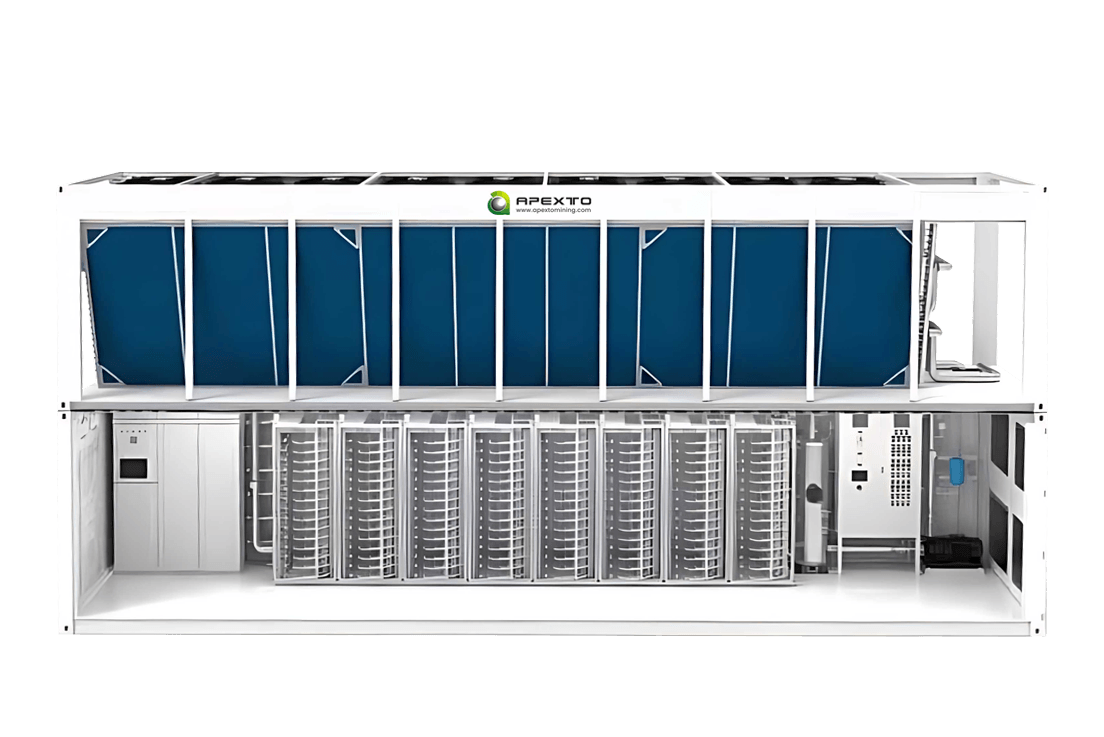

180-Slot Antminer 3U Hydro Container
|
2.16 MW |
|
180 Slots |
|
12192 × 2438 × 2896 mm |
|
Industrial-Scale Operations |
180-Slot Antminer 3U Hydro Cooling Container FAQs
Which Bitmain ASIC models are compatible with this Hydro Cooling Container?
This 2.16MW Hydro Container is custom-engineered for Bitmain's 3U ASICs, supporting high-density setups of the Antminer S19 XP Hyd 3U, Antminer S21e XP Hyd 3U, and Antminer S23 Hyd 3U models.
How does the 2.16MW power load of this 180-Slot container integrate with the site’s transformer and power grid?
Designed for heavy-duty utility grids, this container connects seamlessly to a single 2500kVA transformer. The integrated enterprise-grade power cabinets handle the full 2160kW load safely through optimized cabling terminals.
How does this 180-Slot high-density design improve the overall capital efficiency (ROI) of megawatt-scale farms?
Squeezing 2.16MW into a single 40FT container significantly lowers land lease expenses, drastically reduces on-site cabling infrastructure, and minimizes per-megawatt O&M overhead, accelerating your overall BTC mining payback period.
How does the vertical cabinet design facilitate safe hot-swapping and routine maintenance for 180 stacked 3U miners?
It integrates reinforced vertical shelving engineered for 3U server chassis, allowing technicians to smoothly slide individual nodes out for hot-swapping or routine inspections without disrupting other operational units.
What built-in safety mechanisms are integrated to protect the 180 valuable 3U mining servers?
It integrates dual-pump redundancy for continuous flow, floor-mounted moisture-sensing ropes, and automated system monitoring to trigger instant remote alerts and automatic power cutoffs during any coolant leaks or thermal anomalies.
