Indoor High-Density Hydro Rack for Antminer 3U Series
CONTAINER CAPACITY
ASIC MINERS
135 UNITS
Housed at full load
TOTAL POWER
1,620 KW
Continuous electrical load
POWER INPUT
380–480 V
Wide-voltage compatibility
COOLING
Hydro
Thermal management
POWER INPUT
380V–415V AC 50/60Hz
AVAILABILITY
Typical lead time 45 days • DDP Sea Shipping Available
Product Description

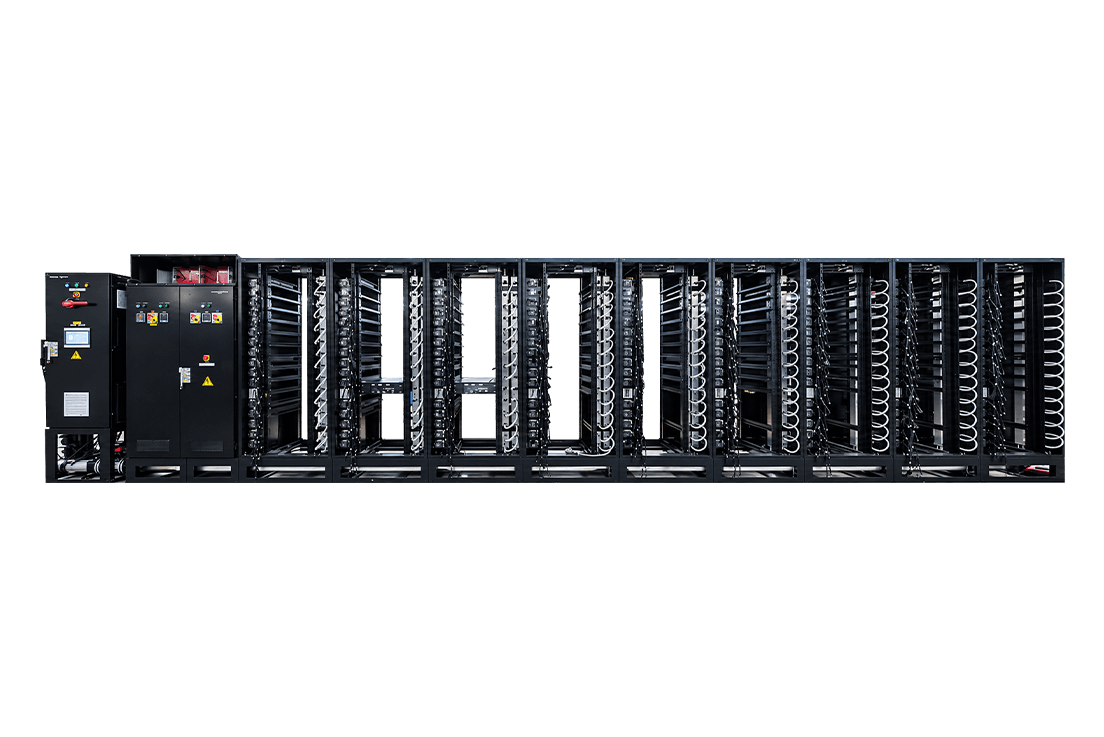

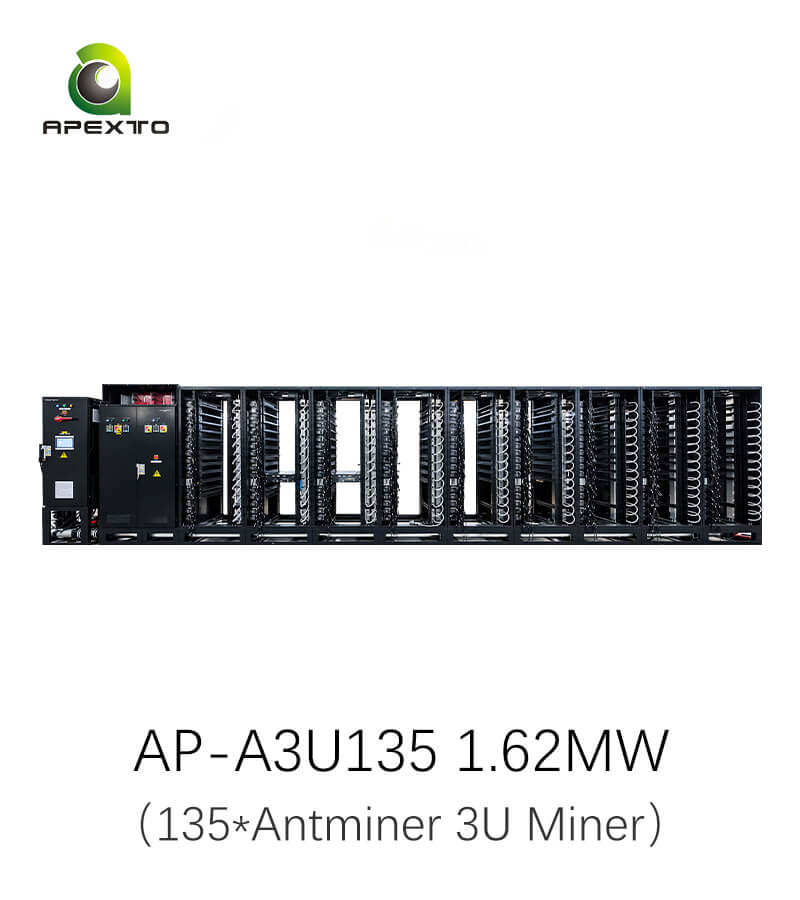

Designed for large-scale indoor mining, the 135-Slot Antminer 3U Hydro Cooling Rack delivers 1.62MW of cooling capacity for high-density operations. The complete system consists of nine hydro cooling cabinets, an integrated PDU power distribution cabinet, and a centralized CDU, supporting up to 135 Antminer 3U hydro miners in an organized, space-efficient setup.
Built specifically for warehouses and factories, this rack-based system fits directly into existing indoor facilities with minimal building modifications. Its modular layout keeps water piping, electrical connections, and miner access organized, making installation, inspection, and routine maintenance easier to manage.
By making use of existing building space, the system avoids the additional manufacturing and shipping requirements associated with container-based deployment. The 135-Slot Antminer 3U Hydro Cooling Rack provides a cost-efficient liquid cooling infrastructure for operators looking to build high-density indoor mining facilities.
Core Advantages
Full Specifications
External dimensions
L:12192mm、W:2438mm、H:2896mm
Internal dimensions
L:12000mm、W:2230mm、H:2660mm
Weight
12000 KG
|
Model |
AP-A3U135 |
Installed capacity |
135 units -Antminer U3S23H, U3S21EXPH, and U3S19XPH |
|
Main Switch Capacity of Power Distribution Cabinet |
1200*3 A |
Rated Power |
1620 kW |
|
Maximum Supported Input Current |
900 A |
Maximum Current per Miner Slot |
24 A |
|
Flow rate |
≥130 m*/h |
Quantity of ANTSPACE powered by one 3750kVA Transformer |
2 |
|
Heat Dissipation Capacity |
1620 kW |
Supply Liquid Temperature |
35±1℃ |
|
Operationg Power |
≤70 kW |
Connection interface |
DN125 |
|
Noise @25℃, 15m |
75dBA |
Input Voltage |
AC400V±5% 50/60Hz |
|
Ambient Temperature |
-40~50 ℃ |
Ambient Humidity |
10%~90% RH |
|
Altitude converter |
≤2000 M |
135-Slot Antminer 3U Hydro Cooling Rack Product Brochure
Complete product specifications, installation guide, and operational instructions.
Certification Standards
Our products meet leading international standards for safety, reliability, and performance.
China Classification Society
Marine & offshore compliance
UL Listed
Safety tested & certified
CSA Certified
North American compliance
CE Marking
European conformity
Complete Cooling Solutions
We design and manufacture a complete range of hydro cooling solutions for every scale, from hydro cooling cabinets and containers to CDUs and dry coolers.
|
❄️ Cooling Capacity |
|
⚙️ Miner Slots |
|
📏 Dimensions (L × W × H) |
|
🏢 Application |

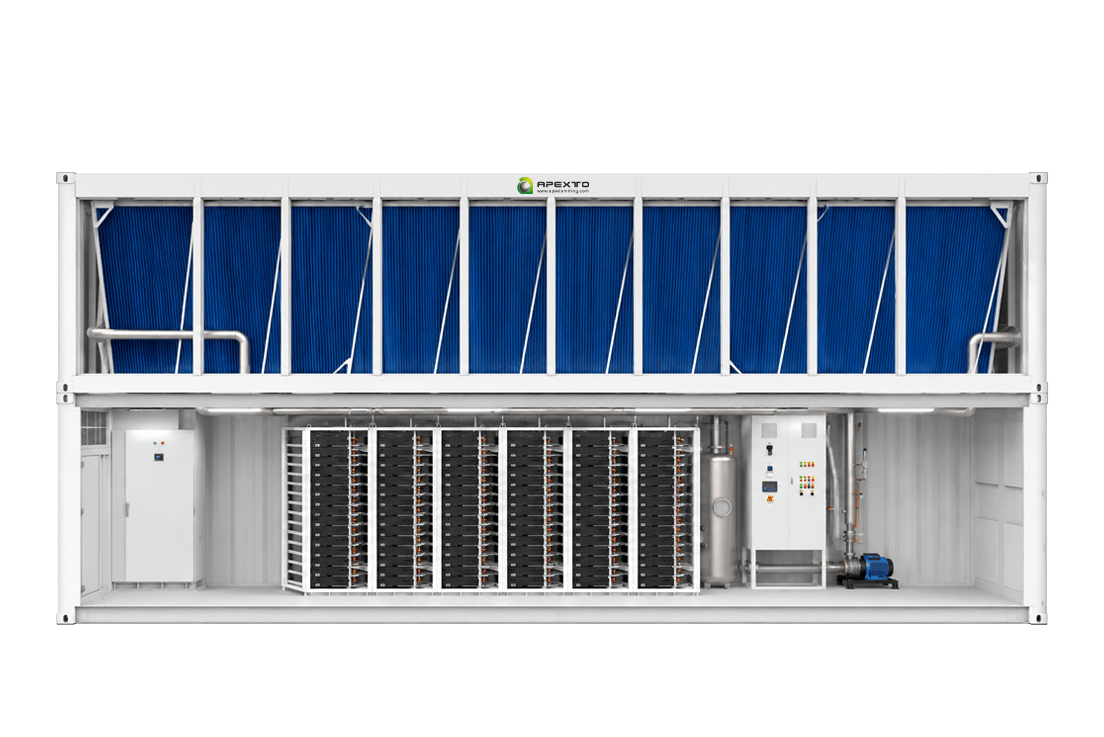

90-Slot Antminer 3U Hydro Cooling Container
|
1.1 MW |
|
90 Slots |
|
1,2192 × 2,438 × 2,896 mm |
|
Spacious Commercial Layouts |
104-Slot Antminer 3U Hydro Cooling Container
|
1.25 MW |
|
104 Slots |
|
1,2192 × 2,438 × 2,896 mm |
|
Standard Mid-Scale Farms |
Compare
135-Slot Antminer 3U Hydro Cooling Rack
|
1.62 MW |
|
135 Slots |
|
1,2192 × 2,438 × 2,896 mm |
|
Indoor Mining Facilities |
180-Slot Antminer 3U Hydro Cooling Container
|
2.16 MW |
|
180 Slots |
|
1,2192 × 2,438 × 2,896 mm |
|
High-Density Enterprise Farms |
135-Slot Antminer Hydro Cooling Rack FAQs
Which Antminer models are supported by the 135-Slot Hydro Cooling Rack?
The rack is specifically engineered for Antminer 3U hydro series miners, with factory-matched physical slots and hydraulic connections for Antminer U3S23H, U3S21EXPH, and U3S19XPH. The cabinet mounting rails, power distribution drops, and quick-connect water manifolds are custom-configured to match the exact chassis dimensions, inlet/outlet port spacing, and high-density thermal requirements of these specific 3U units.
What type of facility is suitable for this hydro cooling rack?
This system is purpose-built for indoor industrial spaces—such as warehouses, factories, and indoor mining datacenters—allowing operators to build a high-density hydro farm without buying expensive outdoor containers. Ideal facility specifications include:
Power Capacity: Access to 3-phase industrial power (380V–480V) with ~1.7MW–1.8MW transformer capacity to run 135 miners plus auxiliary pumps.
Floor Loading: A reinforced concrete ground floor (slab-on-grade) capable of supporting an operating wet weight of ~800–1,000 kg/m ².
Ceiling & Space: Minimum 2.8m clear ceiling height to accommodate top-mounted water headers and electrical cable ladders, with at least 1.2m front/rear aisle space for maintenance.
External Access: Easy pipeline routing access to an outdoor area for connecting closed-circuit cooling towers or dry coolers.
Does the 1.62MW cooling capacity include external heat dissipation, or do I need a dry cooler?
The rack system houses the indoor hydraulic and electrical infrastructure (CDU, manifolds, smart PDUs, and control systems). To reject the 1.62MW of heat outdoors, it must connect to an external closed-circuit cooling tower or industrial dry cooler. The system features standard industrial flange connections and is optimized for typical supply water temperatures of 25°C to 35°C and return temperatures of 50°C to 60°C.
How does the centralized CDU work with the nine cabinets?
The centralized Coolant Distribution Unit (CDU) acts as the fluid control hub for the entire system. It receives chilled coolant from the external loop and distributes it evenly through main supply and return headers connected to all nine cabinets. Equipped with variable-frequency circulation pumps, automated balancing valves, and temperature/pressure sensors, the CDU continuously equalizes pressure and flow rate to every individual miner slot, preventing localized hotspots and ensuring uniform heat extraction.
What should be checked before starting the hydro-cooled miners?
Before powering on your U3S23H, U3S21EXPH, or U3S19XPH miners, complete this essential commissioning checklist to ensure safe operation and prevent hardware damage:
Pressure & Leak Hold Test: Perform a static pressure test on the entire piping loop (typically holding 0.4–0.6 MPa for 2–4 hours) to verify zero leaks across all quick-connect couplings and manifold joints.
Air Bleeding (Deaeration): Run the circulation pumps and bleed all trapped air from every cabinet manifold and miner cold plate until fluid pressure and flow rates are completely stable.
Coolant Quality Check: Ensure the coolant (DI/RO pure water or approved glycol mix) has an electrical conductivity below 20 µS/cm and correct inhibitor concentrations.
Valve & Flow Confirmation: Confirm that all supply and return branch valves are fully opened, and verify minimum required flow rate per slot on the CDU display.
Safety Sensor Verification: Test that the rope leak detection sensors, auto-shutoff solenoid valves, and PDU emergency trip interlocks are fully responsive.
