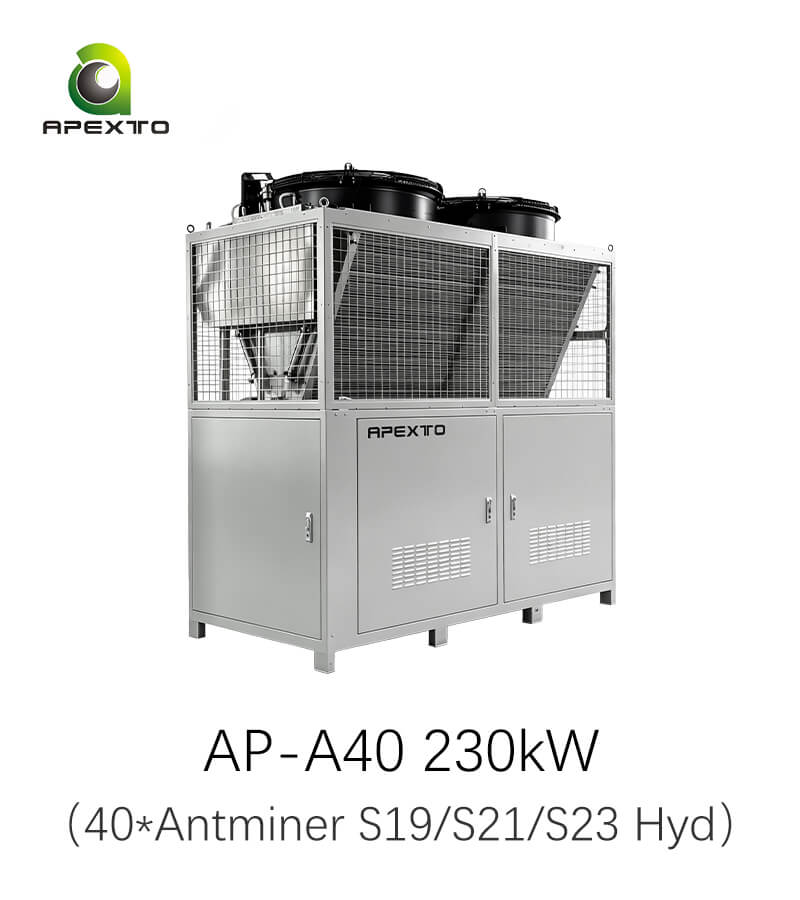

40-Slot Antminer Hydro Cooling Rack
40-slot 230kW integrated hydro cooling rack with a two-tier design and dry cooler. Plug-and-play with no piping needed. Perfect for home and industrial mining sites.
Not Fitting Your Site?
Tell us your mining capacity and site requirements, and we'll recommend the right hydro-cooling container for your deployment.
How your container order works
Submit form
Tell us delivery country & site details
Get your quote
Complete pricing within 24 hours
Expert review
Discuss specs, customise setup
DDP delivery
Container shipped to your site
All-in-one integrated deployments for up to 40 hydro-cooled ASICs
CONTAINER CAPACITY
40 UNITS
Housed at full load
230 KW
Continuous electrical load
Custom
Standard
Hydro
Thermal management
POWER INPUT
380V–415V AC 50/60Hz
AVAILABILITY
Typical lead time 15 days • DDP Sea Shipping Available
View More ›
Show 8 more models
Product Description
The Integrated 230kW 40-Slot Hydro Cooling Cabinet is an all-in-one infrastructure designed for high-density Bitcoin mining. Delivering 230kW of cooling capacity within a compact footprint, this system provides a stable operating environment for up to 40 Antminer hydro series miners.
The cabinet features a vertical two-tier structure, integrating a 230kW dry cooler on the upper level and the mining hardware on the lower level. This factory-assembled design eliminates the need for complex external piping, offering a true plug-and-play experience. Once on-site, the system only requires a power connection and initial liquid filling to begin operation.
By combining the cooling tower and miner rack into a single unit, this cabinet significantly reduces land area requirements and simplifies deployment. Equipped with intelligent monitoring for constant temperature and pressure, it is a practical choice for both residential and industrial mining environments.
Core Advantages

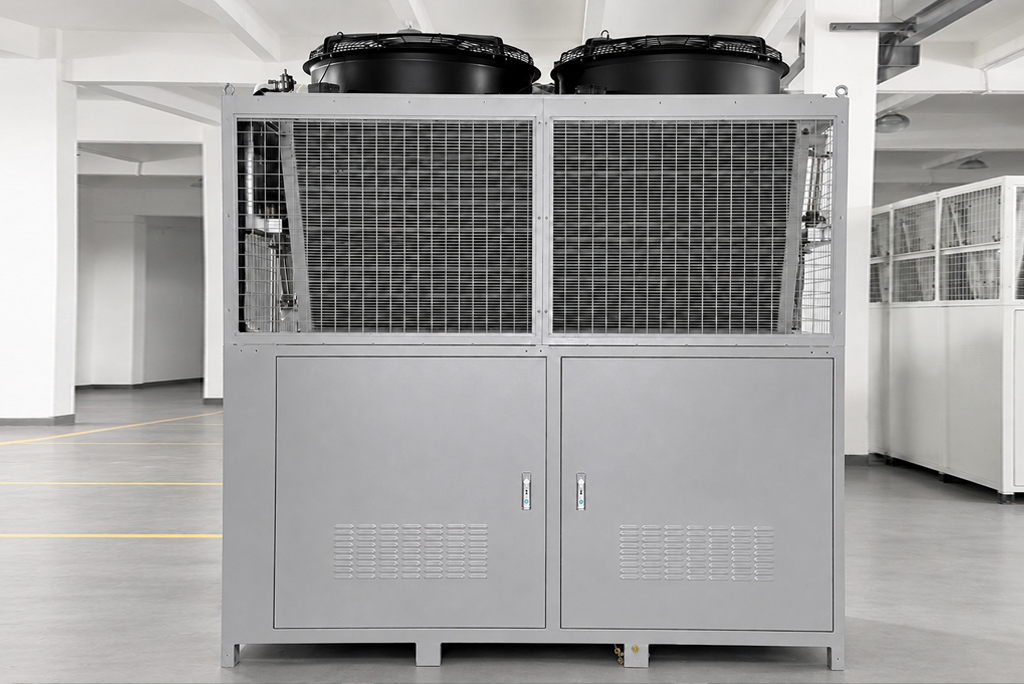

01. Integrated Vertical Architecture
The system features a unique vertical two-tier structure, integrating the 230kW dry cooler on top and the miner rack below. This all-in-one design maximizes space efficiency and allows for high-density cooling in a compact footprint.

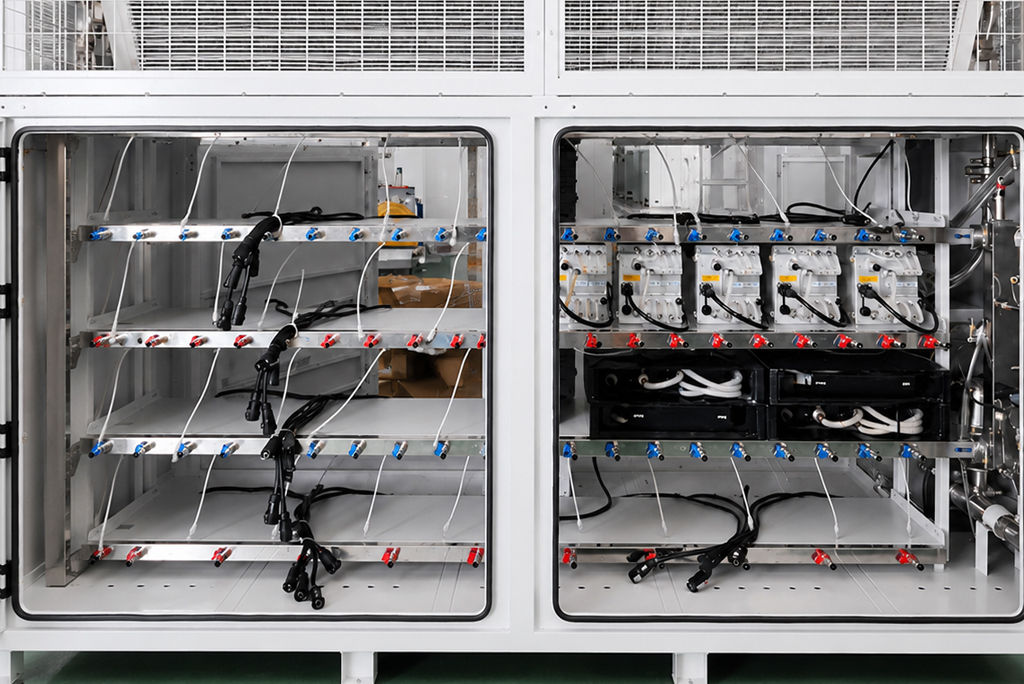

02. Symmetrical Dual-Rack Layout
Features two side-by-side cabinets, each housing 20 miners for a total 40-slot capacity. This layout ensures organized hose management and balanced coolant flow, maintaining thermal stability across all mining nodes.

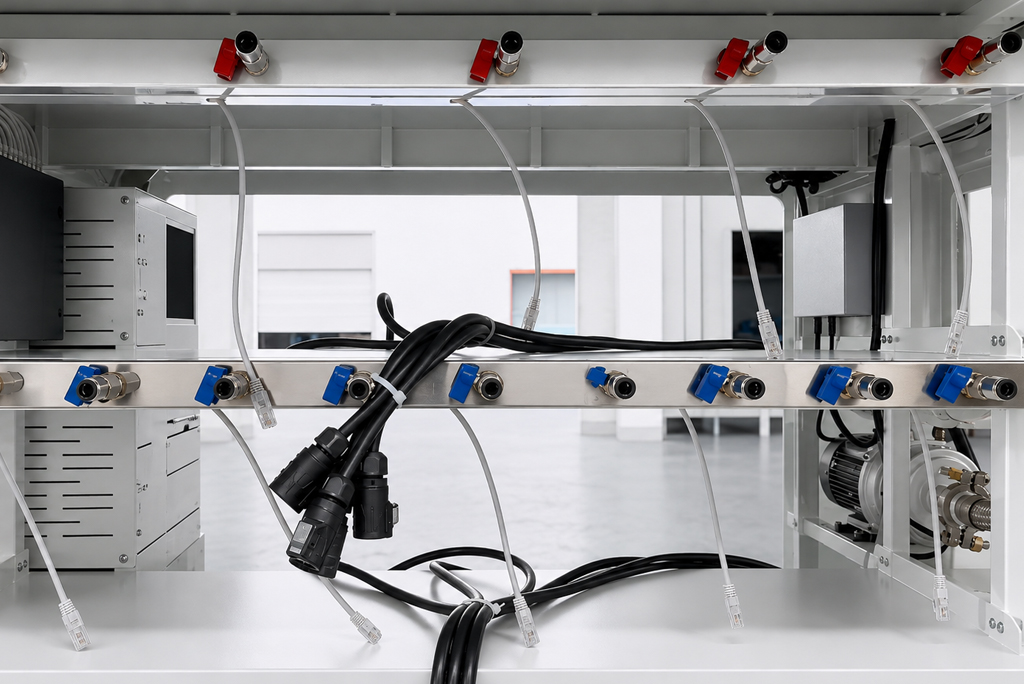

03. Factory-Grade Connectivity
Equipped with original Bitmain-standard aviation plugs and pre-wired network cables. These high-quality components ensure secure, high-current power delivery and stable data transmission, enabling seamless, reliable operation straight out of the box.

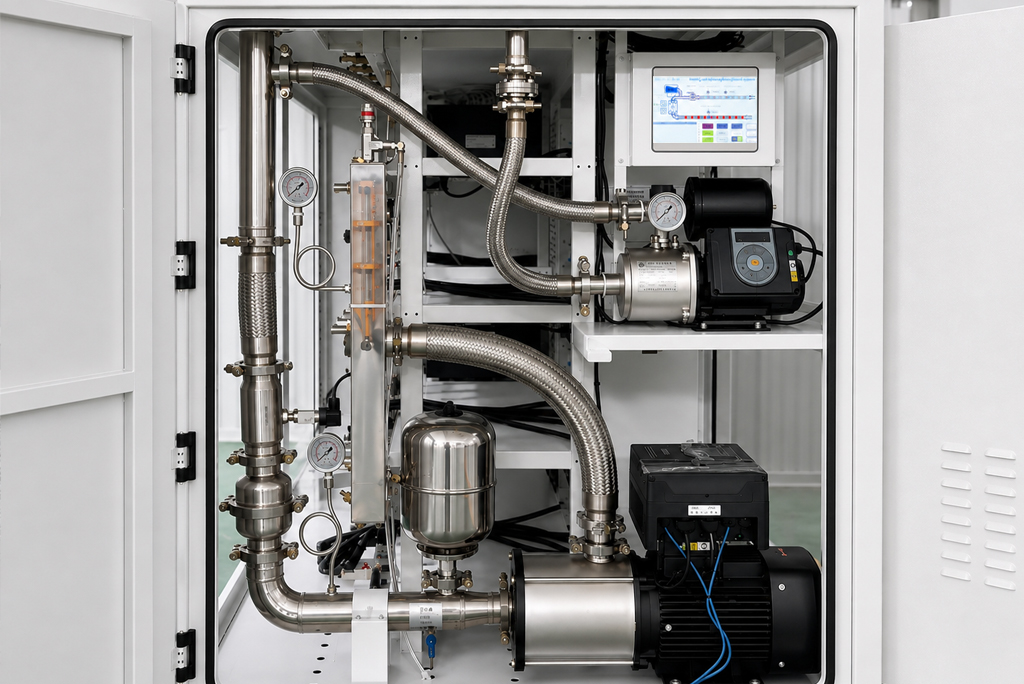

04. Integrated CDU Module
The factory-pre-assembled Coolant Distribution Unit (CDU) simplifies deployment. Upon arrival, the system requires only initial liquid filling and power-on to begin operation, eliminating complex on-site plumbing and significantly reducing setup time.

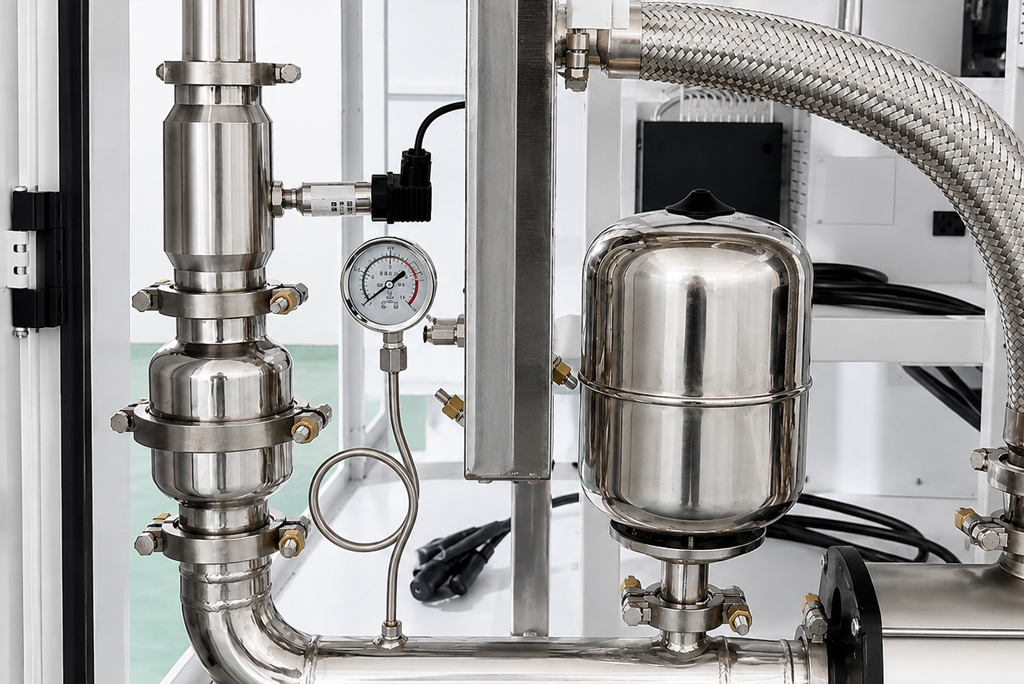

05. Durable Industrial Piping
Crafted with high-quality 304 stainless steel manifolds and precision-engineered joints. This robust internal network is built to withstand high pressure and resist corrosion, ensuring long-term reliability and a leak-free environment for continuous mining.

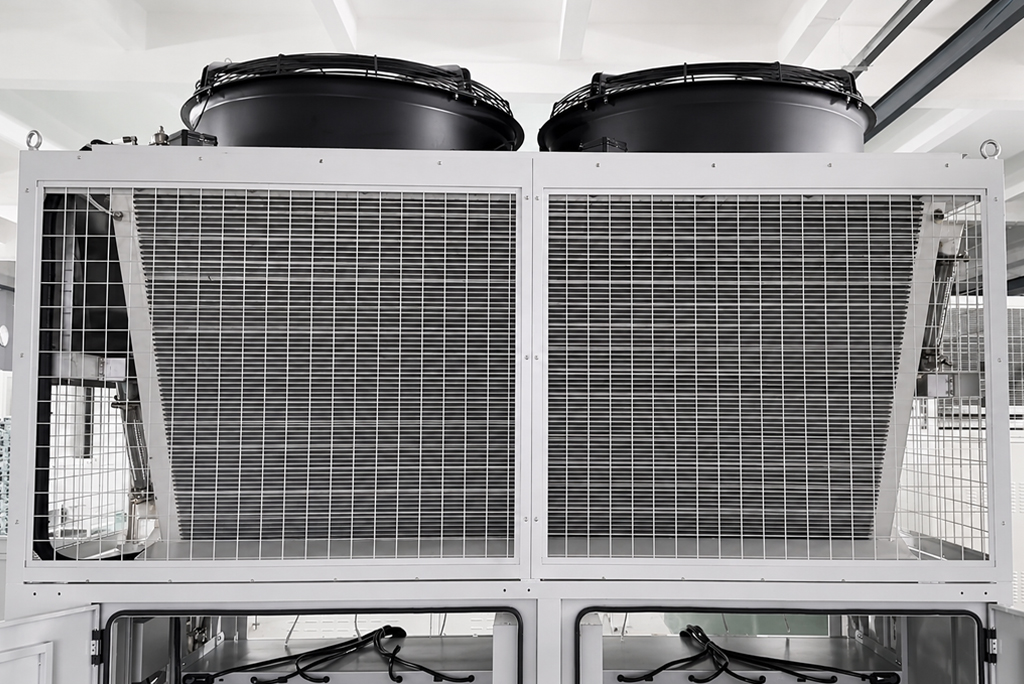

06. Fully Automated Dry Cooler
Equipped with smart features for automatic liquid refill, temperature control, and fan speed regulation. The integrated pressure relief system maintains an optimal thermal balance, ensuring consistent cooling efficiency and hardware safety.
Full Specifications
External dimensions
L:2500m、W:1200mm、H:2640mm
Internal dimensions
L:2450mm、W:1150mm、H:2600mm
Weight
1226KG
Model | AP-A40 | Installed capacityCooling capacity | 40 Seat |
Cooling capacity | 230KW | Fans | 2 × 4kW |
Pump system | 1 main + 1 refill | Tubing | 80× FEP hoses |
Power input | 630A MCCB | Control | 7-inch HMI |
Protection | NEMA 4 | Wiring | TN-S system |
System Size (Operating) | 2500 × 1200 × 2640 mm | Operating temperature |
|
Site Requirements |
| Clearance requirements |
|
40-Slot Antminer Hydro Cooling Rack Product Brochure
Complete product specifications, installation guide, and operational instructions.
Certification Standards
Our products meet leading international standards for safety, reliability, and performance.
China Classification Society
Marine & offshore compliance
UL Listed
Safety tested & certified
CSA Certified
North American compliance
CE Marking
European conformity
Complete Cooling Solutions
We design and manufacture a complete range of hydro cooling solutions for every scale, from hydro cooling cabinets and containers to CDUs and dry coolers.
❄️ Cooling Capacity |
⚙️ Miner Slots |
📏 Dimensions (L × W × H) |
🏢 Application |
Compare
40-Slot Antminer Hydro Cooling Rack
230 kW |
40 Slots |
2,500 × 1,200 × 2,640 mm |
Space-Efficient Mining |
36-Slot Antminer Hydro Cooling Rack
200 kW |
36 Slots |
2,230 × 8,00 × 2,370 mm |
Professional Home Mining |
34-Slot Antminer Hydro Cooling Rack
200 kW |
34 Slots |
1,350 × 8,00 × 2,250 mm |
Small-Scale Mining |
28-Slot Antminer Hydro Cooling Rack
154 kW |
28 Slots |
1,750 × 1,000 × 2,200 mm |
Home & Personal Mining |
40-Slot Antminer Hydro Cooling Rack FAQs
The system is designed for a true plug-and-play experience. Since the dry cooler is integrated into the two-tier structure, no external piping or professional plumbing is required. You only need to complete the initial liquid filling and connect the power to begin operation.
Yes. Its vertical, space-saving design is ideal for limited spaces like garages or small workshops. Because it uses a closed-loop hydro system instead of loud industrial fans or a water tower, it operates quietly and fits easily into non-industrial environments.
The cabinet is shipped as a compact, integrated unit. To comply with international shipping height limits and protect the cooling fins from damage, the fan module is detached for transport. Upon delivery, it can be easily bolted back onto the top of the cabinet with standard tools.
