Description

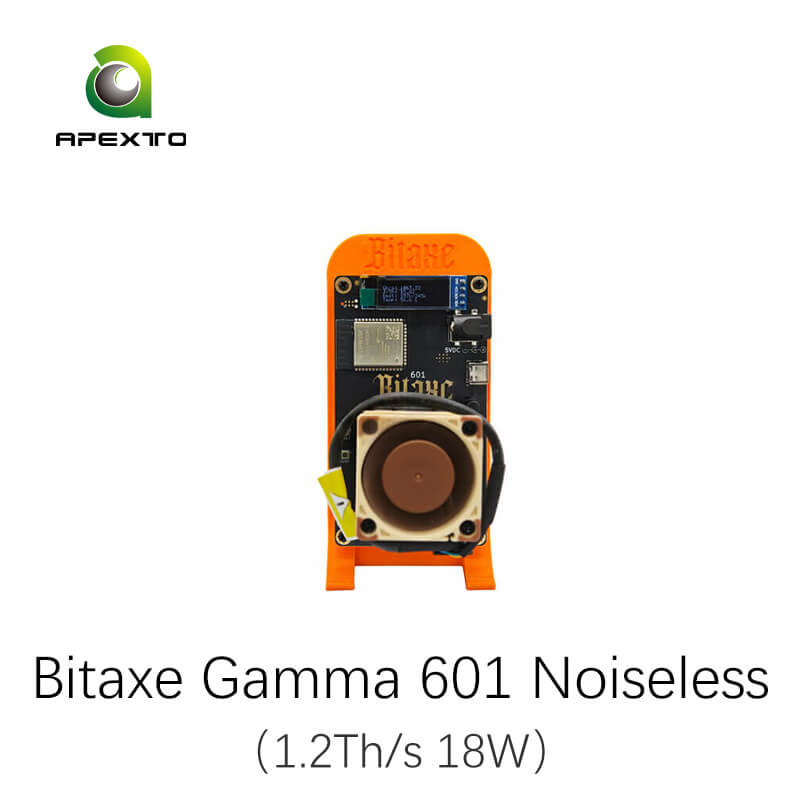

The Bitaxe Gamma 601 is a compact, open-source Bitcoin ASIC miner designed for Bitcoin (BTC) solo mining, home mining, and educational applications. Powered by the BM1370 ASIC chip, it delivers up to 1.2 TH/s of SHA-256 hashrate while consuming approximately 18W of power, achieving an energy efficiency of around 15 J/TH.
Designed for users who want a compact and accessible Bitcoin mining device, the Bitaxe Gamma 601 combines low power consumption, Wi-Fi connectivity, open-source AXE OS firmware, and a built-in web interface in a small desktop-friendly form factor.
Unlike large commercial Bitcoin ASIC miners designed for industrial-scale mining, the Bitaxe Gamma 601 is optimized for home mining, solo mining, experimentation, and learning. Users can access the miner through its web interface to configure settings, monitor hashrate and temperature, and manage mining performance.
Key Features
- 1.2 TH/s SHA-256 Hashrate – Provides up to 1.2 TH/s of Bitcoin mining performance.
- BM1370 ASIC Chip – Uses the Bitmain BM1370 ASIC for SHA-256 Bitcoin mining.
- 18W Power Consumption – Low power requirements make the Gamma 601 suitable for continuous home and desktop operation.
- 15 J/TH Energy Efficiency – Delivers an efficient balance between hashrate and power consumption.
- Open-Source AXE OS Firmware – Provides flexibility for configuration, firmware development, and performance optimization.
- Wi-Fi Connectivity – Enables convenient wireless network access without requiring a dedicated Ethernet connection.
- Built-in Web Interface – Allows users to configure the miner and monitor operating performance through a browser.
- Quiet Active Cooling – A 40mm dual-ball-bearing fan provides airflow while maintaining a relatively low noise level of approximately 35 dB.
- USB-C Interface – Provides convenient connectivity for firmware updates and device management.
- Compact Desktop Design – Its small form factor makes it suitable for home mining, offices, educational environments, and mining demonstrations.
Open-Source Bitcoin Mining Hardware
One of the defining characteristics of the Bitaxe Gamma 601 is its open-source hardware and software ecosystem.
The miner uses AXE OS firmware and provides users with access to a web-based management interface. This makes it more than a simple plug-and-play mining appliance. Users interested in Bitcoin mining technology can monitor system performance, adjust supported settings, update firmware, and explore the underlying mining platform.
The open-source design also benefits from an active developer and enthusiast community, making Bitaxe particularly attractive to users interested in Bitcoin ASIC development, mining experimentation, and hardware learning.
Bitaxe Gamma 601 for Home and Solo Mining
With approximately 18W of power consumption, the Bitaxe Gamma 601 requires significantly less electricity than conventional Bitcoin ASIC miners.
Its compact size and approximately 35 dB noise level make it well suited for desktop and home environments where the heat and noise generated by full-size ASIC miners may be impractical.
The Gamma 601 can be used for:
- Bitcoin solo mining
- Home Bitcoin mining
- Mining education
- ASIC experimentation
- Bitcoin hardware demonstrations
- Firmware development
- Hobby mining
Because the Gamma 601 provides only 1.2 TH/s of hashrate, it should not be compared directly with hundreds-of-TH/s commercial Bitcoin miners in terms of absolute mining revenue. Its primary advantages are low power consumption, compact size, open-source functionality, and accessibility.
Bitaxe Gamma 601 Specifications
| Specification | Details |
|---|---|
| Product | Bitaxe Gamma 601 |
| Also Known As | Bitaxe 601 Gamma |
| Mining Algorithm | SHA-256 |
| Primary Coin | Bitcoin (BTC) |
| ASIC Chip | BM1370 |
| ASIC Chip Count | 1 |
| Hashrate | Up to 1.2 TH/s |
| Power Consumption | Approx. 18W |
| Energy Efficiency | Approx. 15 J/TH |
| Connectivity | Wi-Fi |
| Interface | Web Interface / USB-C |
| Cooling | 40mm Fan |
| Fan Type | Dual Ball Bearing |
| Noise Level | Approx. 35 dB |
| Operating Temperature | 5–45°C |
| Operating Humidity | 5–95% RH |
| Weight | Approx. 340g |
| Dimensions | Approx. 15 × 10 × 5 cm |
| Firmware | AXE OS |
| Primary Applications | Home Mining / Solo Mining / Education |
Actual hashrate, power consumption, temperature, and efficiency may vary depending on firmware, operating conditions, ambient temperature, ASIC characteristics, and configuration.
Bitaex Gamma 601 Unboxing & Test
Solo Miner FAQs
1. Do I need technical skills to set up a solo Bitcoin miner?
Not at all. Our solo miners are plug-and-play. Just connect to Wi-Fi, power it on, and follow the setup guide. You’ll be up and running in minutes—even if you’re a beginner.
2. Can I use a solo miner at home?
Yes! Our solo miners are ultra-efficient, drawing under 10W of power. They’re quiet, energy-light, and safe to plug into any household outlet—perfect for home or office use.
3. Is solo mining profitable?
Solo mining doesn’t guarantee regular income, but it gives you full independence. No pool fees, no sharing rewards. You support the Bitcoin network directly and retain full control over your mining rewards.
4. What’s included in the solo miner package?
Each package includes:
– Preassembled miner unit
– USB-C or Micro-USB power cable
– Quick start guide
– Optional accessories (if selected)
5. Is the miner secure and open-source?
Yes. Our solo miners are built on open-source firmware and hardware. You can inspect, verify, or modify the code—ensuring transparency, privacy, and full control.
