Product Description

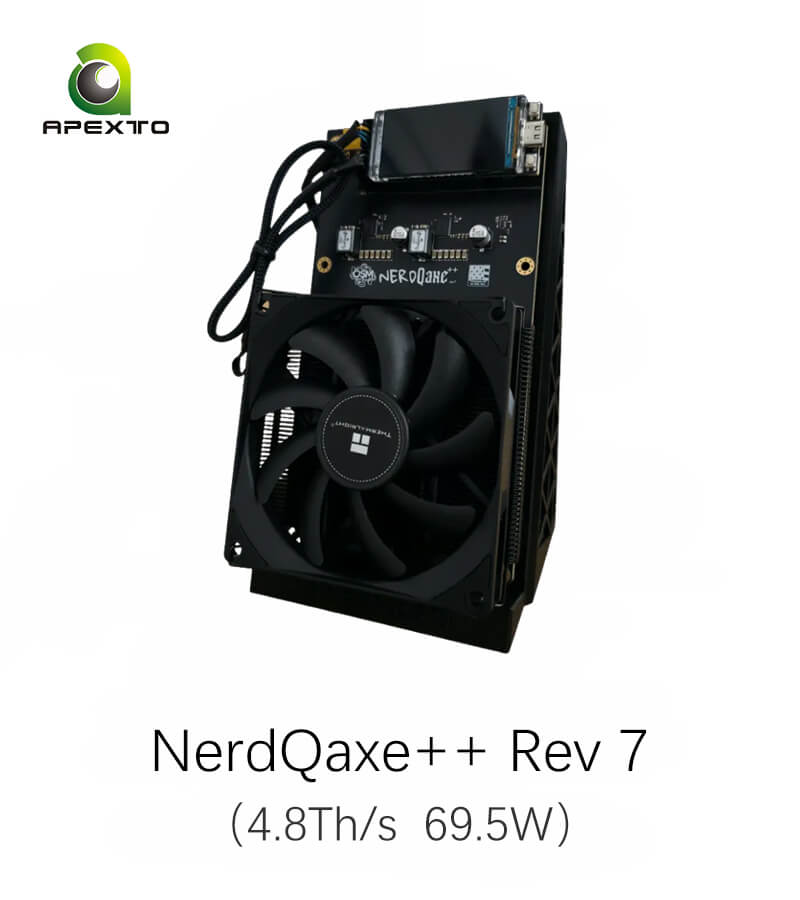

NerdQaxe++ Rev 7 is a compact and energy-efficient SHA-256 ASIC miner designed for Bitcoin solo mining and home mining applications, and it is a solid upgrade over Rev 6 with improved power efficiency, stability, and overall performance.
Built for home miners, hobbyists, and crypto enthusiasts, it delivers up to 4.8 TH/s hashrate at just 69.5W power consumption, achieving an outstanding 14.48 J/TH energy efficiency. Powered by four Bitmain BM1370 (S21 Pro) ASIC chips, it ensures consistent and reliable hashing performance in a compact design.
For advanced users, Rev 7 supports overclocking beyond 8 TH/s with proper cooling and a suitable power supply, unlocking higher performance potential. It integrates a 2-phase TPS546D24A VRM based on the Bitaxe GT architecture for cleaner and more stable power delivery.
Additional features include a 1.9-inch LilyGO display, Wi-Fi connectivity, NerdOS system, XT30 power input, and enhanced thermal management for stable 24/7 operation, making it a reliable solution for modern Bitcoin mining setups.
Performance Specs
| Specification | Default Settings (600 MHz / 1150mV) | Overclocked Settings* (1000 MHz / 1330mV) |
|---|---|---|
| Hash Rate | 4.800 TH/s | 8.100 TH/s |
| Power Draw | 69.5 W | 140 W |
| Efficiency | 14.48 J/TH | 17.28 J/TH |
| ASIC Temperature | 60.0°C | 66.0°C |
| VRM Temperature | 57.0°C | 70.0°C |
| Fan Speed | Auto 37% | Auto 100% |
Technical Specifications
| Specification | Details |
|---|---|
| Model | NerdQaxe++ Rev 7 |
| ASIC Chips | 4× Bitmain BM1370 (S21 Pro) |
| Hash Rate (Default) | ~4.800 TH/s (±15%) |
| Hash Rate (Overclocked)* | ~8.100 TH/s (±15%) |
| Power Draw (Default) | ~69.5 W (±15%) |
| Power Draw (Overclocked)* | ~140 W (±15%) |
| Efficiency (Default) | ~14.48 J/TH (±15%) |
| Efficiency (Overclocked)* | ~17.28 J/TH (±15%) |
| Voltage Regulator | TPS546D24A two-phase (from Bitaxe GT) |
| Algorithm | SHA-256 |
| Power Connector | XT30 (supports up to 15A) |
| Input Voltage | 12V DC |
| Copper Weight | 1 oz |
| PCB Thickness | 2mm FR-4 |
| Display | 1.9″ LilyGO LCD (color) |
| Connectivity | Wi-Fi 2.4GHz |
| Fuse | None (fuse-free design) |
| Firmware | Nerd*OS (esp-miner fork) |
| Fan Control | Automatic or Manual |
| Dimensions | 3.54″ × 4.72″ × 1.57″ |
| Weight | ~0.8 lbs with heatsink |
Solo Miner FAQs
1. Do I need technical skills to set up a solo Bitcoin miner?
Not at all. Our solo miners are plug-and-play. Just connect to Wi-Fi, power it on, and follow the setup guide. You’ll be up and running in minutes—even if you’re a beginner.
2. Can I use a solo miner at home?
Yes! Our solo miners are ultra-efficient, drawing under 10W of power. They’re quiet, energy-light, and safe to plug into any household outlet—perfect for home or office use.
3. Is solo mining profitable?
Solo mining doesn’t guarantee regular income, but it gives you full independence. No pool fees, no sharing rewards. You support the Bitcoin network directly and retain full control over your mining rewards.
4. What’s included in the solo miner package?
Each package includes:
– Preassembled miner unit
– USB-C or Micro-USB power cable
– Quick start guide
– Optional accessories (if selected)
5. Is the miner secure and open-source?
Yes. Our solo miners are built on open-source firmware and hardware. You can inspect, verify, or modify the code—ensuring transparency, privacy, and full control.
