Description

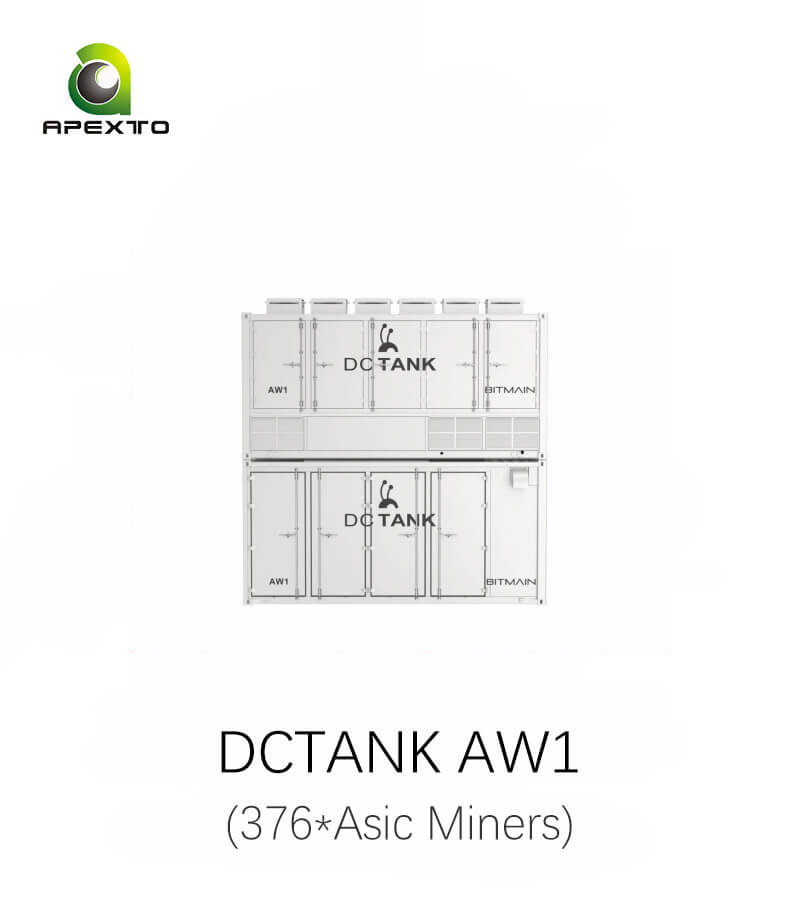

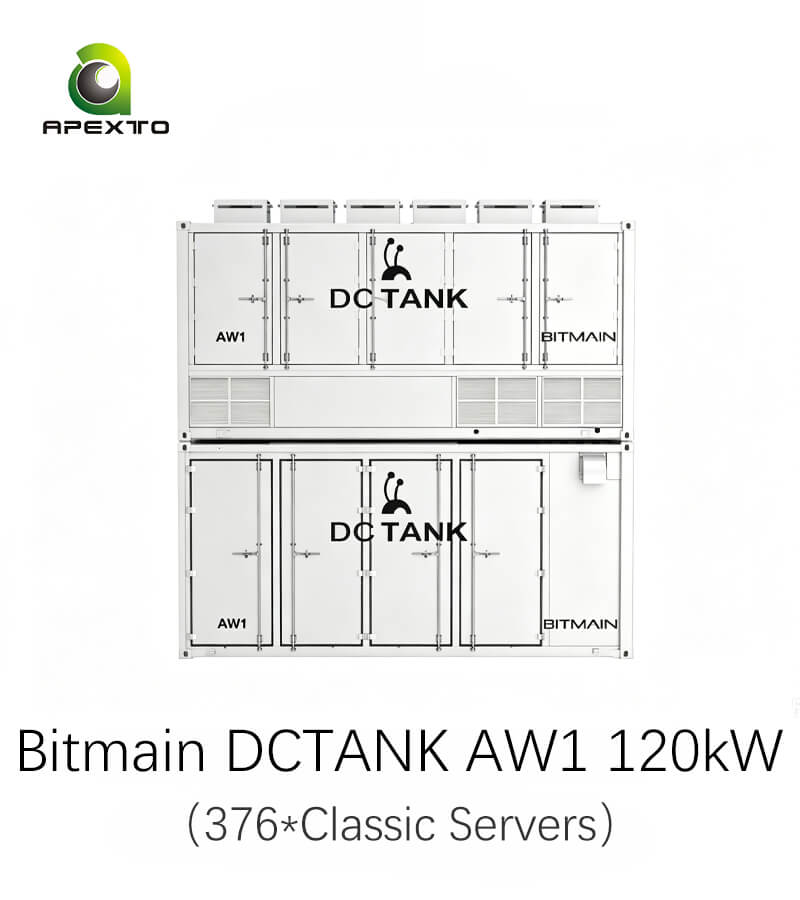

Bitmain DCTANK AW1 is a 40ft high-density air-cooled container designed for data centers, mining farms, and large-scale deployments of any classic servers for computing and mining-related workloads. With a 376U rack capacity and 120kW load support, it provides scalable infrastructure for high-density server environments.
The system adopts a modular plug-and-play design, enabling faster deployment and lower construction costs compared to traditional data center infrastructure. It delivers a PUE of 1.11 (@25°C), using matrix cooling cores and modular centrifugal fans to ensure stable thermal performance under continuous operation.
The upper-lower airflow structure improves heat distribution and maintains consistent internal temperature across server racks. A closed-loop airflow design separates internal and external air, helping reduce dust exposure and improve operational stability for sensitive computing equipment.
For long-term reliability, the DCTANK AW1 integrates dual power inputs, redundant key components, and an intelligent monitoring system for temperature, humidity, and equipment status management. It is designed to support continuous operation in both standard data center environments and mining-related computing deployments.
Specifications
Product Overview
| Model | DCTANK AW1 |
| Dimensions (l*w*h), mm | 6058×2438×2896 |
| Server capacity, U | 376 |
| Container certification | CCS |
| Safety certification | NFPA 79:2024 UL 508A:2018 R7.22 CSA C22.2 No. 301:23 ANSI/ISO 12100:2012 EN ISO 12100:2010 EN 60204-1:2018 |
| Input Voltage and Frequency | 400V±5% 50/60Hz |
| Total IT load, KW | 120 |
Detailed Characteristics
| Shipping weight, T | 4.6 |
| Main Switch of Power Distribution Cabinets(A) | 250×2 |
| Rated current, A | ≤405 |
| Number of server cabinets | 8 |
| Single cabinet capacity, U | 47 |
| Single cabinet power density, KW | 15 |
| Inlet cable | The incoming cable requires two three-phase, five-wire cables, each with the following requirements: L1 single core cable 350kcMil（185mm²） L2 single core cable 350kcMil（185mm²） L3 single core cable 350kcMil（185mm²） N Single-core cable 250kcMil（127mm²） PE single-core cable 250kcMil（127mm²） |
Specification Details For Cooling Tower
Product Overview
| Dimensions (l*w*h), mm | 6058×2438×2896 |
| PUE(Power usage effectiveness)@ 25℃ ambient temperature | 1.11 |
| Rated Cooling Capacity, kW | 120 |
| Container certification | CCS |
| Motor Rated Voltage and Frequency | AV 400V±5%; 50/60Hz |
Detailed Characteristics
| Shipping Weight, T | 5.8 |
| Operating Weight, T | 7.8 |
| Supply Air Temperature, ℃ | 25 |
| Return Air Temperature ,˚C | 38 |
| Water Consumption @ 25˚C, m3/h | 0.2 |
| Noise Level @ 25˚C, 15m, dBA | 75 |
| Operating Temperature ,˚C | -40~+45 |
| Operation Humidity, RH | 5%~95% |
Bitmain DCTANK AW1 Introduction
FAQs
What is the Bitmain DCTANK AW1 used for?
It is designed for data centers, mining farms, and any classic servers deployment, providing an air-cooled infrastructure solution for stable operation.
How do I install the container?
It is a plug-and-play solution. Once delivered, simply connect your power and network cables to begin immediate operation, with no onsite facility construction required.
How is air circulation managed inside the container?
It uses an upper-lower airflow design and a closed-loop system to improve cooling efficiency and reduce dust ingress.
Can I monitor the system remotely?
Yes. An integrated smart dashboard provides real-time visibility into power and temperature, allowing you to manage operations from any location.
Is it safe for outdoor use?
Yes. The container features a weather-ready, reinforced structure that keeps your server equipment secure and climate-controlled in any environment.
