Bitmain ANTRACK V2 24kW For 4 Units Hydro Cooling Solution
Bitmain ANTRACK V2 is a 24kW split-type hydro cooling cabinet supporting up to 4 hydro miners. Plug-and-play design with versatile heating support.
$8,888.00
Not Fitting Your Site?
Tell us your mining capacity and site requirements, and we'll recommend the right hydro-cooling container for your deployment.
How your container order works
Submit form
Tell us delivery country & site details
Get your quote
Complete pricing within 24 hours
Expert review
Discuss specs, customise setup
DDP delivery
Container shipped to your site
Modular 24kW hydro cooling hub with 80°C heat recovery for Antminer units
CONTAINER CAPACITY
4 UNITS
Housed at full load
24 KW
Continuous electrical load
Custom
Standard
Hydro
Thermal management
POWER INPUT
380V–415V AC 50/60Hz
AVAILABILITY
In stock, ready to ship • DDP Sea Shipping Available
View More ›
Show 1 more models
Turn Mining Waste Into Sustainable Energy
Repurpose your miner’s thermal output to support space heating or domestic hot water. The ANTRACK V2 recovers heat to provide up to 80°C warmth, effectively lowering your utility bills while you generate Bitcoin.
1 × ANTRACK V2 + 4 × ANTMINER
Save thousands with our special package price. Buy the full system together to lower your upfront costs and speed up your ROI.
24kW
Total Power
1,172TH/s
Example Hashrate
≈ 0.212 BTC
Estimated Annual Revenue
How much revenue can your surplus electricity generate in a year?
≈ $62,767
≈ $13,335
Indicative Payback Period 5.6 months
≈ $126,211
≈ $26,813
Indicative Payback Period 2.8 months
$200,000
≈ $42,490
Indicative Payback Period 1.8 months
"Revenue estimates assume 24kW surplus power, 1,172 TH/s, year-round operation and current network conditions.
Payback is based on the S6,20d package price. Mining pool fees, O&M and installation costs are excluded.
Actual results vary with BTC price, network ditticulty and operating time. All amounts are in USD.
If your site can rellably provide around 24kW of surplus power, further assessment is worthwhile.
01. Small Hydropower
Is wet-season power curtalledor sold at very low prices?
02. Solar /Wind
Do peak output or grid limits leave power unused?
03. Biogas /Biomass
Does continuous generation exceed on-site demand?
04. Industrial / On-Site Power
Is stable power left unusedwhen production loads fall?
Full Specifications
Without package
L:1200mm、W:600mm、H:1300mm
With package
L:1460mm、W:780mm、H:1330mm
Weight
210KG
|
Model |
ANTRACK V2-EC4-DTHP |
Installed capacity |
4 units ANTMINER (Hydro) or 4 units ANTMINER (U2 Hydro) or 2 units ANTMINER (U3 Hydro) |
|
Heat Dissipation Capacity |
24 kW |
Power supply AC Input voltage |
380~415V AC |
|
Power supply AC Input Frequency Range |
60 Hz |
Power supply AC Input current |
63 Amp |
|
Rated power |
450 W |
Noise |
60 dBA@1m |
|
Lift |
19 M |
Diameter of water pipe connector |
DN20 MM |
|
External Cooler |
|||
|
Size (L*W*H), (without package) |
1340*570*1330 MM |
Size (L*W*H), (with package) |
1490*590*1495 MM |
|
Net weight, (without package) |
235 KG |
Gross weight, (with package) |
248 KG |
|
Power supply AC input voltage |
380~415V AC |
Power supply AC input frequency range |
50~60 Hz |
|
Maximum power supply AC input current |
21 Amp |
Heating Capacity (typical) |
32 KW |
|
Compressor Input (typical) |
8 KW |
EER (typical) |
3.0 |
|
Sound Level |
50 Db(A) |
Refrigerant |
R290 |
|
Heating water outlet temperature |
80 °C |
4-Slotr Antminer Hydro Cooling Rack Product Brochure
Complete product specifications, installation guide, and operational instructions.
Real-World Hydronic Heating Solutions
Discover how our ANTRACK V2 24kW Hydro Cooling System bridges high-performance computing with sustainable heating—turning server heat and surplus power into reliable, low-cost warmth for communities and commercial buildings.
Key Highlights & Proven Results
Complete Cooling Solutions
We design and manufacture a complete range of hydro cooling solutions for every scale, from hydro cooling cabinets and containers to CDUs and dry coolers.
|
❄️ Cooling Capacity |
|
⚙️ Miner Slots |
|
📏 Dimensions (L × W × H) |
|
🏢 Application |
Compare
4-Slot Antminer Hydro Cooling Rack
|
24 kW |
|
4 Slots |
|
1,200 × 6,00 × 1,300 mm |
|
Home Setup & Heat Recycling |
6-Slot Antminer Hydro Cooling Rack
|
35 kW |
|
6 Slots |
|
8,00 × 8,00 × 1,450 mm |
|
Standard Workshop Mining |
9-Slot Antminer Hydro Cooling Rack
|
50 kW |
|
9 Slots |
|
8,00 × 8,00 × 1,600 mm |
|
Professional Home Facilities |
12-Slot Antminer Hydro Cooling Rack
|
70 kW |
|
12 Slots |
|
7,00 × 8,00 × 1,800 mm |
|
High-Capacity Residential Mining |
Real Results from Real Miners
View All >>

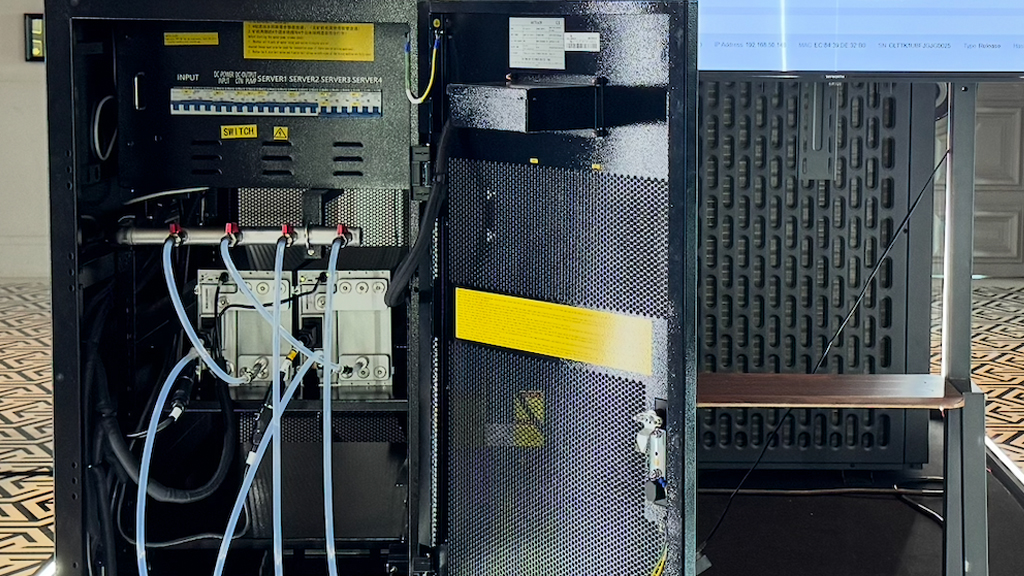

4 x 24kW Small Facility Project
Scaling a workshop operation by mixing standard Antminer hydro units and 3U server-grade miners in a single cluster.
+100%
Heat Reuse
-42dB
Noise Reduction
$0
Extra Heating Fuel
View All >>
2 x 24kW Home Heating Project
Integrating two ANTRACK V2 units into a residential attic to support an entire floor's underfloor heating system.
-28%
Payback Period
-35%
Energy Expenses
99.9%
Thermal Stability
View All >>
“
"The heat recovery on the ANTRACK V2 is a massive advantage for home mining. I have two units in my attic, and they consistently supply 80°C hot water directly to my radiators during the winter. It is virtually silent outside the room, making it a very professional way to mine at home while saving on utility bills."
— Workshop Owner, Utah Mining Site
"What impressed me most was the internal flexibility. We managed to mix S21 Hyd units with a 3U water-cooled miner in the same rack without any pressure issues. The integrated heat pump module keeps the miners at a steady 35°C, and using the waste heat for our workshop has significantly shortened our ROI."
— Home Operator, Zurich Site
1.2+ GW
Cumulative delivered cooling capacity
50+
Countries and regions covered
4-Slot Antminer Hydro Cooling Rack FAQs
The ANTRACK V2 features a 2-tier rack that supports up to a 24kW thermal load with flexible configurations:
Up to 4 units: Classic Antminer Hydro miners (e.g., S19 Hydro series, S21 XP Hydro) or standard 2U miners (2 units per tier).
Up to 2 units: Standard 3U / RACK483 water-cooled server miners (1 unit per tier).
Mix-and-Match: You can freely combine different models (e.g., one 3U miner on the top level and two 2U/Hydro miners on the bottom level).
The system operates in two intelligent modes depending on your seasonal needs:
Heat Dissipation Mode: Hot water from the miners is routed through the dry cooler and high-efficiency fan to exhaust excess heat directly, maintaining a stable ~35°C cooling loop year-round.
Heat Recovery Mode: Thermal energy is captured by the heat pump's evaporator and transferred to the condenser, elevating the water temperature to 50°C–80°C for active space heating or hot water supply.
Miner Side: Continuous and stable cooling water supply at ~35°C, ensuring optimal hash rate and hardware longevity.
Heating Side: Supplies usable hot water from 50°C up to 80°C.
Heating Coverage: Paired with high-efficiency miners like the S21 XP Hydro, a single ANTRACK V2 can heat up to 640 m² (based on a standard heating load of 50 W/m²).
The heat pump unit comes with dedicated external supply pipelines that seamlessly connect into:
Building & Space Heating: Radiator loops and hydronic underfloor heating for residential homes, offices, or hotels.
Hot Water Systems: Domestic hot water (DHW) pre-heating.
Agriculture & Leisure: Commercial greenhouses, indoor farming, and swimming pool / hot tub heating.
Light Industrial: Any low-to-medium temperature industrial process requiring reliable hot water.
The ANTRACK V2 features a plug-and-play split design:
Cabinet & Heat Pump Loop: Connect the cooling cabinet's internal pump/heat exchanger to the heat pump unit using the pre-configured quick-connect ports.
Heating Loop: Connect the secondary pipeline ports on the heat pump directly into your facility's hydronic heating network.
Fill with coolant, power on the control switches, and the system automatically manages water circulation and heat transfer.
ANTRACK V2 creates a dual-revenue stream: Bitcoin mining rewards + substantial savings on heating/gas bills. For example, when running S21 XP Hydro units at an electricity cost of $0.08/kWh and offsetting local heating costs, the estimated payback period can be as short as ~465 days.
