1500 kVA 3-Phase Transformer For Crypto Mining & Data Centers
Key specifications at a glance for quick reference and confident planning.
Rated Capacity
1500 kVA
Feed Type
Loop / Radial
Cooling Medium
ONAN
Frequency
60 Hz
Installation
Outdoor Pad-Mounted
WAREHOUSE LOCATIONS
USA • Canada • UAE • China • Global Dispatch
FAST DISPATCH
Ready Stock • Ships in 1-3 Days • DDP Door-to-Door
Product Profile
Built around a 1.5 MVA power block, the Apexto 1500 kVA Pad-Mounted Transformer is suited to facilities with substantial continuous loads, including mining infrastructure, data centers, and industrial distribution systems.
Compared with smaller 1.0–1.25 MVA units, it provides greater room for load variation, auxiliary equipment, and future expansion. The transformer can be configured for different utility voltages and low-voltage distribution systems, with loop or radial feed options available.
For projects where equipment operates around the clock, the 1500 kVA model offers a practical balance between capacity, thermal performance, and infrastructure scalability without moving immediately into the 2 MVA class.
Core Advantages

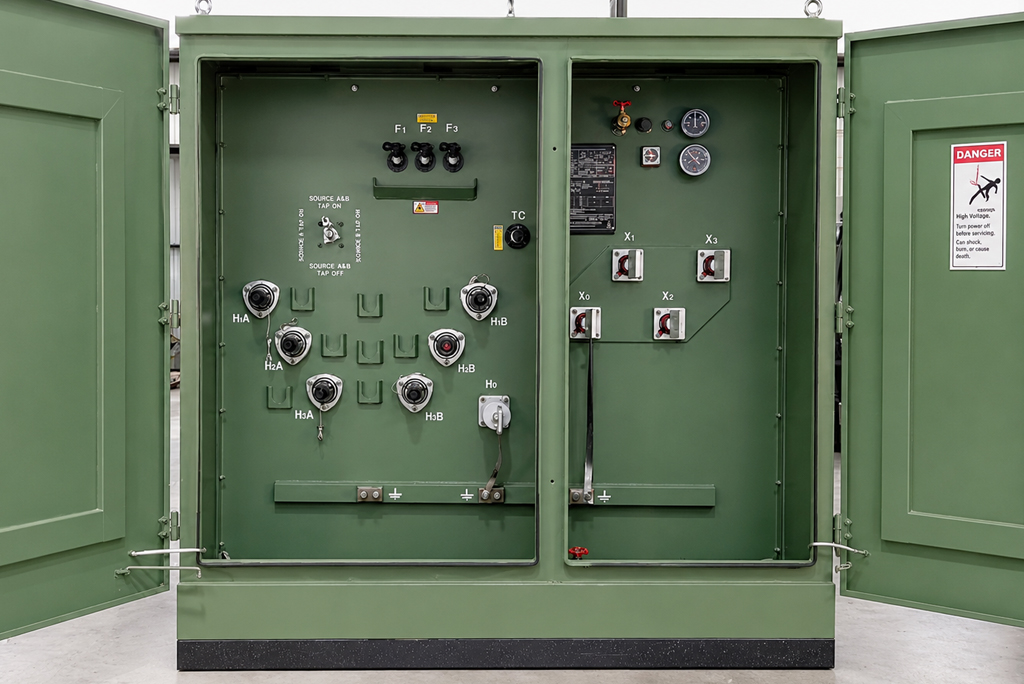

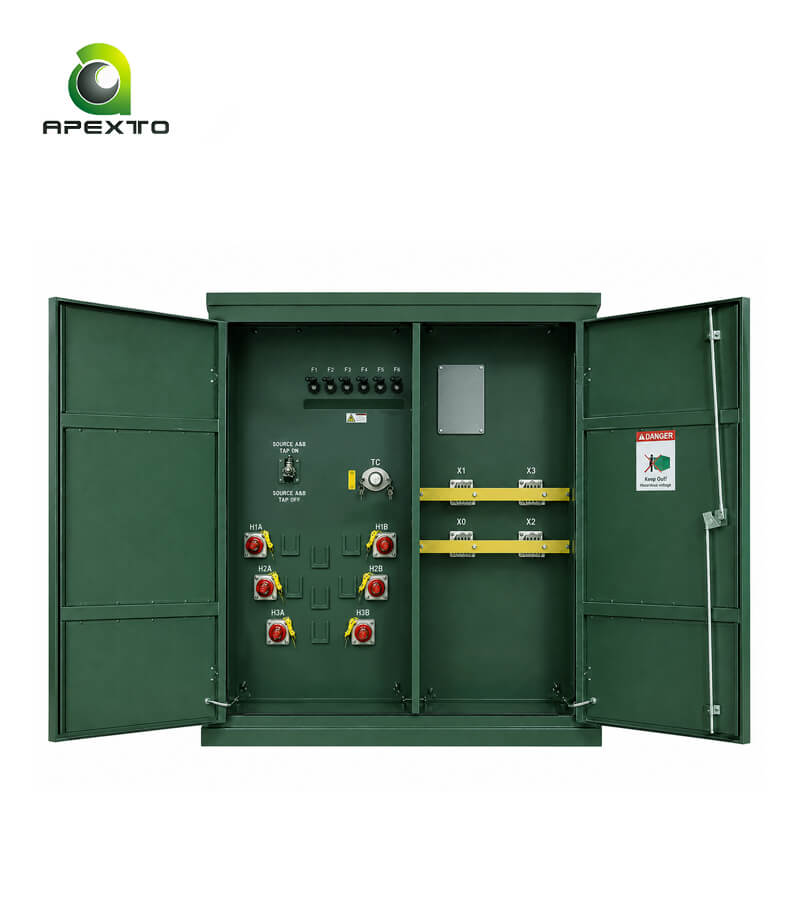

01. Dead-Front Dual Compartment
Features a dual-compartment design separating high and low voltage with a rigid steel barrier. Enclosed dead-front bushings ensure maximum touch safety and tamper protection.

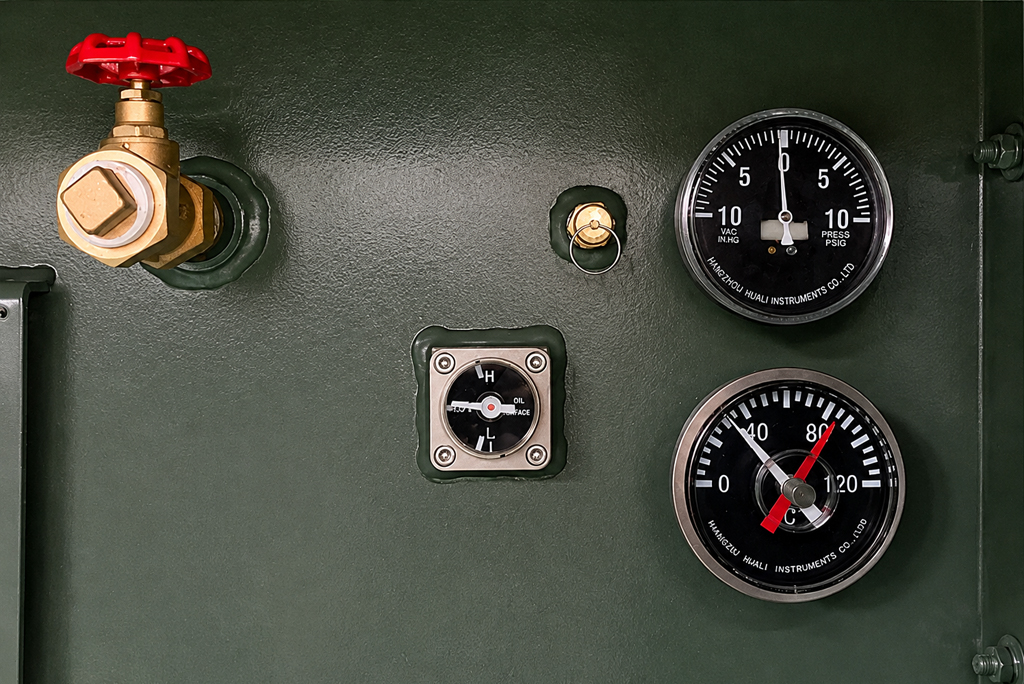

02. Standard Monitoring Gauges
Equipped with precision liquid level, oil temperature, and pressure/vacuum gauges alongside an automatic pressure relief valve (PRV) for real-time operational safety.

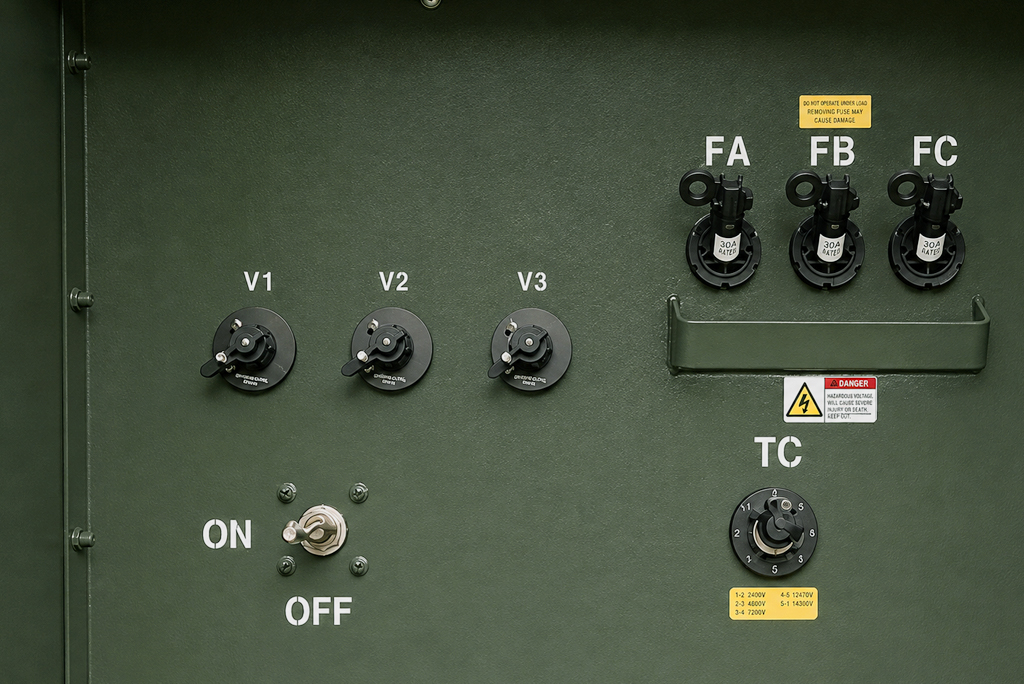

03. Multi-Tier Fuse & Tap Protection
Features Bay-O-Net fuses paired with backup current-limiting fuses and a multi-position tap changer, providing instant fault isolation and seamless voltage regulation.

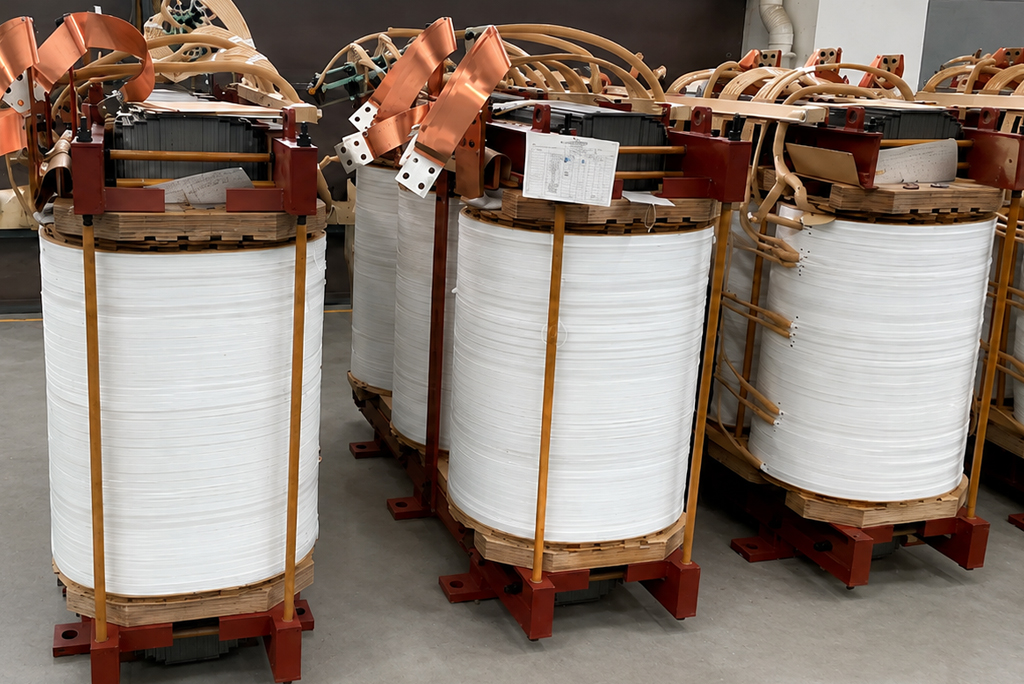

04. Low-Loss Core & Windings
Built with high-grade grain-oriented silicon steel cores and precision-wound coils, delivering ultra-low electrical losses and superior short-circuit withstand capacity.

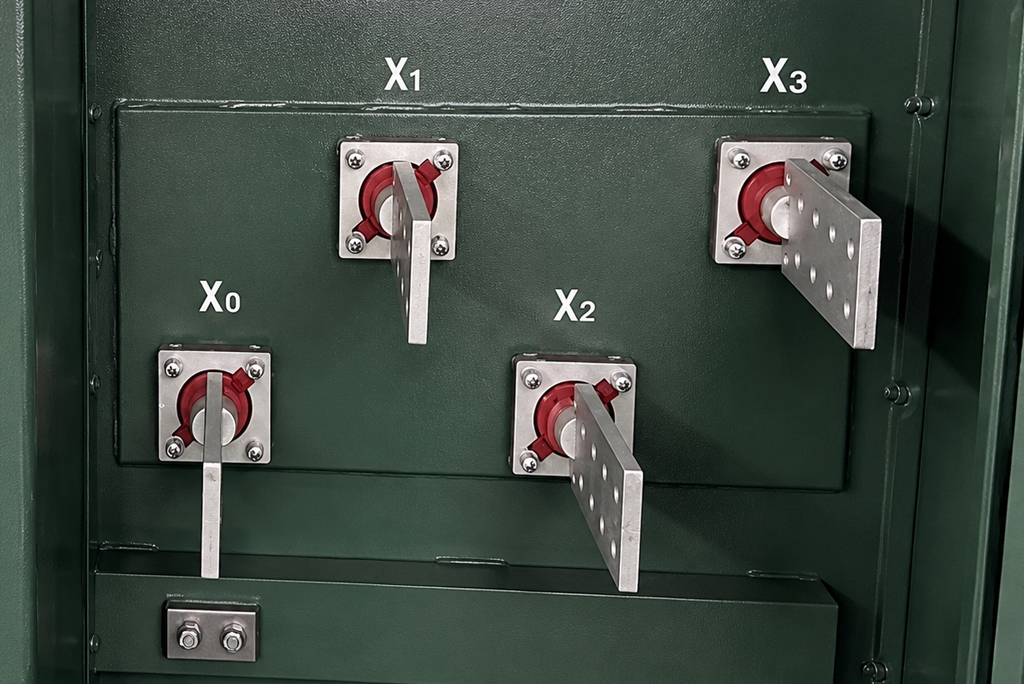

05. High-Conductivity LV Busbars
Fitted with heavy-duty tin-plated NEMA spade terminals (X0–X3) designed for high current capacity, minimizing contact resistance and easing multi-cable connections.
06. Heavy-Duty C5-M Enclosure

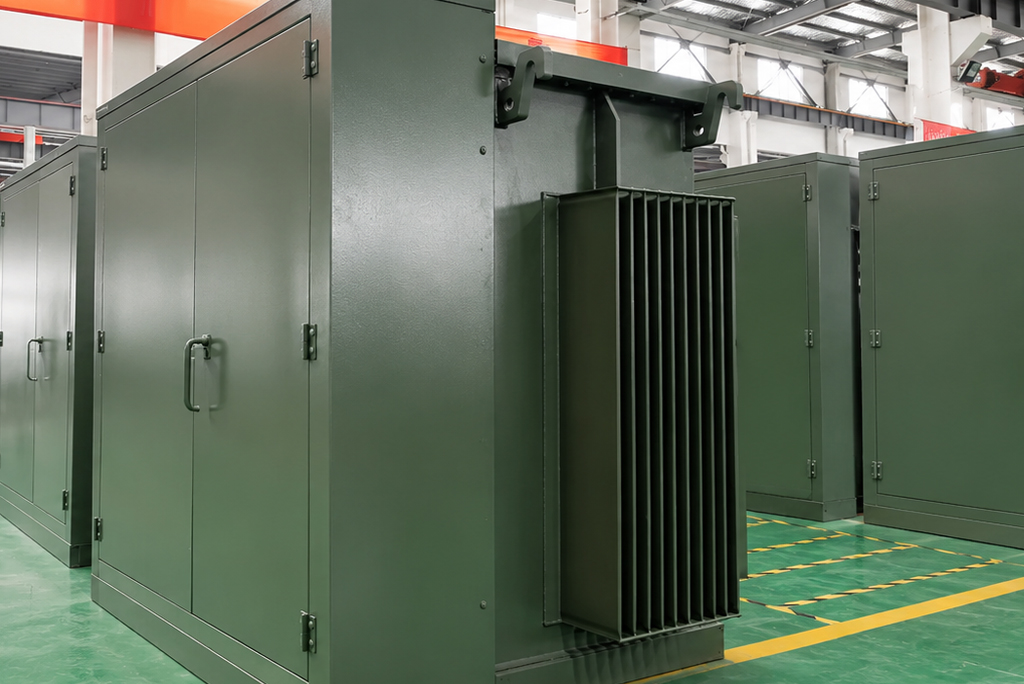

Housed in a rugged, weather-sealed steel enclosure with advanced C5-M anti-corrosion coating and robust cooling radiators, engineered for harsh outdoor environments.
Full Specifications

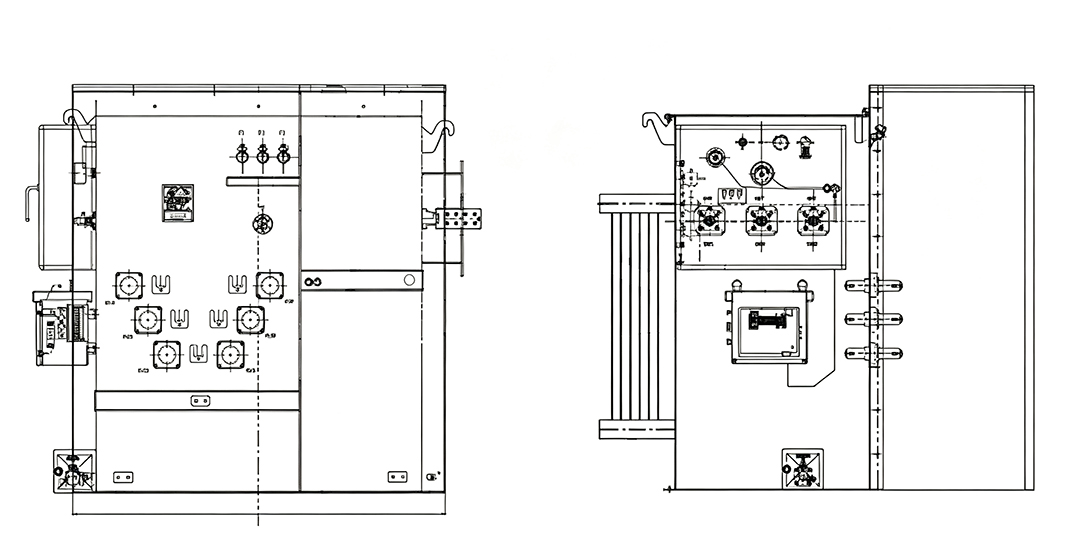

External dimensions
L:1730mm、W:1950mm、H:1900mm
Internal dimensions
L:1680mm、W:1900mm、H:1850mm
Weight
3900KG
|
Rated Capacity |
1500 kVA / 1.5 MVA |
Phase |
Three Phase |
|
Transformer Type |
Pad-Mounted Transformer |
Installation |
Outdoor |
|
Voltage Class |
Up to 35 kV* |
Primary Voltage |
Project-Specific |
|
Secondary Voltage |
Project-Specific |
Frequency |
60 Hz |
|
Cooling Method |
ONAN |
Insulating Fluid |
Mineral Oil* |
|
Enclosure Type |
Tamper-Resistant, Compartmentalized |
Feed Configuration |
Loop Feed / Radial Feed |
|
Primary Connection |
Dead-Front |
Temperature Rise |
65°C |
|
Overcurrent Protection |
Project-Specific |
Sectionalizing Switching |
Available / Project-Specific |
Engineering Documents
Padmount Spec Sheet
Padmount Dimensional Drawings
Padmount Installation Manual
Padmount Test & Warranty Guide
Certifications & Grid Compliance
Fully compliant with UL, CSA, IEEE/ANSI, DOE, and IEC standards. Tested and certified by international authorities to ensure maximum safety, efficiency, and instant approval by local power utilities.
UL/cUL
CSA
CESI
IEEE
IEC
EN00676
AS-NZS
GOST
Infrastructure Capabilities
We supply a full lineup of pad-mount transformers built for heavy-duty power. From 24/7 crypto mining farms to mission-critical data centers, we deliver reliable equipment designed to run non-stop.
We also offer custom engineering tailored to your exact site. From specific high and low voltages to specialized enclosure specs, we customize and deliver units in as fast as 4–6 weeks to get your project powered up on schedule.
Design
Raw Material
Procurement
Procurement
Assembly
Testing
Packaging
Delivery
Request a Project Quote
Tell us about your project or custom requirements. Our power systems engineers will review your specs and provide a tailored proposal.
Global Project References
View All >>

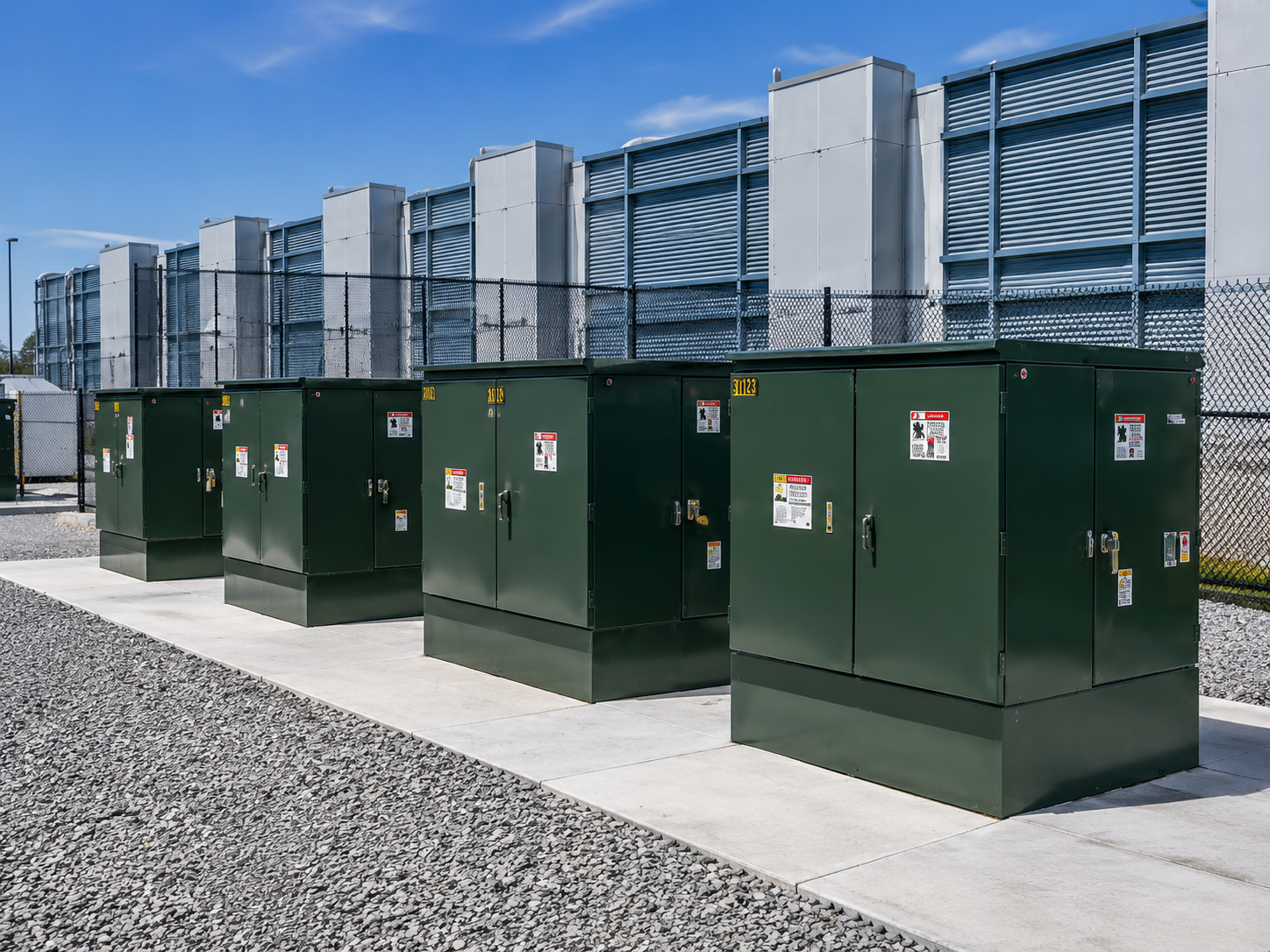

Mexico, Missouri, USA
4 x 1500 kVA Pad-Mounted Transformers for Data Center
Four pad-mounted transformers supplied for a data center project, with ONAN/ONAF cooling to support fluctuating peak loads.
34.5kV
415GrdY/240V
ONAN 1500 / ONAF 2000 kVA

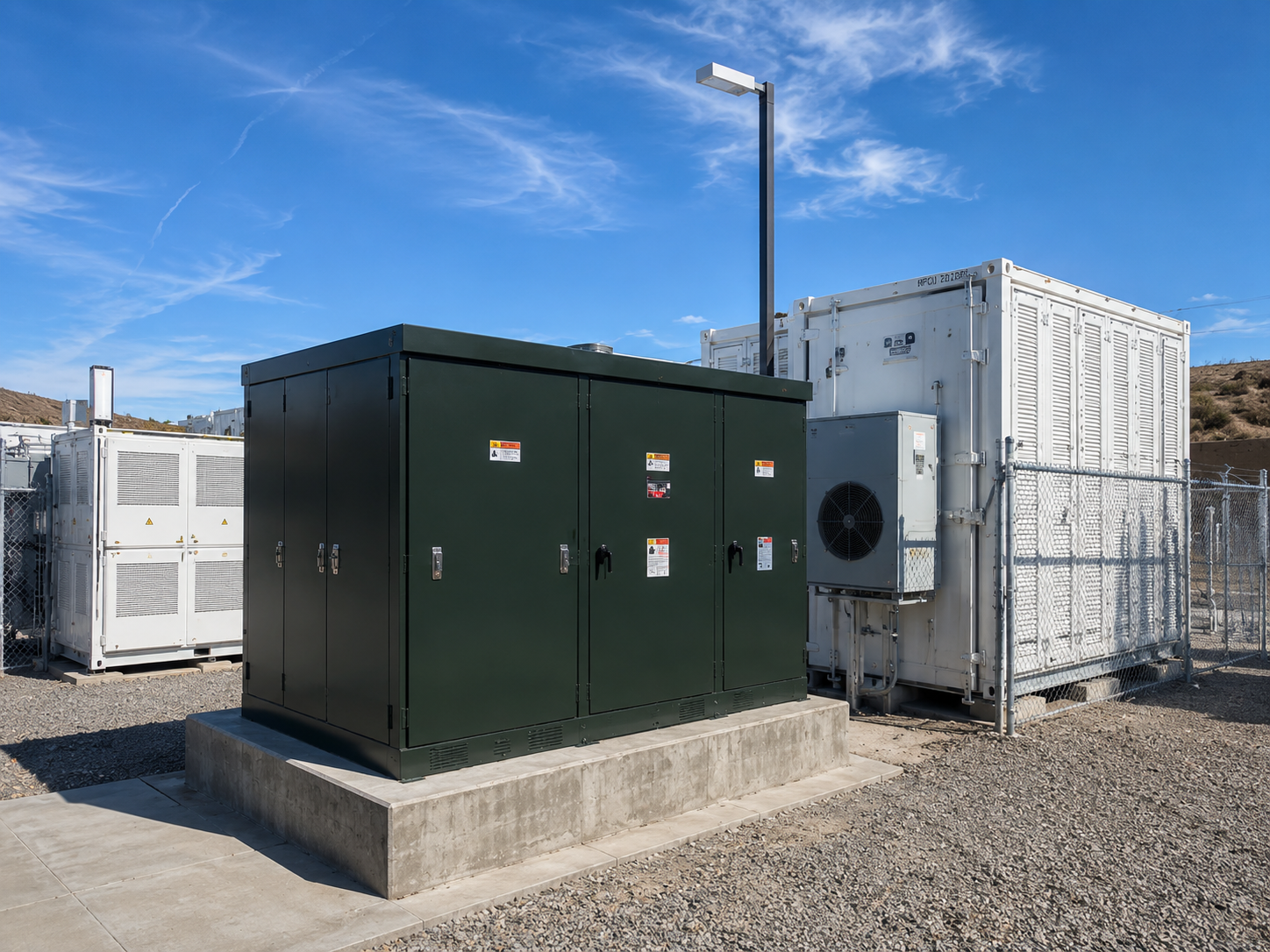

Riverside County, California
1.5 MVA Pad-MountedTransformer for BESS
Three-phase pad-mounted transformer delivered for a battery energy storage system in step-down configuration.
1500kVA
12.47 kV
480Y/277V
Australia
2 x 1500 kVA SubstationTransformers for Mining Site
Compact substation transformers engineered for narrow mining tunnels, using biodegradable vegetable oil insulation.
13.8 kV Delta
415Y/240V
99.4% Efficiency
Quebec, Canada
1500 kVA Substation
Transformer Project
Step-down transformer supplied to connect
a substation with the hydroelectric grid in
Quebec.
1500 kVA
24.94 kV GrdY
600Y/347V
Capabilities & Support
24-Month Quality Warranty
Enjoy peace of mind with our 24-month full warranty. If any operational issue arises with your transformer, our dedicated engineering team will resolve it rapidly and reliably.
Local Field Service Team

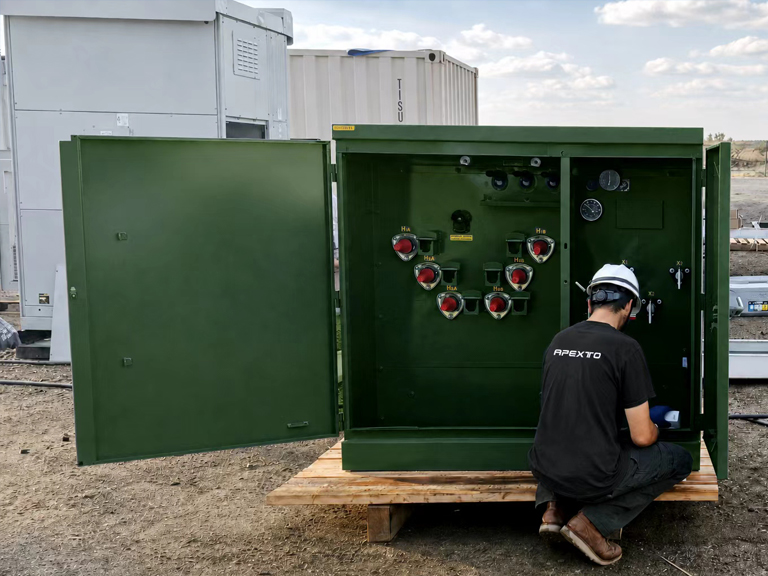

Whether in North America or global regions, our certified local engineering teams provide professional on-site transformer installation, energization testing, and maintenance.
24/7 Remote Video Support
Connect directly with our senior power engineers via live video for real-time installation guidance, system diagnostics, and instant troubleshooting support, anytime and anywhere.
Spare Parts & Support
We maintain an extensive inventory of genuine spare parts for fast dispatch, paired with lifetime technical guidance to maximize your equipment uptime.
Need a Customized Power & Transformer Solution?
Talk to our engineers to get an optimized configuration and fast quote.
FAQs
How many amps does a 1500 kVA transformer provide at 480V?
About 1,804A at full load on a three-phase 480V system.
Is 1500 kVA enough for a 1.2 MW mining or data center load?
Yes, in many cases. At 0.95 PF, 1.2 MW equals about 1,263 kVA, leaving useful capacity for operating margin and auxiliary loads.
Can a 1500 kVA transformer feed a 2000A switchboard?
Yes. A 1500 kVA, 480V transformer delivers about 1,804A, so a properly designed 2000A switchboard is a practical match.
How much real power can a 1500 kVA transformer support?
About 1,425 kW at 0.95 PF and up to 1,500 kW at unity power factor.
What primary voltages can Apexto configure for a 1500 kVA transformer?
Common options include 12.47kV, 13.2kV, 13.8kV, 24.94kV, and 34.5kV, with secondary voltage configured around the project.
Should I choose loop feed or radial feed?
Radial feed works well for a simple dedicated transformer. Loop feed is better for multi-transformer sites, future expansion, or more flexible medium-voltage distribution.
Can Apexto build 13.8kV to 480Y/277V?
Yes. 13.8kV to 480Y/277V is a common configuration for mining, data center, and industrial power distribution projects.
Can a new 1500 kVA transformer fit my existing concrete pad?
Often yes. Send us the existing nameplate, pad dimensions, cable-entry locations, and drawings so the enclosure layout can be checked before production.
What information does Apexto need before quoting?
Primary voltage, secondary voltage, total load, application, loop/radial feed, termination type, impedance/BIL requirements, and any existing utility or EPC specification.
Recommended Capacities
Discover our full lineup of three-phase pad-mounted transformers built for projects of any scale.
View All >>
1000KVA

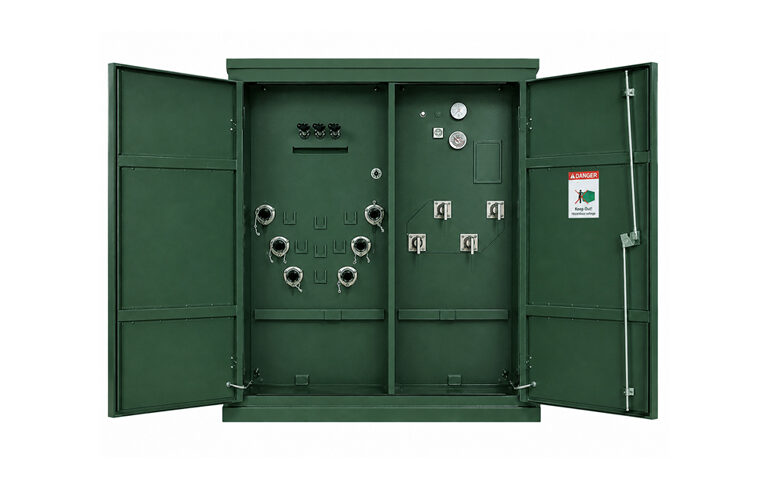

1000 kVA Pad Mount Three-Phase Transformer
|
Primary Voltage |
2.4 kV – 34.5 kV Class |
|
Secondary Voltage |
120 V – 600 V Range |
|
Availability |
USA & China |
2000KVA
2000 kVA Pad Mount Three-Phase Transformer
|
Primary Voltage |
2.4 kV – 34.5 kV Class |
|
Secondary Voltage |
120 V – 600 V Range |
|
Availability |
USA & China |
2550KVA
2550 kVA Pad Mount Three-Phase Transformer
|
Primary Voltage |
2.4 kV – 34.5 kV Class |
|
Secondary Voltage |
120 V – 600 V Range |
|
Availability |
USA & China |
3000KVA

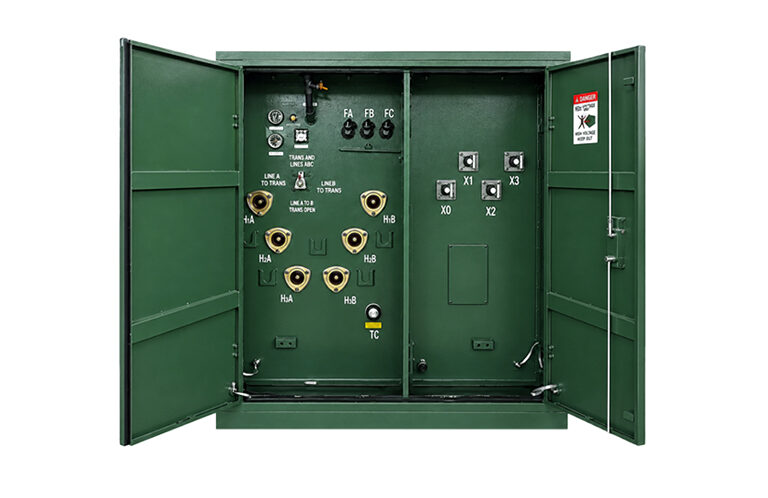

3000 kVA Pad Mount Three-Phase Transformer
|
