Modular "Dual-Deployment" Hydro Container for Antminer 3U Series
CONTAINER CAPACITY
ASIC MINERS
135 UNITS
Housed at full load
TOTAL POWER
1,620 KW
Continuous electrical load
FORM FACTOR
Custom
Standard
COOLING
Hydro
Thermal management
POWER INPUT
380V–415V AC 50/60Hz
AVAILABILITY
Typical lead time 45 days • DDP Sea Shipping Available
Product Description

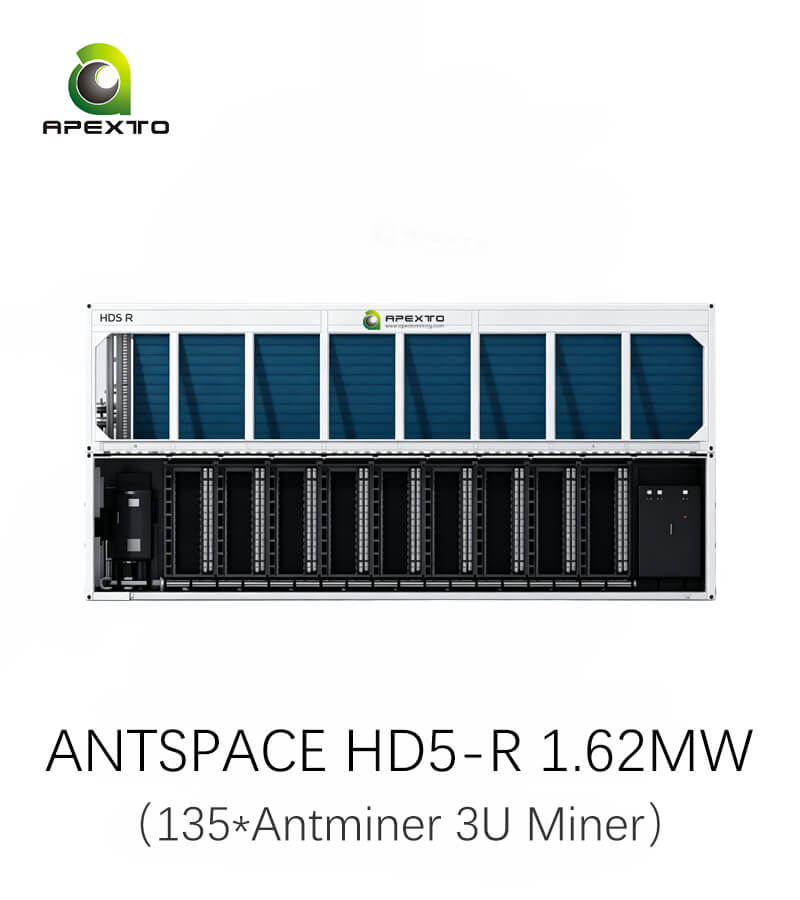

Designed for exceptional deployment agility across diverse operational scales, the 1.62MW 135-Slot Bitmain ANTSPACE HD5-R Hydro Cooling Container 40FT HQ delivers highly flexible datacenter infrastructure.
Optimized specifically for Antminer 3U server class hydro miners, this robust solution features a unique removable outer shell. This innovative design allows operators to seamlessly adapt the entire system between two distinct deployment models: a standard forty foot containerized configuration or an agile, factory based indoor datacenter layout.
Available in both UL and CE certified versions to ensure strict regulatory compliance globally, the HD5-R secures highly stable, reliable liquid cooling performance, maximizing space and power efficiency at any scale.
Core Advantages
Full Specifications
External dimensions
L:12192mm、W:2438mm、H:2896mm
Internal dimensions
L:12000mm、W:2230mm、H:2660mm
Weight
12000 KG
|
Model |
ANTSPACE HD5-R |
Installed capacity |
135 units -U3S23H. & U3S21EXPH. miner |
|
Main Switch Capacity of Power Distribution Cabinet |
1200*3 A |
Rated Power |
1620 kW |
|
Maximum Supported Input Current |
900 A |
Maximum Current per Miner Slot |
24 A |
|
Flow rate |
≥130 m*/h |
Quantity of ANTSPACE powered by one 3750kVA Transformer |
2 |
|
Heat Dissipation Capacity |
1620 kW |
Supply Liquid Temperature |
35±1℃ |
|
Operationg Power |
≤70 kW |
Connection interface |
DN125 |
|
Noise @25℃, 15m |
75dBA |
Input Voltage |
AC400V±5% 50/60Hz |
|
Ambient Temperature |
-40~50 ℃ |
Ambient Humidity |
10%~90% RH |
|
Altitude converter |
≤2000 M |
Antminer 3U 135-Slot Hydro Cooling Container Product Brochure
Complete product specifications, installation guide, and operational instructions.
Certification Standards
Our products meet leading international standards for safety, reliability, and performance.
China Classification Society
Marine & offshore compliance
UL Listed
Safety tested & certified
CSA Certified
North American compliance
CE Marking
European conformity
Recommended Power Setup
Match your container deployment with the appropriate transformer capacity.
For 1 x 1.6 MW Container
2000 kVA Three-Phase Pad-Mounted Transformer
Complete Cooling Solutions
We design and manufacture a complete range of hydro cooling solutions for every scale, from hydro cooling cabinets and containers to CDUs and dry coolers.
|
❄️ Cooling Capacity |
|
⚙️ Miner Slots |
|
📏 Dimensions (L × W × H) |
|
🏢 Application |
90-Slot Antminer 3U Hydro Cooling Container
|
1.1 MW |
|
90 Slots |
|
1,2192 × 2,438 × 2,896 mm |
|
Spacious Commercial Layouts |
104-Slot Antminer 3U Hydro Cooling Container
|
1.25 MW |
|
104 Slots |
|
1,2192 × 2,438 × 2,896 mm |
|
Standard Mid-Scale Farms |
Compare
135-Slot HD5-R Hydro Cooling Container
|
1.62 MW |
|
135 Slots |
|
1,2192 × 2,438 × 2,896 mm |
|
Modular Data Center Sites |
180-Slot Antminer 3U Hydro Cooling Container
|
2.16 MW |
|
180 Slots |
|
1,2192 × 2,438 × 2,896 mm |
|
High-Density Enterprise Farms |
135-Slot ANTSPACE HD5-R Hydro Container FAQs
Which specific ASIC models are compatible with this container?
This 1.62MW container is custom engineered for Bitmain Antminer's standard 3U hydro server configurations, fully supporting high density deployments of the Antminer U3S23H, Antminer U3S21EXPH, and Antminer U3S19XPH models with exact matching cabinet rack dimensions for optimal thermal airflow under heavy full loads.
What is the benefit of the removable outer shell design for indoor integrations?
The removable outer shell allows operators to easily strip away the container's protective siding, enabling seamless, agile integration of the core server racking directly into pre existing indoor building structures, warehouses, or factory spaces without requiring complex structural modifications at any local site.
How do the dual deployment models facilitate seamless integration into enterprise data centers?
Operators can deploy this system as a standard forty foot containerized solution or as an agile indoor setup, ensuring flexible, compliant scalability for large scale HPC and data center facilities globally while maintaining consistent water pressure and thermal performance under heavy full loads.
How does the A/B dual-loop cooling loop protect high-value servers during pump maintenance?
It integrates dual pump CDU redundancy to prevent circulation failure, alongside floor mounted moisture detecting ropes and independent breakers. Any coolant leakage or water flow drops trigger instant remote alerts and automatic power cutoffs to safeguard your active server hardware under heavy load.
How does the system handle different global grid voltages and regulatory compliance?
To meet regional electrical standards, this container is available in distinct UL certified or CE certified configurations. This ensures strict compliance with North American and international safety regulations, facilitating seamless local grid connections and reliable, legally compliant site operations on any standard grid.
