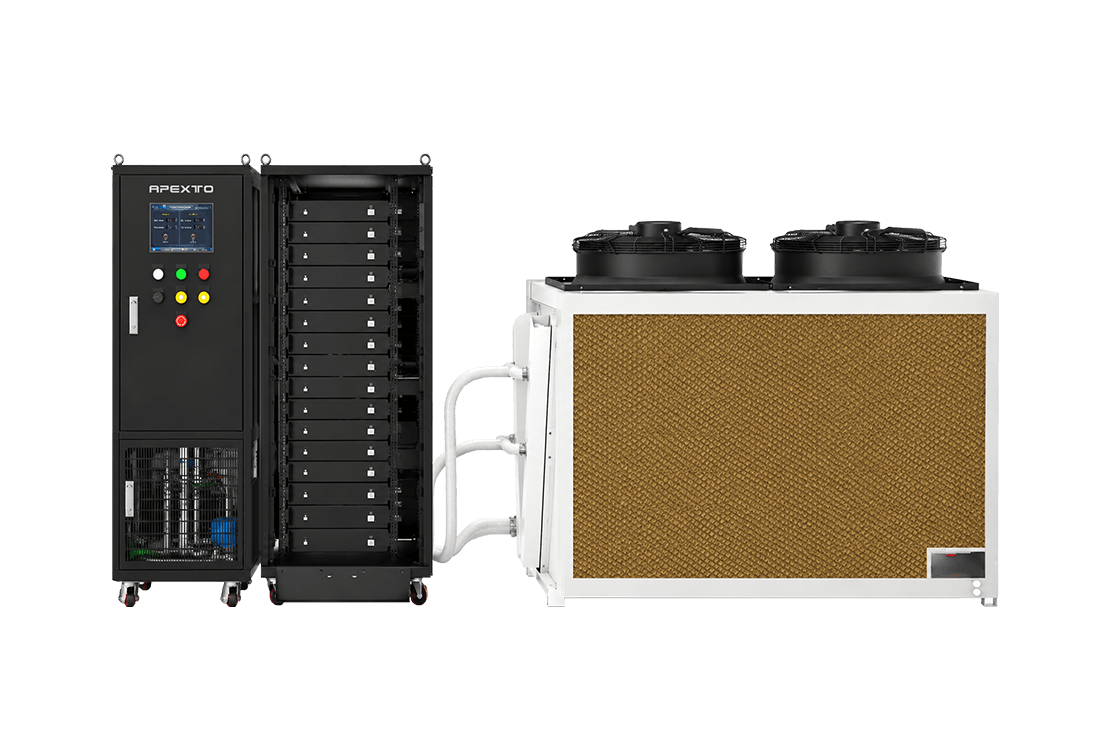

20-Slot 200kW Hydro Cooling System for Antminer 2U
CAPACITÉ DU CONTENEUR
MINEURS ASIC
20 UNITÉS
Logé à pleine charge
POUVOIR TOTAL
200 KW
charge électrique continue
FACTEUR DE FORME
Encadrement Sur Mesure
Standard
REFROIDISSEMENT
Hydro
La gestion thermique
ENTRÉE DE PUISSANCE
380 V–415 V CA 50/60 Hz
DISPONIBILITÉ PRODUIT
En stock, prêt à être expédié • Livraison maritime DDP disponible
Description du produit
The 20-Slot 200kW Hydro Cooling System is a specialized liquid cooling solution engineered specifically for Antminer 2U models. As dedicated 2U hydro infrastructure remains rare across the market, this standardized 42U rack delivers a purpose-built solution—housing up to 20 units of Antminer S23e U2H, L9 Hyd 2U, and L11 Hyd 2U with an ultra-low PUE below 1.05.
Pairing an indoor hydro cabinet with a high-efficiency outdoor dry cooler, the system guarantees stable thermal performance across demanding climates. The integrated CDU automatically balances fluid circulation, keeping chip temperatures optimal to eliminate heat-induced throttling and ensure full-hashrate stability.
Factory pre-wired and pre-plumbed for true plug-and-play commissioning, the system minimizes on-site deployment time. It also supports flexible custom configurations and modular multi-rack expansion, allowing operators to seamlessly scale their 2U hydro capacity as their mining operations grow.
Avantages de base
Évolutivité modulaire de l'infrastructure de 1 à N
La conception modulaire 1-à-N permet une extension de puissance flexible de 200 kW à 1 000 kW, permettant aux sites de minage d'évoluer en fonction de la demande. Dotée d'un système de pompage à haut débit personnalisé et d'une armoire de contrôle dédiée, cette solution garantit une gestion fiable de plusieurs racks, éliminant ainsi le besoin de refontes majeures de l'infrastructure à mesure que votre puissance de hachage augmente.
Caractéristiques complètes
Dimensions externes
L : 12 000 mm, l : 2 230 mm, H : 2 660 mm
Dimensions internes
L : 12 000 mm, l : 2 230 mm, H : 2 660 mm
Poids
250KG
|

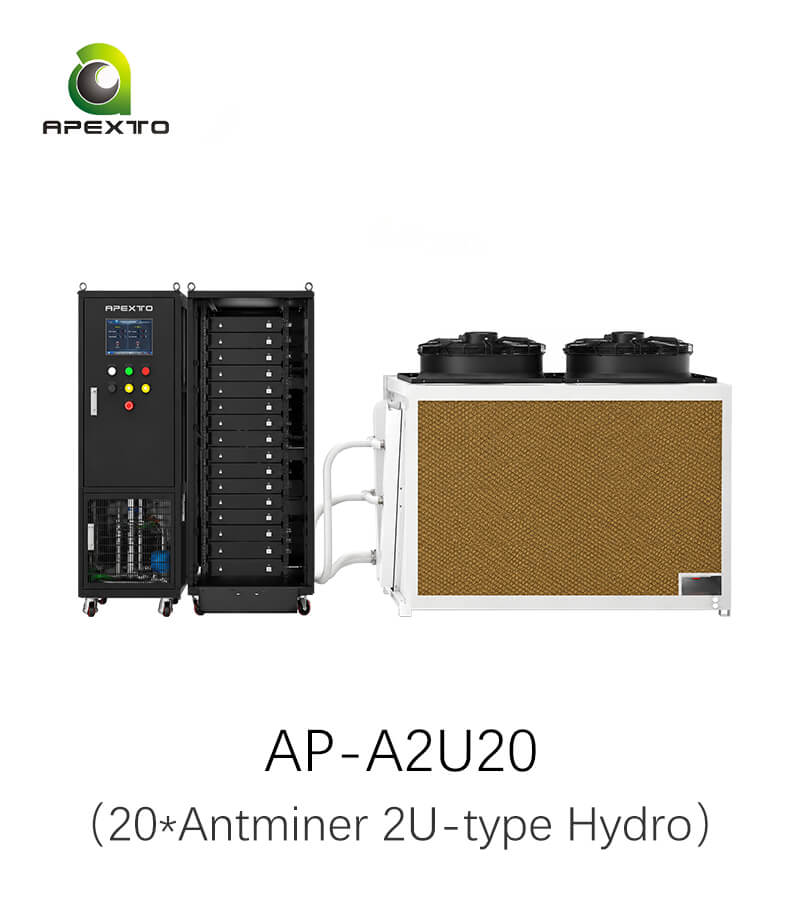

Modèle |
AP-A2U20 |
Capacité installée |
Siège 20 |
|
Certifications |
Certification UL/CE |
Composition du système |
Dry cooler *1 |
|
Consommation d'énergie du système |
10kW |
Capacité de dissipation thermique |
> 200KW |
|
Adaptabilité environnementale |
-20 ℃ ~ 45 ℃ |
Spécifications de l'armoire |
Armoire standard 42U |
|
Mode température constante |
Variable frequency speed control of EC fan+EC fan stepwise regulation |
Pompe |
3 kW * 1 |
|
Poids Cabinet |
250 kg |
Dimensions du cabinet |
950mm (L) * 600mm (W) * 2150mm (H) |
|
CDU weight |
250 kg |
Dimensions du CDU |
1050mm (L) * 600mm (W) * 2150mm (H) |
|
Dry cooler weight |
650 kg |
Dry cooler Dimensions |
2400mm (L) * 1450mm (W) * 1730mm (H) |
Brochure produit du rack de refroidissement hydrodynamique Antminer 2U à 20 emplacements
Spécifications complètes du produit, guide d'installation et instructions d'utilisation.
Normes de certification
Nos produits répondent aux normes internationales les plus exigeantes en matière de sécurité, de fiabilité et de performance.
Société de classification chinoise
Conformité maritime et offshore
UL
Testé et certifié conforme aux normes de sécurité
Certifié CSA
Conformité nord-américaine
Marquage CE
Conformité européenne
Solutions de refroidissement complètes
Nous concevons et fabriquons une gamme complète de solutions de refroidissement hydraulique pour toutes les échelles, allant des armoires et conteneurs de refroidissement hydraulique aux CDU et refroidisseurs secs.
|
❄️ Capacité de refroidissement |
|
⚙️ Machines à sous de mineur |
|
📏 Dimensions (L × l × H) |
|
🏢 Application |
Comparer
Rack de refroidissement hydrodynamique 2U Antminer à 20 emplacements
|
200kW |
|
20 Slots |
|
950 × 600 x 2150 mm |
|
Extension modulaire des installations |

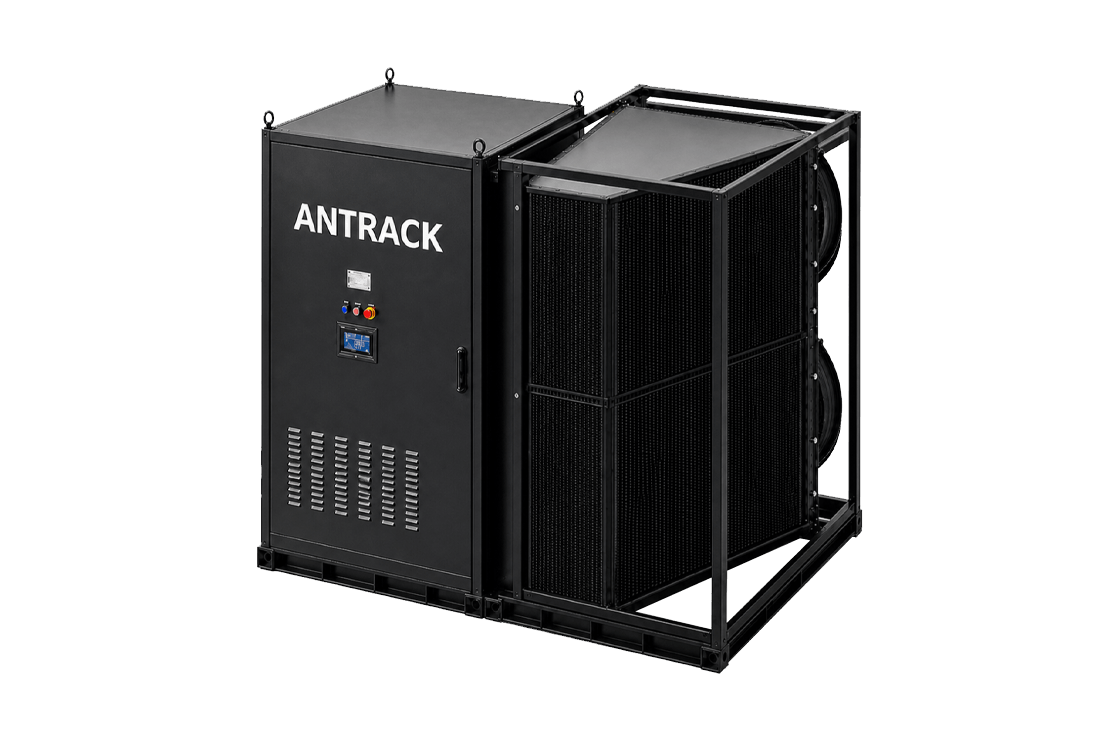

ANTRACK AR31 20-Slot Antminer 2U Hydro Cooling Rack
|
200kW |
|
20 Slots |
|
1,000 × 12,00 x 2,300 mm |
|
Installation à domicile et recyclage de la chaleur |
ANTRACK AR30 20-Slot Antminer 2U Hydro Cooling Rack
|
200kW |
|
20 Slots |
|
1,000 × 12,00 x 2,300 mm |
|
Installations professionnelles à domicile |

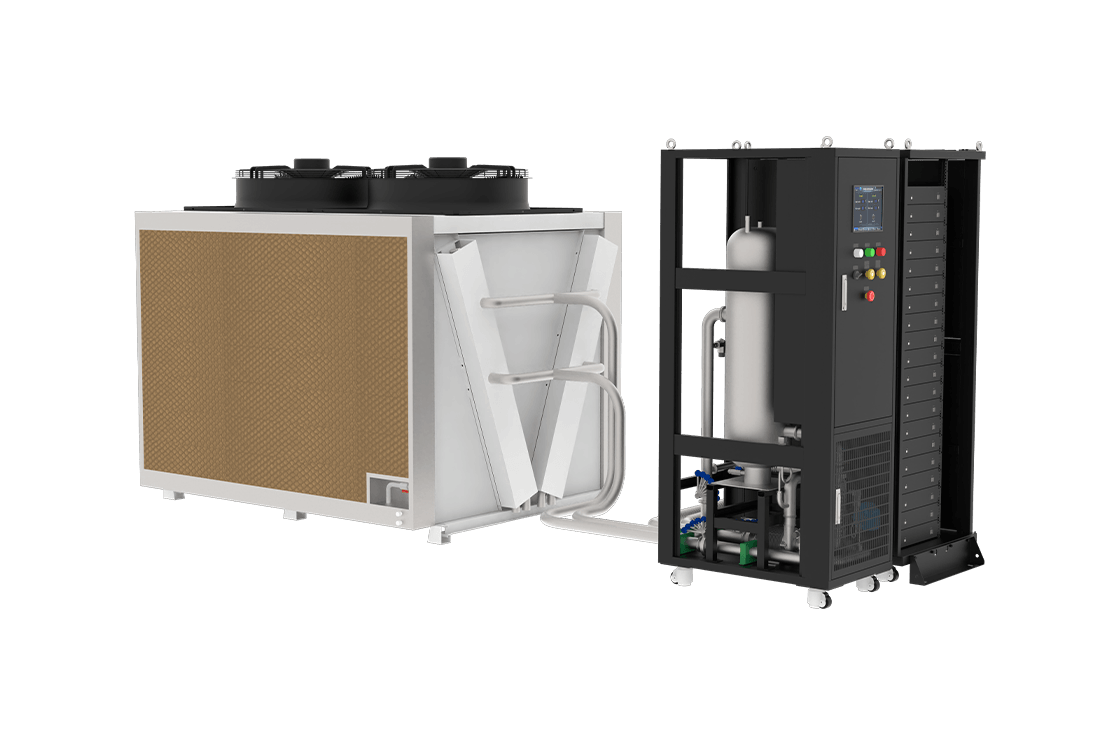

Rack de refroidissement hydrodynamique 3U Antminer à 15 emplacements
|
200kW |
|
15 Slots |
|
8,00 × 1,050 x 2,100 mm |
|
Extension modulaire des installations |
FAQ sur le rack de refroidissement hydrodynamique 2U pour Antminer à 20 emplacements
Which miners are compatible with this 20-slot hydro cooling rack?
The system is purpose-built and factory-matched for the Antminer 2U hydro series, providing 20 standardized slots engineered specifically for models including the Antminer S23e Hyd 2U, L9 Hyd 2U, and L11 Hyd 2U. The 42U cabinet's internal mounting rails, quick-connect water manifolds, and dedicated 20A circuit breakers are precision-configured to match the exact chassis dimensions, power inputs, and thermal dissipation requirements of these 2U units out of the box.
Does the outdoor dry cooler consume water, and how do the wet curtains work?
Under standard ambient temperatures, the system operates as a closed-loop dry cooler with zero water consumption, circulating coolant without evaporative loss. The integrated adiabatic wet curtains serve as an optional high-temperature booster. During peak summer heat waves (when ambient air exceeds 35°C–40°C), wetting the curtains pre-cools the incoming air through evaporation, maintaining high heat transfer efficiency and preventing miner thermal throttling with minimal water usage.
What are the electrical supply and transformer requirements for this system?
The system requires a 380V–415V AC 3-phase power supply (50/60Hz). Total power consumption is approximately 210kW (covering 20 high-power 2U miners plus the cooling pumps and dry cooler fans). The indoor rack comes pre-wired with an integrated industrial PDU featuring twenty 20A circuit breakers (20A × 20) for individual slot protection. Operators typically require a dedicated 250 kVA to 315 kVA transformer (or equivalent facility headroom) to support continuous full-load operation.
How are the indoor 42U cabinet and outdoor dry cooler connected? What is the maximum piping distance?
The indoor rack connects to the outdoor dry cooler via two insulated fluid pipes (supply and return) powered by the CDU’s integrated 17.3 m³/h circulation pump. The standard recommended piping distance between the indoor cabinet and outdoor cooler is within 10 to 15 meters (30–50 ft) using DN50/DN65 pipes to ensure minimal pressure drop and optimal flow rates. If your site requires longer pipe runs, our engineering team can provide auxiliary booster pump guidance.
Can multiple 20-slot racks be scaled or linked together for larger warehouse deployments?
Yes, the system is fully modular and scalable. Operators can deploy individual stand-alone units (1 rack + 1 dry cooler) or parallel multiple 42U racks together in warehouse environments. For multi-rack deployments, multiple indoor cabinets can either retain dedicated dry coolers for independent redundancy or tie into a centralized high-capacity outdoor cooling loop, allowing your 2U hydro fleet to expand smoothly from 20 units to hundreds of units.
What safety protections and alarms are integrated into the CDU?
The all-in-one CDU is equipped with an automated PLC control module that monitors key hydraulic parameters in real time. It features a low-liquid-level alarm to detect coolant loss, an automated blowdown/drainage alarm for maintenance, and loop pressure/temperature tracking. If an abnormal pressure drop or critical fluid temperature is detected, the system triggers alerts to protect ASIC hashboards and electrical components from thermal and dry-run damage.
