480kW Immersion System B24 Tank×4 Supports up to 96 Antminers or 120 Whatsminers

SKU: Fog Hashing B24-480kW


Trusted by

39 People watching this product now!

480kW lmmersion System (96 Miners)

Qty of B24 Tanks 4
B24 Outer Size 2486*746*530mm
Input Voltage 3-phase 350-480V 50/60Hz
Output Voltage Single-phase 200-277V 50/60Hz
Cooling Capacity 480kW@35°C
Ambient Temp -25°C ~ 55°C
Net Weight (Tank) 688kg
Coolant Volume 3000L
Max Inlet/Outlet Temp 45/65°C
Max Power Load 40kW
Network 100Mbps Ethernet switch
Pipe Diameter DN65/DN80
Dry Cooler FHDC480
Dry Cooler (EC Fan)
Model FHDC480
Cooling Capacity 480kW
Circulation Medium Water/Glycol
Input Voltage 3-phase 350-480V 50/60Hz
Max Power Load (kW) 16
Max Inlet/Outlet Temp (°C) 40/45
Reference Temperature (°C) 35
Total Air Volume (m³/h) 218543
Dimensions (mm) 5250*1874*2100
Noise Level @25°C, 16m 70
Shipping Weight (kg) 2250
Operating Pressure (MPa) 0.4

Note: About the transportation of liquid cooling equipment

For most areas, the liquid cooling equipment will be shipped to you via sea freight. Ports and receiving points in different regions will incur different shipping charges. It is recommended that you contact customer service to confirm address details and calculate shipping costs before placing an order.

Customized from 100kW to 100MW

120kW Immersion System (24 Miners) - 1*B24 Tank

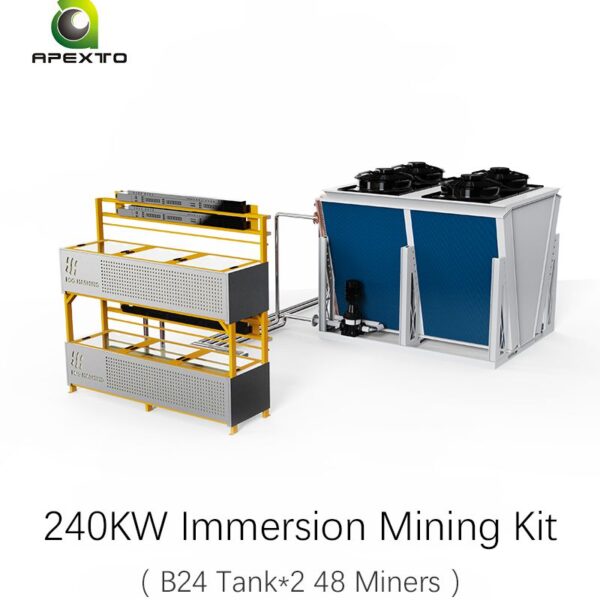

240kW Immersion System (48 Miners) - 2*B24 Tanks

480kW Immersion System (96 Miners) - 4*B24 Tanks

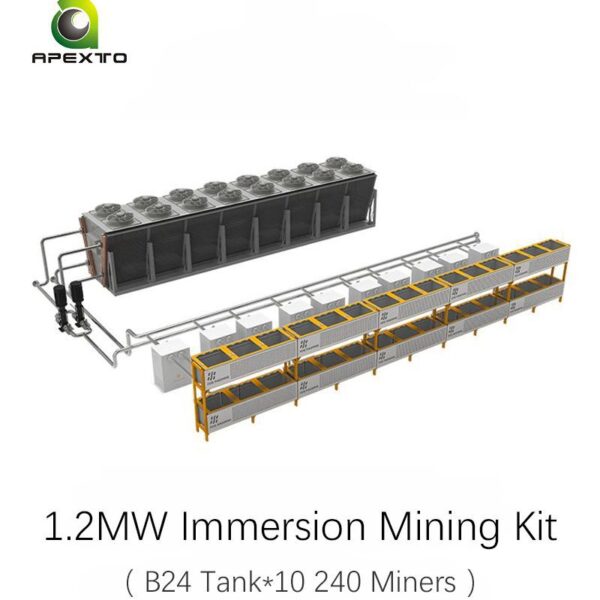

1.2MW Immersion System (240 Miners) - 10*B24 Tanks
