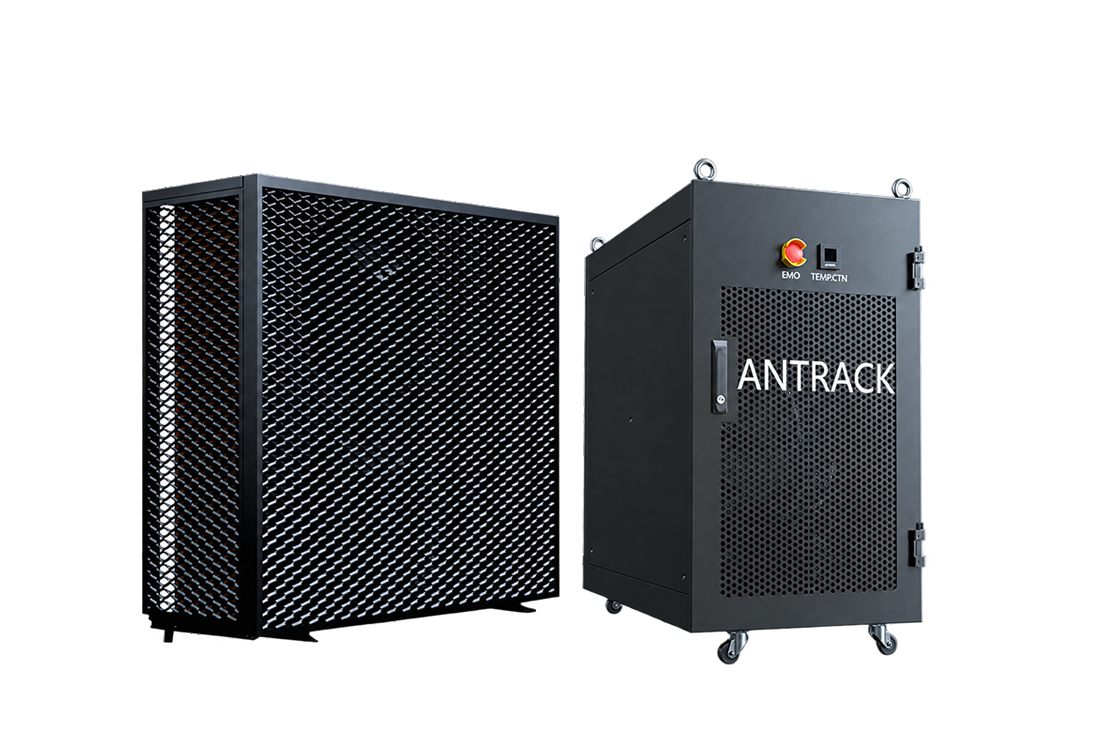

Bitmain ANTRACK V2 24kW Soluzione di raffreddamento idroelettrico per 4 unità
Bitmain ANTRACK V2 è un armadio di raffreddamento idroelettrico split-type da 24 kW che supporta fino a 4 miner idroelettrici. Design plug-and-play con supporto di riscaldamento versatile.
$8,888.00
Non è adatto al tuo sito?
Comunicaci la tua capacità di estrazione e i requisiti del sito, e ti consiglieremo il container di raffreddamento idraulico più adatto alle tue esigenze.
Come funziona il tuo ordine di container
Invia modulo di
Comunicaci il paese e il luogo di consegna
Ottieni il tuo preventivo
Preventivo completo entro 24 ore
Revisione degli esperti
Discuti le specifiche, personalizza la configurazione
Consegna DDP
Contenitore spedito al tuo sito
Modular 24kW hydro cooling hub with 80°C heat recovery for Antminer units
CAPACITÀ DEL CONTENITORE
4 UNITA '
Alloggiato a pieno carico
24 KW
Carico elettrico continuo
Custom
Standard
Hydro
Gestione termica
POTENZA INGRESSO
380V–415V CA 50/60Hz
DISPONIBILITA
Disponibile in magazzino, pronto per la spedizione • Spedizione via mare con DDP disponibile
Visualizza altro ›
Mostra altri 1 modelli
Turn Mining Waste Into Sustainable Energy
Repurpose your miner’s thermal output to support space heating or domestic hot water. The ANTRACK V2 recovers heat to provide up to 80°C warmth, effectively lowering your utility bills while you generate Bitcoin.
1 × ANTRACK V2 + 4 × ANTMINER
Save thousands with our special package price. Buy the full system together to lower your upfront costs and speed up your ROI.
24 kW
Potenza totale
1,172TH / s
Example Hashrate
≈ 0.212 BTC
Entrate annuali stimate
How much revenue can your surplus electricity generate in a year?
≈ $ 62,767
≈ $ 13,335
Indicative Payback Period 5.6 mesi
≈ $ 126,211
≈ $ 26,813
Indicative Payback Period 2.8 mesi
$200,000
≈ $ 42,490
Indicative Payback Period 1.8 mesi
"Revenue estimates assume 24kW surplus power, 1,172 TH/s, year-round operation and current network conditions.
Payback is based on the S6,20d package price. Mining pool fees, O&M and installation costs are excluded.
Actual results vary with BTC price, network ditticulty and operating time. All amounts are in USD.
If your site can rellably provide around 24kW of surplus power, further assessment is worthwhile.
01 piccolo idroelettrico
Is wet-season power curtalledor sold at very low prices?
02 Solar /Wind
Do peak output or grid limits leave power unused?
03 Biogas /Biomass
Does continuous generation exceed on-site demand?
04 Industrial / On-Site Power
Is stable power left unusedwhen production loads fall?
Specifiche complete
Without package
L:1200mm、W:600mm、H:1300mm
Con pacchetto
L:1460mm、W:780mm、H:1330mm
Peso
210KG
|
Modello |
ANTRACK V2-EC4-DTHP |
Capacità installata |
4 units ANTMINER (Hydro) or 4 units ANTMINER (U2 Hydro) or 2 units ANTMINER (U3 Hydro) |
|
Capacità di dissipazione del calore |
24kW |
Alimentazione Tensione di ingresso CA |
380 ~ 415V AC |
|
Gamma di frequenza di ingresso CA dell'alimentazione |
60 Hz |
Alimentazione CA Corrente di ingresso |
63 Amp |
|
potenza nominale |
450 W |
Rumore |
60 dBA a 1 m |
|
Sollevamento |
19 M |
Diameter of water pipe connector |
DN20 MM |
|
Raffreddatore esterno |
|||
|
Size (L*W*H), (without package) |
1340 * * 570 1330 MM |
Size (L*W*H), (with package) |
1490 * * 590 1495 MM |
|
Net weight, (without package) |
235 kg |
Gross weight, (with package) |
248 kg |
|
Tensione di ingresso CA dell'alimentatore |
380 ~ 415V AC |
Power supply AC input frequency range |
50 ~ 60 Hz |
|
Maximum power supply AC input current |
21 Amp |
Heating Capacity (typical) |
32 KW |
|
Compressor Input (typical) |
8 KW |
EER (tipico) |
3.0 |
|
Livello audio |
50 dB(A) |
Refrigerante |
R290 |
|
Heating water outlet temperature |
80 ° C |
4-Slotr Antminer Hydro Cooling Rack Product Brochure
Specifiche complete del prodotto, guida all'installazione e istruzioni per l'uso.
Real-World Hydronic Heating Solutions
Discover how our ANTRACK V2 24kW Hydro Cooling System bridges high-performance computing with sustainable heating—turning server heat and surplus power into reliable, low-cost warmth for communities and commercial buildings.
Key Highlights & Proven Results
Soluzioni di raffreddamento complete
Progettiamo e produciamo una gamma completa di soluzioni di raffreddamento idraulico per ogni dimensione, da armadi e container di raffreddamento idraulico a unità di distribuzione dell'aria (CDU) e refrigeratori a secco.
|
❄️ Capacità di raffreddamento |
|
⚙️ Slot per minatori |
|
📏 Dimensioni (L × P × A) |
|
🏢 Applicazione |
Confronta
Rack di raffreddamento Antminer Hydro a 4 slot
|
24kW |
|
Slot 4 |
|
1,200 × 6,00 × 1,300 mm |
|
Home Setup & Heat Recycling |
Rack di raffreddamento Antminer Hydro a 6 slot
|
35kW |
|
Slot 6 |
|
8,00 × 8,00 × 1,450 mm |
|
Standard Workshop Mining |
Rack di raffreddamento Antminer Hydro a 9 slot
|
50kW |
|
Slot 9 |
|
8,00 × 8,00 × 1,600 mm |
|
Professional Home Facilities |
Rack di raffreddamento Antminer Hydro a 12 slot
|
70kW |
|
Slot 12 |
|
7,00 × 8,00 × 1,800 mm |
|
High-Capacity Residential Mining |
Risultati reali da veri minatori
Visualizza tutto >>

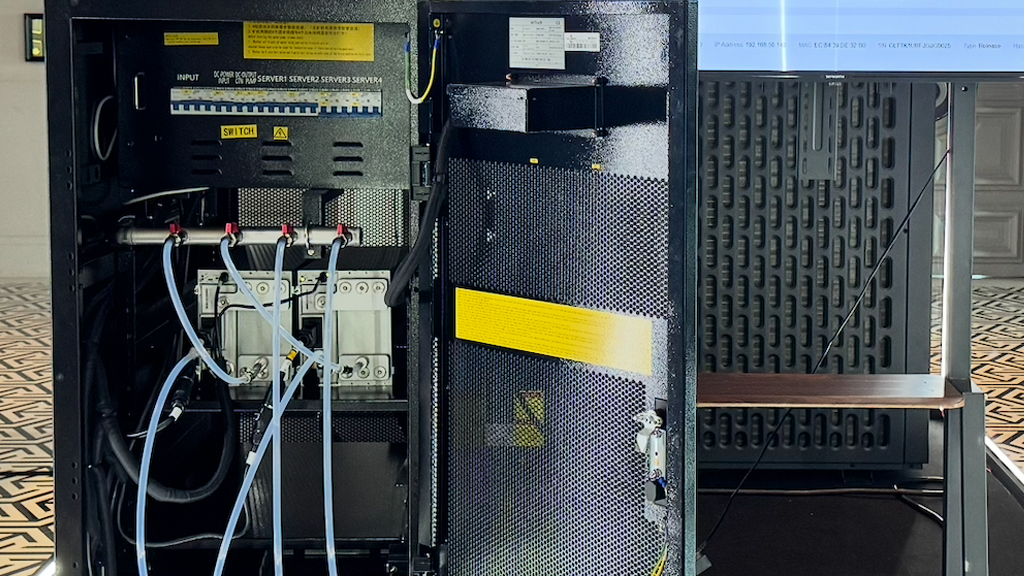

4 x 24kW Small Facility Project
Scaling a workshop operation by mixing standard Antminer hydro units and 3U server-grade miners in a single cluster.
+ 100%
Riutilizzo del calore
-42dB
Riduzione del rumore
$0
Extra Heating Fuel
Visualizza tutto >>

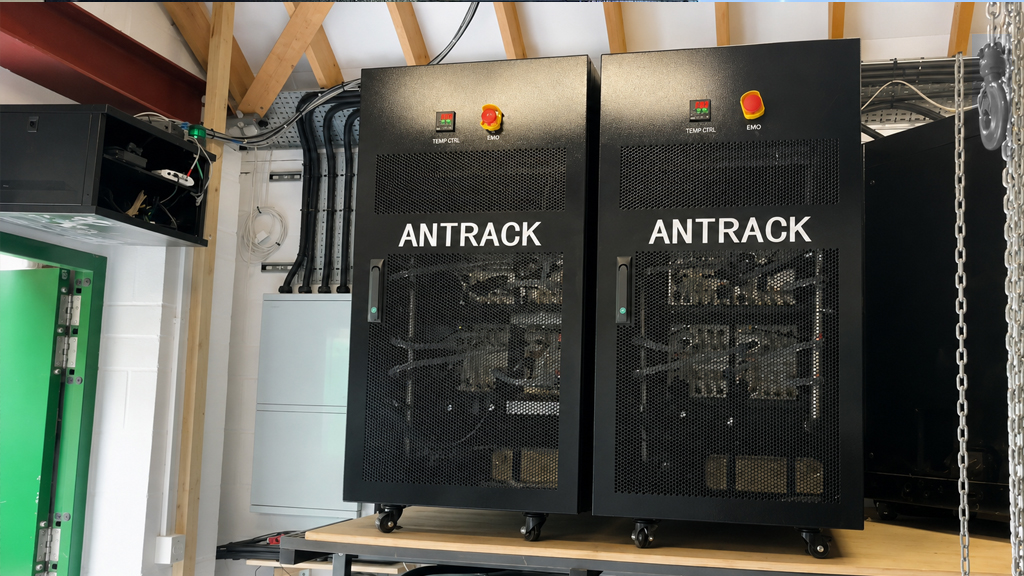

2 progetto di riscaldamento domestico da 24 kW
Integrating two ANTRACK V2 units into a residential attic to support an entire floor's underfloor heating system.
-28%
Periodo di rimborso
-35%
Spese energetiche
99.9%
Stabilità termica
Visualizza tutto >>
"
"The heat recovery on the ANTRACK V2 is a massive advantage for home mining. I have two units in my attic, and they consistently supply 80°C hot water directly to my radiators during the winter. It is virtually silent outside the room, making it a very professional way to mine at home while saving on utility bills."
— Workshop Owner, Utah Mining Site
"What impressed me most was the internal flexibility. We managed to mix S21 Idr units with a 3U water-cooled miner in the same rack without any pressure issues. The integrated heat pump module keeps the miners at a steady 35°C, and using the waste heat for our workshop has significantly shortened our ROI."
— Home Operator, Zurich Site
Oltre 1.2 GW
Capacità di raffreddamento cumulativa erogata
50+
Paesi e regioni coperte
Domande frequenti sul rack di raffreddamento Antminer Hydro a 4 slot
The ANTRACK V2 features a 2-tier rack that supports up to a 24kW thermal load with flexible configurations:
Up to 4 units: Classic Antminer Hydro miners (e.g., S19 Hydro series, S21 XP Hydro) or standard 2U miners (2 units per tier).
Up to 2 units: Standard 3U / RACK483 water-cooled server miners (1 unit per tier).
Abbinamenti personalizzati: You can freely combine different models (e.g., one 3U miner on the top level and two 2U/Hydro miners on the bottom level).
The system operates in two intelligent modes depending on your seasonal needs:
Modalità di dissipazione del calore: Hot water from the miners is routed through the dry cooler and high-efficiency fan to exhaust excess heat directly, maintaining a stable ~35°C cooling loop year-round.
Heat Recovery Mode: Thermal energy is captured by the heat pump's evaporator and transferred to the condenser, elevating the water temperature to 50 ° C – 80 ° C for active space heating or hot water supply.
Miner Side: Continuous and stable cooling water supply at ~ 35 ° C, ensuring optimal hash rate and hardware longevity.
Lato riscaldamento: Supplies usable hot water from da 50°C a 80°C.
Copertura del riscaldamento: Paired with high-efficiency miners like the S21 XP Hydro, a single ANTRACK V2 can heat up to 640 m² (based on a standard heating load of 50 W/m²).
The heat pump unit comes with dedicated external supply pipelines that seamlessly connect into:
Building & Space Heating: Radiator loops and hydronic underfloor heating for residential homes, offices, or hotels.
Sistemi di acqua calda: Domestic hot water (DHW) pre-heating.
Agriculture & Leisure: Commercial greenhouses, indoor farming, and swimming pool / hot tub heating.
Industria leggera: Any low-to-medium temperature industrial process requiring reliable hot water.
The ANTRACK V2 features a plug-and-play split design:
Cabinet & Heat Pump Loop: Connect the cooling cabinet's internal pump/heat exchanger to the heat pump unit using the pre-configured quick-connect ports.
Heating Loop: Connect the secondary pipeline ports on the heat pump directly into your facility's hydronic heating network.
Fill with coolant, power on the control switches, and the system automatically manages water circulation and heat transfer.
ANTRACK V2 creates a dual-revenue stream: Bitcoin mining rewards + substantial savings on heating/gas bills. For example, when running S21 XP Hydro units at an electricity cost of $0.08/kWh and offsetting local heating costs, the estimated payback period can be as short as ~ 465 giorni.
